Renault Zoe & E-Tech Transmission Drain Plug – M16 x 1.5, without Seal

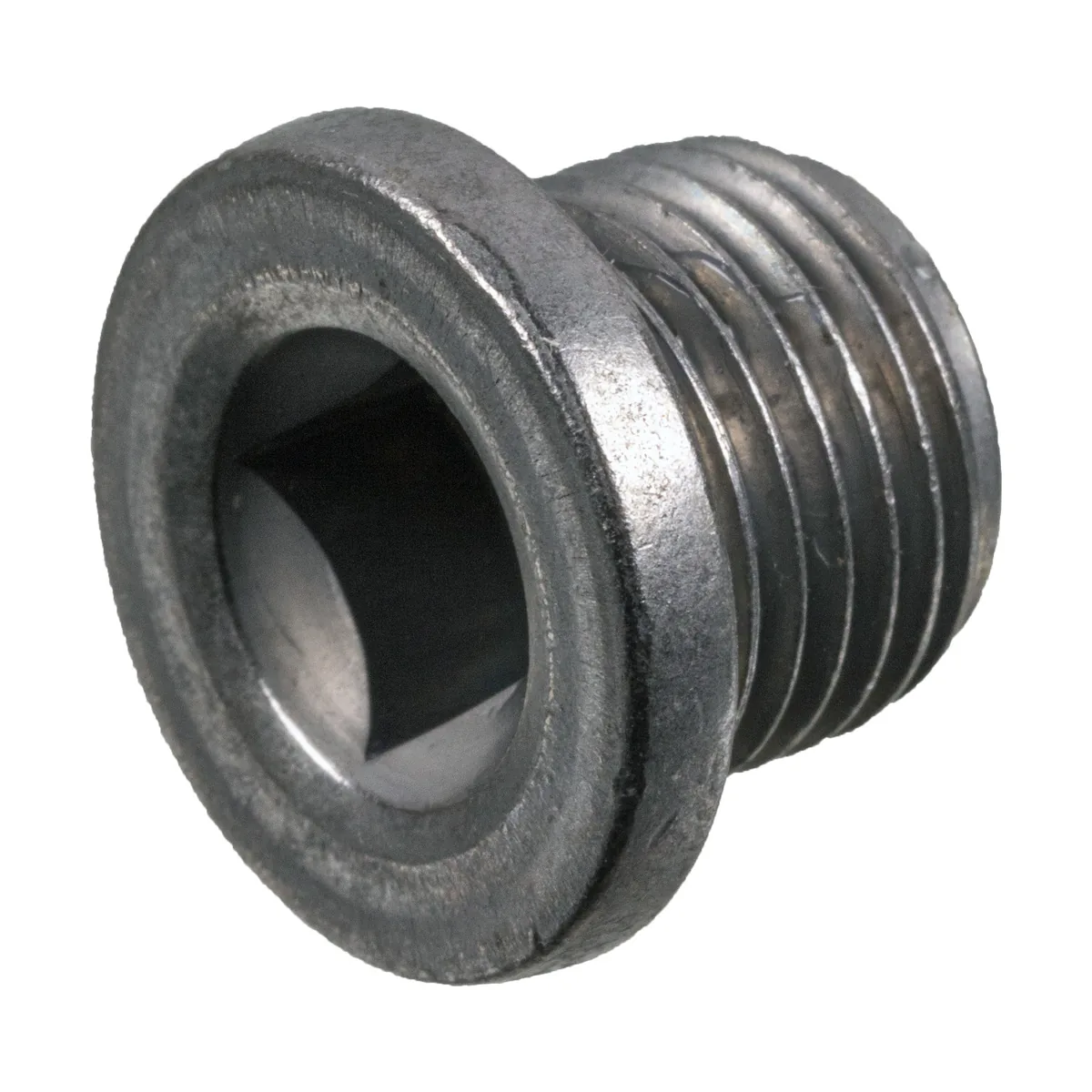

This oil drain plug is for the reduction gearbox of the Renault Zoe and many Renault E-Tech electric models. It is an M16 x 1.5 plug with an 8 mm square drive and zinc-nickel coating, supplied without a sealing ring.
Replace the plug if the drive is rounded, the thread is damaged or it weeps oil. Fit a new sealing ring every time the plug is removed.
Choose Febi 178850 or Blue Print ADBP010001 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68 and 80 kW, Kangoo E-Tech Electric 90 kW, Kangoo Van E-Tech Electric 90 kW, Grand Kangoo E-Tech Electric 90 kW, Scenic E-Tech Electric 125 and 160 kW, 5 E-Tech Electric 70, 90 and 110 kW, 4 E-Tech Electric 90 and 110 kW and Master E-Tech Electric 96 and 105 kW. Some versions carry a note in the fitment table. The parts finder adds build-date and fitting notes for some versions, shown word for word in the table. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- M16 x 1.5 drain plug
- 8 mm square drive
- Zinc-nickel coated
- Sealing ring sold separately
- Febi and Blue Print options
Replaces Renault part numbers 77 03 075 347 S1, 60 01 543 168, 74 01 271 562, 77 03 075 129, 77 03 075 152, 79 03 075 033, 96 22 774 480, 96 33 755 880 and 96 39 839 980.
Installation
Professional installation recommended. Clean the seat, fit a new sealing ring, tighten to the service figure and refill with the oil Renault specifies to the correct level.
Explore More Parts
- All Renault Zoe Parts
- All Transmission
- All Renault 4 E-Tech Parts
- All Renault 5 E-Tech Parts
- All Renault Kangoo III Parts
| Attribute | Value |
|---|---|
| Thread Size | M16 x 1.5 |
| Length | 16 mm |
| Thread Length | 12 mm |
| Drive | 8 mm square socket |
| Outer Diameter | 22 mm |
| Surface | Zinc-nickel coated |
| Part Number | Febi 178850 | Blue Print ADBP010001 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault 4 E-Tech Electric (2025 –) | (E) – 110 kW / 150 hp |
| Renault 4 E-Tech Electric (2025 –) for this vehicle to be used as engine oil drain plug | (E) – 90 kW / 122 hp |
| Renault 5 E-Tech Electric (2024 –) for this vehicle to be used as automatic transmission oil drain plug | (E) – 110 kW / 150 hp |
| Renault 5 E-Tech Electric (2024 –) for this vehicle to be used as automatic transmission oil drain plug | (E) – 70 kW / 95 hp |
| Renault 5 E-Tech Electric (2024 –) for this vehicle to be used as automatic transmission oil drain plug | (E) – 90 kW / 122 hp |
| Renault Grand Kangoo E-Tech Electric (2024 –) for this vehicle to be used as engine oil drain plug / for this vehicle to be used as automatic transmission oil drain plug | (E) – 90 kW / 122 hp |
| Renault Kangoo E-Tech Electric (2022 –) for this vehicle to be used as automatic transmission oil drain plug | (E) – 90 kW / 122 hp |
| Renault Kangoo Van E-Tech Electric (2022 –) for this vehicle to be used as automatic transmission oil drain plug | (E) – 90 kW / 122 hp |
| Renault Master E-Tech Electric (2024 –) | (E) – 105 kW / 143 hp |
| Renault Master E-Tech Electric (2024 –) for this vehicle to be used as engine oil drain plug | (E) – 96 kW / 131 hp |
| Renault Scenic E-Tech Electric (2023 –) | (E) – 125 kW / 170 hp |
| Renault Scenic E-Tech Electric (2023 –) | (E) – 160 kW / 218 hp |
| Renault Zoe (2012 –) for this vehicle to be used as engine oil drain plug | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) for this vehicle to be used as engine oil drain plug | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
| Alpine A290 (BP) (2024 –) Listed for Febi 178850 | 416 – 132 kW / 179 hp |
| Alpine A290 (BP) (2024 –) Listed for Febi 178850 | 416 – 160 kW / 218 hp |
Renault Zoe & E-Tech Transmission Drain Plug – M16 x 1.5, without Seal FAQs
Which part numbers does it replace?
Replaces Renault part numbers 77 03 075 347 S1, 60 01 543 168, 74 01 271 562, 77 03 075 129, 77 03 075 152, 79 03 075 033, 96 22 774 480, 96 33 755 880 and 96 39 839 980. Febi and Blue Print part numbers are listed in the specifications.
Is a sealing ring included?
No. Use Febi 44850, or the kit Febi 194717 with plug and ring, which we list separately.
Why does the table say engine oil drain plug?
Those notes are copied word for word from the parts finder. On these electric models the plug drains the transmission.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68 and 80 kW, Kangoo E-Tech Electric 90 kW, Kangoo Van E-Tech Electric 90 kW, Grand Kangoo E-Tech Electric 90 kW, Scenic E-Tech Electric 125 and 160 kW, 5 E-Tech Electric 70, 90 and 110 kW, 4 E-Tech Electric 90 and 110 kW and Master E-Tech Electric 96 and 105 kW. Some versions carry a note in the fitment table. The parts finder adds build-date and fitting notes for some versions, shown word for word in the table. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
