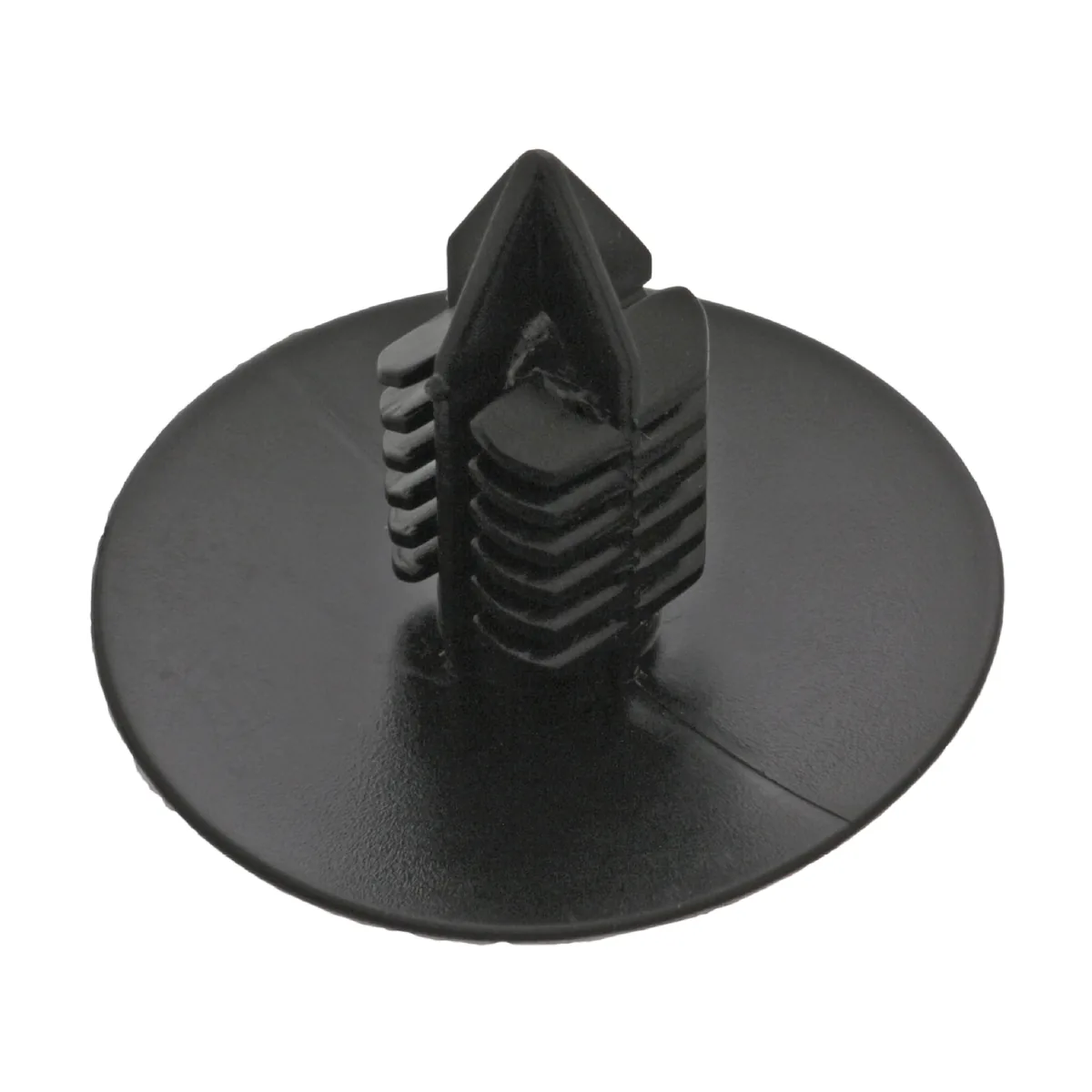

Renault Zoe Underbody Panel Clip – 10 mm
This black clip holds the underbody panels in place on the Renault Zoe and several other Renault electric models, including the Twizy. It fits a 10 mm hole and has a 35 mm head to grip the panel.
Replace clips that are broken or missing, especially if an underbody panel is hanging down, scraping or flapping at speed.
This is Febi part number 100609, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to. If you are replacing several parts at once, use the links below to browse our other Renault Zoe parts.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 65, 68, 80 and 100 kW, Fluence Z.E. 70 kW, Kangoo Van Z.E. 44 kW, Master Z.E. 57 kW and Twizy 4, 8 and 13 kW. Not listed for the Zoe 57 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- For 10 mm holes
- 35 mm head
- Sold singly
- Zoe, Fluence, Kangoo, Master and Twizy
- Febi quality from the bilstein group
Specifications
- Bore Diameter: 10 mm
- Length: 25 mm
- Outer Diameter: 35 mm
- Colour: Black
- Material: PE plastic
- Part Number: Febi 100609
Replaces Renault part number 77 03 077 435.
Installation
Push the new clip fully home. A trim removal tool helps take off the old clips without damaging the panel.
Explore More Parts
- All Renault Zoe Parts
- All Fittings / Fasteners
- All Renault Fluence Parts
- All Renault Kangoo II Parts
- All Renault Master Parts
| Attribute | Value |
|---|---|
| Bore Diameter | 10 mm |
| Length | 25 mm |
| Outer Diameter | 35 mm |
| Colour | Black |
| Material | PE plastic |
| Part Number | Febi 100609 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Fluence Z.E. (2010 –) | (E) – 70 kW / 95 hp |
| Renault Kangoo Van Z.E. – Kangoo II Express (2008 – 2021) | (E) – 44 kW / 60 hp |
| Renault Kangoo Van Z.E. – Kangoo II Rapid (2008 – 2021) | (E) – 44 kW / 60 hp |
| Renault Master Z.E. – Master III T 31 (2018 – 2024) | (E) – 57 kW / 77 hp |
| Renault Twizy (2012 –) | (E) – 13 kW / 18 hp |
| Renault Twizy (2012 –) | (E) – 4 kW / 5 hp |
| Renault Twizy (2012 –) | (E) – 8 kW / 11 hp |
| Renault Zoe (2012 –) | (E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe Underbody Panel Clip – 10 mm FAQs
Which part numbers does it replace?
Replaces Renault part number 77 03 077 435. The Febi part number is 100609.
Does it fit every Zoe?
It is listed for the Zoe 65, 68, 80 and 100 kW.
Why does a loose panel matter?
Underbody panels protect the battery area and help the car’s aerodynamics, so loose panels should be clipped back.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 65, 68, 80 and 100 kW, Fluence Z.E. 70 kW, Kangoo Van Z.E. 44 kW, Master Z.E. 57 kW and Twizy 4, 8 and 13 kW. Not listed for the Zoe 57 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
