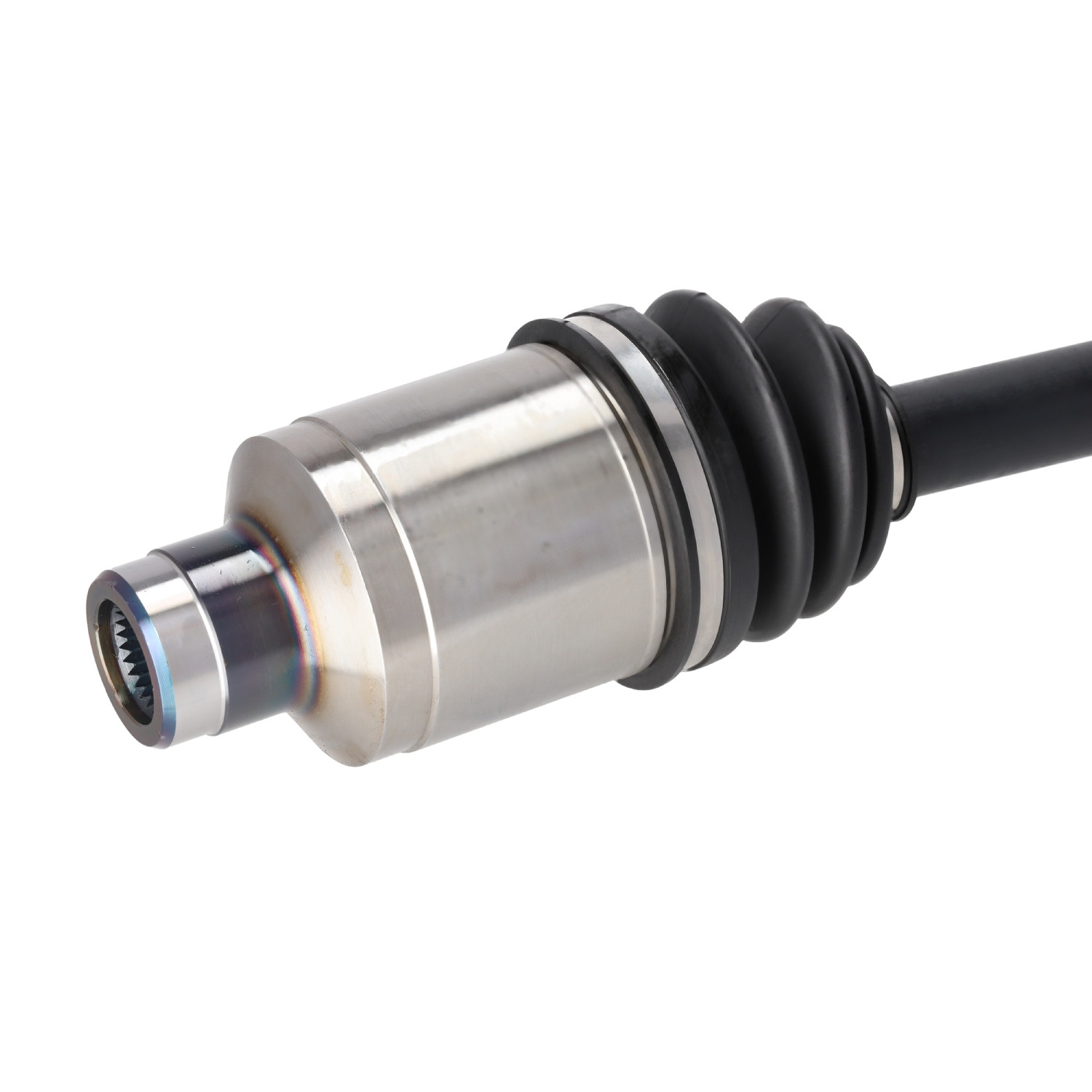

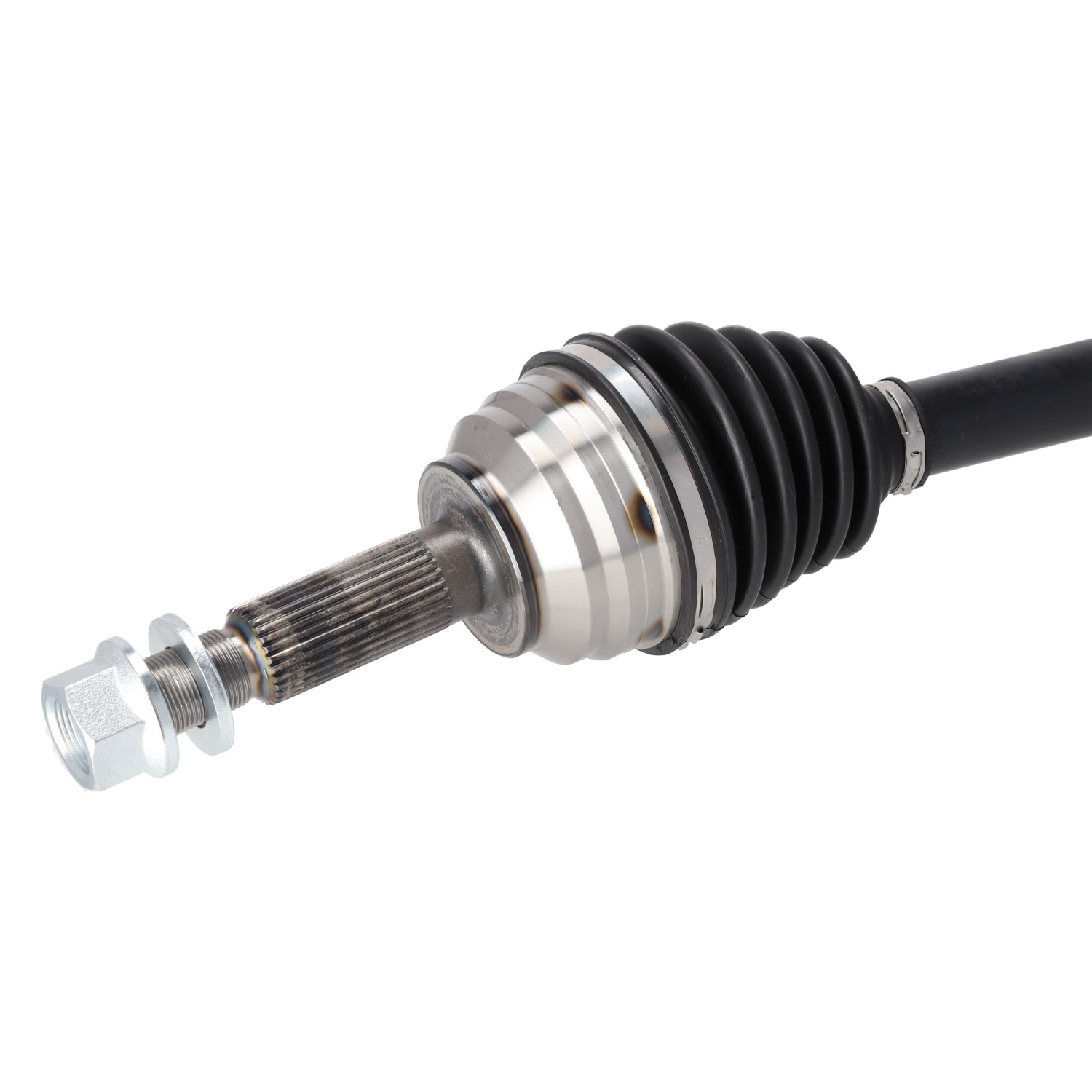

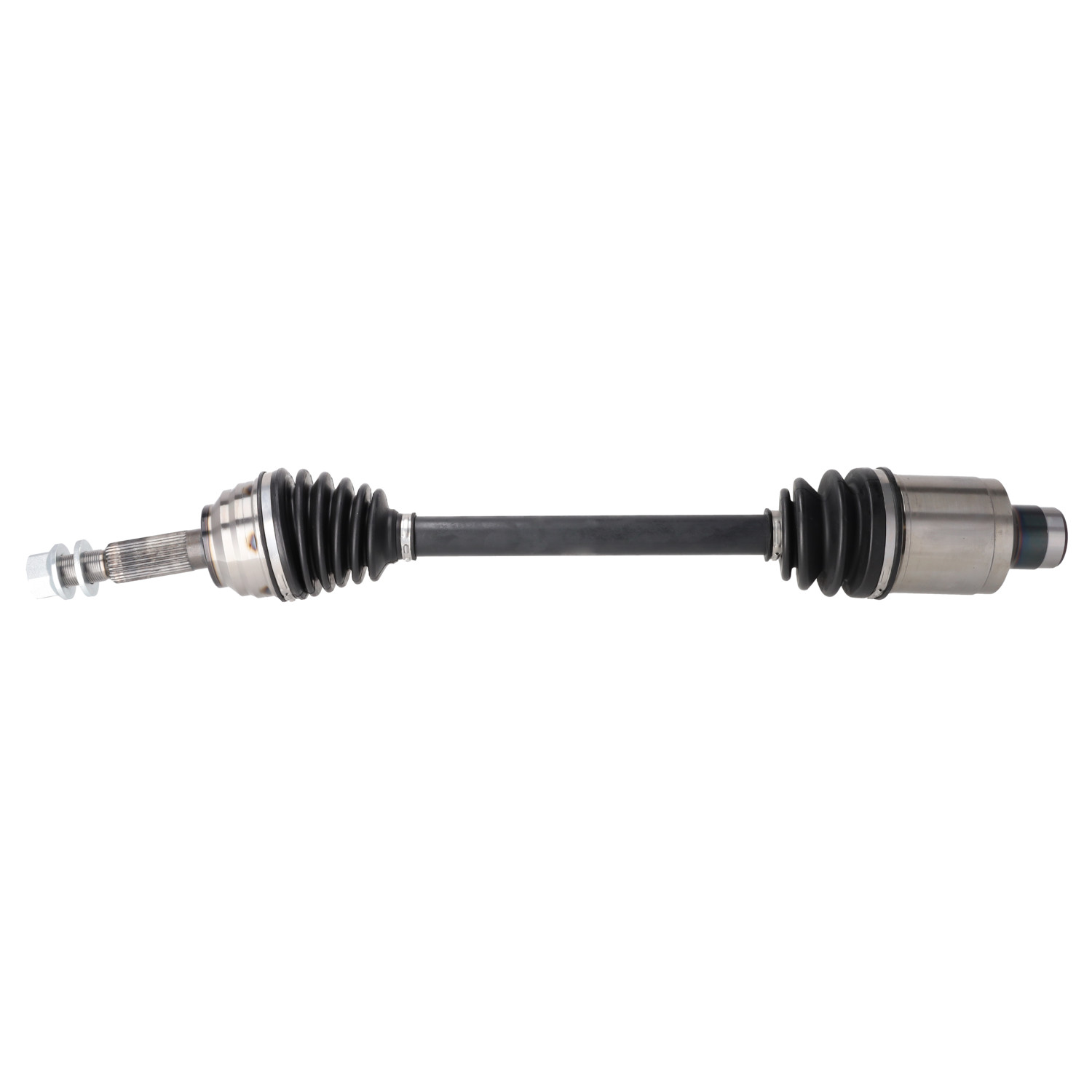

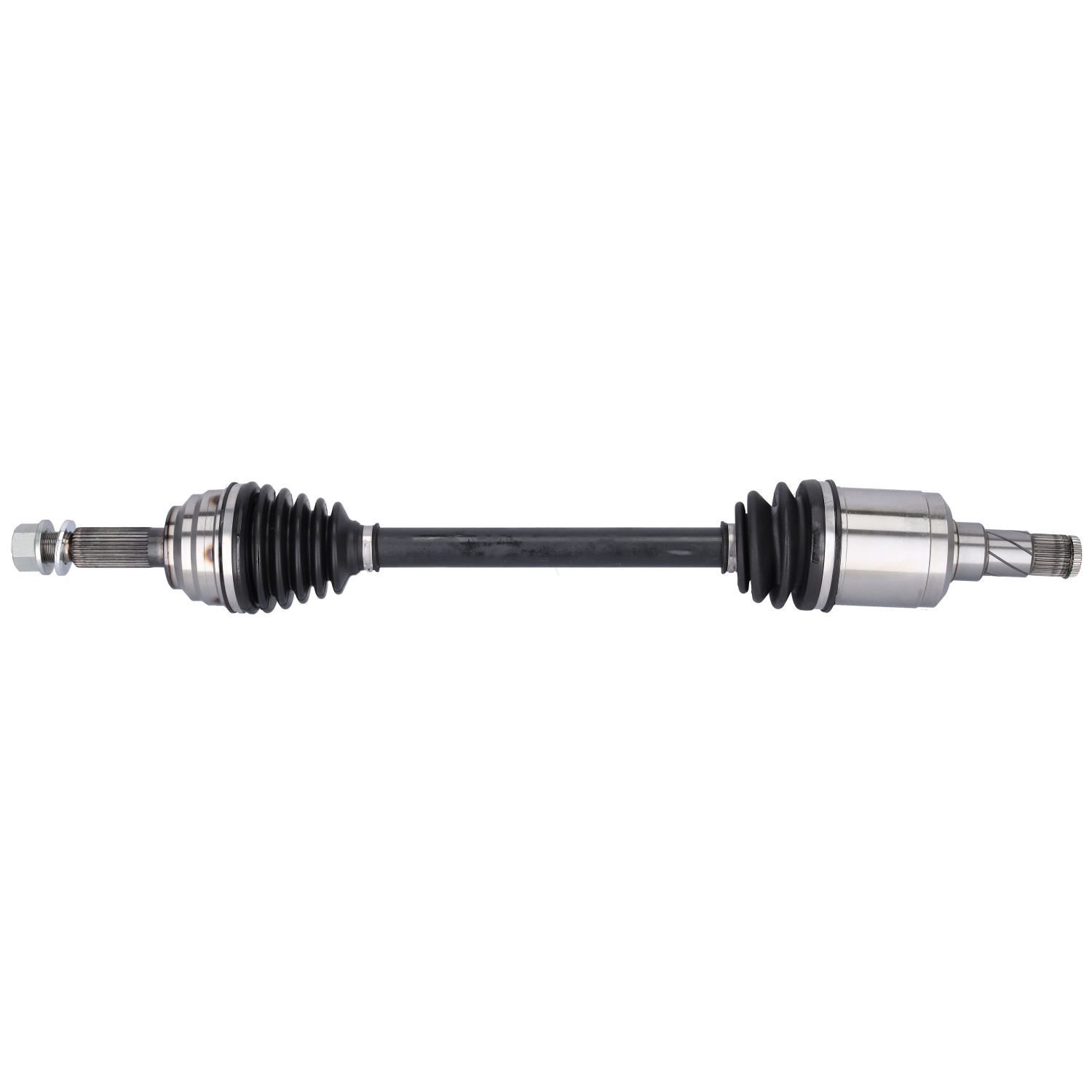

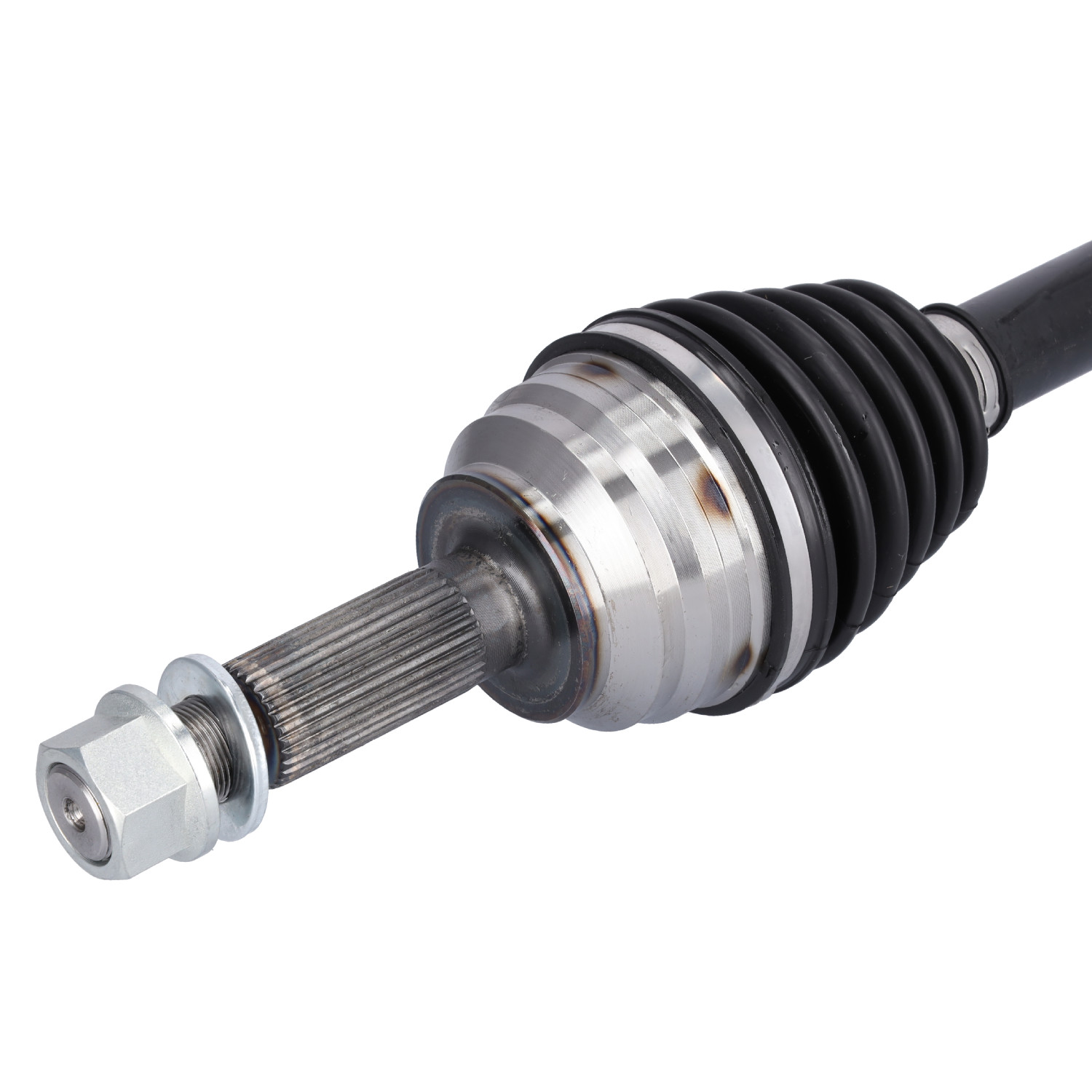

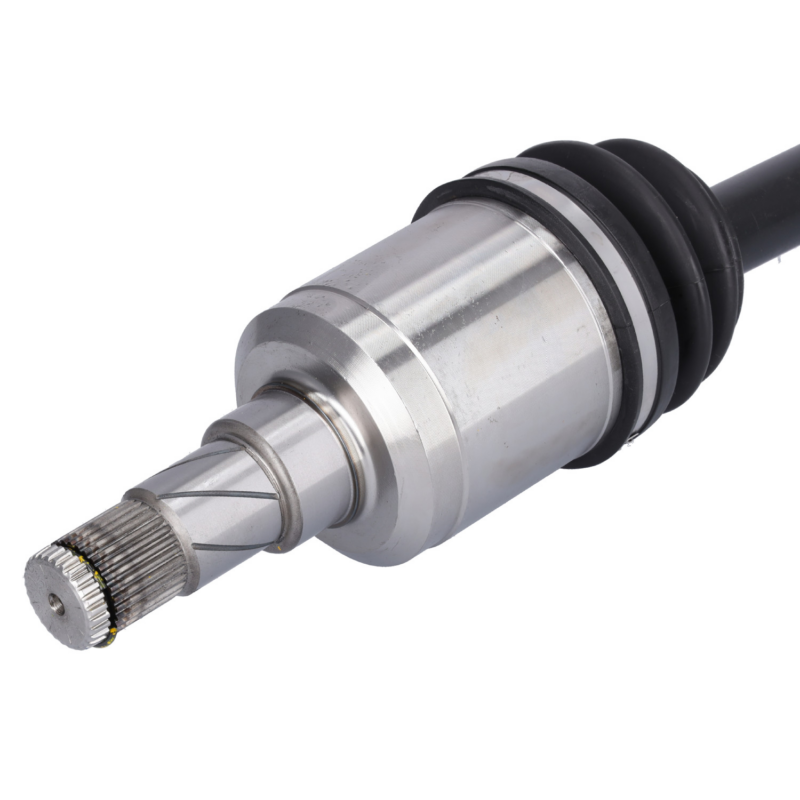

Tesla Model S Front Drive Shafts – Up to 24/04/19

For Vehicles built before April 25th, 2019

Enhance the drivetrain of your Tesla Model S with Tesla Model S Front Drive Shafts, premium electric car parts and EV accessories designed for superior power transmission in high-performance electric vehicles.

These front half shafts, also known as CV axles, are engineered for dual-motor variants including the 60, 85, P85, 100D, and Plaid models from 2012 onwards, providing seamless compatibility with the front drive unit for optimal acceleration and control. Crafted with precision CV joints and robust construction, they deliver efficient torque from the motor to the wheels, reducing vibrations and ensuring smooth operation during urban drives or spirited performance.

As vital EV aftermarket parts, these drive shafts serve as direct replacements for OEM references like 1027111-00-D (LH) and 1007719-00-C/01-A (RH), making them ideal for maintaining the integrity of your Tesla’s AWD system. Whether addressing wear from high-mileage use or upgrading for enhanced durability, these electric vehicle parts support the demands of modern EV mobility, offering reliability and efficiency for Tesla owners seeking top-tier EV car parts.

Fitting Position: front axle left Specification

Attributes
Additional Information / Parts	with nut
No. of External Teeth Transmission Side	29
No. of External Teeth Wheel Side	30
Outer Joint Diameter Transmission Side	95 mm
Outer Joint Diameter Wheel Side	63 mm
Thread Size	M24x1,5
Total Length Compressed (in pressed state)	773 mm

Suitable to replace	Reference(s)
Tesla	1030615-00-D | 1030615-00-A | 1030615-00-B

Model	Submodel
Model S Dual Motor 2014 –	(E) – 241 kW / 328 hp
Model S Dual Motor 2014 –	(E) – 245 kW / 333 hp
Model S Dual Motor 2014 –	(E) – 276 kW / 375 hp
Model S Dual Motor 2014 –	(E) – 279 kW / 379 hp
Model S Dual Motor 2014 –	(E) – 290 kW / 394 hp
Model S Dual Motor 2014 –	(E) – 310 kW / 421 hp
Model S Dual Motor 2014 –	(E) – 345 kW / 469 hp
Model S Dual Motor 2014 –	(E) – 346 kW / 470 hp
Model S Dual Motor 2014 –	(E) – 385 kW / 523 hp
Model S Dual Motor 2014 –	(E) – 386 kW / 525 hp
Model S Dual Motor 2014 –	(E) – 397 kW / 540 hp
Model S Dual Motor 2014 –	(E) – 413 kW / 562 hp
Model S Dual Motor 2014 –	(E) – 421 kW / 572 hp
Model S Dual Motor 2014 –	(E) – 450 kW / 612 hp
Model S Dual Motor 2014 –	(E) – 493 kW / 670 hp
Model S Dual Motor 2014 –	(E) – 504 kW / 685 hp
Model S Dual Motor 2014 –	(E) – 515 kW / 700 hp
Model S Dual Motor 2014 –	(E) – 543 kW / 738 hp
Model S Dual Motor 2014 –	(E) – 568 kW / 772 hp
Model S Dual Motor 2014 –	(E) – 585 kW / 795 hp
Model S Dual Motor 2014 –	(E) – 599 kW / 814 hp

Fitting Position: front axle right Specification

Attributes
Additional Information / Parts	with nut
No. of External Teeth Transmission Side	27
No. of External Teeth Wheel Side	30
Outer Joint Diameter Transmission Side	89 mm
Outer Joint Diameter Wheel Side	89,8 mm
Thread Size	M24x1,5
Total Length Compressed (in pressed state)	715 mm

Suitable to replace	Reference(s)
Tesla	1030616-00-D | 1030616-00-A | 1030616-00-B

Model	Submodel
Model S Dual Motor 2014 –	(E) – 241 kW / 328 hp
Model S Dual Motor 2014 –	(E) – 245 kW / 333 hp
Model S Dual Motor 2014 –	(E) – 276 kW / 375 hp
Model S Dual Motor 2014 –	(E) – 279 kW / 379 hp
Model S Dual Motor 2014 –	(E) – 290 kW / 394 hp
Model S Dual Motor 2014 –	(E) – 310 kW / 421 hp
Model S Dual Motor 2014 –	(E) – 345 kW / 469 hp
Model S Dual Motor 2014 –	(E) – 346 kW / 470 hp
Model S Dual Motor 2014 –	(E) – 385 kW / 523 hp
Model S Dual Motor 2014 –	(E) – 386 kW / 525 hp
Model S Dual Motor 2014 –	(E) – 397 kW / 540 hp
Model S Dual Motor 2014 –	(E) – 450 kW / 612 hp
Model S Dual Motor 2014 –	(E) – 515 kW / 700 hp
Model S Dual Motor 2014 –	(E) – 543 kW / 738 hp
Model S Dual Motor 2014 –	(E) – 568 kW / 772 hp
