Front Brake Caliper – VW e-up!, Mii Electric & Citigo-e iV

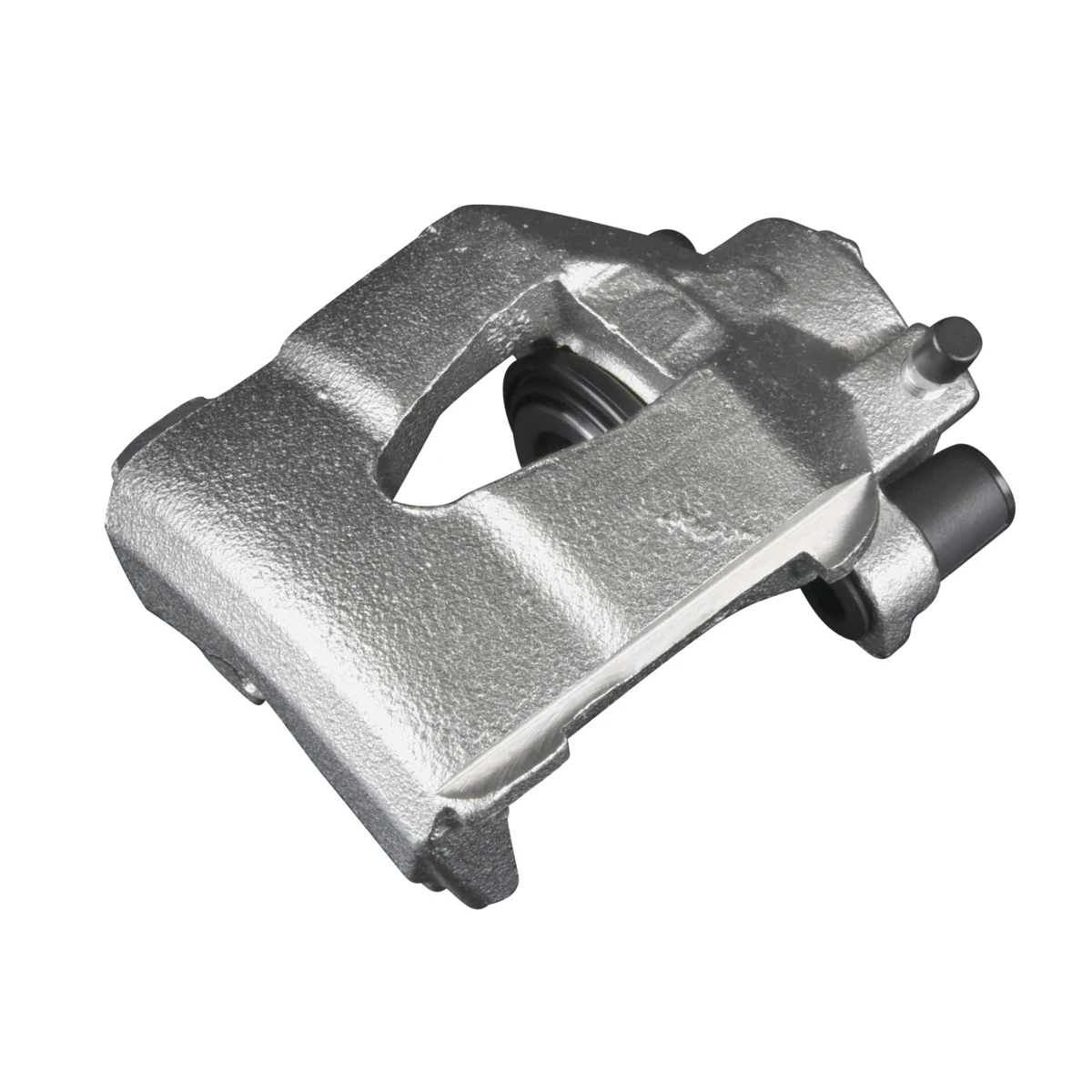

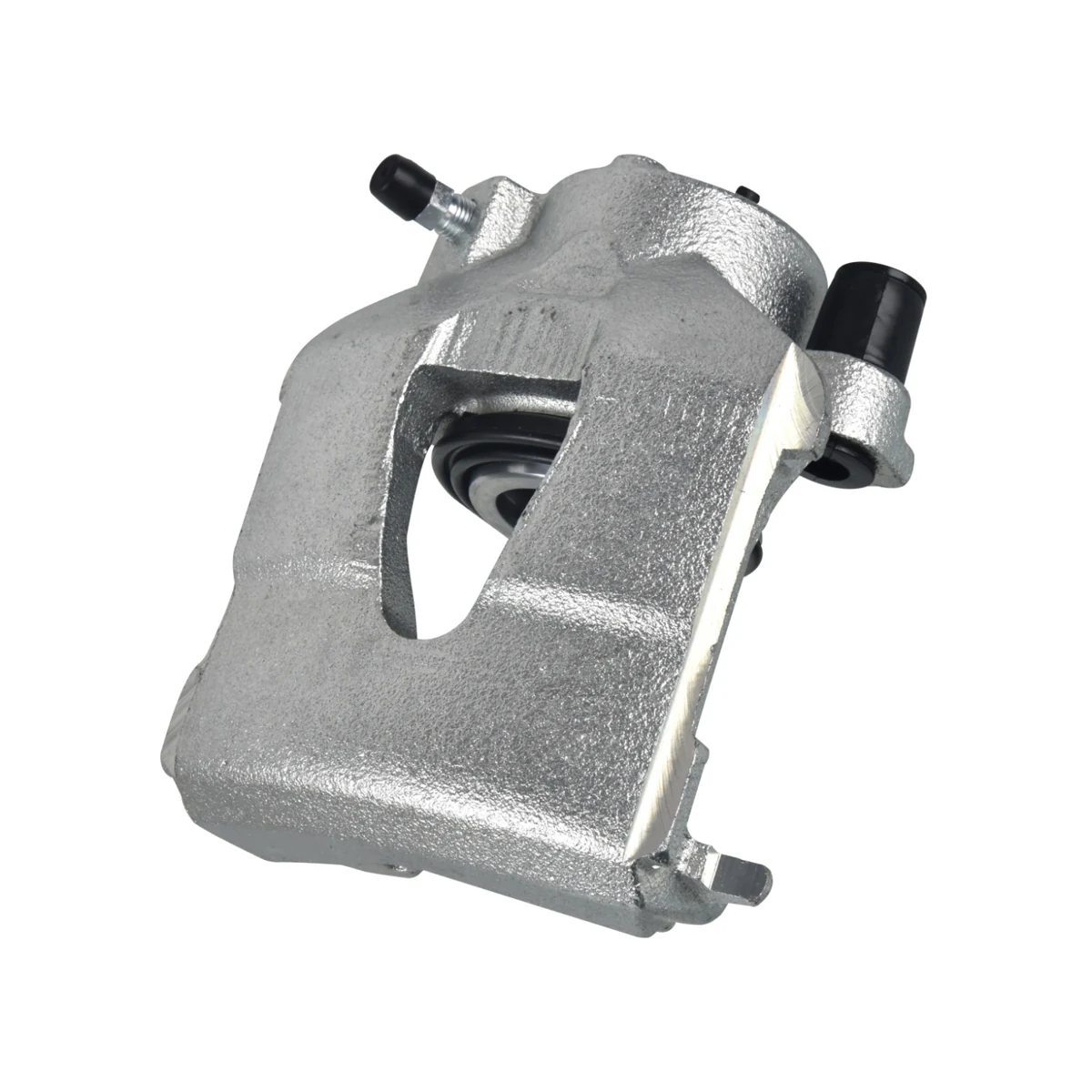

This brake caliper fits the front left or right side of the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. It is a new single piston caliper in chilled cast iron, with a 54 mm piston. Choose the left or right side from the Side menu.
Regenerative braking means the friction brakes are used less, so caliper pistons and slides can seize. A sticking caliper can make the car pull, cause a hot wheel, wear pads unevenly or leak at the piston seal.
These are Febi part numbers 178098 (left) and 178099 (right), made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world.
The bilstein group parts finder lists this caliper for the Volkswagen e-up! (BL1, 2013 to 2016) 60 kW, (BL2, 2016 on) 60 and 61 kW and (BL3, 2019 on) 61 kW; Volkswagen e-load up! (BL1, 2014 to 2016) 60 kW and (BL2, 2016 to 2019) 60 kW; SEAT Mii Electric (KE, 2020 on) 61 kW; Skoda Citigo-e iV (2019 to 2021) 61 kW.
Key Benefits
- New part, not remanufactured
- Single 54 mm piston
- Front left or right side
Specifications
- Type: Brake caliper, 1 piston
- Fitting Position: Front axle, left or right
- Piston Diameter: 54 mm
- Material: Chilled cast iron
- Condition: New part
- Part Number: Febi 178098 (left) / 178099 (right)
Replaces SEAT, Skoda and Volkswagen part numbers 1K0 615 123 D, 1J0 615 123, 1J0 615 123 A, 1K0 615 123 A and 1J0 615 105 D for the left side, and 1K0 615 124 D, 1J0 615 124, 1J0 615 124 A, 1K0 615 124 A and 1J0 615 106 D for the right side.
Installation
Professional installation recommended. The brake hose is disconnected, so the brakes must be bled afterwards. Tighten all bolts to the workshop manual torque and test the brakes before driving.
Explore More Parts
- All SEAT Mii Electric Parts
- All Skoda Citigo-e iV Parts
- All Volkswagen e-load up! Parts
- All Volkswagen e-up! Parts
- All Brake Calipers
| Attribute | Value |
|---|---|
| Type | Brake caliper, 1 piston |
| Fitting Position | Front axle, left or right |
| Piston Diameter | 54 mm |
| Material | Chilled cast iron |
| Condition | New part |
| Part Number | Febi 178098 (left) / 178099 (right) |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| SEAT | Mii (KE) 2020 – | (E) E 61 kW / 83 hp |
| Skoda | E-Citigo 2019 – 2021 | (E) – 61 kW / 83 hp |
| Volkswagen | e-load up! (BL1) 2014 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-load up! (BL2) 2016 – 2019 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 61 kW / 83 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL3) 2019 – | (E) – 61 kW / 83 hp |
Front Brake Caliper – VW e-up!, Mii Electric & Citigo-e iV FAQs
Which part numbers does it replace?
It replaces SEAT, Skoda and Volkswagen part numbers 1K0 615 123 D, 1J0 615 123, 1J0 615 123 A, 1K0 615 123 A and 1J0 615 105 D for the left side, and 1K0 615 124 D, 1J0 615 124, 1J0 615 124 A, 1K0 615 124 A and 1J0 615 106 D for the right side.
Which side does it fit?
It fits the front left or right side.
Is it new or remanufactured?
It is a new part, not a remanufactured caliper.
Do I need to bleed the brakes afterwards?
Yes. The brake hose is disconnected to fit it, so the brakes must be bled.
Will it fit my e-up!, Mii Electric or Citigo-e iV?
The parts finder lists it for the e-up! BL1, BL2 and BL3, the e-load up! BL1 and BL2, the Mii Electric and the Citigo-e iV. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine SEAT, Skoda or Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
