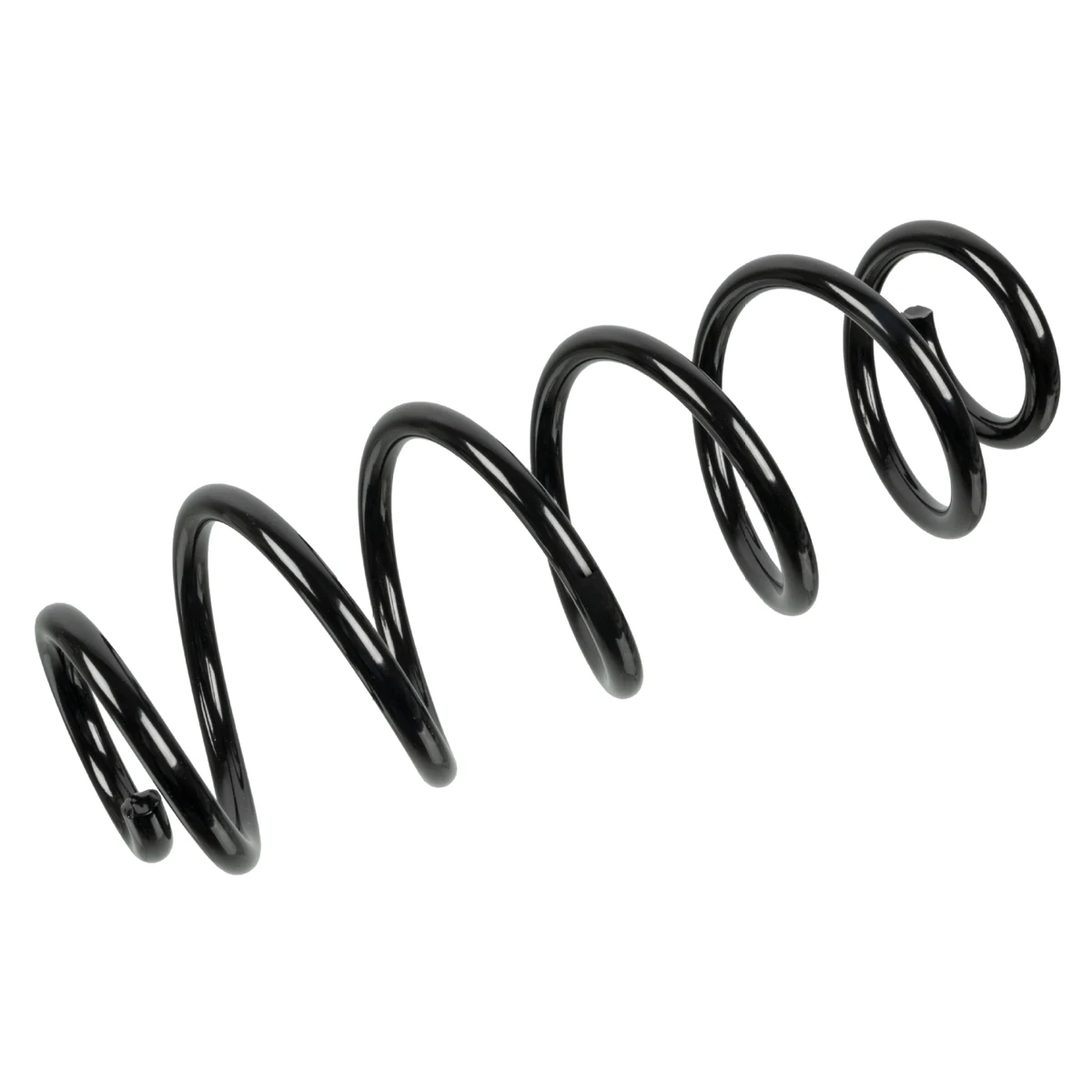

Rear Coil Spring 320 mm, 108 mm Diameter – VW e-up! – Febi 174722
This coil spring fits the rear axle of the Volkswagen e-up!. It is 320 mm long, with a wire diameter of 10.75 mm and a 108 mm outer diameter. It is 320 mm long, with an outer diameter of 108 mm, a wire diameter of 10.75 mm and 6.5 coils.
Coil springs hold the car at the right ride height and carry its weight over bumps. Over time they sag, and road salt can rust the coating until a coil snaps, usually at the bottom end. Signs of a tired or broken spring are a clunk over bumps, a corner that sits lower than the others, and uneven tyre wear.
This is Febi part number 174722, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this spring for the Volkswagen e-up! (BL1, 2013 to 2016) 60 kW and (BL2, 2016 on) 60 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Restores the correct ride height
- Matches the original spring size
- For the rear axle
- Made by the bilstein group
Specifications
- Length: 320 mm
- No. of Coils: 6.5
- Outer Diameter: 108 mm
- Wire Diameter: 10.75 mm
- Fitting Position: Rear axle
- Part Number: Febi 174722
Replaces Volkswagen part numbers including 5Q0 511 121 AN, 5Q0 511 121 AM, 5Q0 511 121 CT. The full list is in the FAQs.
Installation
Professional installation recommended. A spring compressor is needed and the spring is under high load, so it must be handled with care. Replace springs in pairs on the same axle so both sides sit level, and have the wheel alignment checked afterwards.
Explore More Parts
| Attribute | Value |
|---|---|
| Length | 320 mm |
| No. of Coils | 6.5 |
| Outer Diameter | 108 mm |
| Wire Diameter | 10.75 mm |
| Fitting Position | Rear axle |
| Part Number | Febi 174722 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 60 kW / 82 hp |
Rear Coil Spring 320 mm, 108 mm Diameter – VW e-up! – Febi 174722 FAQs
Which part numbers does it replace?
It replaces Volkswagen part numbers 5Q0 511 121 AN, 5Q0 511 121 AM, 5Q0 511 121 CT and 5Q0 511 121 DA.
Should I replace springs in pairs?
Yes. Fitting new springs on both sides of the same axle keeps the car level and the handling even.
What are the signs of a broken spring?
A clunk over bumps, one corner sitting lower than the others, or uneven tyre wear.
What size is it?
It is 320 mm long with a 10.75 mm wire diameter and a 108 mm outer diameter.
Will it fit my e-up!?
The parts finder lists it for the Volkswagen e-up!. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
