Rear Wheel Hub Bearing – VW e-up!, Mii Electric & Citigo-e iV – Febi 40660

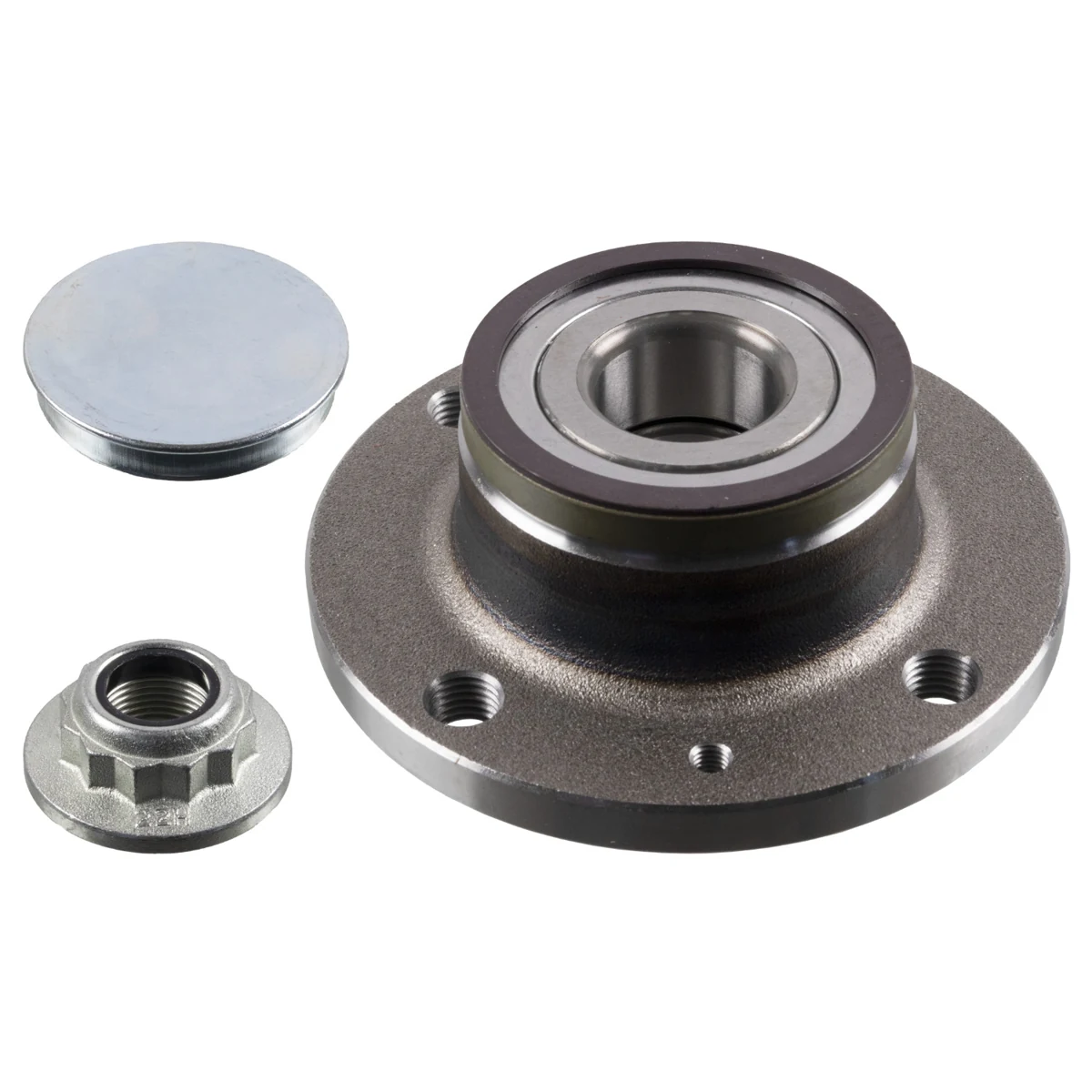

This rear wheel bearing kit fits the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. The bearing is built into the wheel hub, with an integrated ABS sensor ring, and the kit comes with additional fitting parts. It fits the left or right side.
A worn rear wheel bearing makes a humming or rumbling noise that rises with speed, and electric cars are quiet enough that it is easy to hear. Because the bearing is part of the hub, the complete hub is replaced.
This is Febi part number 40660, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this hub kit for the Volkswagen e-up! BL1 and BL2, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. The table shows every version and power output listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Bearing built into the hub
- Integrated ABS sensor ring
- 4 stud holes on 100 mm PCD
- Fits the left or right side
Specifications
- Additional Information: Wheel bearing integrated into wheel hub, With integrated sensor ring
- Bearing Type (Roller Bearing): Angular Ball Bearing
- Height or Thickness: 63 mm
- Inner Diameter: 27 mm
- No. of Holes: 4
- Outer Diameter: 120 mm
- Pitch Circle Diameter: 100 mm
- Width: 120 mm
- Fitting Position: Rear axle, left or right
- Part Number: Febi 40660
Replaces SEAT, Skoda and Volkswagen part numbers 1S0 501 611 A and 1S0 598 611.
Installation
Professional installation recommended.
Explore More Parts
- All SEAT Mii Electric Parts
- All Skoda Citigo-e iV Parts
- All Volkswagen e-load up! Parts
- All Volkswagen e-up! Parts
- All Wheel Bearings
| Attribute | Value |
|---|---|
| Additional Information | Wheel bearing integrated into wheel hub, With integrated sensor ring |
| Bearing Type (Roller Bearing) | Angular Ball Bearing |
| Height or Thickness | 63 mm |
| Inner Diameter | 27 mm |
| No. of Holes | 4 |
| Outer Diameter | 120 mm |
| Pitch Circle Diameter | 100 mm |
| Width | 120 mm |
| Fitting Position | Rear axle, left or right |
| Part Number | Febi 40660 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| SEAT | Mii (KE) 2020 – | (E) E 61 kW / 83 hp |
| Skoda | E-Citigo 2019 – 2021 | (E) – 61 kW / 83 hp |
| Volkswagen | e-load up! (BL1) 2014 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-load up! (BL2) 2016 – 2019 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 61 kW / 83 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 60 kW / 82 hp |
Rear Wheel Hub Bearing – VW e-up!, Mii Electric & Citigo-e iV – Febi 40660 FAQs
Which part numbers does it replace?
It replaces SEAT, Skoda and Volkswagen part numbers 1S0 501 611 A and 1S0 598 611.
Which side does it fit?
It fits the rear left or right side.
Is the bearing included?
Yes. The bearing is built into the wheel hub.
What are the signs of a worn bearing?
A hum or rumble that rises with speed.
Will it fit my e-up!, e-load up!, Mii Electric or Citigo-e iV?
The parts finder lists it for the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine SEAT, Skoda or Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
