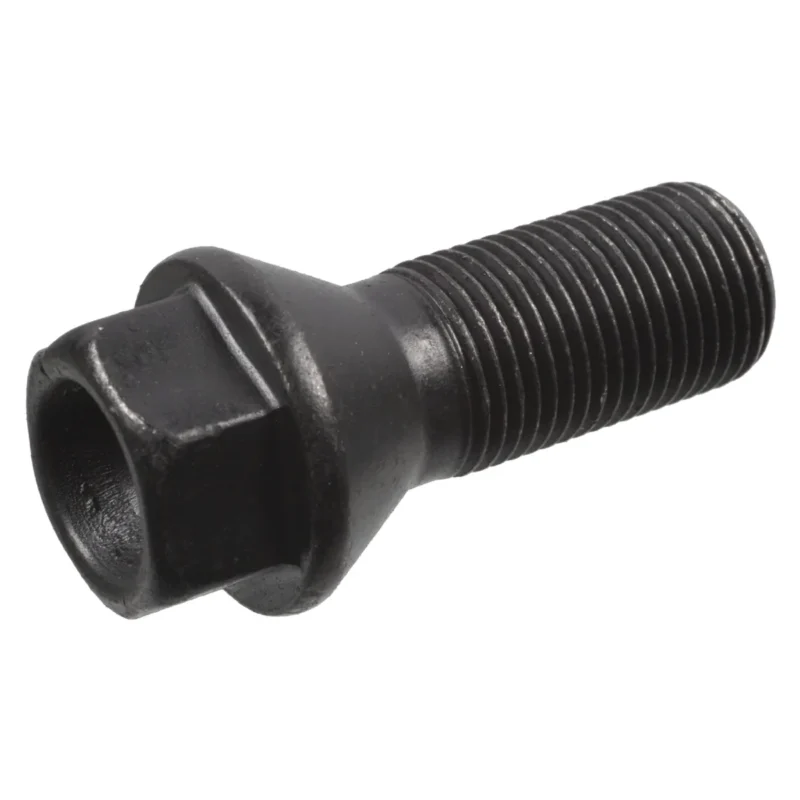

BMW i3 Wheel Bolt – M14 x 1.25
This wheel bolt fixes the wheel to the hub on the BMW i3. It has an M14 x 1.25 thread, a conical seat and a 17 mm hex head, and it suits alloy and steel wheels. It is sold singly.
Replace any bolt with a damaged thread, rounded head or corrosion. Bolts can be stretched by over-tightening with an impact gun.
This is Febi part number 46665, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to.
The table below shows the BMW i3 versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the BMW i3 (I01) 2013 – 2022: the i3 and i3s, with and without Range Extender. Compare the BMW part number on your existing part with the numbers on this page before ordering.
Key Benefits
- M14 x 1.25 thread
- Conical seat
- For alloy and steel wheels
- Zinc-nickel coated
- Febi quality from the bilstein group
Specifications
- Thread: M14 x 1.25
- Length: 47 mm
- Length under Head: 28 mm
- Thread Length: 23 mm
- Collar: Conical, 24 mm
- Head: Hexagonal, 17 mm
- Strength Grade: 8.8
- Surface: Zinc-nickel coated
- Wheel Type: Alloy and steel wheels
- Part Number: Febi 46665
Replaces BMW part numbers 36 13 6 890 324, 36 13 6 774 896 and 36 13 6 781 151.
Installation
Easy to fit. Clean the threads, tighten in a diagonal pattern with a torque wrench to the BMW setting, and check the torque again after a short drive.
Explore More Parts
| Attribute | Value |
|---|---|
| Thread | M14 x 1.25 |
| Length | 47 mm |
| Length under Head | 28 mm |
| Thread Length | 23 mm |
| Collar | Conical, 24 mm |
| Head | Hexagonal, 17 mm |
| Strength Grade | 8.8 |
| Surface | Zinc-nickel coated |
| Wheel Type | Alloy and steel wheels |
| Part Number | Febi 46665 |
Fits The Following BMW Models
| Model | Submodel |
|---|---|
| i3 (I01) 2013 – 2022 | i3s – 135 kW / 184 hp |
| i3 (I01) 2013 – 2022 | i3s Range Extender – 135 kW / 184 hp |
| i3 (I01) 2013 – 2022 | i3 – 125 kW / 170 hp |
| i3 (I01) 2013 – 2022 | i3 Range Extender – 125 kW / 170 hp |
BMW i3 Wheel Bolt – M14 x 1.25 FAQs
Which part numbers does it replace?
Replaces BMW part numbers 36 13 6 890 324, 36 13 6 774 896 and 36 13 6 781 151. The Febi part number is 46665.
Is it sold singly or as a set?
Both. Choose Pack Size One for a single bolt (Febi 46665) or Twenty for a pack of 20 (Febi 26744), enough for all four wheels.
Does it fit alloy wheels?
Yes. It suits alloy and steel wheels.
Will it fit my BMW i3?
Listed in the parts finder for the BMW i3 (I01) 2013 – 2022: the i3 and i3s, with and without Range Extender. Check the notes in the fitment table and compare the BMW part number on your existing part.
Is this a genuine BMW part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
