Brembo Model S X Front Brake Pads

Name: EV Accessories And Electric Car Parts
Price range: $$

Price range: £58.26 through £95.78

Fits Model S
Fits Model X
Front Brake Pads
Brembo
This is a non stocked special “to order part”. Please allow up to 5 working days for dispatch.

Brembo Model S Front Brakes Pads P 09 004

£58.26 – £95.78

Brand

Brembo Part Number

Clear

Ceramic Paste – High Temperature Lubricant Brake Pad Paste

Weight: 100g
Colour: White
Packing Type: Tube
Weight: 0.114kg

Add for £9.85

Brembo Tesla Model S X Front Brake Disc Single × 2

Enhance your Tesla Model S or X with this Brembo front brake disc, an OE-equivalent component featuring high carbon content, PVT ventilation, UV anti-corrosion treatment, and ECE-R90 certification for superior electric vehicle braking performance.

Add for £140.34 each

Add to wishlist

SKU: N/A Categories: April 2016 - Jan 2021, Brake Pads, Feb 2012 - Mar 2016, Jun 2017 - Aug 2023, Sep 2015 - Feb 2021 Brand: Brembo

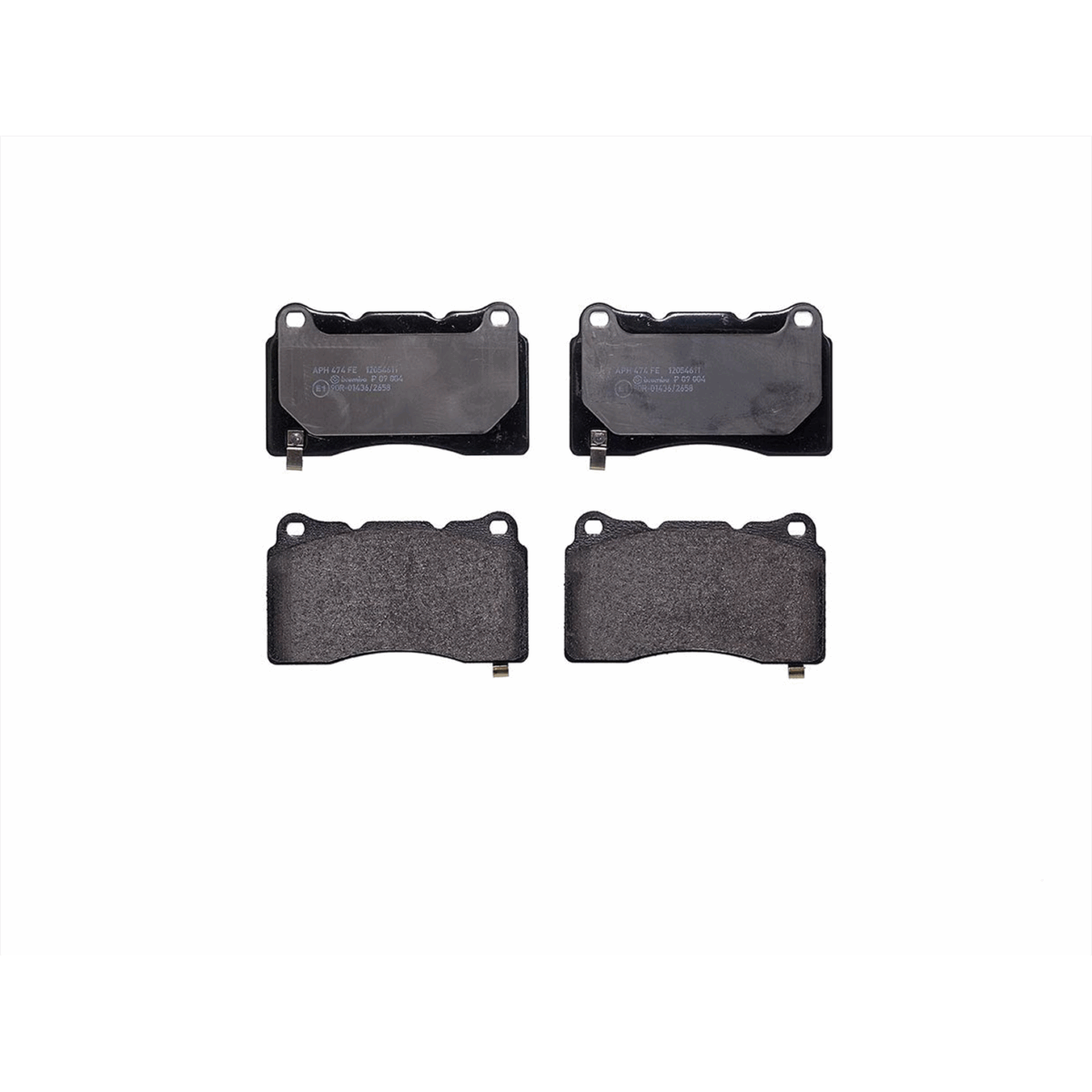

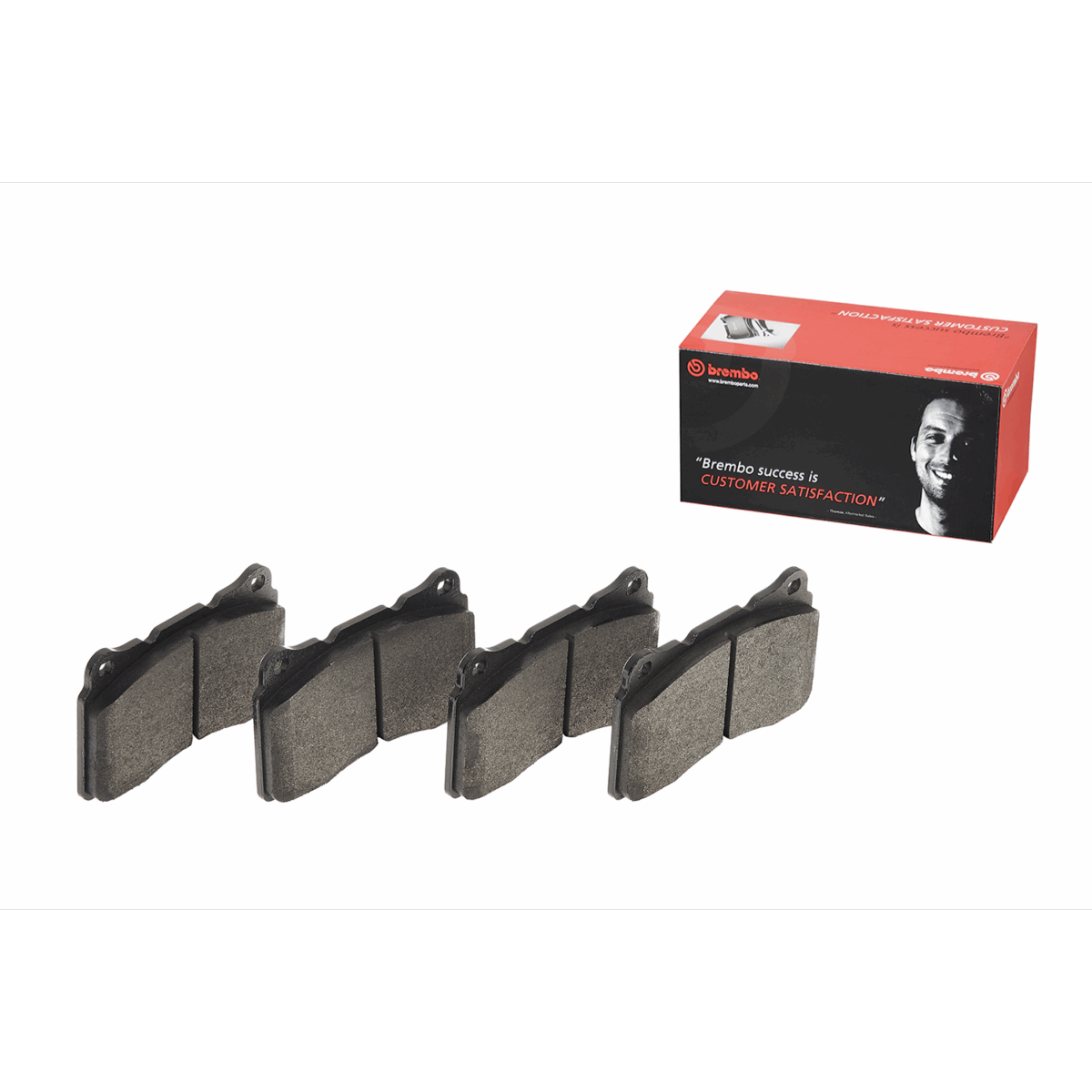

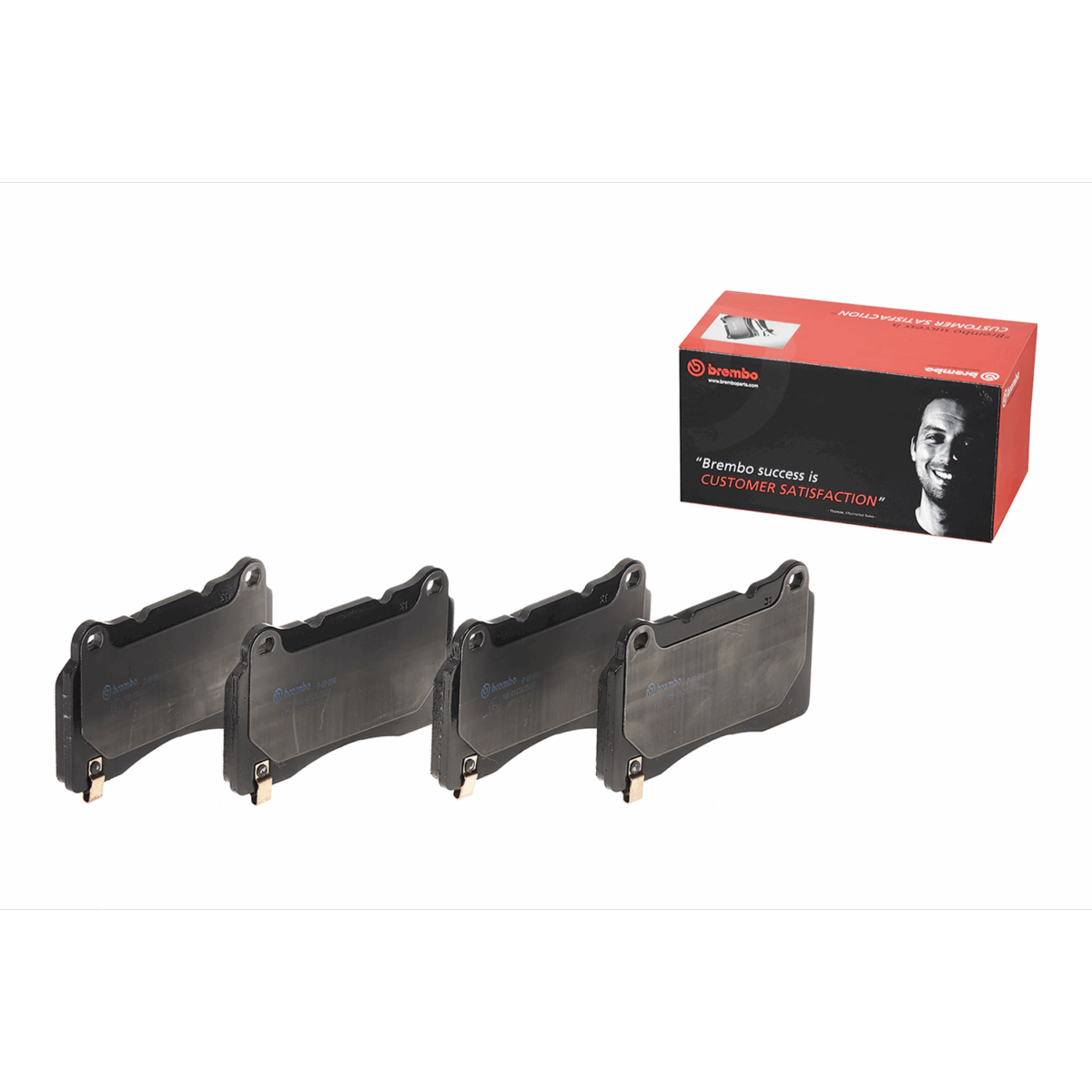

Model S X Front Brake Pads Brembo P 09 004

Product details
Fitting position	Front
Width	132.0 mm
Height	78.0 mm
Thickness	15.0 mm
Brake system	BREMBO
Wear sensor	Yes
WVA number	23325
Material	Low-Metallic
Weight	2.18kg
Inter Cars code	C5A184
Product label	Print label

TecDoc details
Width [mm]	132.0
Thickness [mm]	15.0
Height [mm]	78.0
Wear Warning Contact	with acoustic wear warning
Supplementary Article/Supplementary Info	without accessories
Brake System	Brembo
Supplementary Article/Info 2	with anti-squeak plate
Number of wear indicators [per axle]	4.0
WVA Number	23325

Suitable to replace	Reference(s)
Cadillac	22791925
Opel	13329562 \| 13411116 \| 16 05 100 \| 16 05 175
Saab	13 329 562
Tesla	1055066-00-D \| 1068330-00-C \| 1055066-00-B \| 1055066-00-C \| 1068330-00-B
Vauxhall	13329562 \| 13411116 \| 16 05 100 \| 16 05 175
Volvo	30748957 \| 30683412 \| 30748513 \| 30645135
General Service Number	D1050-7919

MODEL S (5YJS)

Engine	Engine codes	Production years	kW	hp
75	L1S	2016/11 – n/a	285	388
70D AWD	L2S	2015/09 – n/a	386	525
P90D AWD	L2S	2015/09 – n/a	397	540
100D AWD	L2S	2017/06 – n/a	310	422
60D AWD	L2S	2014/10 – 2015/04	276	376
P100D AWD	L2S	2016/10 – n/a	450	612
90	L1S	2012/09 – 2016/02	270	367
P90D AWD	L2S	2015/09 – n/a	568	772
P85	L1S	2013/05 – 2014/12	350	476
85	L1S	2012/09 – 2016/02	285	388
P85D AWD	L2S	2014/10 – 2015/10	543	738
85	L1S	2015/02 – 2016/02	283	385
85D AWD	L2S	2014/10 – 2016/02	279	379
EV AWD	L2S, 3D1	2019/06 – n/a	413	562
60	L1S	2014/10 – n/a	283	385
P90D AWD	L2S	2015/09 – n/a	346	471
70	L1S	2015/09 – n/a	235	320
75D AWD	L2S	2016/06 – n/a	386	525
90D AWD	L2S	2015/09 – n/a	386	525
Plaid AWD	5D1, 5D2	2021/01 – n/a	750	1020
70D AWD	L2S	2015/04 – n/a	245	334
90D AWD	L2S	2015/09 – n/a	310	422
85D AWD	L2S	2014/10 – 2016/02	276	376
P100D AWD	L2S	2016/10 – n/a	568	772
75D AWD	L2S	2016/06 – n/a	245	333
P85	L1S	2013/11 – 2014/12	310	421
P90D AWD	L2S	2015/09 – n/a	345	469
75	L1S	2016/11 – n/a	235	320
60	L1S	2016/11 – n/a	235	320
85D AWD	L2S	2014/10 – 2015/07	290	394
60D AWD	L2S	2016/06 – n/a	245	334
P85D AWD	L2S	2014/10 – 2016/02	515	700
EV AWD	3D1, 3D8	2021/01 – n/a	493	670
P85D AWD	L2S	2015/09 – 2016/02	568	772
60	L1S	2013/11 – n/a	285	388
100D AWD	L2S	2017/06 – n/a	386	525
85D AWD	L2S	2014/10 – 2016/02	386	525
85	L1S	2012/09 – 2016/02	270	367
60	L1S	2013/11 – 2014/09	225	306
85D AWD	L2S	2014/01 – 2016/02	310	421
60D AWD	L2S	2014/10 – n/a	386	525
70	L1S	2015/09 – n/a	285	388

MODEL X (5YJX)

Engine	Engine codes	Production years	kW	hp
EV AWD	L2S, 3D1	2019/06 – n/a	413	562
P100D AWD	L2S	2016/10 – n/a	568	772
Plaid AWD	5D1, 5D2	2021/01 – n/a	750	1020
EV AWD	L2S, 3D1	2019/09 – n/a	421	573
60D AWD	L2S	2016/06 – n/a	386	525
75D AWD	L2S	2016/06 – n/a	386	525
90D AWD	L2S	2015/09 – n/a	386	525
EV AWD	3D1, 3D8	2021/01 – n/a	493	670
EV AWD	L1S, 3D1	2020/09 – n/a	599	815
100D AWD	L2S	2017/08 – n/a	386	525
EV AWD	L1S, 3D1	2019/06 – n/a	585	796
P90D AWD	L2S	2015/09 – n/a	568	772

Model S X Front Brake Pads Brembo P 09 004E – Brembo Beyond EV Pads.

Product details
Fitting position	Front
Width	132.0 mm
Height	78.0 mm
Thickness	15.0 mm
Brake system	BREMBO
Wear sensor	Yes
WVA number	23325
Intended use	electric vehicles
Weight	2.22kg

TecDoc details
Width [mm]	132.0
Thickness [mm]	15.0
Height [mm]	78.0
Wear Warning Contact	with acoustic wear warning
Supplementary Article/Supplementary Info	without accessories
Brake System	Brembo
Supplementary Article/Info 2	with anti-squeak plate
Number of wear indicators [per axle]	4.0
only in connection with	EV disc
WVA Number	23325

Suitable to replace	Reference(s)
Cadillac	22791925
Opel	13329562 \| 13411116 \| 16 05 100 \| 16 05 175
Saab	13 329 562
Tesla	1055066-00-D \| 1068330-00-C \| 1055066-00-B \| 1055066-00-C \| 1068330-00-B
Vauxhall	13329562 \| 13411116 \| 16 05 100 \| 16 05 175
Volvo	30748957 \| 30683412 \| 30748513 \| 30645135
General Service Number	D1050-7919

MODEL S (5YJS)

Engine	Engine codes	Production years	kW	hp
75	L1S	2016/11 – n/a	285	388
70D AWD	L2S	2015/09 – n/a	386	525
P90D AWD	L2S	2015/09 – n/a	397	540
100D AWD	L2S	2017/06 – n/a	310	422
60D AWD	L2S	2014/10 – 2015/04	276	376
P100D AWD	L2S	2016/10 – n/a	450	612
90	L1S	2012/09 – 2016/02	270	367
P90D AWD	L2S	2015/09 – n/a	568	772
P85	L1S	2013/05 – 2014/12	350	476
85	L1S	2012/09 – 2016/02	285	388
P85D AWD	L2S	2014/10 – 2015/10	543	738
85	L1S	2015/02 – 2016/02	283	385
85D AWD	L2S	2014/10 – 2016/02	279	379
EV AWD	L2S, 3D1	2019/06 – n/a	413	562
60	L1S	2014/10 – n/a	283	385
P90D AWD	L2S	2015/09 – n/a	346	471
70	L1S	2015/09 – n/a	235	320
75D AWD	L2S	2016/06 – n/a	386	525
90D AWD	L2S	2015/09 – n/a	386	525
70D AWD	L2S	2015/04 – n/a	245	334
90D AWD	L2S	2015/09 – n/a	310	422
85D AWD	L2S	2014/10 – 2016/02	276	376
P100D AWD	L2S	2016/10 – n/a	568	772
75D AWD	L2S	2016/06 – n/a	245	333
P85	L1S	2013/11 – 2014/12	310	421
P90D AWD	L2S	2015/09 – n/a	345	469
75	L1S	2016/11 – n/a	235	320
60	L1S	2016/11 – n/a	235	320
85D AWD	L2S	2014/10 – 2015/07	290	394
60D AWD	L2S	2016/06 – n/a	245	334
P85D AWD	L2S	2014/10 – 2016/02	515	700
EV AWD	3D1, 3D8	2021/01 – n/a	493	670
P85D AWD	L2S	2015/09 – 2016/02	568	772
60	L1S	2013/11 – n/a	285	388
100D AWD	L2S	2017/06 – n/a	386	525
85D AWD	L2S	2014/10 – 2016/02	386	525
85	L1S	2012/09 – 2016/02	270	367
60	L1S	2013/11 – 2014/09	225	306
85D AWD	L2S	2014/01 – 2016/02	310	421
60D AWD	L2S	2014/10 – n/a	386	525
70	L1S	2015/09 – n/a	285	388

MODEL X (5YJX)

Engine	Engine codes	Production years	kW	hp
EV AWD	L2S, 3D1	2019/06 – n/a	413	562
P100D AWD	L2S	2016/10 – n/a	568	772
Plaid AWD	5D1, 5D2	2021/01 – n/a	750	1020
EV AWD	L2S, 3D1	2019/09 – n/a	421	573
60D AWD	L2S	2016/06 – n/a	386	525
75D AWD	L2S	2016/06 – n/a	386	525
90D AWD	L2S	2015/09 – n/a	386	525
EV AWD	3D6, 3D3	2023/02 – n/a	312	424
EV AWD	L1S, 3D1	2020/09 – n/a	599	815
100D AWD	L2S	2017/08 – n/a	386	525
EV AWD	L1S, 3D1	2019/06 – n/a	585	796
P90D AWD	L2S	2015/09 – n/a	568	772

MODEL 3 (5YJ3) – Brembo Advise these fit the selected Model 3

Engine	Engine codes	Production years	kW	hp
EV Performance AWD	3D3, 3D1, 3D6	2018/06 – n/a	340	462
EV AWD	3D5, 3D3, 3D7	2018/06 – n/a	258	351

Additional information

Weight	2.230 kg
Dimensions	150 × 102 × 82 mm
Car Brand	Tesla
Car Model	Model S, Model X, Model S/X
Brand	Brembo
Brembo Part Number	P 09 004, P 09 004E
Drive Train Position	Front
Tesla Part Numbers	1055066-00-D, 1055066-00-B, 1055066-00-C, 1068330-00-C, 1068330-00-B
