Tesla Model 3 Rear Brake Disc Single

Price range: £61.10 through £1,344.41

  • Blue Print ADBP430108
  • OEN 1044631-00-D  1188632-00-C — TESLA
  • 1 Disc per order (order 2 for replacing both rear discs).
  • This is a non stocked special “to order part”. Please allow 2 working days for dispatch.
Add to Cart

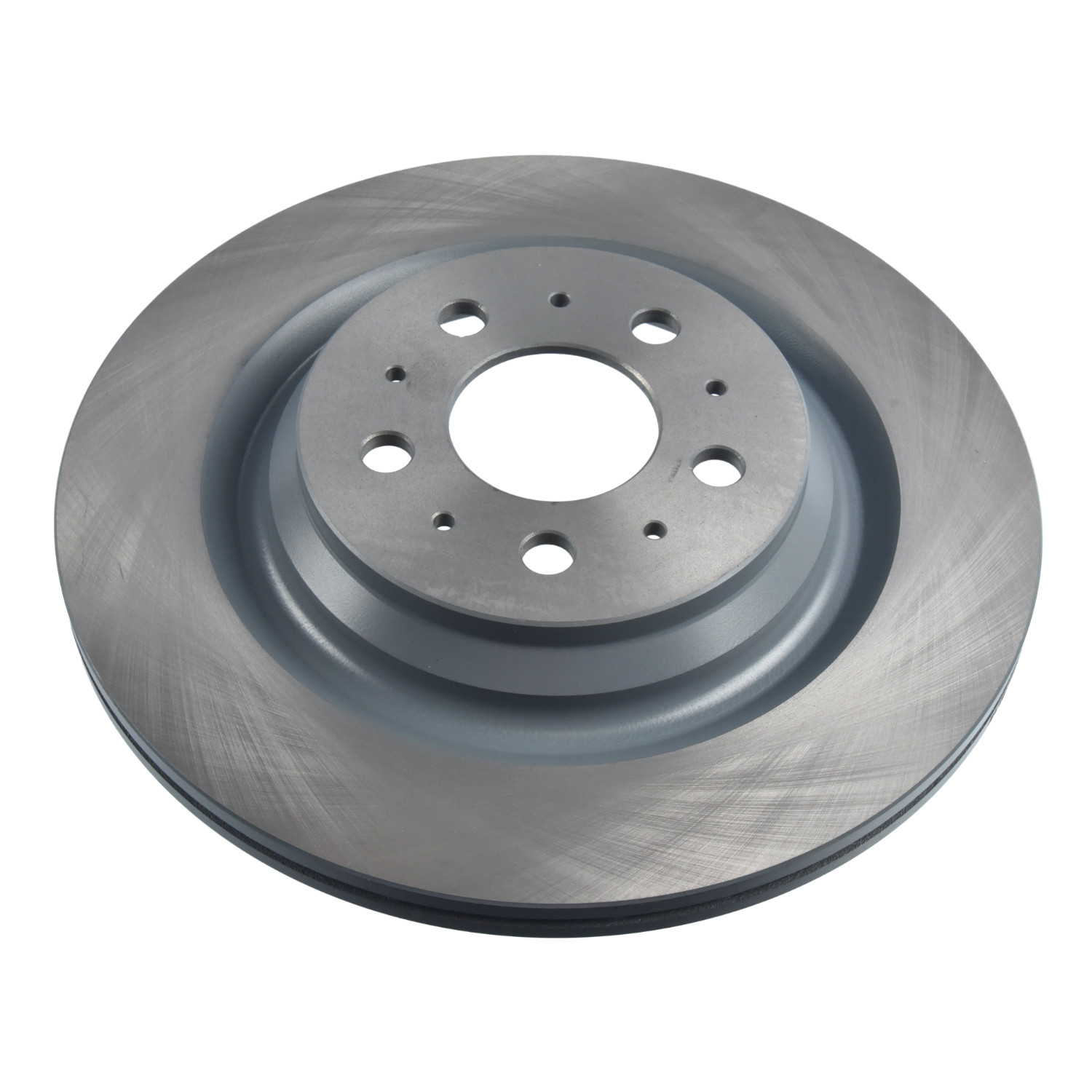

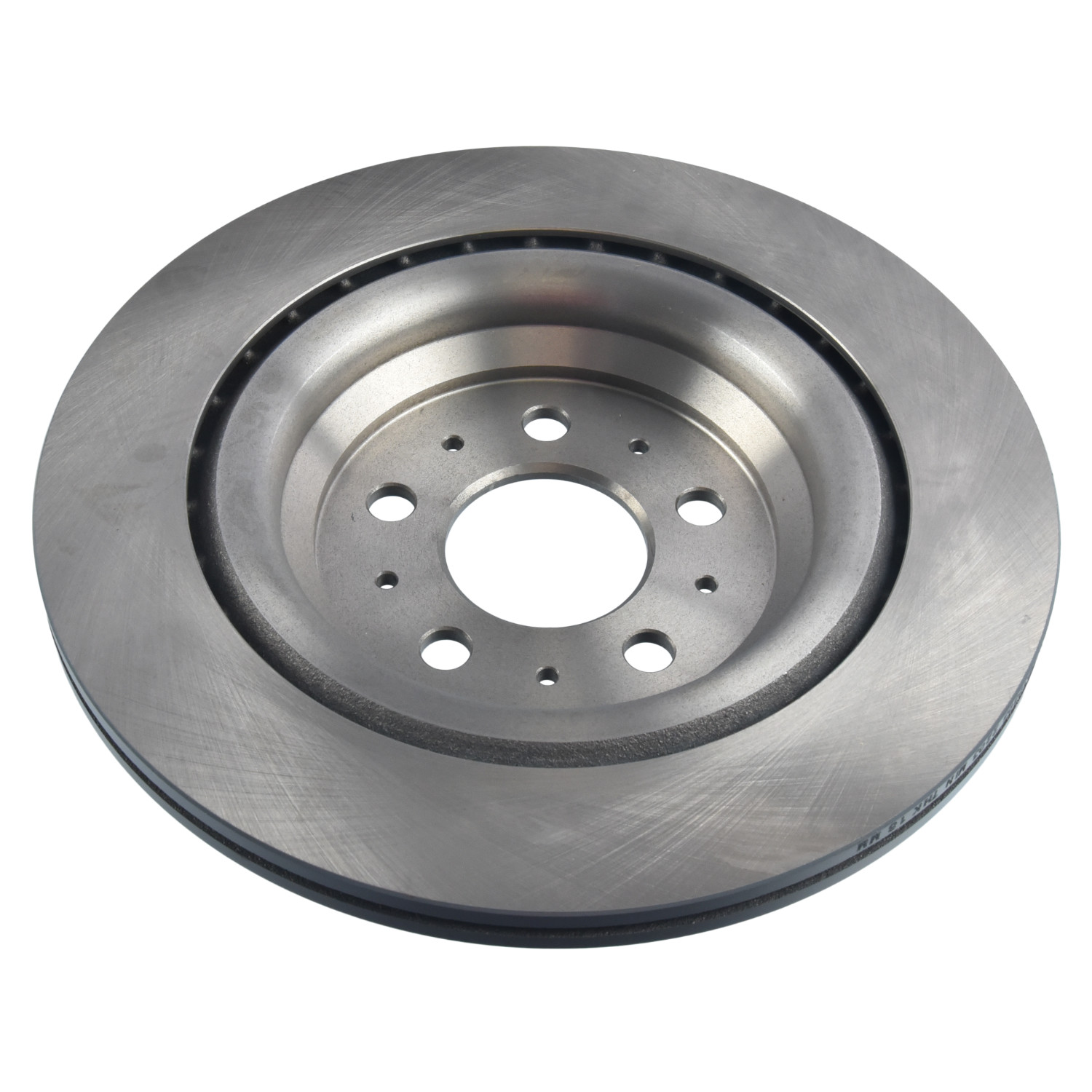

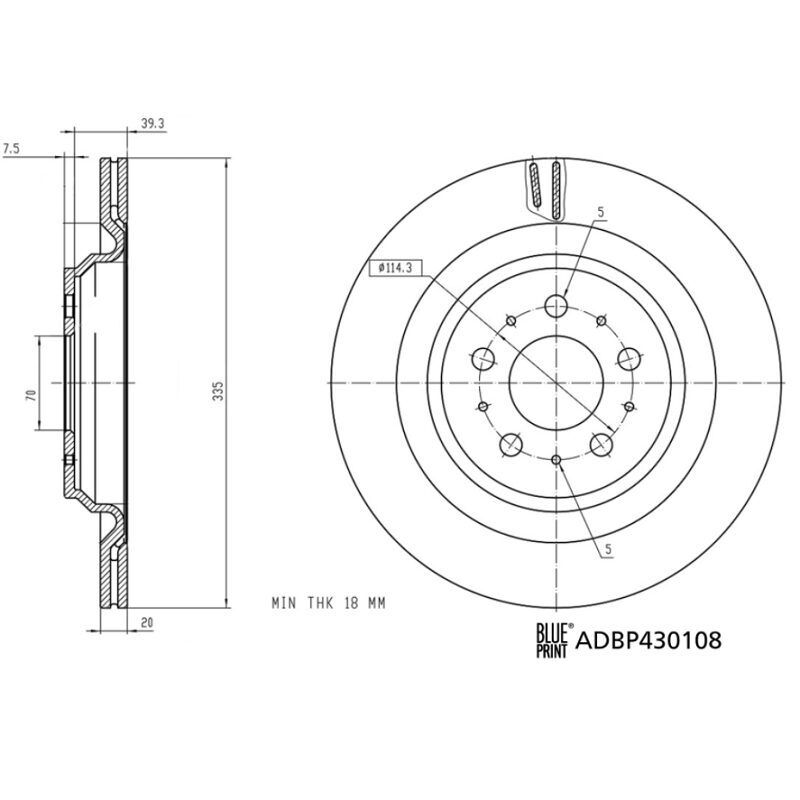

Model 3 Rear Brake Disc ADBP430108
Tesla Model 3 Rear Brake Disc Single
£61.10 £1,344.41Price range: £61.10 through £1,344.41
SKU: N/A Categories: , Brand:
Free UK Shipping on orders Over £80
  • Free UK shipping on all order over £80
Delivery

All parts shipped from our UK warehouse.

  • Order before 12:00pm for same day dispatch on in stock items.
  • Delivery starting from £1.95 depending on size and weight.
Easy Returns
  • 14 days no questions asked returns policy.
  • 30 days for unused orders.

Tesla Model 3 Rear Brake Disc – Order two when replacing both rear discs.

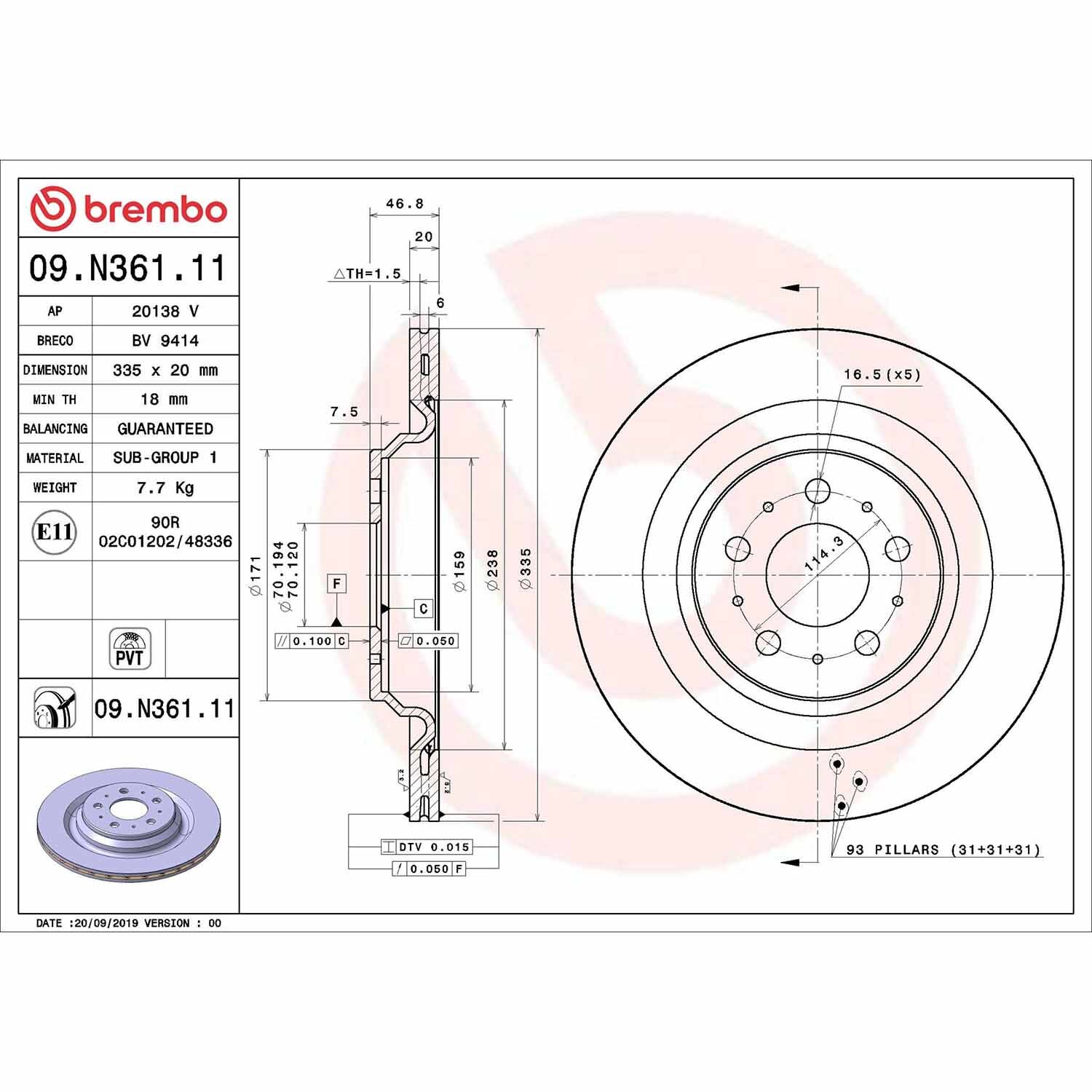

Rear Axle, Internally Vented, Coated

Blue Print brake discs are manufactured to the highest standards, using a grey iron smelting process consisting of a mixture of new and recycled materials combining metal composites. Choosing the right material is critical to the quality and operation of the brake discs for each vehicle application.

Suitable to replaceReference(s)
Tesla1044631-00-D
1188632-00-C
Attributes
Brake Disc Thickness20 mm
Brake Disc Typevented
Centre Diameter70 mm
Height or Thickness47 mm
Minimum Thickness of Brake Disc18 mm
No. of Wheel Bolt/Stud Holes5
Outer Diameter335 mm
Pitch Circle Diameter114,3 mm
SurfaceCoated
ModelSubmodel
Model 3 2017 –(E) – 175 kW / 238 hp
Model 3 2017 –(E) – 192 kW / 261 hp
Model 3 2017 –(E) – 194 kW / 264 hp
Model 3 2017 –(E) – 202 kW / 275 hp
Model 3 2017 –(E) – 208 kW / 283 hp
Model 3 2017 –(E) – 220 kW / 299 hp
Model 3 2017 –(E) – 225 kW / 306 hp
Model 3 2017 –(E) – 239 kW / 325 hp
Model 3 Dual Motor 2018 –(E) – 258 kW / 351 hp
Model 3 Dual Motor 2018 –(E) – 339 kW / 461 hp
Model 3 Dual Motor 2018 –(E) – 350 kW / 476 hp
Model 3 Dual Motor 2018 –(E) – 355 kW / 483 hp
Model 3 Dual Motor 2018 –(E) – 357 kW / 485 hp
Model 3 Dual Motor 2018 –(E) – 360 kW / 489 hp
Model 3 Dual Motor 2018 –(E) – 361 kW / 491 hp
Model 3 Dual Motor 2018 –(E) – 366 kW / 498 hp
Model 3 Dual Motor 2018 –(E) – 377 kW / 513 hp

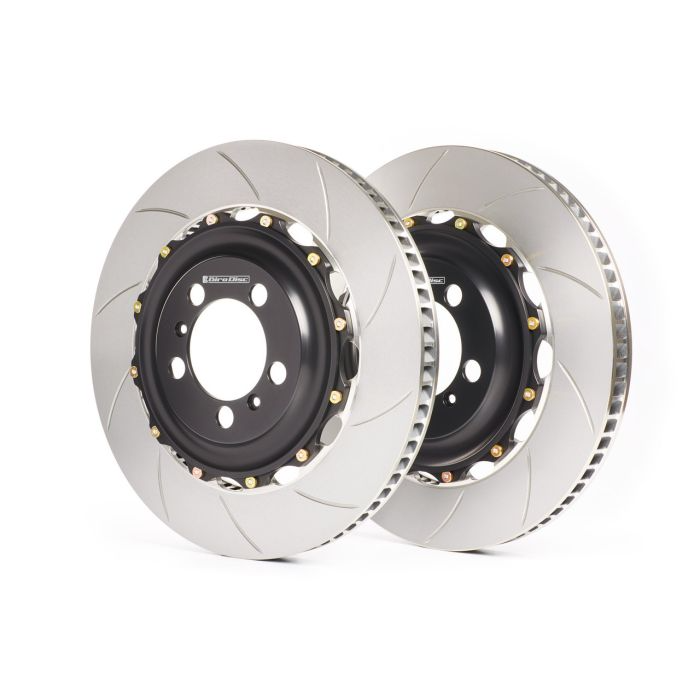

Giro Disc Details

Product details
Fitting positionRear
Fitting sideRight / Left
Outer diameter335.0 mm
Thickness20.0 mm
Disc typeCut
Disc typeVentilated
Disc constructiontwo-piece
Quantity2.0 pcs
Minimum thickness18.0 mm
OfferTuning
Weight6.20kg

Cross Referrence

  • 20138 V AP
  • V58-40003 Inter Cars cross reference
  • MDC3166C MINTEX
  • 92343303 TEXTAR

Additional information

Weight 13.980 kg
Dimensions 375 × 375 × 86 mm
Car Model

Car Brand

Tesla Part Numbers

,

Drive Train Position
