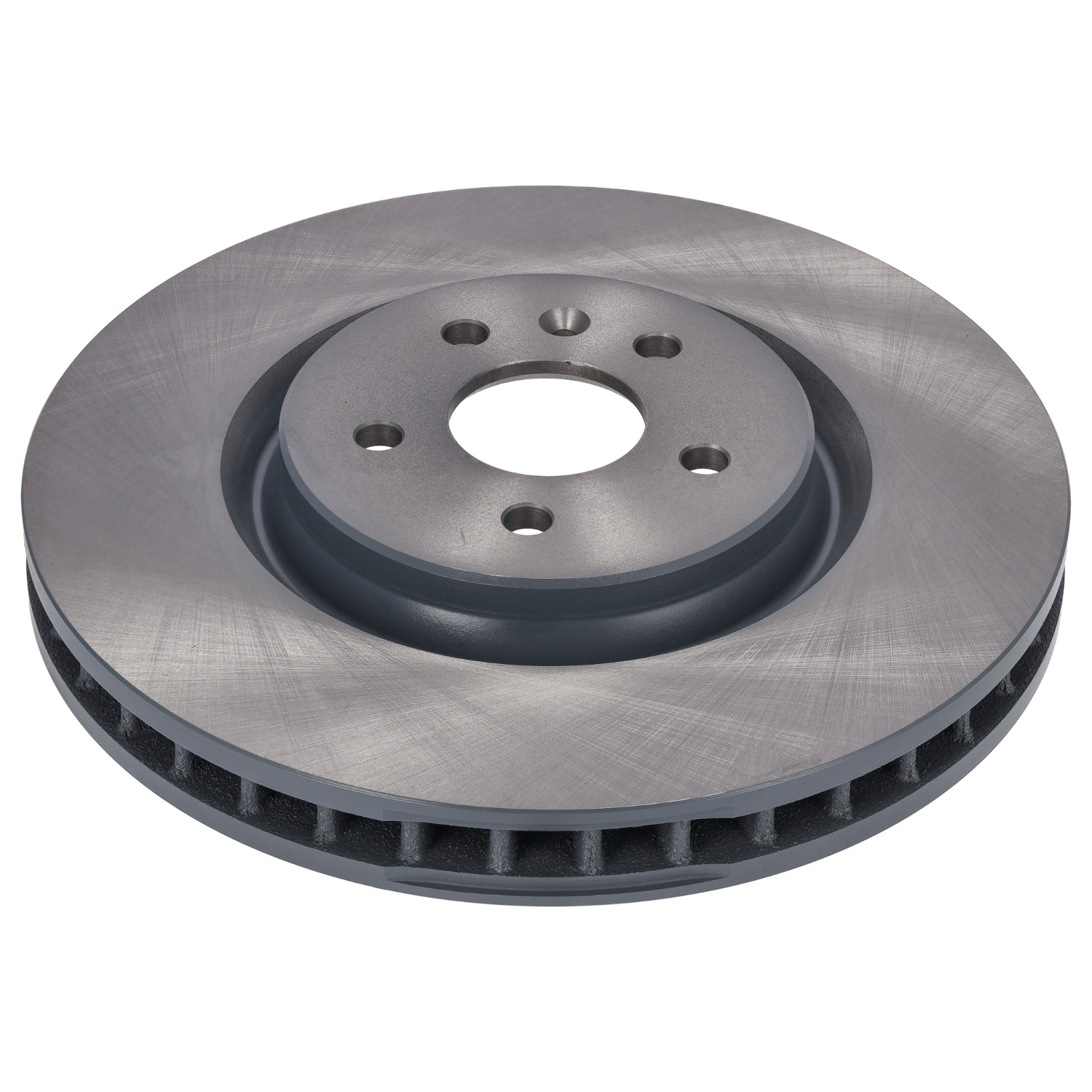

MG4 XPower & Mulan 4×4 Front Brake Discs – 345mm
These front brake discs are for the MG4 XPower and the MG Mulan 4×4, the twin-motor all-wheel-drive versions. Each disc is 345 mm across and 30 mm thick, internally vented to carry heat away under hard braking, and oiled and coated to resist corrosion on the hub face and outer edge.
Replace the discs when they are worn close to the 28 mm minimum thickness, when there is a deep lip at the outer edge, or when you feel judder through the steering under braking. Electric cars brake mostly through regeneration, so discs can also corrode before they wear out; check them at every service.
Choose Febi 196937 or Blue Print ADBP430239 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names. It is priced per disc and sold in pairs, so the basket goes up in 2s.
The table below shows the MG versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the MG4 XPower (MG 4 I 4×4 (EH), 320 kW) and the MG Mulan 4×4 (2022 – 2023, 315 kW) only. Not listed for the rear-wheel-drive MG4 or Mulan. Compare the MG part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 345 mm internally vented disc
- Oiled and coated against corrosion
- Priced per disc, sold in pairs
- Febi and Blue Print options
- Made by the bilstein group
Specifications
- Fitting Position: Front axle
- Outer Diameter: 345 mm
- Disc Thickness: 30 mm
- Minimum Thickness: 28 mm
- Disc Type: Internally vented
- Centre Diameter: 65 mm
- Height: 43 mm
- Wheel Bolt Holes: 5
- Pitch Circle Diameter: 112 mm
- Surface: Oiled and coated
- Part Number: Febi 196937 | Blue Print ADBP430239
- Sold As: Priced per disc, sold in pairs
Replaces MG part numbers 10893373 and 11713644.
Installation
Professional installation recommended. Fit new pads with new discs, clean the hub face so the disc sits flat, tighten the wheel nuts to the correct torque and bed the pads in gently over the first few miles.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle |
| Outer Diameter | 345 mm |
| Disc Thickness | 30 mm |
| Minimum Thickness | 28 mm |
| Disc Type | Internally vented |
| Centre Diameter | 65 mm |
| Height | 43 mm |
| Wheel Bolt Holes | 5 |
| Pitch Circle Diameter | 112 mm |
| Surface | Oiled and coated |
| Part Number | Febi 196937 | Blue Print ADBP430239 |
| Sold As | Priced per disc, sold in pairs |
Fits The Following MG Models
| Model | Submodel |
|---|---|
| MG 4 I 4×4 (EH) 2023 – | (E) – 320 kW / 435 hp |
| MULAN 4×4 (CS) 2022 – 2023 | (E) – 315 kW / 428 hp |
MG4 XPower & Mulan 4×4 Front Brake Discs – 345mm FAQs
Which part numbers does it replace?
Replaces MG part numbers 10893373 and 11713644. Febi and Blue Print part numbers are listed in the specifications.
Does it fit the rear-wheel-drive MG4?
No. The parts finder lists this disc for the MG4 XPower 4×4 (320 kW) and the Mulan 4×4 (315 kW) only.
Should I replace the pads at the same time?
Yes. Fit new front pads with new discs so they bed in together and brake evenly.
Will it fit my MG4?
Listed in the parts finder for the MG4 XPower (MG 4 I 4×4 (EH), 320 kW) and the MG Mulan 4×4 (2022 – 2023, 315 kW) only. Not listed for the rear-wheel-drive MG4 or Mulan. Check the notes in the fitment table and compare the MG part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine MG part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
