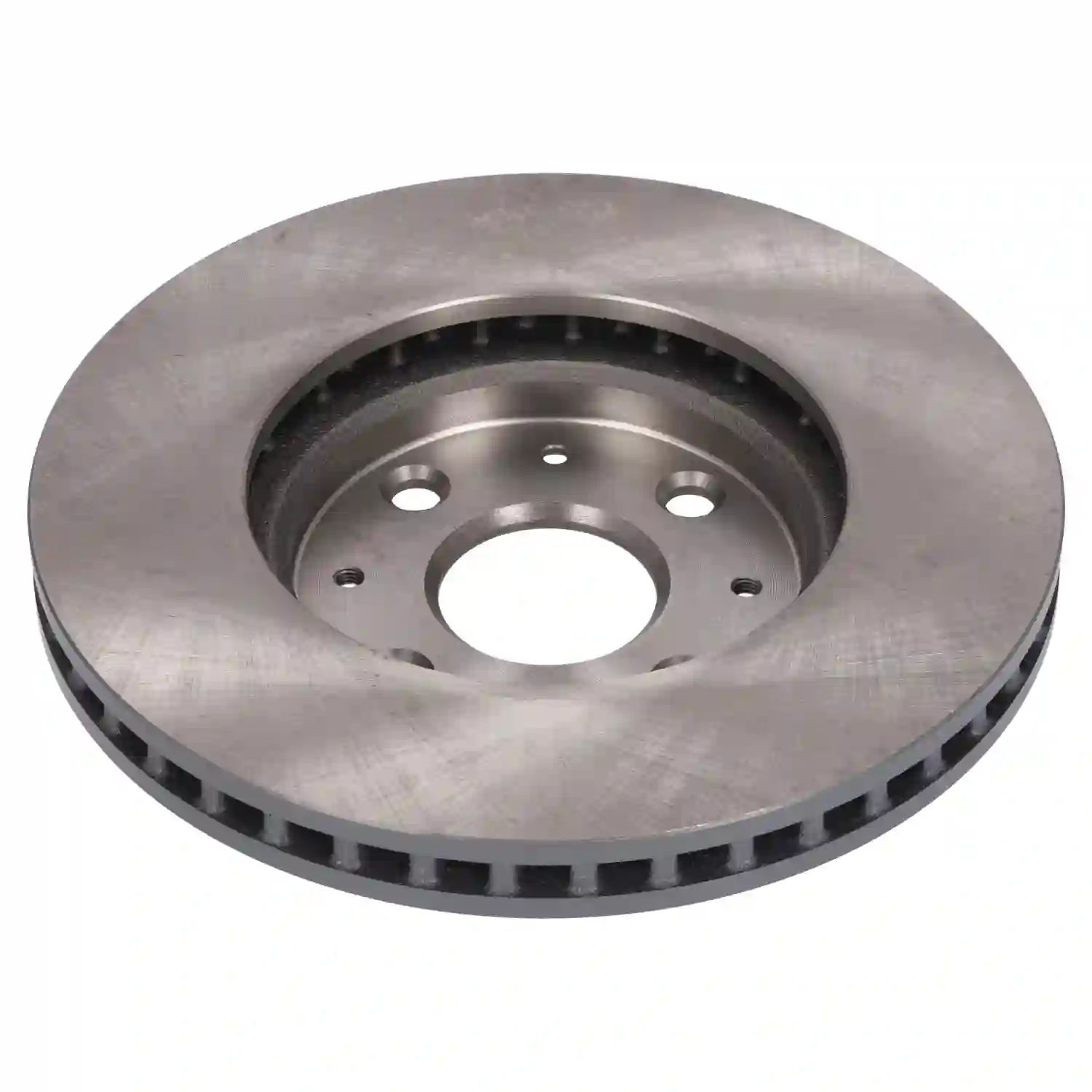

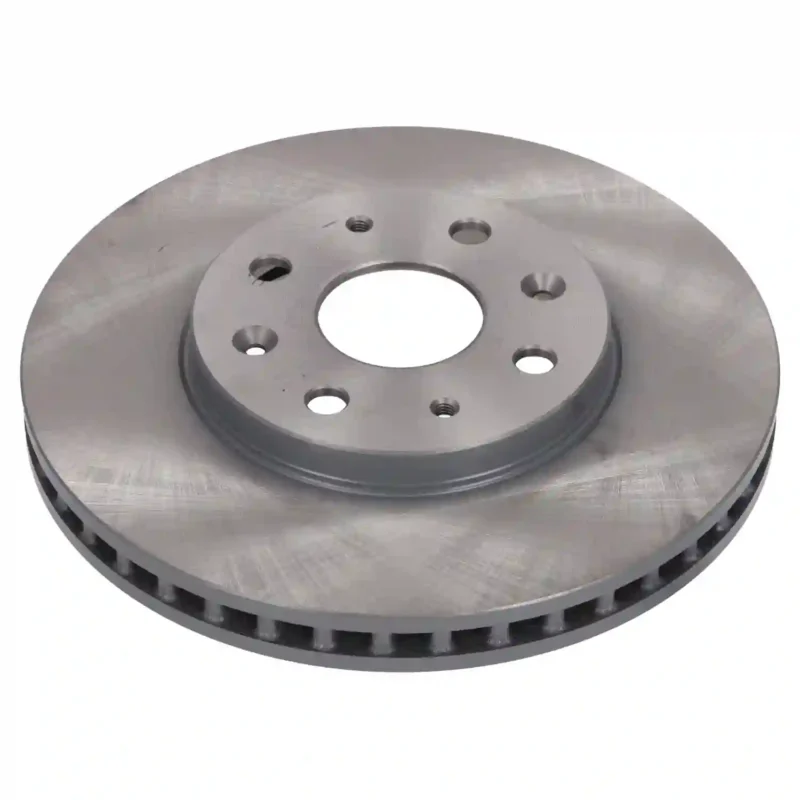

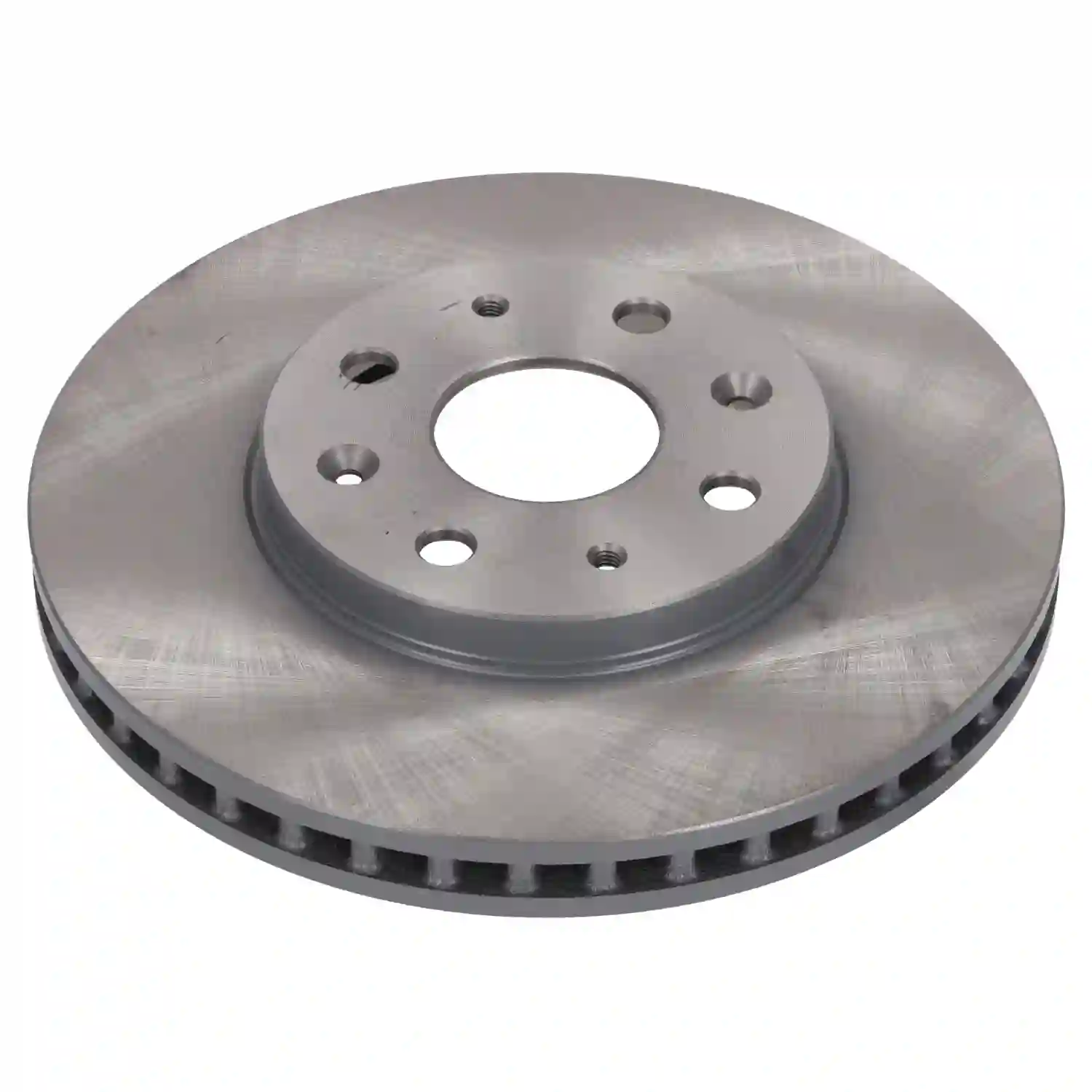

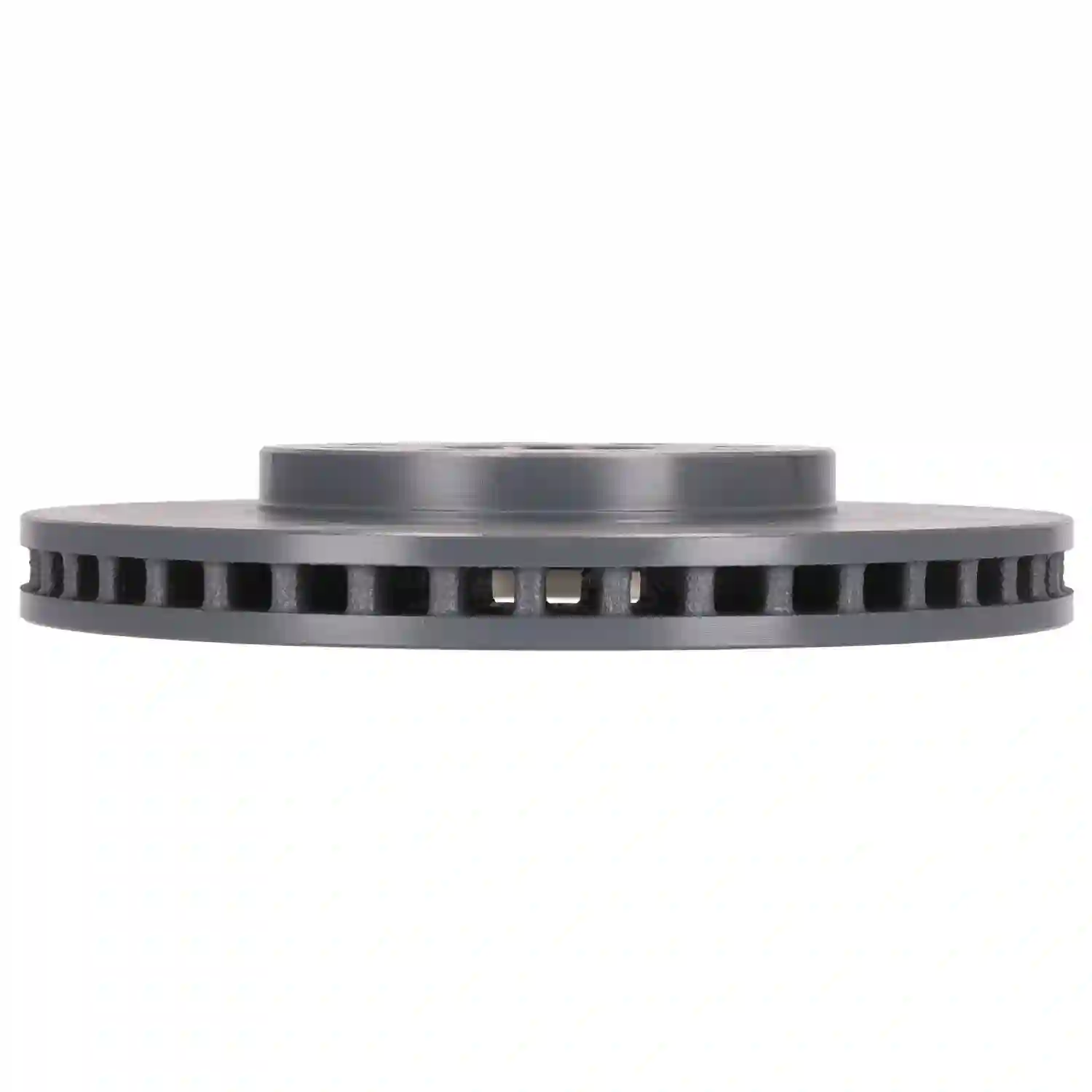

BYD Dolphin Front Brake Discs
These front brake discs are a direct replacement for the BYD Dolphin. With a 255 mm diameter, internally vented design and coated surface, they deliver strong braking performance, good heat dissipation and excellent corrosion protection — ideal for UK roads and weather conditions.
Key Benefits
- Strong and consistent braking performance
- Internally vented for effective heat dissipation
- Coated surface for corrosion protection
- Direct fit – no modifications required
- High-quality aftermarket construction
Specifications
- Outer Diameter: 255 mm
- Brake Disc Thickness: 25 mm
- Minimum Thickness: 23 mm
- Brake Disc Type: Internally vented
- Surface: Oiled and coated
- Centre Diameter: 55.1 mm
- Height: 41 mm
Compatibility
Fits BYD Dolphin (BY) 2021 onwards – right-hand drive vehicles with the following power outputs:
- 150 kW / 204 hp
- 70 kW / 95 hp
Replaces BYD OEM part number: EM2EY-3501011S / 14329047-00
Installation
Professional installation recommended. Always replace brake discs in pairs and bed in new discs correctly for optimal performance and safety.
Pro tip: Replace the front brake pads at the same time as the discs for balanced braking and best long-term results.
Explore More BYD Dolphin Parts
Aftermarket Part Numbers
- Blue Print – ADBP430261
- Febi – 198933
| Attributes | |
|---|---|
| Brake Disc Thickness | 25 mm |
| Brake Disc Type | internally vented |
| Centre Diameter | 55,1 mm |
| Height or Thickness | 41 mm |
| Minimum Thickness of Brake Disc | 23 mm |
| No. of Fixing Holes | 2 |
| No. of Wheel Bolt/Stud Holes | 4 |
| Outer Diameter | 255 mm |
| Pitch Circle Diameter | 100 mm |
| Surface | oiled and coated |
Replaces the following OEM part Numbers.
| Suitable to replace | Reference(s) |
|---|---|
| BYD | 14329047-00 | EM2EY-3501011S |
| Model | Submodel |
|---|---|
| BYD Dolphin (2021 –) for right-hand drive vehicles |
(E) – 150 kW / 204 hp |
| BYD Dolphin (2021 –) for right-hand drive vehicles |
(E) – 70 kW / 95 hp |
BYD Dolphin Front Brake Discs FAQs
.faq-accordion h3 { cursor: pointer; margin: 0; padding: 15px; border: 1px solid #ddd; } .faq-accordion div[itemprop=”acceptedAnswer”] { display: none; padding: 15px; border: 1px solid #ddd; border-top: none; background: #fff; } .faq-accordion .active + div[itemprop=”acceptedAnswer”] { display: block; }Which BYD Dolphin models do these brake discs fit?
Fits BYD Dolphin (BY) 2021 onwards – right-hand drive vehicles with 70 kW and 150 kW variants. Please provide your vehicle registration number for exact confirmation.
Is this a single disc or a pair?
This is a single disc. Order two discs to replace both sides of the front axle.
Should I replace the pads at the same time?
Yes – it is highly recommended to replace discs and pads together for balanced braking performance and safety.
Do I need a wheel alignment after fitting?
No – brake disc replacement does not normally require a wheel alignment.
Is this an original BYD part or aftermarket?
This is a high-quality aftermarket brake disc that matches original specifications and performance.
