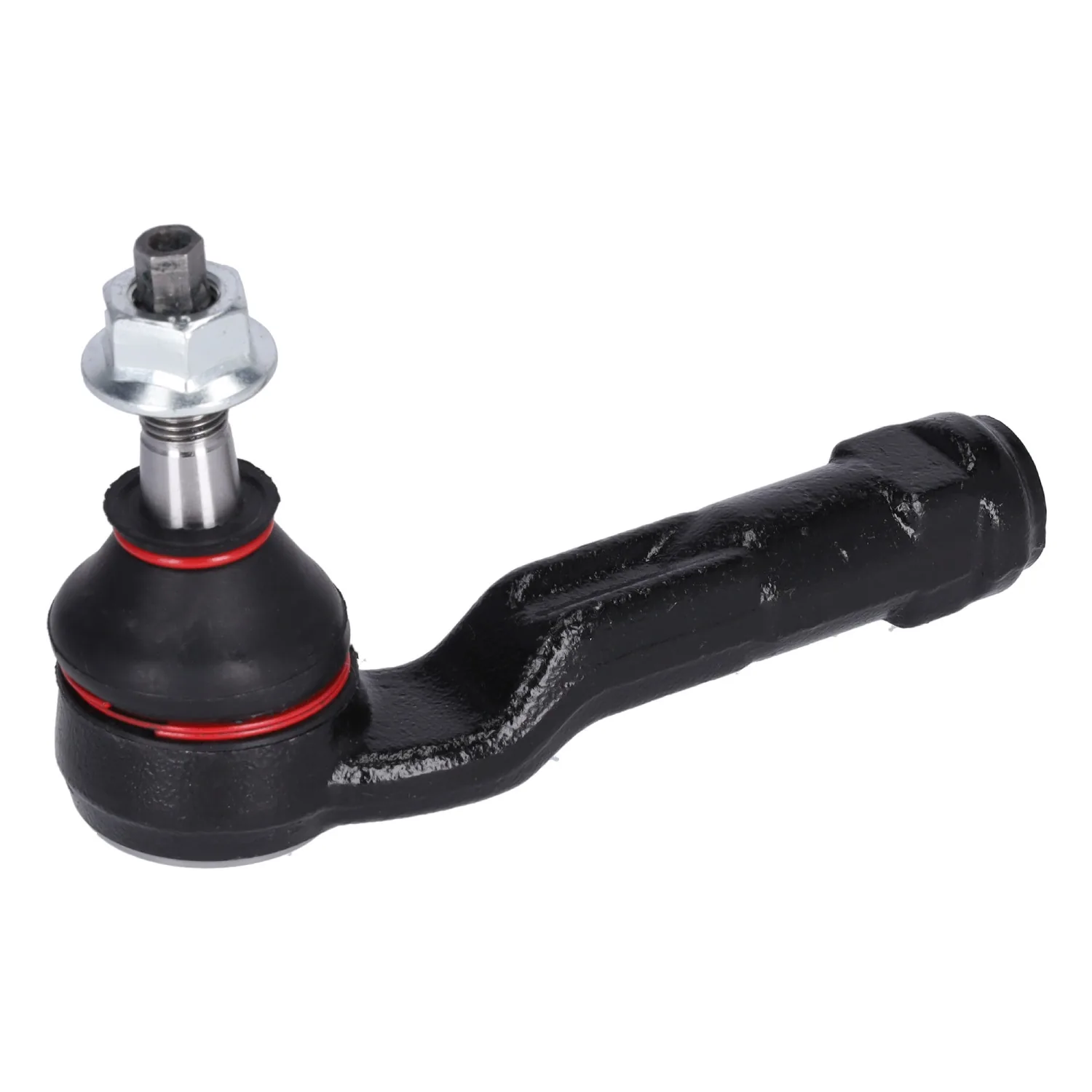

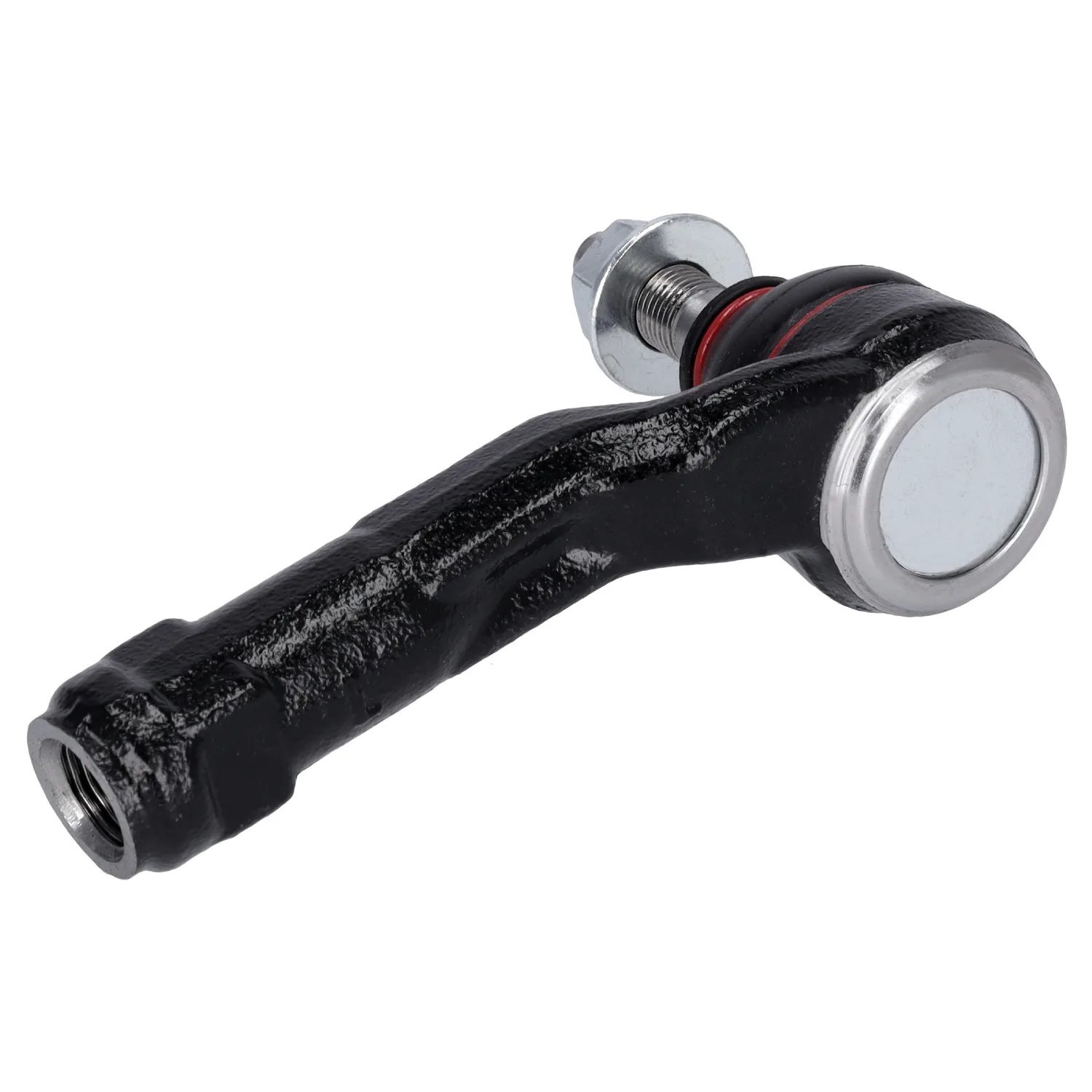

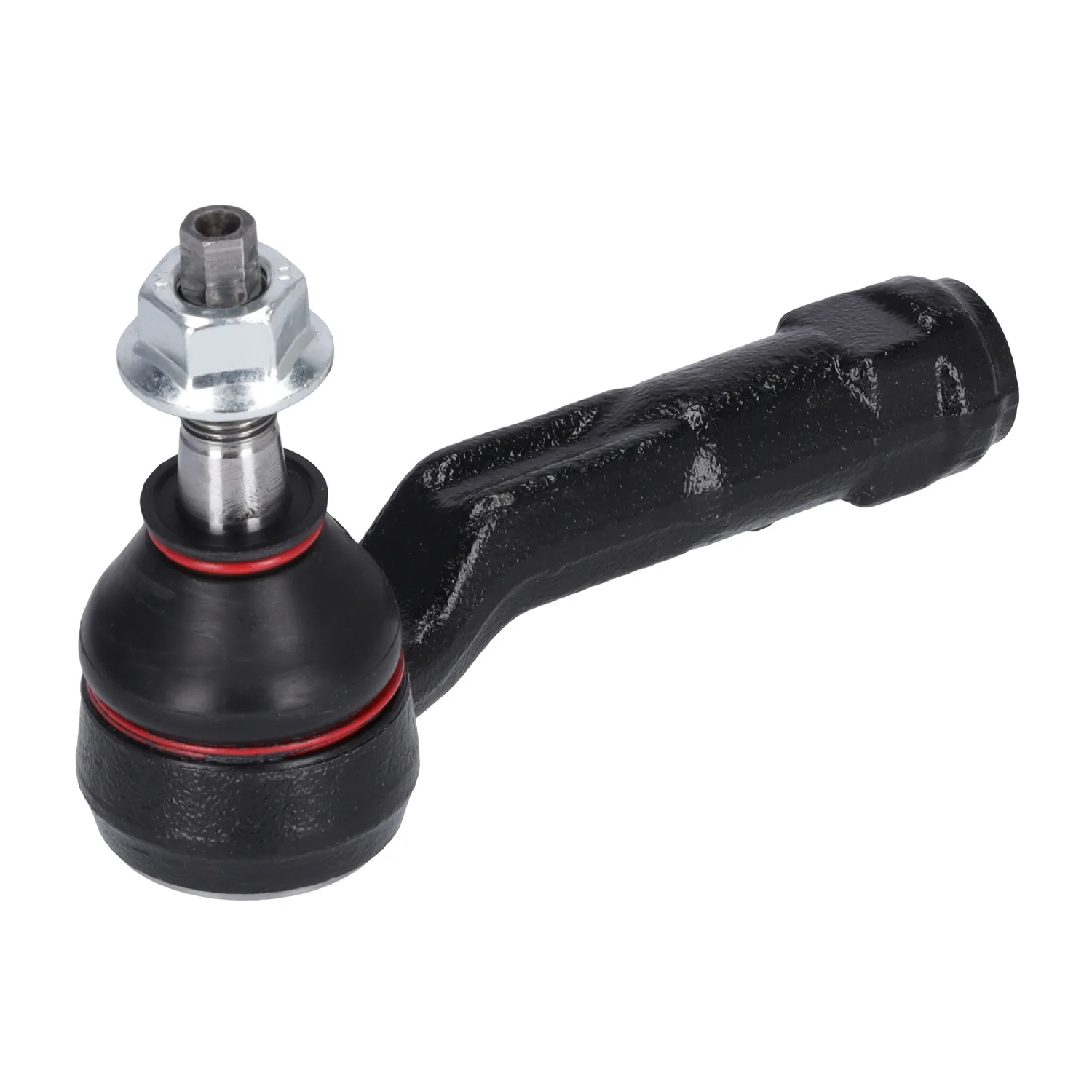

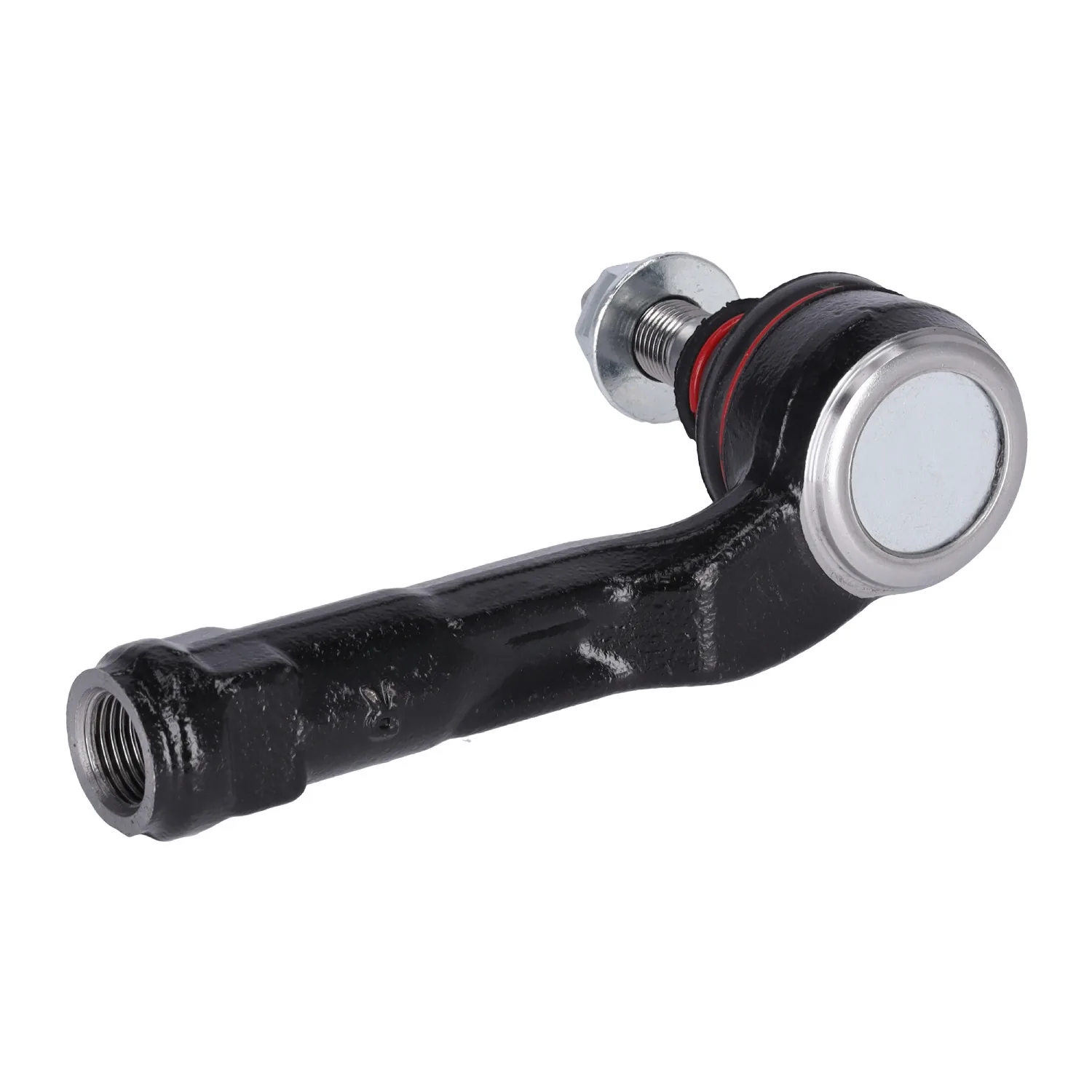

Kia e-Niro, Niro EV & Soul EV Tie Rod End – Left / Right
This outer tie rod end (track rod end) connects the steering rack to the steering knuckle on the Kia e-Niro built up to January 2021 and the Niro EV from 2022. The right-hand end also fits the Soul EV and e-Soul. It comes with a lock nut.
Replace a tie rod end if the ball joint has play, the rubber boot is split, or you notice knocking, vague steering or uneven wear on the front tyres.
Both brands are made by the bilstein group. Left: Febi 180978 or Blue Print ADBP870064 (Kia 56820-K4000). Right: Febi 180977 or Blue Print ADBP870059 (Kia 56825-K4090).
The left end is listed for the e-Niro and Niro EV only. For the e-Niro, both sides are listed up to build date 01/2021 only.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the electric versions of the Kia e-Niro 2018 – 2022, Niro I 2016 – 2022, Niro II 2022 -, e-Soul 2019 – and Soul III 2019 -. The table below shows each power output. Compare the Kia part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Ball joint with lock nut
- Left and right available
- Choice of Febi or Blue Print
- Made by the bilstein group
Specifications
- Fitting Position: Front axle, left or right
- Internal Thread: M16 x 1.5
- Outside Thread: M12 x 1.25
- Spanner Size: 22 mm
- Includes: Lock nut
Replaces Kia part numbers 56820-K4000, 56820-G2500, 56820-S0001, 56820-G2000, 56825-K4090, 56825-G2500, 56825-J2000, 56825-S0001 and 56825-G2000.
Installation
Count the turns when removing the old end so the new one goes on in roughly the same place, then have the wheel alignment set. If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right |
| Internal Thread | M16 x 1.5 |
| Outside Thread | M12 x 1.25 |
| Spanner Size | 22 mm |
| Includes | Lock nut |
Fits The Following Kia Models
| Model | Submodel | Part | Note |
|---|---|---|---|
| e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp | Left (180978 / ADBP870064) | Up to build date 01/2021 |
| Niro I 2016 – 2022 | (E) – 150 kW / 204 hp | Left (180978 / ADBP870064) | Up to build date 01/2021 |
| Niro II 2022 – | (E) – 150 kW / 204 hp | Left (180978 / ADBP870064) | |
| e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp | Right (180977 / ADBP870059) | Up to build date 01/2021 |
| Niro I 2016 – 2022 | (E) – 150 kW / 204 hp | Right (180977 / ADBP870059) | Up to build date 01/2021 |
| Niro II 2022 – | (E) – 150 kW / 204 hp | Right (180977 / ADBP870059) | |
| e-Soul 2019 – | (E) – 100 kW / 136 hp | Right (180977 / ADBP870059) | |
| e-Soul 2019 – | (E) – 150 kW / 204 hp | Right (180977 / ADBP870059) | |
| Soul III 2019 – | (E) – 100 kW / 136 hp | Right (180977 / ADBP870059) | |
| Soul III 2019 – | (E) – 150 kW / 204 hp | Right (180977 / ADBP870059) |
Note from the parts finder: If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Kia e-Niro, Niro EV & Soul EV Tie Rod End – Left / Right FAQs
Which part numbers does it replace?
It replaces Kia part numbers 56820-K4000, 56820-G2500, 56820-S0001, 56820-G2000, 56825-K4090, 56825-G2500, 56825-J2000, 56825-S0001 and 56825-G2000.
Does the left end fit the Soul EV?
No. The parts finder lists the left end (180978 / ADBP870064) for the e-Niro and Niro EV only. The right end fits the Soul EV and e-Soul.
Does it fit the later e-Niro?
The parts finder lists the e-Niro rows up to build date 01/2021 only.
Do I need an alignment?
Yes. The tracking must be set after fitting a new tie rod end. If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Will it fit my Kia e-Niro, Niro EV or Soul EV?
Left (180978 / ADBP870064): the parts finder lists it for the electric e-Niro 2018 – 2022 (150 kW / 204 hp, up to build date 01/2021); Niro I 2016 – 2022 (150 kW / 204 hp, up to build date 01/2021); Niro II 2022 – (150 kW / 204 hp). Right (180977 / ADBP870059): the parts finder lists it for the electric e-Niro 2018 – 2022 (150 kW / 204 hp, up to build date 01/2021); Niro I 2016 – 2022 (150 kW / 204 hp, up to build date 01/2021); Niro II 2022 – (150 kW / 204 hp); e-Soul 2019 – (100 kW / 136 hp and 150 kW / 204 hp); Soul III 2019 – (100 kW / 136 hp and 150 kW / 204 hp). If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary. Compare the Kia part number on your existing part before ordering.
Is this a genuine Kia part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
