Kia e-Niro, Niro EV & Soul EV Stabiliser Link – Front / Rear
This stabiliser link (drop link) connects the anti-roll bar to the suspension on the Kia e-Niro, the Niro EV (front link: built up to 08/2022) and the Soul EV. The front link is 294 mm long and the rear link 72 mm, and each one fits the left or right side.
Replace a link if you hear knocking or rattling over bumps, the ball joint is loose, or the boot is split. Worn links let the car roll more in corners and make the steering feel less precise.
Both brands are made by the bilstein group. Front: Febi 183045 or Blue Print ADBP850013 (Kia 54830-J9000 and 54830-F2000), with lock nuts. Rear: Febi 184868 or Blue Print ADBP850025 (Kia 55530-G2000).
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the electric versions of the Kia e-Niro 2018 – 2022, e-Soul 2019 -, Niro I 2016 – 2022, Niro II 2022 -, Niro Plus 2022 – and Soul III 2019 -. The table below shows each power output. Compare the Kia part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Steel link with ball joints
- Front link supplied with lock nuts
- Fits the left or right side
- Choice of Febi or Blue Print
Specifications

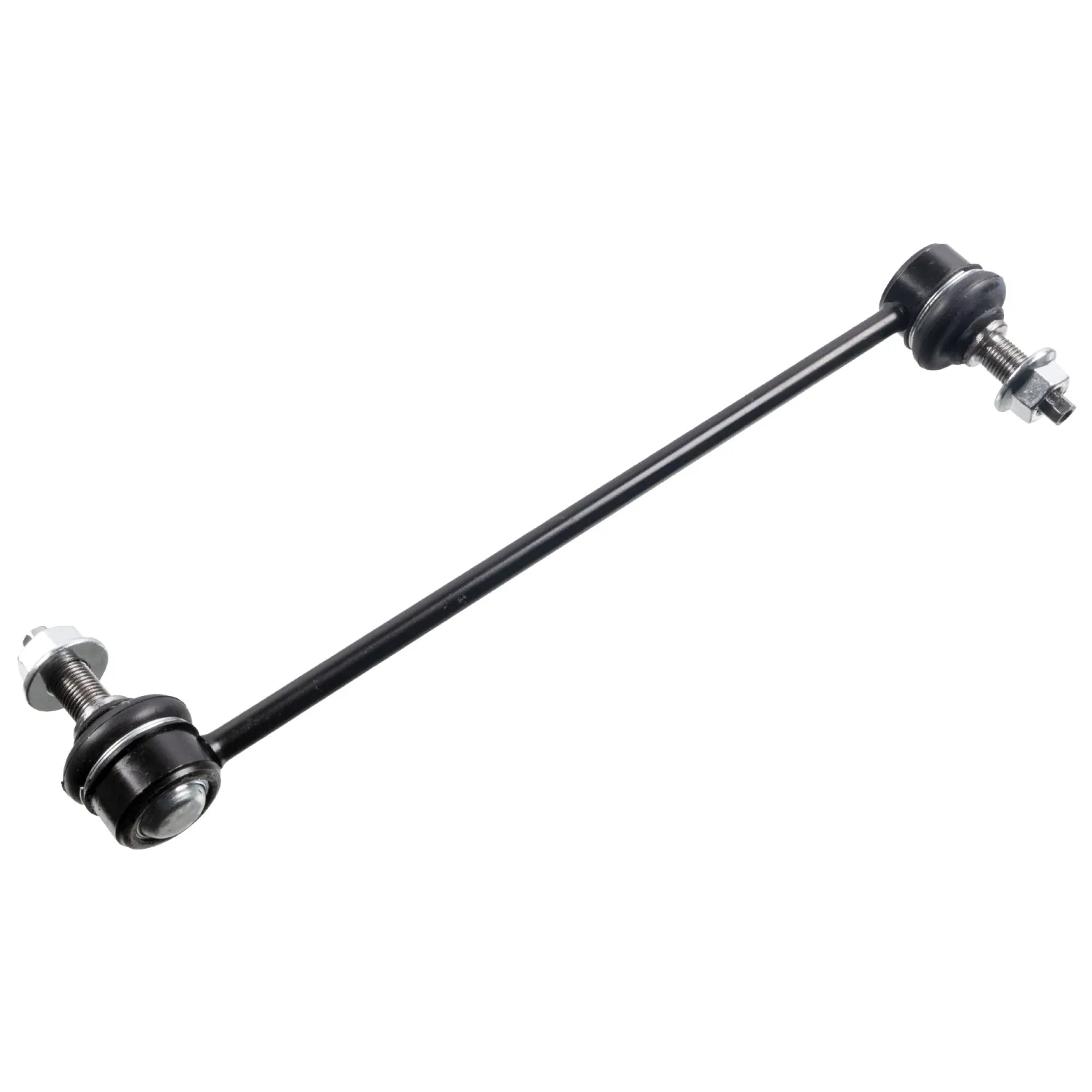

- Front (183045): 294 mm, M12 x 1.25, thread length 23 mm, 18 mm spanner, with lock nuts

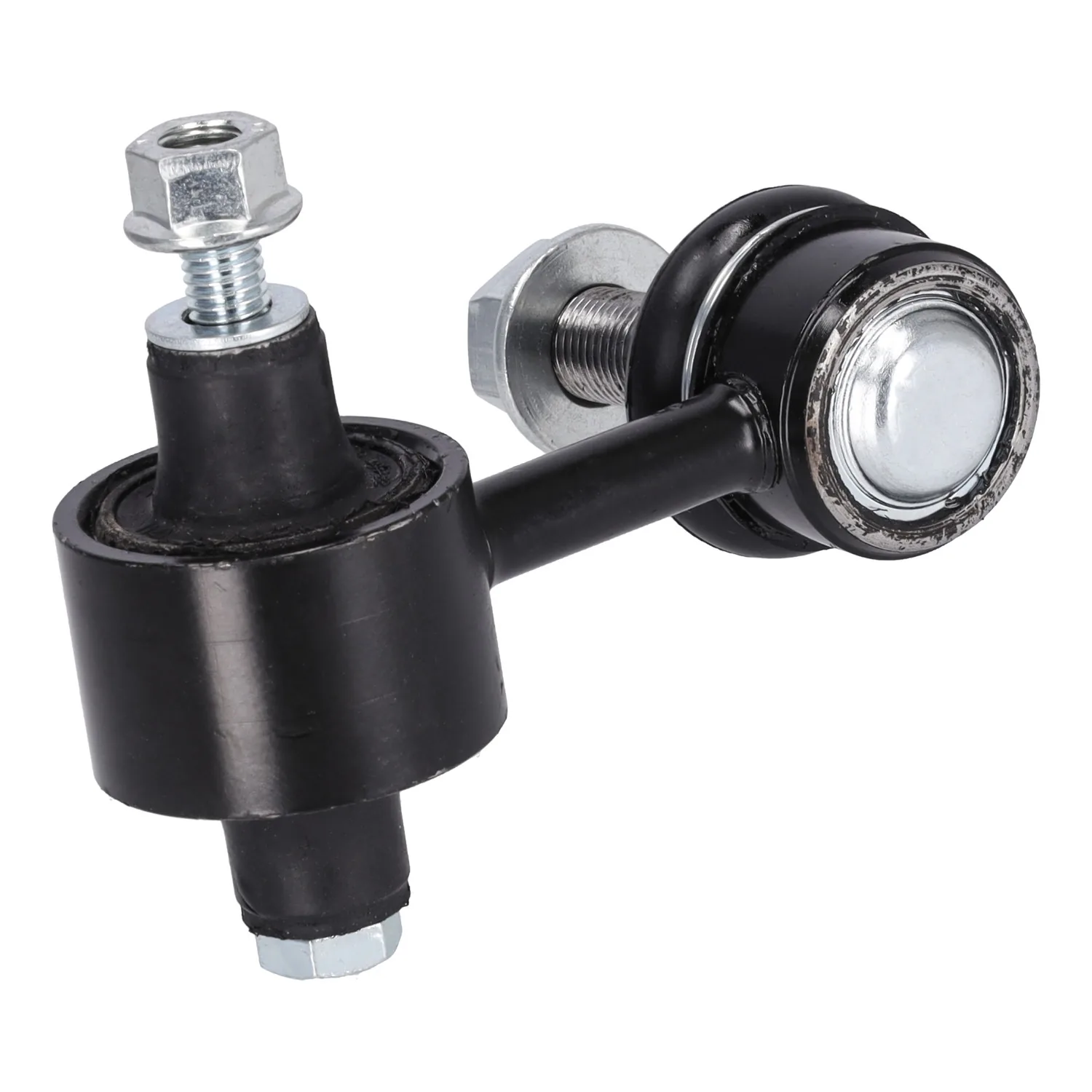

- Rear (184868): 72 mm, M12 x 1.25, thread length 25 mm, 16 mm spanner
- Material: Steel
- Fitting Position: Left or right
Replaces Kia part numbers 54830-J9000, 54830-F2000 and 55530-G2000.
Installation
Tighten the nuts with the suspension loaded at normal ride height, holding the ball pin with the correct key or spanner so it does not spin.
Explore More Parts
| Attribute | Value |
|---|---|
| Front (183045) | 294 mm, M12 x 1.25, thread length 23 mm, 18 mm spanner, with lock nuts |
| Rear (184868) | 72 mm, M12 x 1.25, thread length 25 mm, 16 mm spanner |
| Material | Steel |
| Fitting Position | Left or right |
Fits The Following Kia Models
| Model | Submodel | Part | Note |
|---|---|---|---|
| e-Niro 2018 – 2022 | (E) – 100 kW / 136 hp | Front (183045 / ADBP850013) | |
| e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp | Front (183045 / ADBP850013) | |
| e-Soul 2019 – | (E) – 100 kW / 136 hp | Front (183045 / ADBP850013) | |
| e-Soul 2019 – | (E) – 150 kW / 204 hp | Front (183045 / ADBP850013) | |
| Niro I 2016 – 2022 | (E) – 100 kW / 136 hp | Front (183045 / ADBP850013) | |
| Niro I 2016 – 2022 | (E) – 150 kW / 204 hp | Front (183045 / ADBP850013) | |
| Niro II 2022 – | (E) – 150 kW / 204 hp | Front (183045 / ADBP850013) | Up to build date 08/2022 |
| Niro Plus 2022 – | (E) – 150 kW / 204 hp | Front (183045 / ADBP850013) | |
| Soul III 2019 – | (E) – 100 kW / 136 hp | Front (183045 / ADBP850013) | |
| Soul III 2019 – | (E) – 150 kW / 204 hp | Front (183045 / ADBP850013) | |
| e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp | Rear (184868 / ADBP850025) | |
| e-Soul 2019 – | (E) – 100 kW / 136 hp | Rear (184868 / ADBP850025) | |
| e-Soul 2019 – | (E) – 150 kW / 204 hp | Rear (184868 / ADBP850025) | |
| Niro I 2016 – 2022 | (E) – 150 kW / 204 hp | Rear (184868 / ADBP850025) | |
| Soul III 2019 – | (E) – 100 kW / 136 hp | Rear (184868 / ADBP850025) | |
| Soul III 2019 – | (E) – 150 kW / 204 hp | Rear (184868 / ADBP850025) |
Kia e-Niro, Niro EV & Soul EV Stabiliser Link – Front / Rear FAQs
Which part numbers does it replace?
It replaces Kia part numbers 54830-J9000, 54830-F2000 and 55530-G2000.
Does one link fit both sides?
Yes. Each link fits the left or the right side of its axle. Each link is sold on its own.
Should I replace links in pairs?
It is good practice, as both sides have done the same mileage.
Are the nuts included?
The front link comes with lock nuts.
Will it fit my Kia e-Niro, Niro EV or Soul EV?
Front (183045 / ADBP850013): the parts finder lists it for the electric e-Niro 2018 – 2022 (100 kW / 136 hp and 150 kW / 204 hp); e-Soul 2019 – (100 kW / 136 hp and 150 kW / 204 hp); Niro I 2016 – 2022 (100 kW / 136 hp and 150 kW / 204 hp); Niro II 2022 – (150 kW / 204 hp, up to build date 08/2022); Niro Plus 2022 – (150 kW / 204 hp); Soul III 2019 – (100 kW / 136 hp and 150 kW / 204 hp). Rear (184868 / ADBP850025): the parts finder lists it for the electric e-Niro 2018 – 2022 (150 kW / 204 hp); e-Soul 2019 – (100 kW / 136 hp and 150 kW / 204 hp); Niro I 2016 – 2022 (150 kW / 204 hp); Soul III 2019 – (100 kW / 136 hp and 150 kW / 204 hp). Compare the Kia part number on your existing part before ordering.
Is this a genuine Kia part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
