Kia e-Niro, Soul EV, Hyundai Kona Electric & Ioniq Electric Front Lower Control Arm Bush – Rear

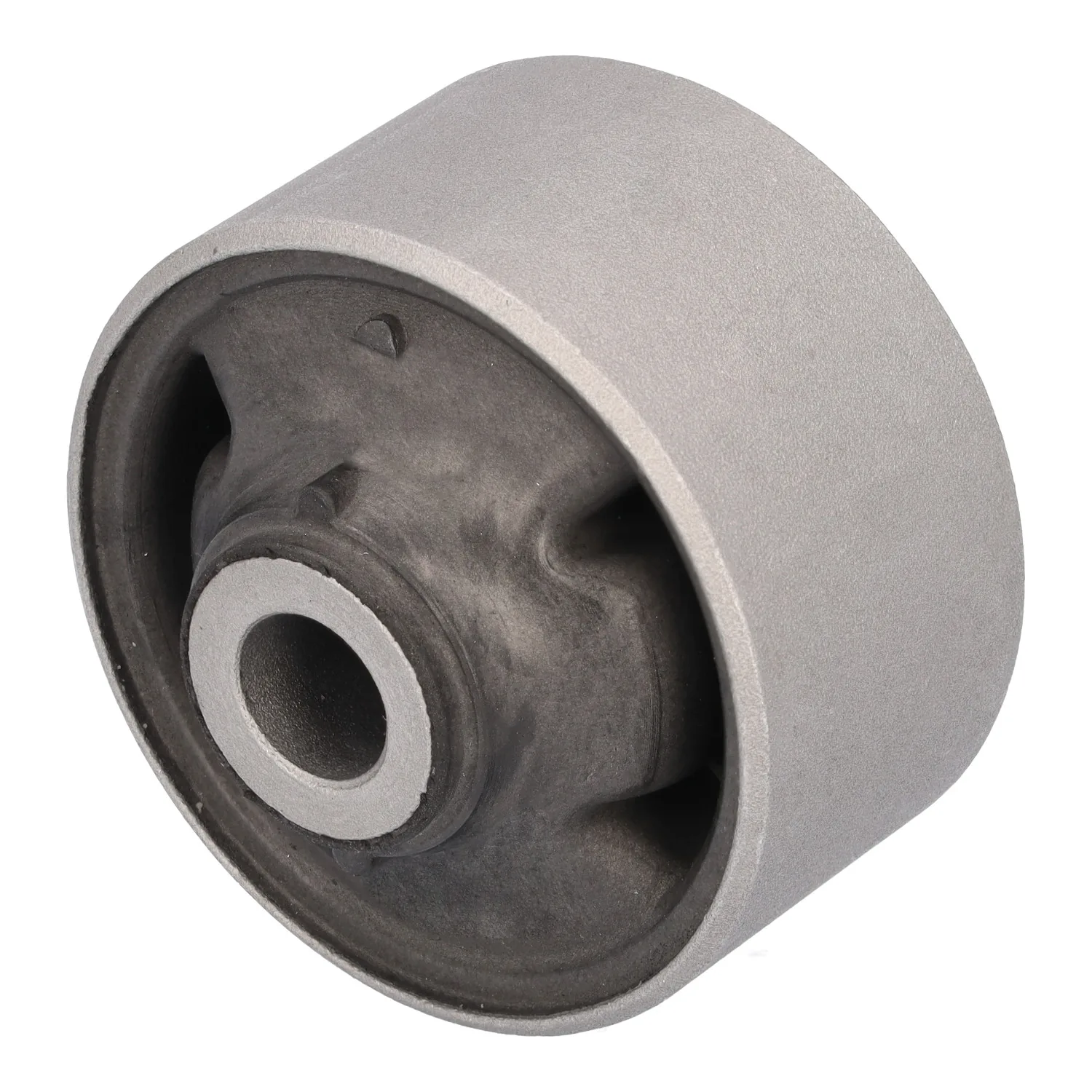

This rubber and metal bush fits the rear (inner) mounting of the front lower control arm on the Kia e-Niro and Soul EV and the first-generation Hyundai Kona Electric and Ioniq Electric. It fits the front left or front right arm.
The rear bush of the front lower arm carries most of the braking and cornering load, so it is often the first bush to wear. Replace it if the rubber is cracked or torn, or if you notice knocks over bumps, a shudder when braking or the steering pulling to one side.
This is Febi 184488, made by the bilstein group. It is 60 mm high with a 14.3 mm inner and 70.4 mm outer diameter and replaces part number 54584-G2000.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the electric Kia e-Niro and Soul EV (2019 on) and the first-generation Hyundai Kona Electric and Ioniq Electric. The table below shows each power output. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal bush, 60 mm high
- Fits the front left or front right arm
- Cost-effective repair for a sound arm
- Made by the bilstein group to match the original
Specifications
- Fitting Position: Front axle, lower arm, rear, inner, left or right
- Height: 60 mm
- Inner Diameter: 14.3 mm
- Outer Diameter: 70.4 mm
- Material: Rubber / metal
- Part Number: Febi 184488
Replaces Kia and Hyundai part number 54584-G2000.
Installation
Professional installation recommended. The bush is pressed out and in with a bush tool. Tighten the bolts at normal ride height and have the alignment checked.
Explore More Parts
- All Hyundai Ioniq Electric Parts
- All Hyundai Kona Electric Parts
- All Kia e-Niro Parts
- All Kia Soul EV Parts
- All Kia Niro Parts
- All Suspension Bushes
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, lower arm, rear, inner, left or right |
| Height | 60 mm |
| Inner Diameter | 14.3 mm |
| Outer Diameter | 70.4 mm |
| Material | Rubber / metal |
| Part Number | Febi 184488 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Hyundai | Ioniq 2016 – 2022 | (E) – 88 kW / 120 hp |
| Hyundai | Ioniq 2016 – 2022 | (E) – 100 kW / 136 hp |
| Hyundai | Kauai I 2017 – 2023 | (E) – 100 kW / 136 hp |
| Hyundai | Kauai I 2017 – 2023 | (E) – 150 kW / 204 hp |
| Hyundai | Kona I 2017 – | (E) – 100 kW / 136 hp |
| Hyundai | Kona I 2017 – | (E) – 150 kW / 204 hp |
| Kia | e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp |
| Kia | e-Soul 2019 – | (E) – 100 kW / 136 hp |
| Kia | e-Soul 2019 – | (E) – 150 kW / 204 hp |
| Kia | Niro I 2016 – 2022 | (E) – 150 kW / 204 hp |
| Kia | Soul III 2019 – | (E) – 100 kW / 136 hp |
| Kia | Soul III 2019 – | (E) – 150 kW / 204 hp |
Kia e-Niro, Soul EV, Hyundai Kona Electric & Ioniq Electric Front Lower Control Arm Bush – Rear FAQs
Which part numbers does it replace?
It replaces Kia and Hyundai part number 54584-G2000.
Does it fit both sides?
Yes. It fits the front left or front right lower arm. Each bush is sold on its own.
Is this the front or rear bush of the arm?
This is the rear, inner bush of the front lower arm. The front bush is a different, smaller part.
Do I need an alignment?
Yes. Have the alignment checked after fitting. If your car has driver-assistance cameras or radar, have them checked after any suspension work that changes the wheel alignment.
Will it fit my Kia or Hyundai?
The parts finder lists it for the electric Kia e-Niro and Soul EV (2019 on) and the first-generation Hyundai Kona Electric (100 kW and 150 kW) and Ioniq Electric. It is not listed for the Niro EV from 2022 or the second-generation Kona Electric. Compare the part number on your existing part before ordering.
Is this a genuine Kia or Hyundai part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
