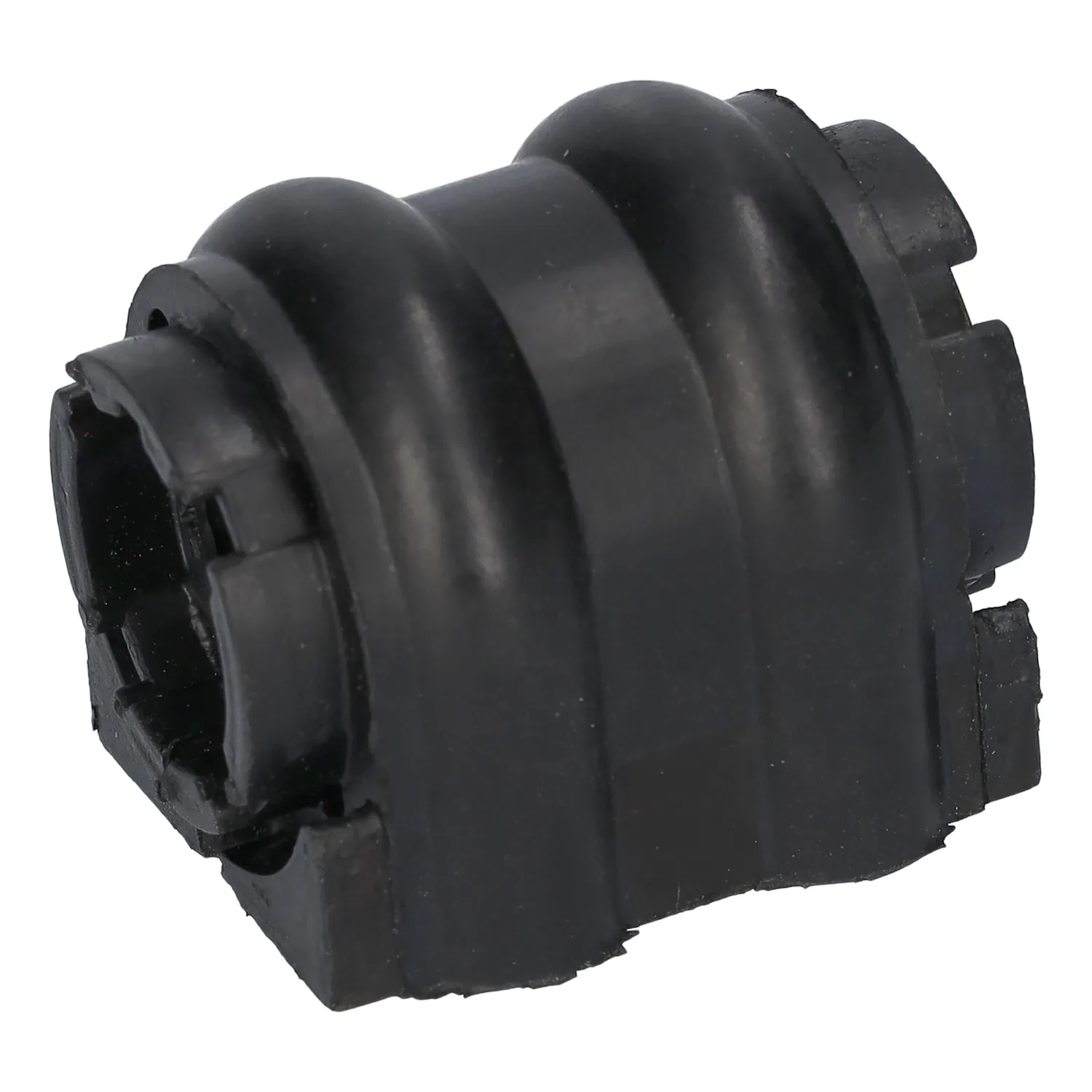

Kia e-Niro, Soul EV & Hyundai Kona Electric Rear Anti-Roll Bar Bush – 13.8 mm
This rubber and metal anti-roll bar bush holds the rear anti-roll bar in place on the 150 kW Kia e-Niro and Soul EV and on Korean-built first-generation Hyundai Kona Electric cars. It has a 13.8 mm inner diameter and fits the rear left or rear right.
Replace the bushes if you hear knocks or creaks from the rear over bumps, or if the rubber is split or loose around the bar. Worn bushes add body roll and make the rear feel unsettled.
Choose Febi 181712 or Blue Print ADBP800478 from the options. Both are made by the bilstein group to the same specification and replace part number 55513-3N300. The bush is 39 mm high and 48 mm long.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the rear axle of the 150 kW Kia e-Niro and Soul EV (2019 on) and Korean-built first-generation Hyundai Kona Electric cars (100 kW and 150 kW). The table below shows each power output. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal bush with 13.8 mm bore
- Fits the rear left or rear right
- Stops knocks and creaks from the rear
- Choice of Febi or Blue Print
Specifications
- Fitting Position: Rear axle, left or right
- Inner Diameter: 13.8 mm
- Height: 39 mm
- Length: 48 mm
- Material: Rubber / metal
- Part Number: Febi 181712 | Blue Print ADBP800478
Replaces Kia and Hyundai part number 55513-3N300.
Installation
Professional installation recommended. Raise the car, undo the bush clamps, fit the new bushes in the same position and tighten the clamps with the car on its wheels.
Explore More Parts
- All Hyundai Kona Electric Parts
- All Kia e-Niro Parts
- All Kia Soul EV Parts
- All Kia Niro Parts
- All Stabiliser Links & Anti-Roll Bars
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle, left or right |
| Inner Diameter | 13.8 mm |
| Height | 39 mm |
| Length | 48 mm |
| Material | Rubber / metal |
| Part Number | Febi 181712 | Blue Print ADBP800478 |
Fits The Following Models
| Make | Model | Submodel | Note |
|---|---|---|---|
| Hyundai | Kauai I 2017 – 2023 | (E) – 100 kW / 136 hp | Korean-built vehicles only |
| Hyundai | Kauai I 2017 – 2023 | (E) – 150 kW / 204 hp | Korean-built vehicles only |
| Hyundai | Kona I 2017 – | (E) – 100 kW / 136 hp | Korean-built vehicles only |
| Hyundai | Kona I 2017 – | (E) – 150 kW / 204 hp | Korean-built vehicles only |
| Kia | e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp | |
| Kia | e-Soul 2019 – | (E) – 150 kW / 204 hp | |
| Kia | Niro I 2016 – 2022 | (E) – 150 kW / 204 hp | |
| Kia | Soul III 2019 – | (E) – 150 kW / 204 hp |
Kia e-Niro, Soul EV & Hyundai Kona Electric Rear Anti-Roll Bar Bush – 13.8 mm FAQs
Which part numbers does it replace?
It replaces Kia and Hyundai part number 55513-3N300.
How many do I need?
There is one bush on each side of the rear anti-roll bar, so most owners order two.
Does it fit every Kona Electric?
No. For the first-generation Kona Electric the parts finder lists it for Korean-built vehicles only.
Does it fit the 100 kW e-Niro or Soul EV?
The parts finder lists it for the 150 kW Kia e-Niro and Soul EV only.
Will it fit my Kia e-Niro, Soul EV or Hyundai Kona Electric?
The parts finder lists it for the 150 kW Kia e-Niro and Soul EV (2019 on) and for Korean-built first-generation Hyundai Kona Electric cars (100 kW and 150 kW). Compare the part number on your existing part before ordering.
Is this a genuine Kia or Hyundai part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
