MG Bolt For Brake Disc Attachment

Name: EV Accessories And Electric Car Parts
Price range: $

£1.04 ex VAT (£1.25 inc VAT)

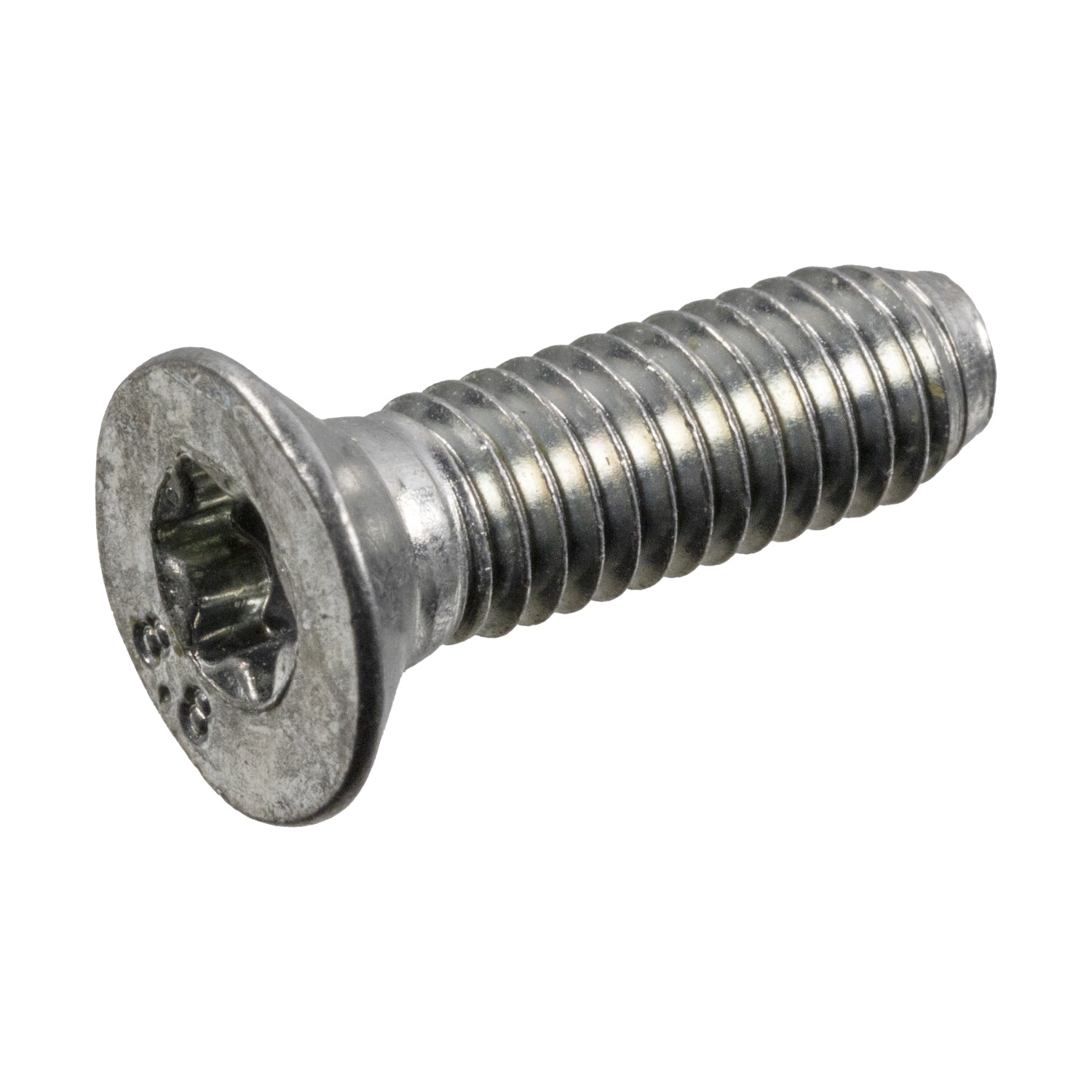

This MG bolt for brake disc attachment has an internal Torx (T30) head, an M6 x 1 thread, a 20 mm length and a 17 mm thread length. It is galvanised, with an 8.8 tensile strength grade. It replaces OEM part number 11570339, also listed for Buick, Cadillac, Chevrolet, GMC, Opel, Vauxhall and Saab, plus YR00074280. Its fitting position depends on the vehicle. It is listed for the MG Cyberster (CS) from 2023 on the front and rear axle, replacing the original disc attachment bolt.

£1.04 ex VAT (£1.25 inc VAT)

Brand

Clear

Add to wishlist

SKU: N/A Categories: Mulan, 4x4 (CS) 2022 - 2023, Brake Discs, Cyberster, (CS) 2023 -, (NA) 2024 -, 4x4 (CS) 2023 -, MGS5, (ZS) 2025 -, MGS6, (IS) 2025 -, 4x4 (IS) 2025 -, MG4, (CS) 2023 -, (EH) 2022 -, 4x4 (EH) 2023 -, Ampera-e Brand: Febi

MG Bolt For Brake Disc Attachment

Fitting Position: vehicle-dependent installation positions

Attributes
Fastening Type	internal torx
Length	20 mm
Outside Thread	M6 x 1
Surface	galvanized
Tensile Strength Grade	8.8
Thread Length	17 mm
Thread Size	M6 x 1
Wrench Size (Torx)	T30

Replaces the following OEM part Numbers

Suitable to replace	Reference(s)
Buick	11570339 \| 11515720
Cadillac	11570339 \| 11515720
Chevrolet	YR00074280 \| 11515720 \| 11570339
GMC	11570339 \| 11515720
MG	11570339
Opel	YR00074280 \| 05 69 922 \| 11570339
Pontiac	11570339 \| 11515720
Roewe (Saic)	11570339
Saab	11 570 339
Saturn (GM)	11570339 \| 11515720
Vauxhall	YR00074280 \| 11570339

Fits The Following Vehicles

Model	Submodel
Cyberster (CS) 2023 – Fitting Position:front axle Fitting Position:rear axle	(E) – 231 kW / 314 hp
Cyberster (CS) 2023 – Fitting Position:front axle Fitting Position:rear axle	(E) – 250 kW / 340 hp
Cyberster (NA) 2024 – Fitting Position:front axle Fitting Position:rear axle	(E) – 250 kW / 340 hp
Cyberster 4×4 (CS) 2023 – Fitting Position:front axle Fitting Position:rear axle	(E) – 400 kW / 544 hp
IM5 (P1) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 217 kW / 295 hp
IM5 (P1) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 300 kW / 408 hp
IM5 4×4 (P1) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 553 kW / 752 hp
IM6 (S1) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 217 kW / 295 hp
IM6 (S1) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 300 kW / 408 hp
IM6 4×4 (S1) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 572 kW / 778 hp
MG 4 I (CS) 2023 –	(E) – 125 kW / 170 hp
MG 4 I (EH) 2022 –	(E) – 125 kW / 170 hp
MG 4 I (EH) 2022 –	(E) – 150 kW / 204 hp
MG 4 I (EH) 2022 –	(E) – 180 kW / 245 hp
MG 4 I (EH) 2022 –	(E) – 99 kW / 135 hp
MG 4 I 4×4 (EH) 2023 –	(E) – 320 kW / 435 hp
MG 4 II (NA) 2025 – Fitting Position:front axle	(E) – 120 kW / 163 hp
MGS5 (ZS) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 125 kW / 170 hp
MGS6 (IS) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 179 kW / 243 hp
MGS6 4×4 (IS) 2025 – Fitting Position:front axle Fitting Position:rear axle	(E) – 266 kW / 362 hp
MULAN 4×4 (CS) 2022 – 2023	(E) – 315 kW / 428 hp
