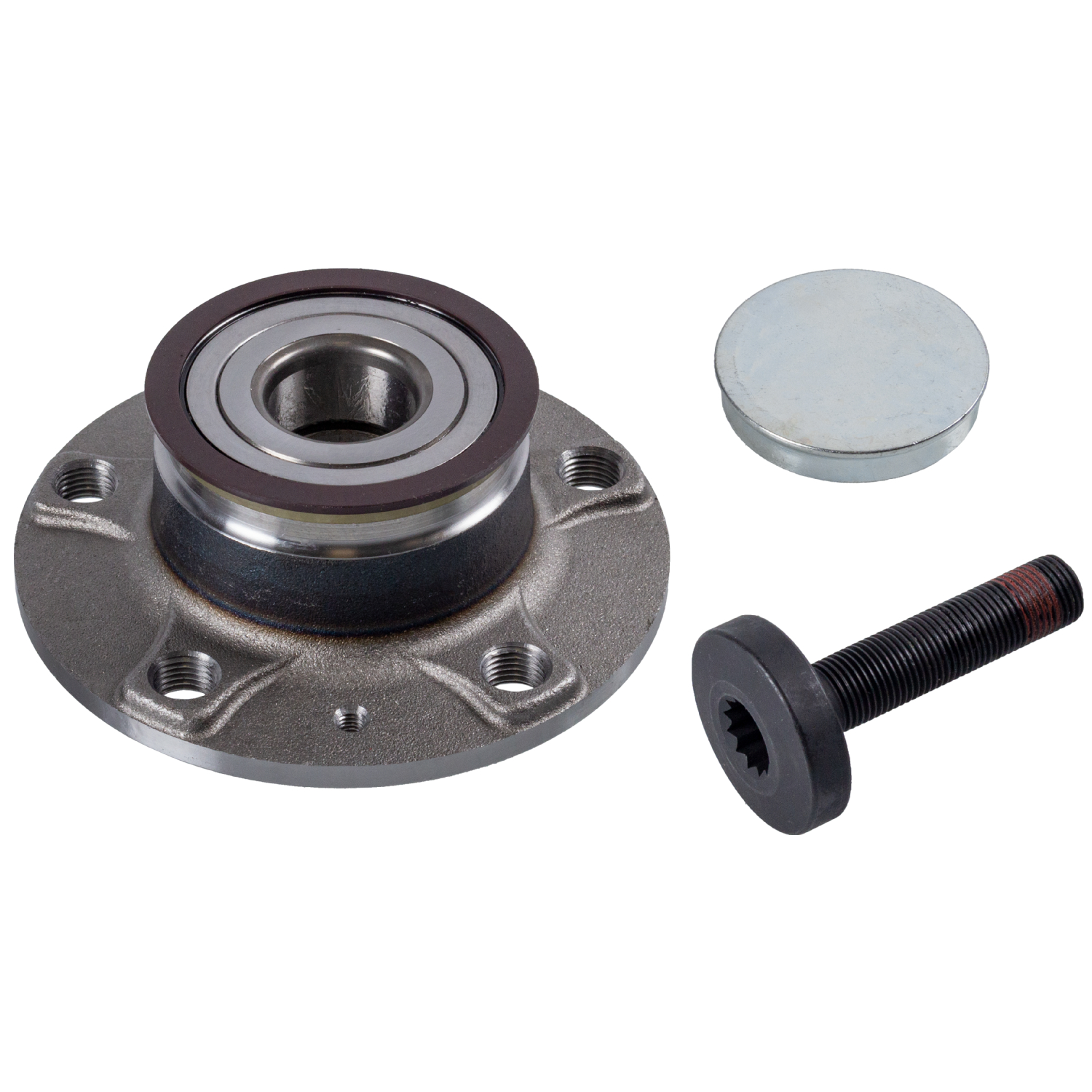

MG5, MG ZS & VW e-Golf Rear Wheel Bearing Kit with Hub & ABS Sensor Ring
This complete rear wheel bearing kit with integrated hub and ABS sensor ring is a direct replacement for the MG5, MG ZS EV and VW e-Golf. It restores smooth wheel rotation, reduces road noise and vibration, and ensures correct ABS sensor function.
Key Benefits
- Complete unit with pre-assembled hub and bearing
- Includes integrated ABS sensor ring
- Improves handling and ride comfort
- Reduces noise and vibration from worn bearings
- Febi 40659 – high-quality aftermarket part
Compatibility
- MG5 EV & MG5 Long Range – all years
- MG ZS EV – all years
- VW e-Golf – all years
Aftermarket Part Number
- Febi 40659
Installation
Standard rear wheel bearing/hub replacement. Basic tools required.
Pro tip: Pair with our MG5 Rear Brake Pads or VW e-Golf Cabin Filter for a full service.
Fitting Position: rear axle left, rear axle right
| Attributes | |
|---|---|
| Additional Information / Parts | wheel bearing integrated into wheel hub |
| Additional Information / Parts | With integrated sensor ring |
| Bearing Type (Roller Bearing) | Angular Ball Bearing |
| Inner Diameter | 30 mm |
| No. of Holes | 5 |
| Outer Diameter | 79 mm |
| Outer Diameter 1 | 65 mm |
| Outer Diameter 2 | 136 mm |
| Pitch Circle Diameter | 112 mm |
| Width | 48,8 mm |
Replaced the Following OEM Part Numbers
| Suitable to replace | Reference(s) |
|---|---|
| Audi | 5Q0 598 611 | 1K0 598 611 | 5WA 501 611 | 5WA 501 611 D | 5WA 501 611 A | 8V0 598 611 | 8V0 598 611 A |
| CUPRA | 5WA 501 611 | 5WA 501 611 A |
| MG | 10130968 | 10509505 |
| Roewe (Saic) | 10130968 |
| Seat | 5Q0 598 611 | 1K0 598 611 | 5WA 501 611 | 8V0 598 611 | 8V0 598 611 A |
| Škoda | 5Q0 598 611 | 5WA 501 611 | 8V0 598 611 | 8V0 598 611 A |
| Volkswagen (VW) | 5Q0 598 611 | 1K0 598 611 | 5WA 501 611 | 5WA 501 611 D | 5QM 598 611 | 8V0 598 611 | 8V0 598 611 A |
| Volkswagen (VW)-FAW | 5QD 501 611 |
Fits the Following EV Models
MG
| Model | Submodel |
|---|---|
| MG 5 (UN) 2020 – | (E) – 115 kW / 156 hp |
| MG 5 (UN) 2020 – | (E) – 130 kW / 177 hp |
| ZS II (CS) 2017 – | (E) – 105 kW / 143 hp |
| ZS II (CS) 2017 – | (E) – 110 kW / 150 hp |
Roewe Sec
| Model | Submodel |
|---|---|
| Ei5 2018 – | (E) – 120 kW / 163 hp |
| Ei5 2018 – | (E) – 135 kW / 184 hp |
| Ei5 2018 – | (E) – 85 kW / 116 hp |
| Ei5 2018 – | (E) – 93 kW / 126 hp |
VW
| Model | Submodel |
|---|---|
| e-Golf (BE) 2014 – 2021 | (E) – 100 kW / 136 hp |
| e-Golf (BE) 2014 – 2021 | (E) – 85 kW / 116 hp |
MG5, MG ZS & VW e-Golf Rear Wheel Bearing Kit FAQs
Which models does this rear wheel bearing kit fit?
Fits MG5 EV, MG ZS EV and VW e-Golf models.
What is the Febi part number?
Febi 40659.
Does it include the ABS sensor ring?
Yes – the kit includes the integrated hub with ABS sensor ring.
How do I know if the rear wheel bearing needs replacing?
Common signs include humming or grinding noise that increases with speed, vibration or play in the wheel.
How difficult is it to fit?
Standard rear wheel bearing/hub replacement. Basic tools required.
