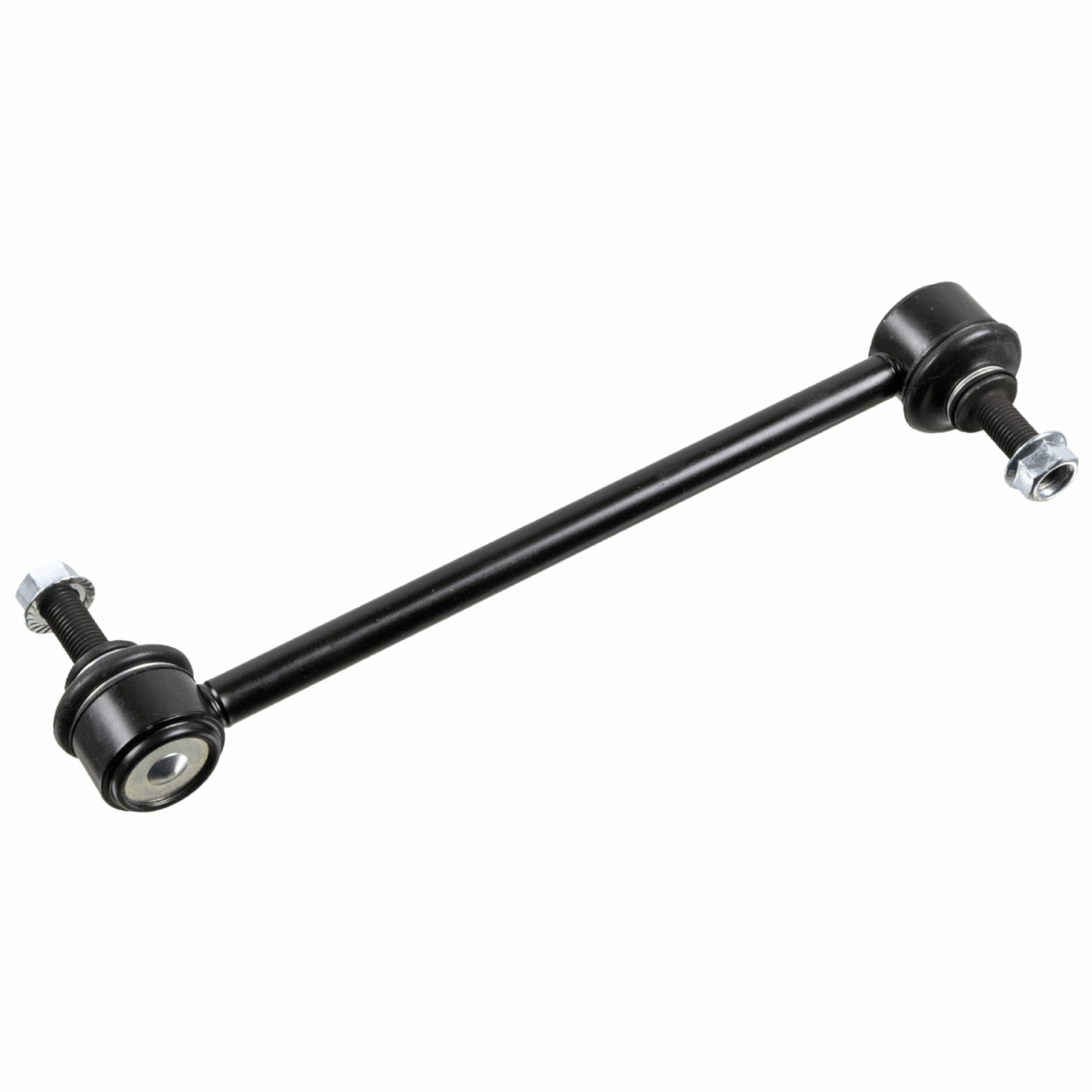

Tesla Model S Anti-Roll Bar Stabiliser Link with Lock Nuts (AWD)
The anti-roll bar stabiliser link (sway bar link) is a critical suspension component on the Tesla Model S AWD. It connects the stabiliser bar to the suspension strut and helps reduce body roll during cornering, improving stability and handling.
Key Benefits
- Reduces body roll and improves cornering stability
- Restores precise steering response and handling
- Reduces clunking noises and vibration from worn links
- Supplied complete with lock nuts for easy installation
- Direct fit for Model S AWD models – no modifications required
Compatibility
- Tesla Model S AWD – all years and variants
Aftermarket Part Numbers
- Febi 175626
Installation
Standard stabiliser link replacement. Basic tools required. A wheel alignment is recommended after fitting.
Pro tip: Pair with our Tesla Model S Horns or other Model S suspension parts for a full refresh.
| Attributes | |
|---|---|
| Length | 229 mm |
| Material | steel |
| Outside Thread | M10 x 1,25 |
| Thread Length | 26 mm |
| Wrench Size (Metric) | 14 mm |
| Suitable to replace | Reference(s) |
|---|---|
| Tesla | 1030603-00-B |
| Model | Submodel |
|---|---|
| Model S Dual Motor 2014 – | (E) – 241 kW / 328 hp |
| Model S Dual Motor 2014 – | (E) – 245 kW / 333 hp |
| Model S Dual Motor 2014 – | (E) – 276 kW / 375 hp |
| Model S Dual Motor 2014 – | (E) – 279 kW / 379 hp |
| Model S Dual Motor 2014 – | (E) – 290 kW / 394 hp |
| Model S Dual Motor 2014 – | (E) – 310 kW / 421 hp |
| Model S Dual Motor 2014 – | (E) – 346 kW / 470 hp |
| Model S Dual Motor 2014 – | (E) – 385 kW / 523 hp |
| Model S Dual Motor 2014 – | (E) – 386 kW / 525 hp |
| Model S Dual Motor 2014 – | (E) – 397 kW / 540 hp |
| Model S Dual Motor 2014 – | (E) – 413 kW / 562 hp |
| Model S Dual Motor 2014 – | (E) – 421 kW / 572 hp |
| Model S Dual Motor 2014 – | (E) – 450 kW / 612 hp |
| Model S Dual Motor 2014 – suitable for engine code: 3D1 | (E) – 493 kW / 670 hp |
| Model S Dual Motor 2014 – | (E) – 515 kW / 700 hp |
| Model S Dual Motor 2014 – | (E) – 543 kW / 738 hp |
| Model S Dual Motor 2014 – | (E) – 568 kW / 772 hp |
| Model S Dual Motor 2014 – | (E) – 585 kW / 795 hp |
| Model S Dual Motor 2014 – | (E) – 599 kW / 814 hp |
| Model S Tri Motor 2021 – | (E) – 750 kW / 1020 hp |
Tesla Model S Anti-Roll Bar Stabiliser Link FAQs
Which Tesla Model S models does this stabiliser link fit?
Fits all Tesla Model S AWD variants.
What does the stabiliser link do?
It connects the stabiliser bar to the suspension strut and helps reduce body roll during cornering, improving stability and handling.
Does it come with the lock nuts?
Yes – the stabiliser link is supplied complete with lock nuts.
How do I know if the stabiliser link needs replacing?
Common signs include increased body roll when cornering, clunking noises over bumps, or uneven tyre wear.
How difficult is it to fit?
Standard stabiliser link replacement. Basic tools required. A wheel alignment is recommended afterwards.
