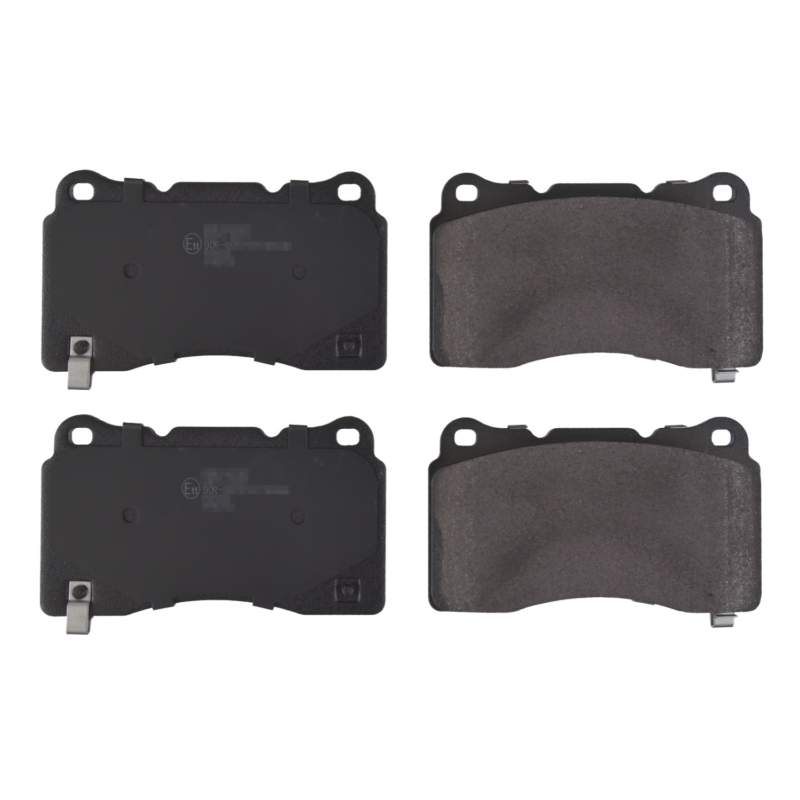

Tesla Model S & Model X Front Brake Pads
High-quality front brake pads designed specifically for Tesla Model S and Model X. These pads deliver excellent stopping power, low noise and long service life while being fully compatible with the regenerative braking system. They are ECE R90 approved and come with an acoustic wear warning for added safety.
Key Benefits
- ECE R90 approved for road-legal performance
- Acoustic wear warning for timely replacement
- Optimised for regenerative braking systems
- Low dust and quiet operation
- Direct fit – no modifications required
Specifications
- Brake Lining Thickness (incl. Backing Plate): 14.8 mm
- Length: 131.8 mm
- Width: 77.3 mm
- Wear Warning Contact: with acoustic wear warning
- Fitting Position: Front axle
Compatibility
Fits the following Tesla models:
- Model S 2012–2014 (including Dual Motor variants)
- Model X 2015 onwards (including Dual Motor variants)
Replaces Tesla part numbers 1055066-00-D, 1068330-00-C, 1055066-00-B, 1055066-00-C and 1068330-00-B.
Aftermarket Part Numbers
- Blue Print – ADA104282
- Brembo – P-09-004
- Brembo Beyond EV – P-09-004E
- Brembo Prime – P-59-079
- Febi – 116151
Installation
Professional installation recommended. Always bed in new brake pads correctly and replace in axle sets for balanced braking performance.
Pro tip: Pair with our Tesla Model S & Model X Front Brake Disc (Blue Print) for a complete front brake service.
Fitting Position: front axle
| Attributes | |
|---|---|
| Approval | ECE R90 Approved |
| Brake Lining Thickness (incl. Backing Plate) | 14,8 mm |
| Length | 131,8 mm |
| Wear Warning Contact | with acoustic wear warning |
| Width | 77,3 |
| Suitable to replace | Reference(s) |
|---|---|
| Cadillac | 22791925 |
| Opel | 13329562 | 13411116 | 16 05 100 | 16 05 175 |
| Saab | 13 329 562 |
| Tesla | 1055066-00-D | 1068330-00-C | 1055066-00-B | 1055066-00-C | 1068330-00-B |
| Vauxhall | 13329562 | 13411116 | 16 05 100 | 16 05 175 |
| Volvo | 30748957 | 30683412 | 30748513 | 30645135 |
| General Service Number | D1050-7919 |
| Model | Submodel |
|---|---|
| Model X Dual Motor 2015 – | (E) – 312 kW / 424 hp |
| Model X Dual Motor 2015 – | (E) – 386 kW / 525 hp |
| Model X Dual Motor 2015 – | (E) – 413 kW / 562 hp |
| Model X Dual Motor 2015 – | (E) – 421 kW / 572 hp |
| Model X Dual Motor 2015 – | (E) – 487 kW / 662 hp |
| Model X Dual Motor 2015 – | (E) – 493 kW / 670 hp |
| Model X Dual Motor 2015 – | (E) – 568 kW / 772 hp |
| Model X Dual Motor 2015 – | (E) – 577 kW / 785 hp |
| Model X Dual Motor 2015 – | (E) – 585 kW / 795 hp |
| Model X Dual Motor 2015 – | (E) – 599 kW / 814 hp |
| Model S 2012 – | (E) – 222 kW / 302 hp |
| Model S 2012 – | (E) – 225 kW / 306 hp |
| Model S 2012 – | (E) – 235 kW / 320 hp |
| Model S 2012 – | (E) – 270 kW / 367 hp |
| Model S 2012 – | (E) – 283 kW / 385 hp |
| Model S 2012 – | (E) – 285 kW / 387 hp |
| Model S 2012 – | (E) – 310 kW / 421 hp |
| Model S 2012 – | (E) – 350 kW / 476 hp |
| Model S Dual Motor 2014 – | (E) – 241 kW / 328 hp |
| Model S Dual Motor 2014 – | (E) – 245 kW / 333 hp |
| Model S Dual Motor 2014 – | (E) – 276 kW / 375 hp |
| Model S Dual Motor 2014 – | (E) – 279 kW / 379 hp |
| Model S Dual Motor 2014 – | (E) – 290 kW / 394 hp |
| Model S Dual Motor 2014 – | (E) – 310 kW / 421 hp |
| Model S Dual Motor 2014 – | (E) – 346 kW / 470 hp |
| Model S Dual Motor 2014 – | (E) – 385 kW / 523 hp |
| Model S Dual Motor 2014 – | (E) – 386 kW / 525 hp |
| Model S Dual Motor 2014 – | (E) – 397 kW / 540 hp |
| Model S Dual Motor 2014 – | (E) – 413 kW / 562 hp |
| Model S Dual Motor 2014 – | (E) – 421 kW / 572 hp |
| Model S Dual Motor 2014 – | (E) – 450 kW / 612 hp |
| Model S Dual Motor 2014 – | (E) – 493 kW / 670 hp |
| Model S Dual Motor 2014 – | (E) – 515 kW / 700 hp |
| Model S Dual Motor 2014 – | (E) – 543 kW / 738 hp |
| Model S Dual Motor 2014 – | (E) – 568 kW / 772 hp |
| Model S Dual Motor 2014 – | (E) – 585 kW / 795 hp |
| Model S Dual Motor 2014 – | (E) – 599 kW / 814 hp |
Tesla Model S & Model X Front Brake Pads FAQs
Which Tesla models do these front brake pads fit?
Fits Model S 2012–2014 and Model X 2015 onwards (including Dual Motor variants).
Do these pads have a wear warning?
Yes – they include an acoustic wear warning that produces a squealing sound when the pads are nearing the end of their life.
Are these pads suitable for regenerative braking?
Yes – they are specifically designed to work with Tesla’s regenerative braking system for smooth and efficient stopping.
How do I know when to replace the front brake pads?
Listen for the acoustic wear warning squeal, check for reduced braking performance, or inspect the pad thickness (replace when below 3–4 mm of friction material remaining).
Should I replace the discs at the same time?
Yes – it is highly recommended to replace brake pads and discs together as a set for balanced braking performance and to avoid premature wear on the new pads.
