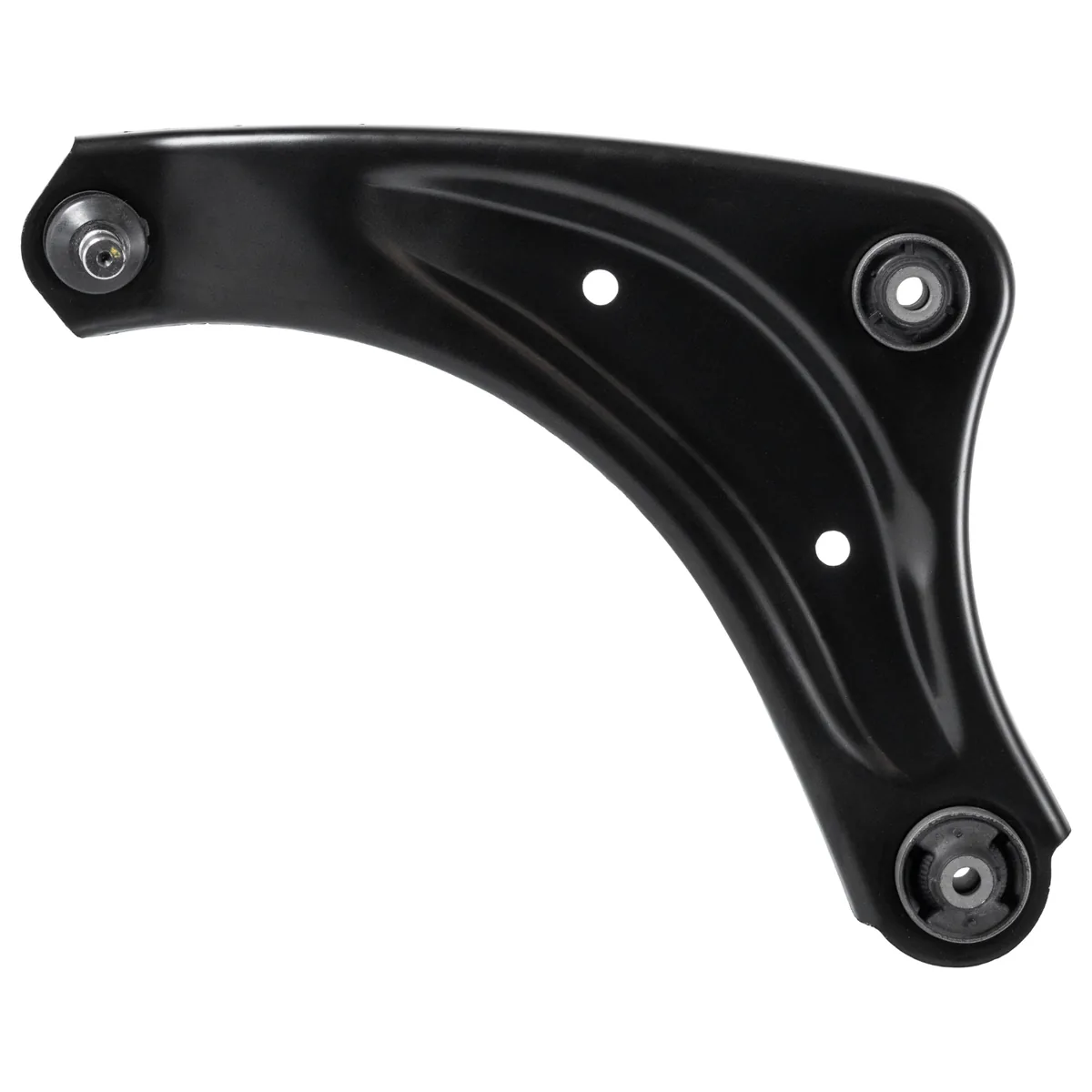

Nissan Leaf Front Lower Control Arm – Left / Right
This front lower control arm locates the front wheel on the Nissan Leaf and carries the suspension loads between the hub and the body. It is a steel arm supplied with the bushes and ball joint fitted. The left and right arms are different parts, so choose the side from the options.
Worn bushes or a loose ball joint usually cause knocks over bumps, wandering under braking, vague steering and uneven front tyre wear.
Choose the side and brand from the options: left is Febi 48158 and right is Febi 48159, and the Blue Print equivalents are ADN186129 (left) and ADN186130 (right). Febi and Blue Print are both made by the bilstein group, so they are the same part under two brand names.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW and Leaf (ZE1, 2017 on) 110 kW and 160 kW. Some versions carry a note in the fitment table. Some versions are listed with a VIN-range note, shown word for word in the table; it is there for fitment information only. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Supplied with bushes and ball joint
- Steel arm
- Left and right versions available
- Restores precise front-end handling
- Febi and Blue Print options
Specifications
- Fitting Position: Front Axle Left (48158) | Front Axle Right (48159), lower
- Material: Steel
- Supplied with: Bushes and ball joint
- Part Number: Febi 48158 (left) | Febi 48159 (right) | Blue Print ADN186129 (left) | Blue Print ADN186130 (right)
Replaces Nissan part numbers left (Febi 48158): 54501-5SN1A, 54501-1KK0B, 54501-BA60A, 54501-1KA0A, 54501-1KA0B, 54501-1KA1B, 54501-1KK0A and 54501-4FA0A; right (Febi 48159): 54500-5SN1A, 54500-1KK0B, 54500-BA60A, 54500-1KA0A, 54500-1KA0B, 54500-1KA1B, 54500-1KK0A and 54500-4FA0A.
Installation
Professional installation recommended. Tighten the bush bolts with the suspension at its normal ride height so the bushes are not preloaded, and have a wheel alignment done after fitting. If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front Axle Left (48158) | Front Axle Right (48159), lower |
| Material | Steel |
| Supplied with | Bushes and ball joint |
| Part Number | Febi 48158 (left) | Febi 48159 (right) | Blue Print ADN186129 (left) | Blue Print ADN186130 (right) |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan Leaf (ZE0) 2010 – 2018 | (E) – 80 kW / 109 hp |
| Nissan Leaf (ZE1) 2017 – Vehicle Identification Number (VIN): ZE1-****** | (E) – 160 kW / 218 hp |
| Nissan Leaf (ZE1) 2017 – Vehicle Identification Number (VIN): ZE1-****** | (E) – 110 kW / 150 hp |
Nissan Leaf Front Lower Control Arm – Left / Right FAQs
Which part numbers does it replace?
Replaces Nissan part numbers left (Febi 48158): 54501-5SN1A, 54501-1KK0B, 54501-BA60A, 54501-1KA0A, 54501-1KA0B, 54501-1KA1B, 54501-1KK0A and 54501-4FA0A; right (Febi 48159): 54500-5SN1A, 54500-1KK0B, 54500-BA60A, 54500-1KA0A, 54500-1KA0B, 54500-1KA1B, 54500-1KK0A and 54500-4FA0A. Febi and Blue Print part numbers are listed in the specifications.
Which side do I need?
Febi 48158 is for the front left and Febi 48159 is for the front right. Choose the side from the options above.
Do I need a wheel alignment?
Yes. Have the alignment checked and set after fitting a new control arm.
Will the driver assistance sensors need calibrating?
They may. The parts finder notes: “If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.”
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW and Leaf (ZE1, 2017 on) 110 kW and 160 kW. Some versions carry a note in the fitment table. Some versions are listed with a VIN-range note, shown word for word in the table; it is there for fitment information only. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
