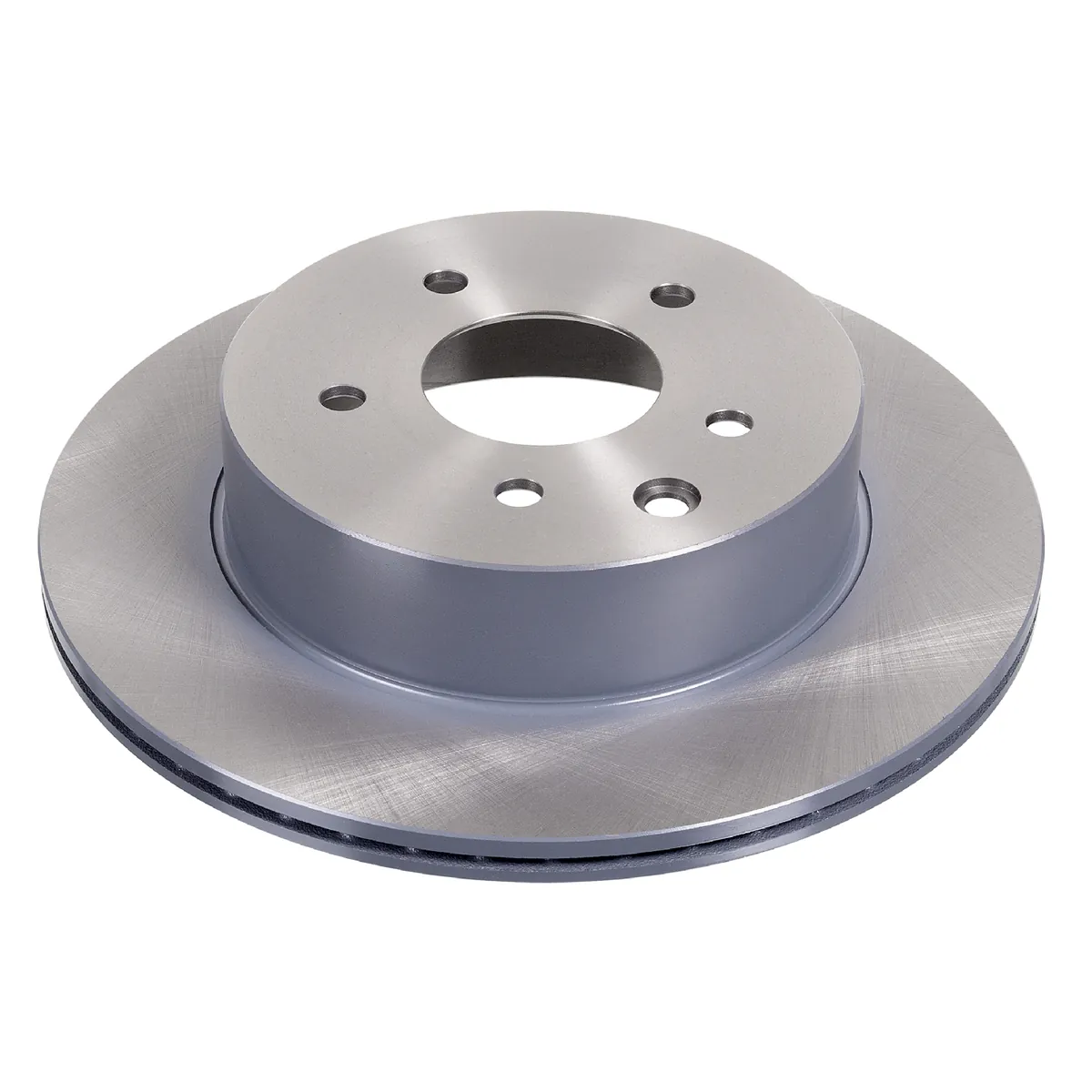

Nissan Leaf Rear Brake Discs – 292 mm
This rear brake disc is for the Nissan Leaf. It is a 292 mm vented disc, 16 mm thick, with a coated surface that helps resist corrosion. For the ZE1 Leaf it is listed for vehicles with brake booster.
Replace the discs when they are worn close to the 14 mm minimum thickness, are badly rusted or lipped, or cause vibration. Rear discs on an electric car see little work because of regeneration, so corrosion is the usual reason to change them.
Choose Febi 44119 or Blue Print ADP154314 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names. It is priced per disc and sold in pairs, so the basket goes up in 2s.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW and Leaf (ZE1, 2017 on) 110 kW and 160 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “Braking/Driving Dynamics: for vehicles with brake booster”. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 292 mm vented rear disc
- Coated surface
- Priced per disc, sold in pairs
- 5 holes, 114.3 mm PCD
- Febi and Blue Print options
Specifications
- Fitting Position: Rear axle
- Outer Diameter: 292 mm
- Disc Thickness: 16 mm
- Minimum Thickness: 14 mm
- Disc Type: Vented
- Centre Diameter: 68 mm
- Height: 62 mm
- Wheel Bolt Holes: 5
- Pitch Circle Diameter: 114.3 mm
- Surface: Coated
- Part Number: Febi 44119 | Blue Print ADP154314
- Sold As: Priced per disc, sold in pairs
Replaces Nissan part numbers 43206-8H305, 43206-3NF0A, 43206-3NL0B, 43206-4BA0A and 43206-4BA0B (the parts finder lists 8 more). The parts finder also lists Renault number 43 20 000 16R.
Installation
Professional installation recommended. Replace discs in pairs with new pads, clean the hub face before fitting, and bed the new discs and pads in gently.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle |
| Outer Diameter | 292 mm |
| Disc Thickness | 16 mm |
| Minimum Thickness | 14 mm |
| Disc Type | Vented |
| Centre Diameter | 68 mm |
| Height | 62 mm |
| Wheel Bolt Holes | 5 |
| Pitch Circle Diameter | 114.3 mm |
| Surface | Coated |
| Part Number | Febi 44119 | Blue Print ADP154314 |
| Sold As | Priced per disc, sold in pairs |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan Leaf (ZE0) 2010 – 2018 | (E) – 80 kW / 109 hp |
| Nissan Leaf (ZE1) 2017 – Braking/Driving Dynamics: for vehicles with brake booster | (E) – 160 kW / 218 hp |
| Nissan Leaf (ZE1) 2017 – Braking/Driving Dynamics: for vehicles with brake booster | (E) – 110 kW / 150 hp |
Nissan Leaf Rear Brake Discs – 292 mm FAQs
Which part numbers does it replace?
Replaces Nissan part numbers 43206-8H305, 43206-3NF0A, 43206-3NL0B, 43206-4BA0A and 43206-4BA0B (the parts finder lists 8 more). The parts finder also lists Renault number 43 20 000 16R. Febi and Blue Print part numbers are listed in the specifications.
Are the discs sold in pairs?
Yes. They are priced per disc and sold in pairs, so one order covers both rear wheels.
Which ZE1 Leaf does it fit?
For the ZE1 the parts finder lists it for vehicles with brake booster. ZE1 cars without brake booster use a different rear disc, Febi 108552, which we list separately.
What is the minimum thickness?
The disc is 16 mm new and the minimum thickness is 14 mm.
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW and Leaf (ZE1, 2017 on) 110 kW and 160 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “Braking/Driving Dynamics: for vehicles with brake booster”. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
