Nissan Leaf Front Strut Mounting – Left / Right

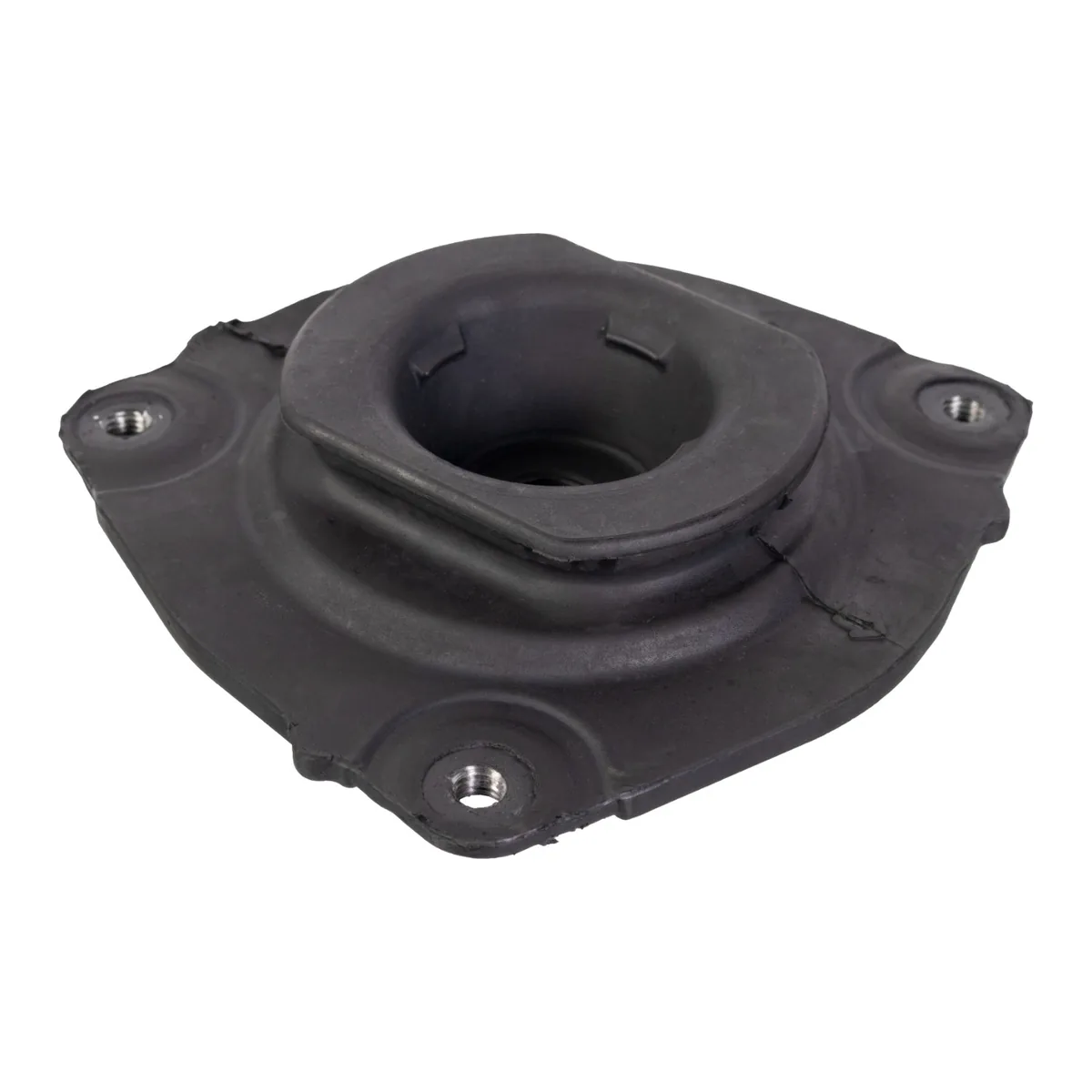

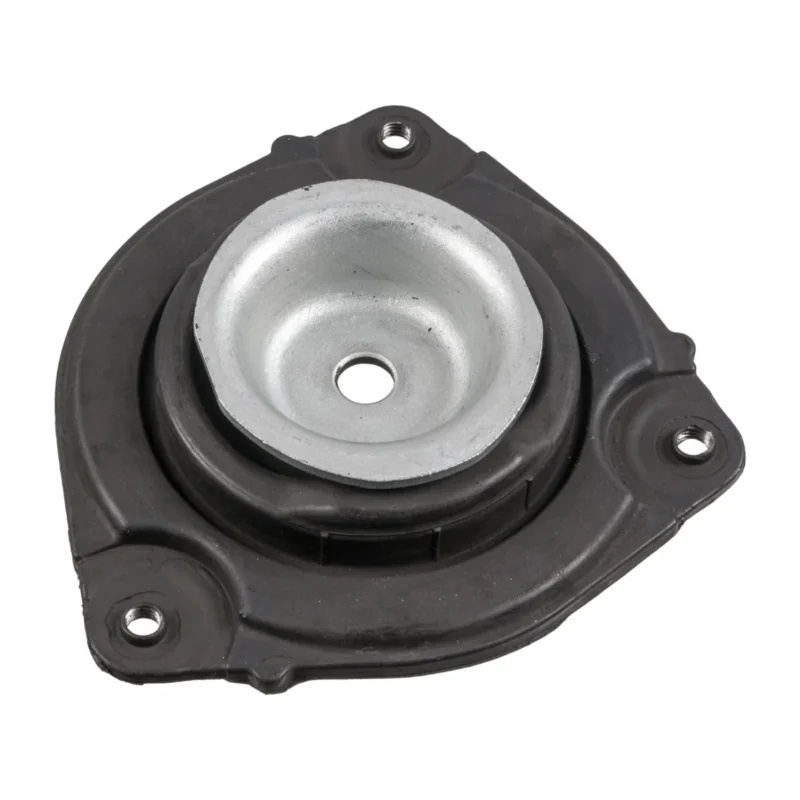

This front strut mounting fits the top of the front suspension strut on the Nissan Leaf. It is the rubber and metal mount only, without the ball bearing, and it isolates the strut from the body. The left and right mounts are different parts.
A worn top mount usually causes a knock or clunk from the top of the strut over bumps and a vague feel at the front. A creak when steering usually points to the bearing as well.
Choose the side and brand from the options: left is Febi 106304 and right is Febi 109345, and the Blue Print equivalents are ADN180170 (left) and ADN180177 (right). Febi and Blue Print are both made by the bilstein group, so they are the same part under two brand names.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW and Leaf (ZE1, 2017 on) 110 kW and 160 kW. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal strut mount
- Bearing not included
- Left and right versions available
- Fits Leaf ZE0 and ZE1
- Febi and Blue Print options
Specifications
- Fitting Position: Front Axle Left (106304) | Front Axle Right (109345)
- Material: Rubber / metal
- Ball Bearing: Not included
- Part Number: Febi 106304 (left) | Febi 109345 (right) | Blue Print ADN180170 (left) | Blue Print ADN180177 (right)
Replaces Nissan part numbers left (Febi 106304): 54321-1KA0B and 54321-1KA0A; right (Febi 109345): 54320-1KA0B and 54320-1KA0A.
Installation
Professional installation recommended. Use proper spring compressors to take the strut apart, check the bearing at the same time, and have the wheel alignment checked after fitting. If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front Axle Left (106304) | Front Axle Right (109345) |
| Material | Rubber / metal |
| Ball Bearing | Not included |
| Part Number | Febi 106304 (left) | Febi 109345 (right) | Blue Print ADN180170 (left) | Blue Print ADN180177 (right) |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan Leaf (ZE0) 2010 – 2018 | (E) – 80 kW / 109 hp |
| Nissan Leaf (ZE1) 2017 – | (E) – 160 kW / 218 hp |
| Nissan Leaf (ZE1) 2017 – | (E) – 110 kW / 150 hp |
Nissan Leaf Front Strut Mounting – Left / Right FAQs
Which part numbers does it replace?
Replaces Nissan part numbers left (Febi 106304): 54321-1KA0B and 54321-1KA0A; right (Febi 109345): 54320-1KA0B and 54320-1KA0A. Febi and Blue Print part numbers are listed in the specifications.
Which side do I need?
Febi 106304 is for the front left and Febi 109345 is for the front right. Blue Print ADN180170 and ADN180177 are the same parts.
Is the bearing included?
No. This is the mount only. We list the strut mount bearing separately, and a kit with the bearing.
Will the driver assistance sensors need calibrating?
They may. The parts finder notes: “If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.”
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW and Leaf (ZE1, 2017 on) 110 kW and 160 kW. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
