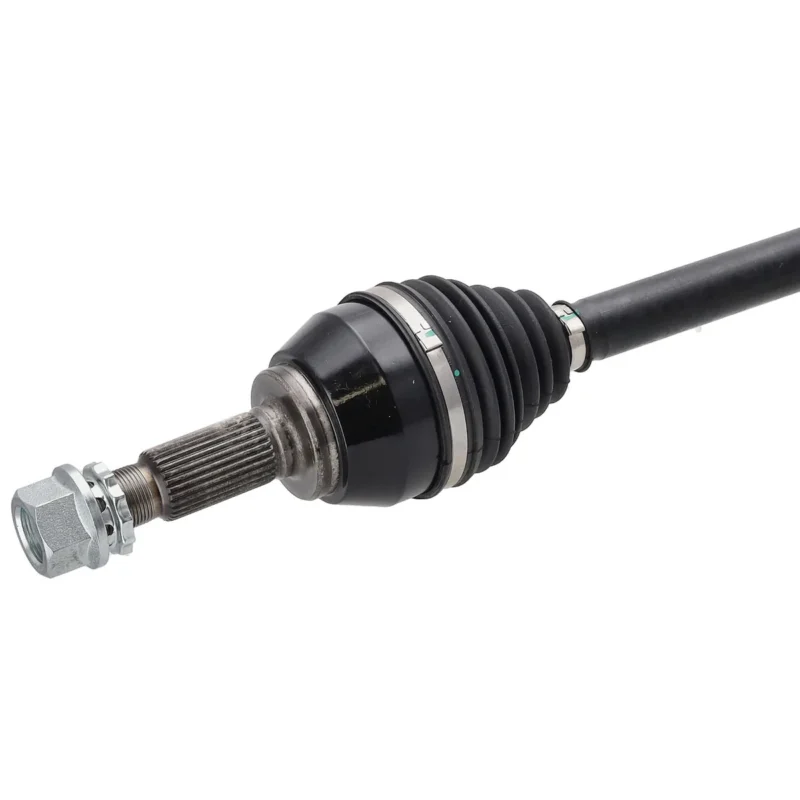

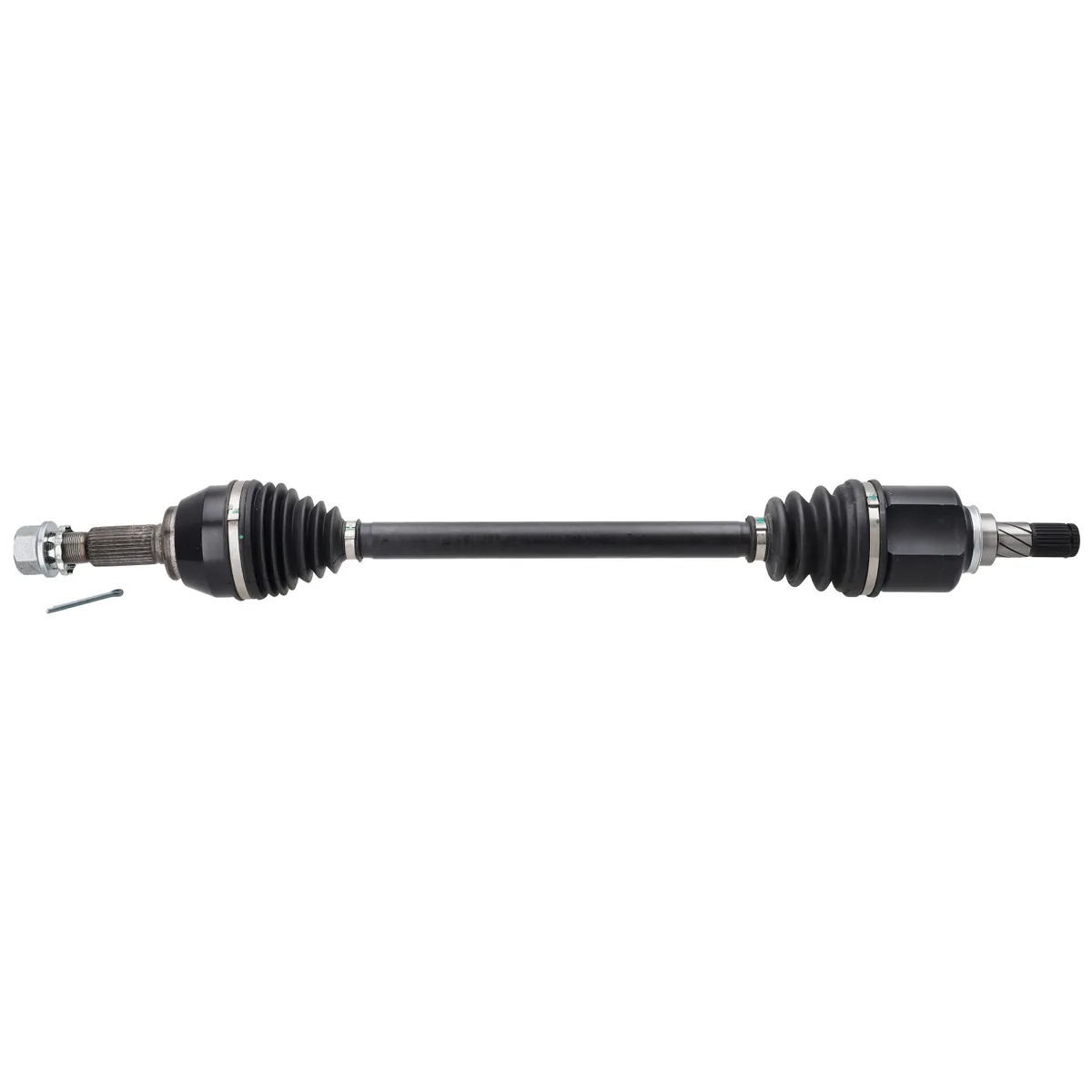

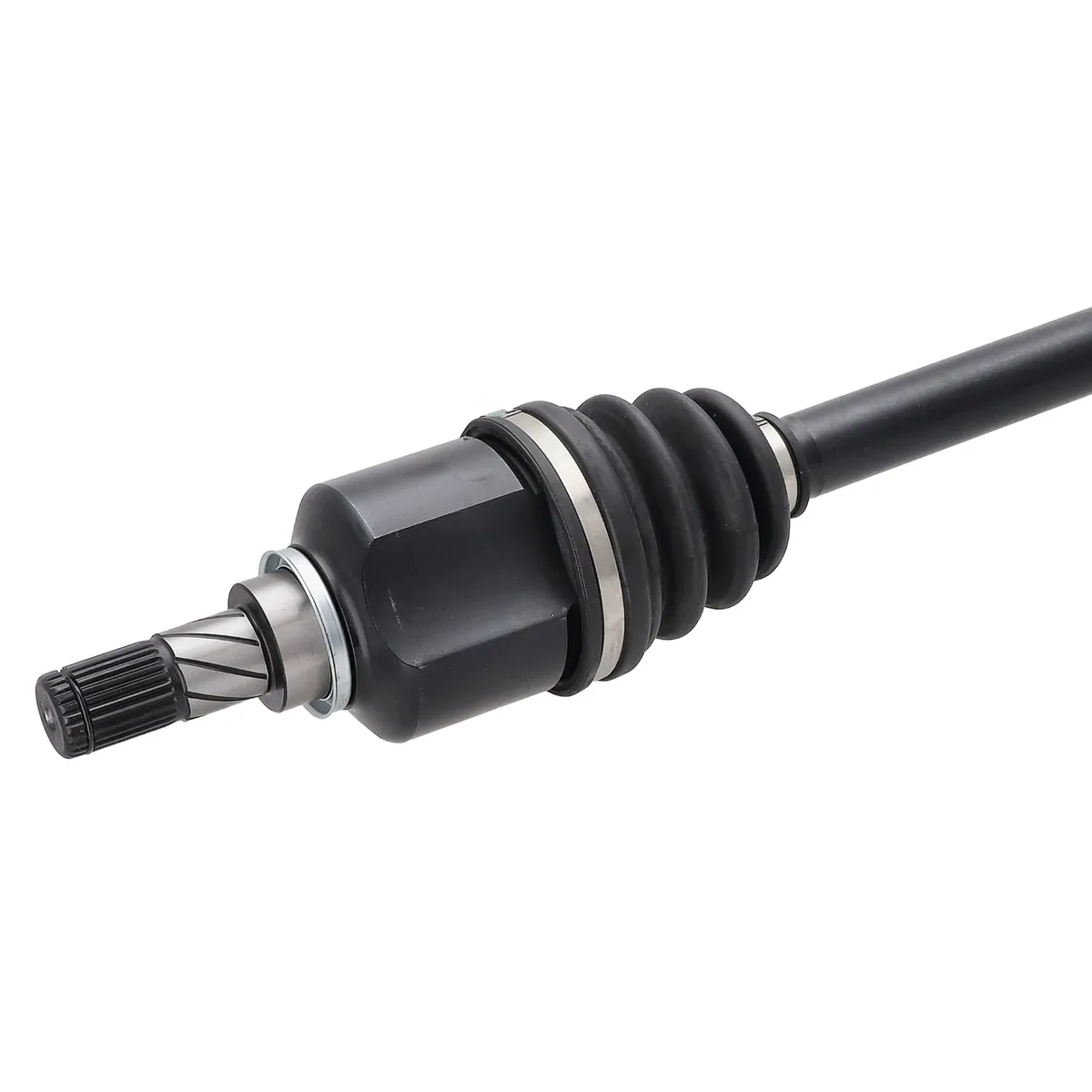

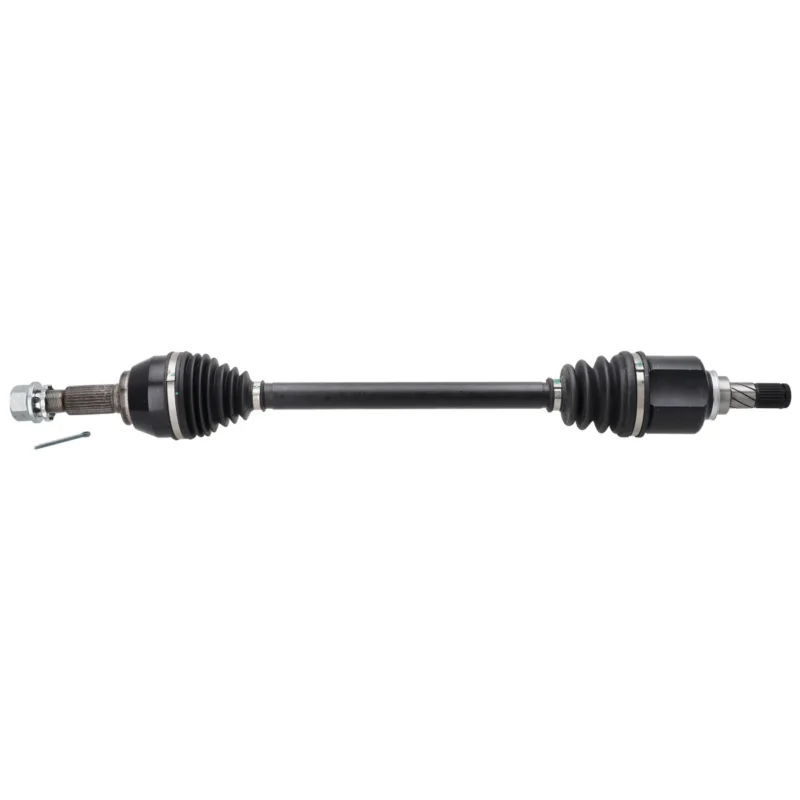

Nissan Leaf (ZE0) Front Left Drive Shaft – 761 mm
This front left drive shaft is for the first-generation Nissan Leaf (ZE0). It is a complete shaft, 761 mm long compressed, with both CV joints and boots fitted, and it is supplied with a cotter pin and nut.
A worn drive shaft usually makes a clicking noise on full lock, a shudder when pulling away, or a clunk when taking up drive. A split boot that has lost its grease soon ruins the joint.
This is Febi part number 194813, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Complete shaft with both joints
- 761 mm compressed length
- 25 / 29 teeth, M24 x 1.5
- Supplied with cotter pin and nut
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front axle left
- Length (compressed): 761 mm
- External Teeth, Transmission Side: 25
- External Teeth, Wheel Side: 29
- Joint Outer Diameter, Transmission Side: 80.79 mm
- Joint Outer Diameter, Wheel Side: 84.75 mm
- Thread: M24 x 1.5
- Supplied with: Cotter pin and nut
- Part Number: Febi 194813
Replaces Nissan part numbers 39101-3NA0D, 39101-3NA0A, 39101-3NA0B and 39101-3NA0C.
Installation
Professional installation recommended. Fit the new nut and cotter pin supplied, tighten the nut to the vehicle maker’s torque setting, and check the boots are not twisted.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle left |
| Length (compressed) | 761 mm |
| External Teeth, Transmission Side | 25 |
| External Teeth, Wheel Side | 29 |
| Joint Outer Diameter, Transmission Side | 80.79 mm |
| Joint Outer Diameter, Wheel Side | 84.75 mm |
| Thread | M24 x 1.5 |
| Supplied with | Cotter pin and nut |
| Part Number | Febi 194813 |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan Leaf (ZE0) 2010 – 2018 | (E) – 80 kW / 109 hp |
Nissan Leaf (ZE0) Front Left Drive Shaft – 761 mm FAQs
Which part numbers does it replace?
Replaces Nissan part numbers 39101-3NA0D, 39101-3NA0A, 39101-3NA0B and 39101-3NA0C. The Febi part number is 194813.
Which side is it for?
The front left (passenger side on a UK car).
How is it delivered?
It is longer than 650 mm, so it ships as a long parcel.
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is this a genuine Nissan part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
