Nissan Leaf Front Left Drive Shaft – 757 mm

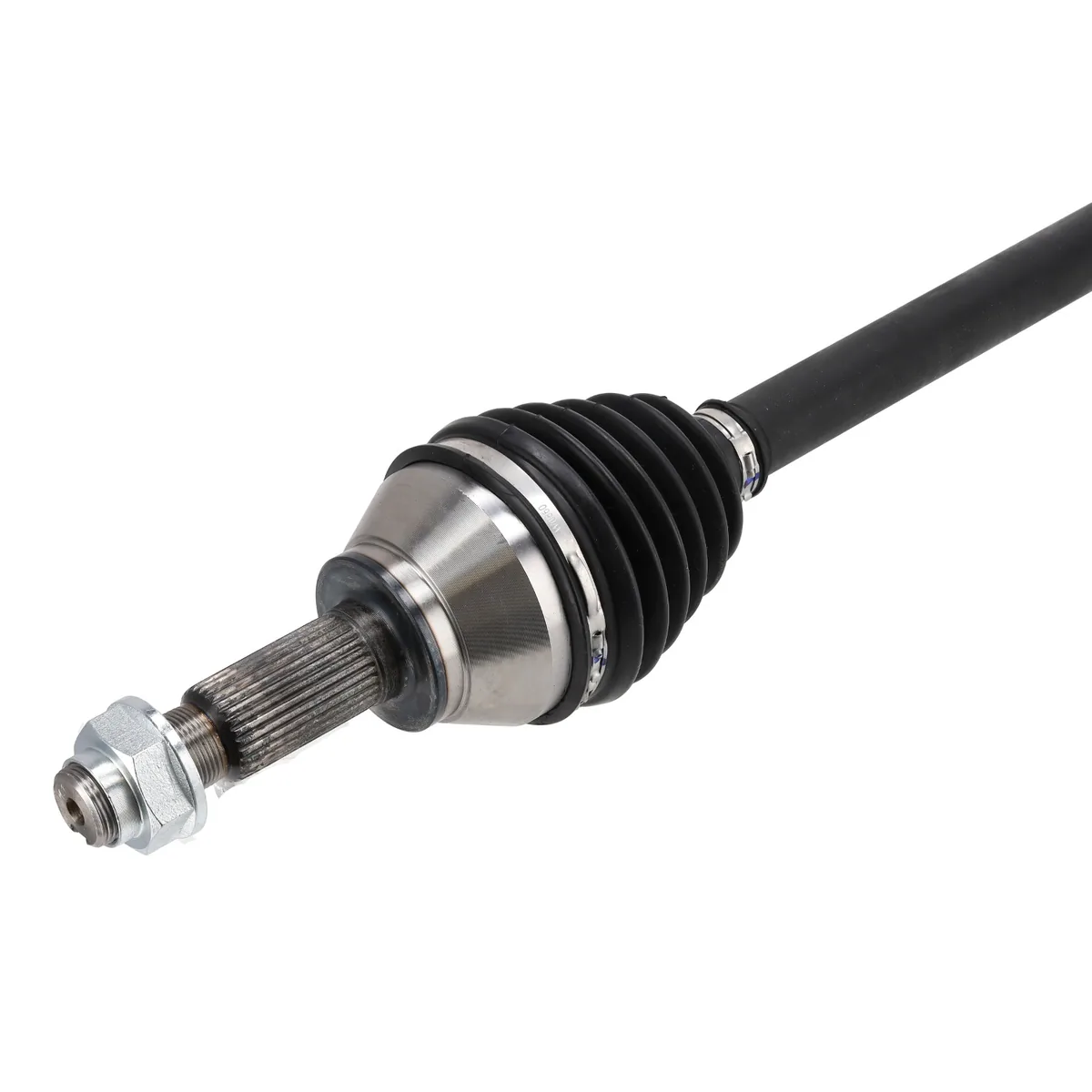

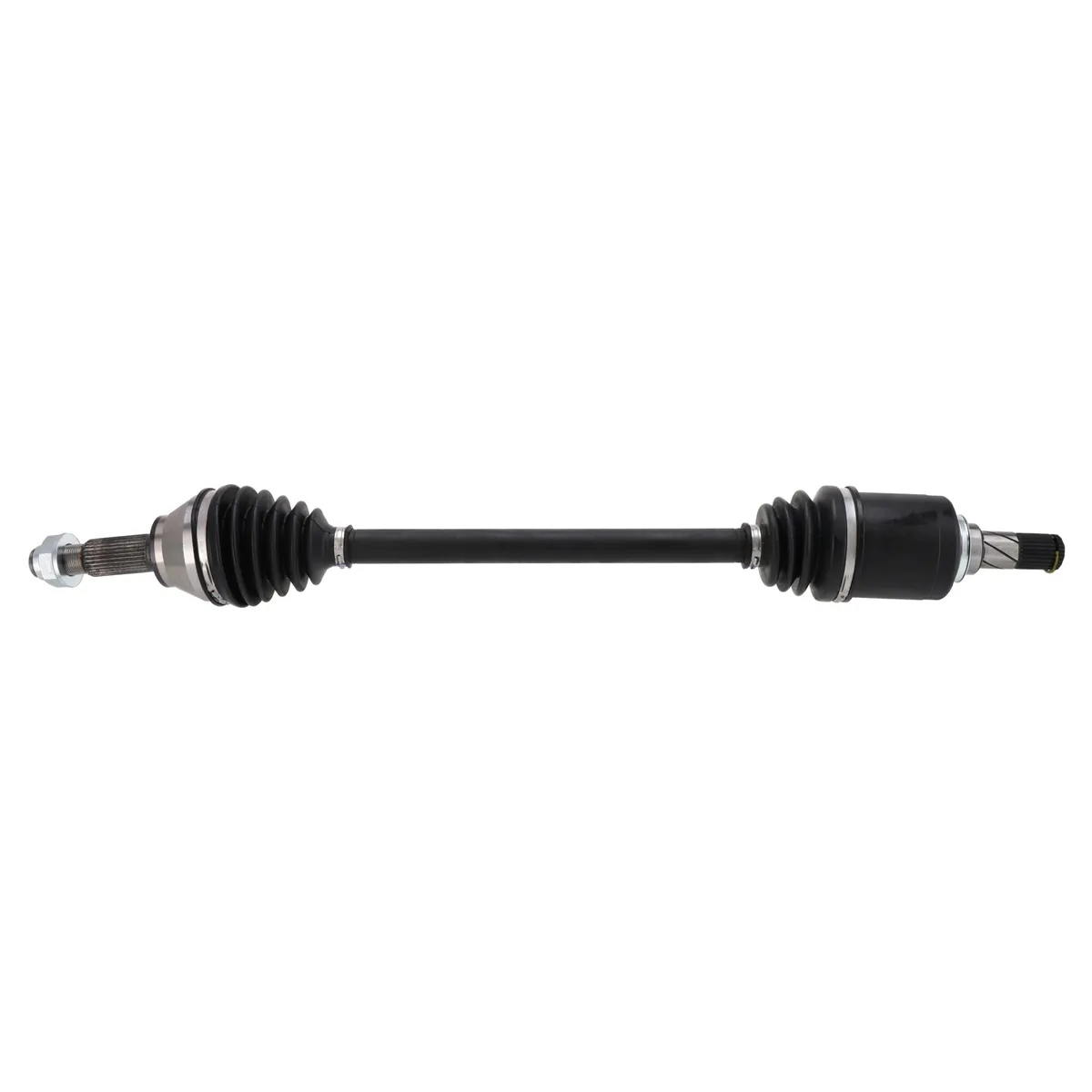

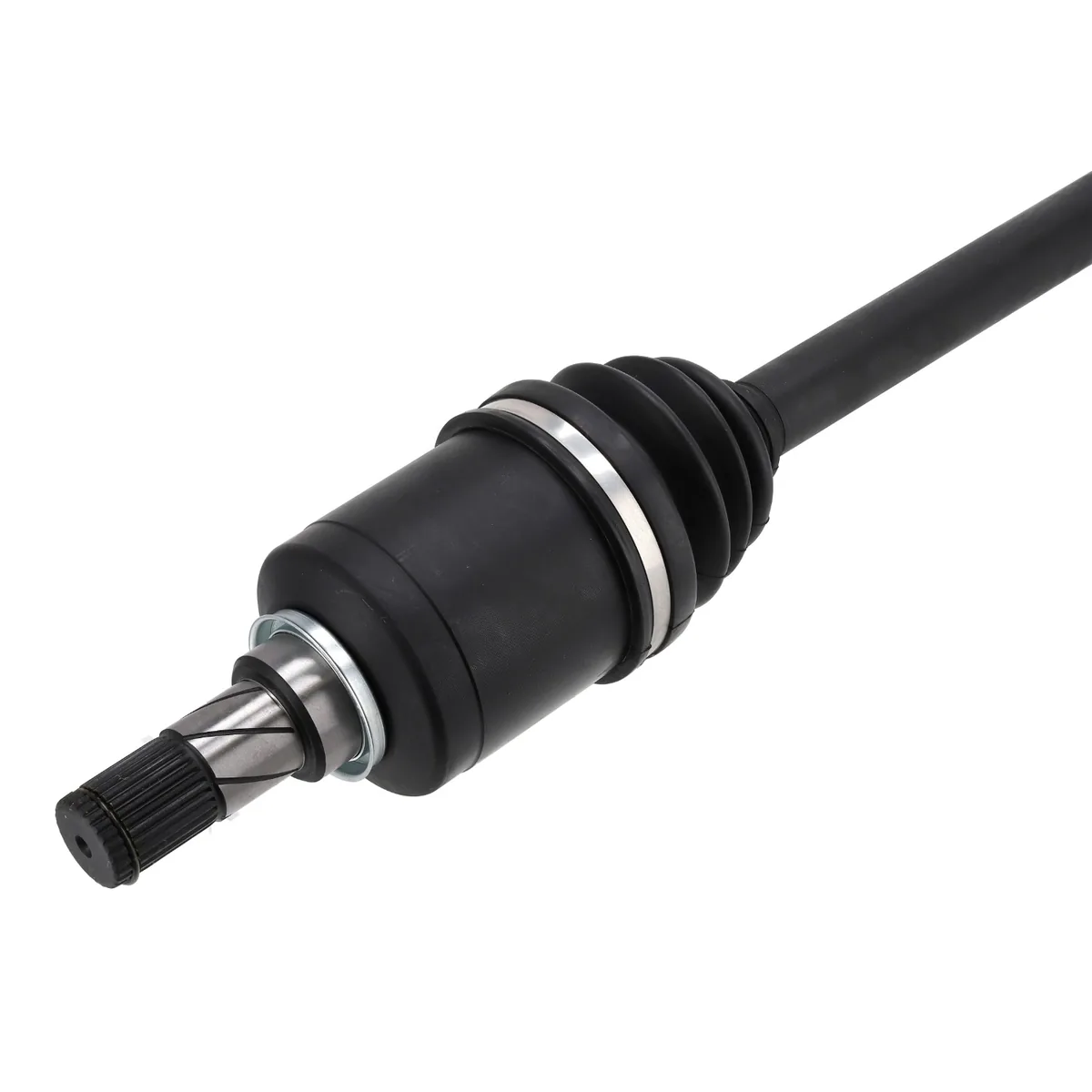

This front left drive shaft is for the Nissan Leaf. It is a complete shaft, 757 mm long compressed, with both CV joints and boots fitted, and it is supplied with a nut. The parts finder lists it for the ZE0 and the ZE1 110 kW.
A worn drive shaft usually makes a clicking noise on full lock, a shudder when pulling away, or a clunk when taking up drive. A split boot that has lost its grease soon ruins the joint.
This is Febi part number 1007818, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW and Leaf (ZE1, 2017 on) 110 kW. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Complete shaft with both joints
- 757 mm compressed length
- 27 / 29 teeth, M24 x 1.5
- Supplied with nut
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front axle left
- Length (compressed): 757 mm
- External Teeth, Transmission Side: 27
- External Teeth, Wheel Side: 29
- Joint Outer Diameter, Transmission Side: 81.59 mm
- Joint Outer Diameter, Wheel Side: 82.86 mm
- Thread: M24 x 1.5
- Supplied with: Nut
- Part Number: Febi 1007818
Replaces Nissan part numbers 39101-5SA1C, 39101-5SN0A, 39101-3NF1A, 39101-5SA1A, 39101-5SA1B and C9B04-3NF1C.
Installation
Professional installation recommended. Fit the new nut supplied, tighten it to the vehicle maker’s torque setting, and check the boots are not twisted.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle left |
| Length (compressed) | 757 mm |
| External Teeth, Transmission Side | 27 |
| External Teeth, Wheel Side | 29 |
| Joint Outer Diameter, Transmission Side | 81.59 mm |
| Joint Outer Diameter, Wheel Side | 82.86 mm |
| Thread | M24 x 1.5 |
| Supplied with | Nut |
| Part Number | Febi 1007818 |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan Leaf (ZE0) 2010 – 2018 | (E) – 80 kW / 109 hp |
| Nissan Leaf (ZE1) 2017 – | (E) – 110 kW / 150 hp |
Nissan Leaf Front Left Drive Shaft – 757 mm FAQs
Which part numbers does it replace?
Replaces Nissan part numbers 39101-5SA1C, 39101-5SN0A, 39101-3NF1A, 39101-5SA1A, 39101-5SA1B and C9B04-3NF1C. The Febi part number is 1007818.
Which side is it for?
The front left (passenger side on a UK car).
How is it different from Febi 194813?
Febi 194813 has 25 teeth at the transmission end and is listed for the ZE0 only. This shaft has 27 teeth. Compare the Nissan part number on your old shaft.
How is it delivered?
It is longer than 650 mm, so it ships as a long parcel.
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW and Leaf (ZE1, 2017 on) 110 kW. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is this a genuine Nissan part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
