Nissan Leaf (ZE0) Outer CV Boot Kit

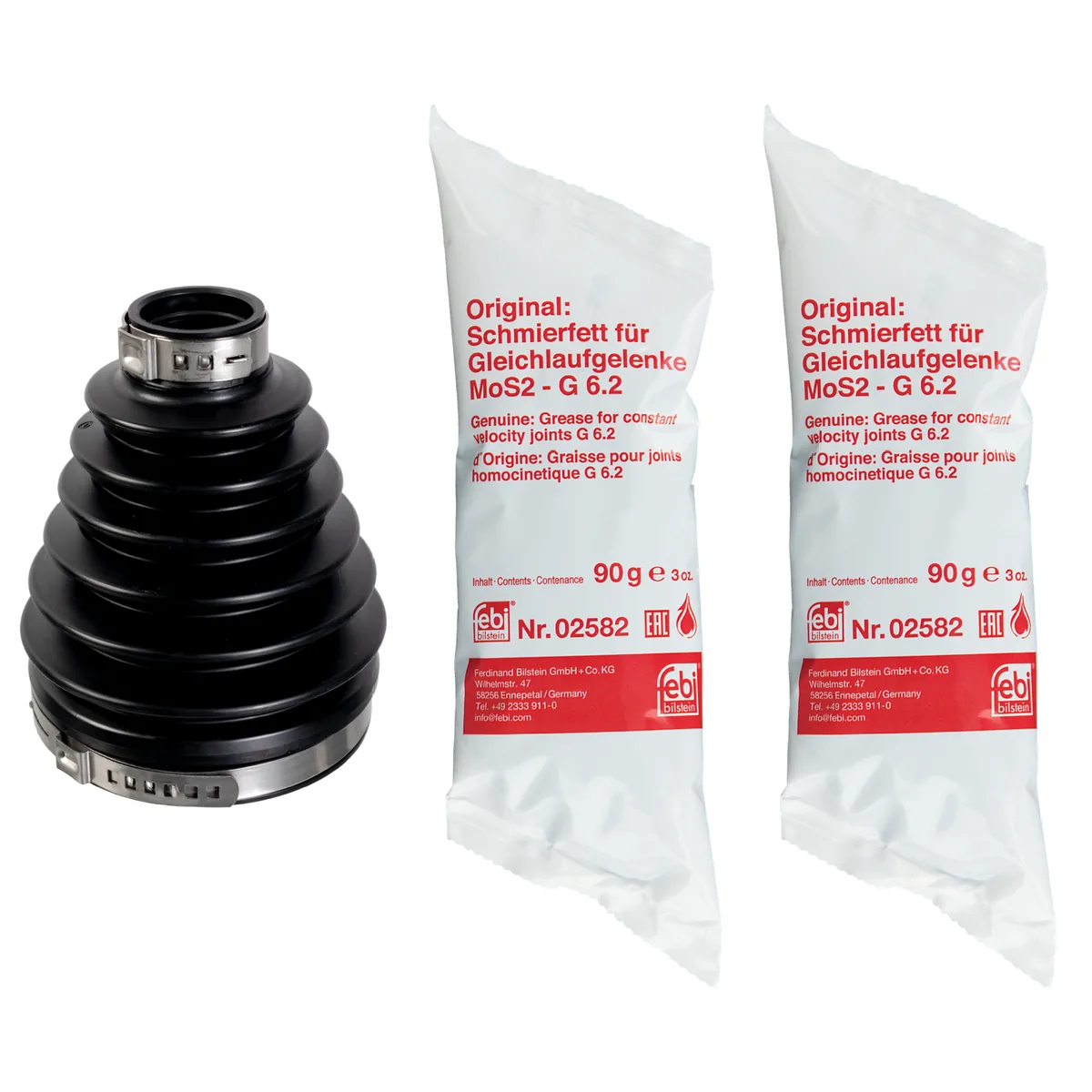

This CV boot kit seals the outer (wheel side) CV joint on the front drive shafts of the first-generation Nissan Leaf (ZE0). It contains a thermoplastic boot, two clamping clips and two sachets of drive shaft grease, and it fits the left or right side.
Replace a boot as soon as it splits. Once the grease escapes, water and grit get into the joint and it starts to click on full lock.
Choose Febi 100322 or Blue Print ADM58170 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Boot, clips and grease included
- Wheel side, left or right
- Thermoplastic boot
- Protects the outer CV joint
- Febi and Blue Print options
Specifications
- Fitting Position: Front axle left and right, wheel side
- Inner Diameter 1: 26 mm
- Inner Diameter 2: 83 mm
- Length: 109 mm
- Material: Thermoplastic
- Contents: CV boot, 2 clamping clips, 2 drive shaft grease sachets
- Part Number: Febi 100322 | Blue Print ADM58170
Replaces Nissan part numbers 39241-9Y029, C9241-9Y015, C9BDA-JX00L, 39241-3Y015 and C9241-9Y087 (the parts finder lists 5 more).
Installation
Professional installation recommended. Clean the old grease out of the joint, pack it with the grease supplied, seat the boot in its grooves and crimp the clips with the correct tool.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle left and right, wheel side |
| Inner Diameter 1 | 26 mm |
| Inner Diameter 2 | 83 mm |
| Length | 109 mm |
| Material | Thermoplastic |
| Contents | CV boot, 2 clamping clips, 2 drive shaft grease sachets |
| Part Number | Febi 100322 | Blue Print ADM58170 |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan Leaf (ZE0) 2010 – 2018 | (E) – 80 kW / 109 hp |
Nissan Leaf (ZE0) Outer CV Boot Kit FAQs
Which part numbers does it replace?
Replaces Nissan part numbers 39241-9Y029, C9241-9Y015, C9BDA-JX00L, 39241-3Y015 and C9241-9Y087 (the parts finder lists 5 more). Febi and Blue Print part numbers are listed in the specifications.
What is in the kit?
One CV boot, a universal clamping clip, a clamping clip and two sachets of drive shaft grease.
Does it fit both sides?
Yes. It fits the outer joint on either front drive shaft. Order two to do both sides.
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Nissan part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
