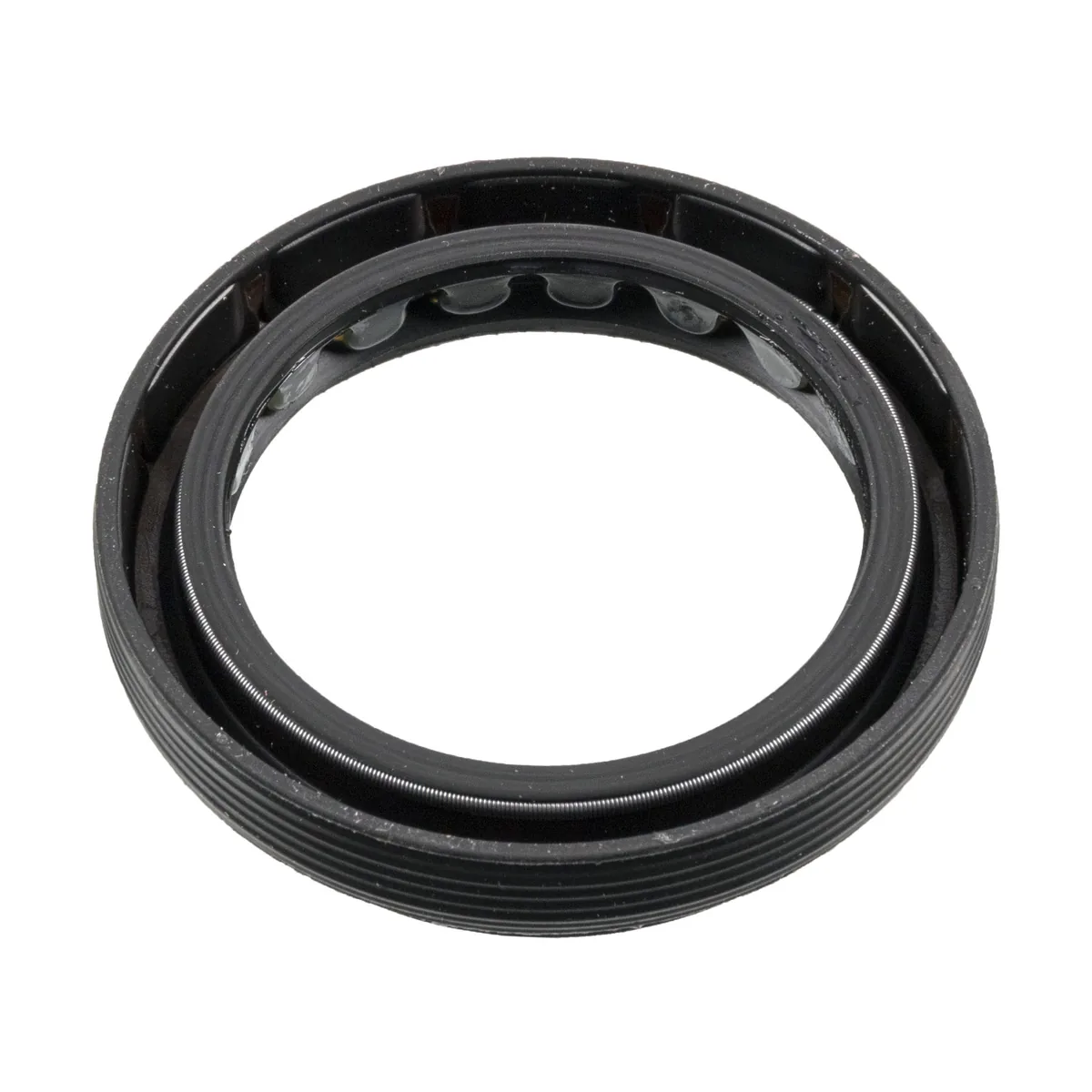

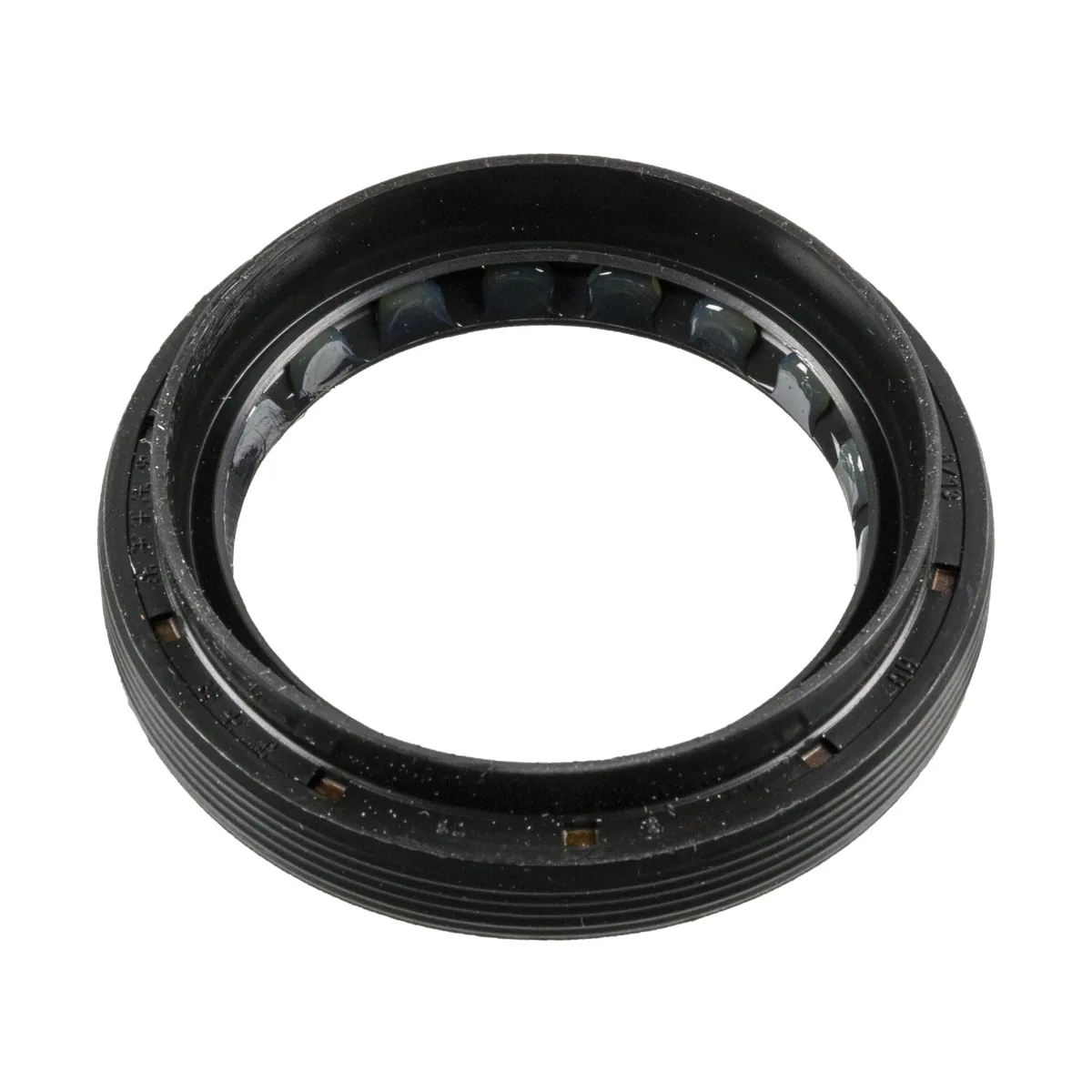

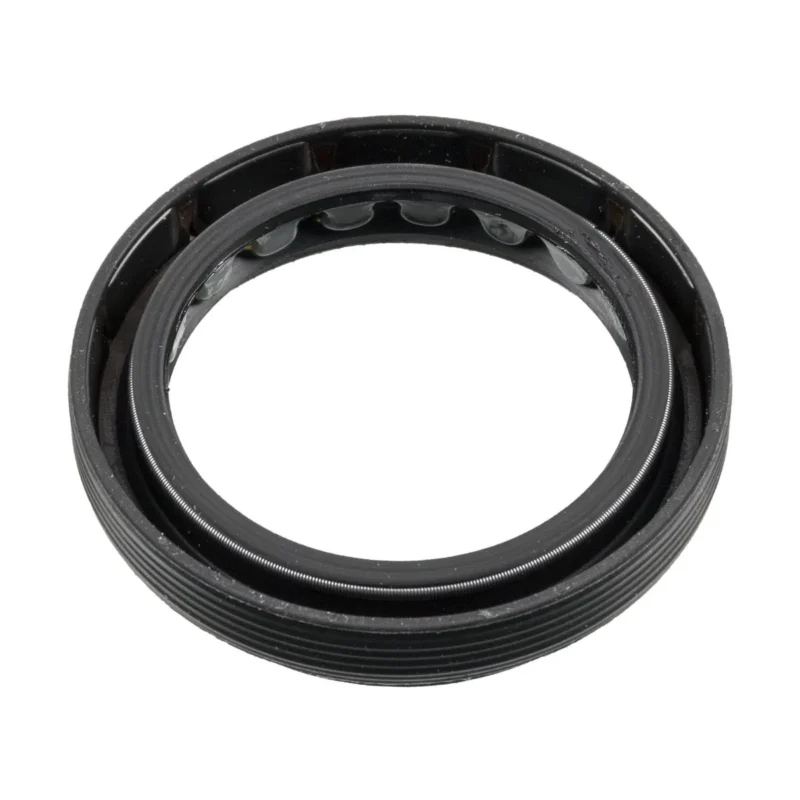

Renault Zoe Differential Shaft Seal – 40 x 55 mm
This shaft seal seals the drive shaft where it enters the transmission on the Renault Zoe. It is a 40 x 55 mm seal in ACM rubber and fits the left or right side.
Replace the seal if oil is leaking where the drive shaft enters the transmission, or whenever a drive shaft is removed and the seal lip is worn.
Choose Febi 185616 or Blue Print ADBP640021 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65 and 68 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 40 x 55 mm shaft seal
- ACM rubber
- Fits left or right
- For the Zoe 57, 65 and 68 kW
- Febi and Blue Print options
Specifications
- Fitting Position: Left and right
- Inner Diameter: 40 mm
- Outer Diameter: 55 mm
- Height: 8 / 13 mm
- Material: ACM (polyacrylic rubber)
- Part Number: Febi 185616 | Blue Print ADBP640021
Replaces Renault part numbers 82 00 884 113, 82 00 110 847, 82 00 275 750 and 82 00 717 349.
Installation
Professional installation recommended. Take care not to damage the seal lip when refitting the drive shaft, and top up the transmission oil to the correct level afterwards.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Left and right |
| Inner Diameter | 40 mm |
| Outer Diameter | 55 mm |
| Height | 8 / 13 mm |
| Material | ACM (polyacrylic rubber) |
| Part Number | Febi 185616 | Blue Print ADBP640021 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
Renault Zoe Differential Shaft Seal – 40 x 55 mm FAQs
Which part numbers does it replace?
Replaces Renault part numbers 82 00 884 113, 82 00 110 847, 82 00 275 750 and 82 00 717 349. Febi and Blue Print part numbers are listed in the specifications.
When should I replace it?
Whenever it leaks, and it is worth fitting a new one when a drive shaft is removed.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65 and 68 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
