Renault Zoe 100 kW Rear Wheel Bearing Kit with Hub

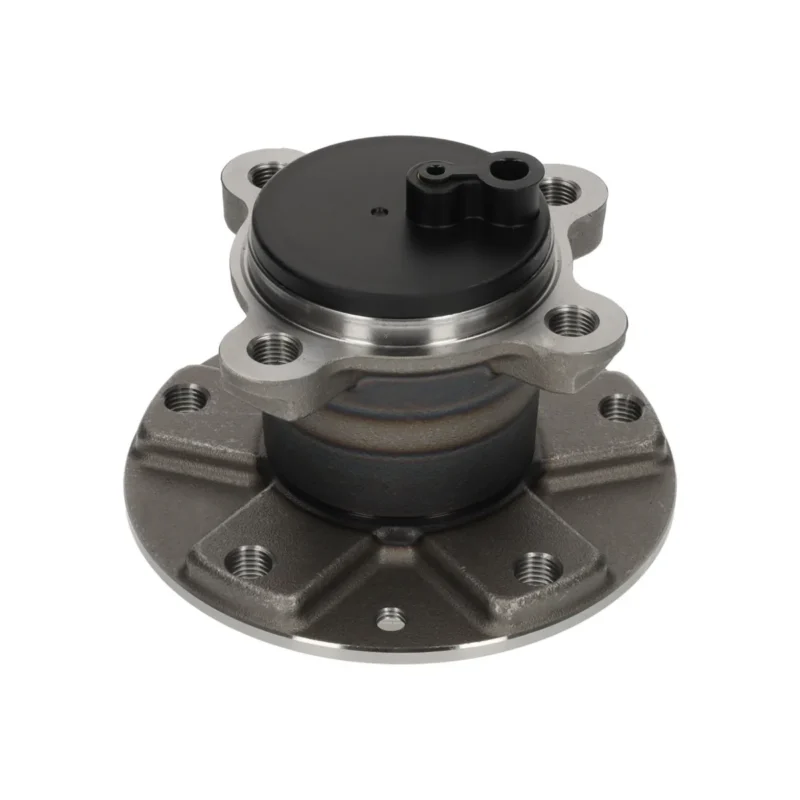

This rear wheel bearing kit is a complete hub with the bearing and ABS sensor ring built in, for the Renault Zoe 100 kW. It has a 114.3 mm PCD and fits the left or right side.
Replace the bearing if you hear a rumble or hum that rises with speed, there is play at the wheel, or the ABS warning light comes on because of a damaged sensor ring.
This is Febi part number 1003428, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 100 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Complete hub with bearing
- ABS sensor ring built in
- 114.3 mm PCD
- For the Zoe 100 kW
- Febi quality from the bilstein group
Specifications
- Fitting Position: Rear axle, left or right
- Bearing Type: Angular ball bearing
- Inner Diameter: 30 mm
- Outer Diameter: 72 mm
- Width: 69 mm
- Pitch Circle Diameter: 114.3 mm
- ABS: With ABS sensor ring
- Part Number: Febi 1003428
Replaces Renault part numbers 43 21 085 76R, 40 03 050 29R and 43 21 057 84R.
Installation
Professional installation recommended. Clean the mounting face, fit the hub with new bolts or nut as required and tighten to the service figure.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle, left or right |
| Bearing Type | Angular ball bearing |
| Inner Diameter | 30 mm |
| Outer Diameter | 72 mm |
| Width | 69 mm |
| Pitch Circle Diameter | 114.3 mm |
| ABS | With ABS sensor ring |
| Part Number | Febi 1003428 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) | (E) – 100 kW / 136 hp |
Renault Zoe 100 kW Rear Wheel Bearing Kit with Hub FAQs
Which part numbers does it replace?
Replaces Renault part numbers 43 21 085 76R, 40 03 050 29R and 43 21 057 84R. The Febi part number is 1003428.
Is the ABS ring included?
Yes. The ABS sensor ring is built into the hub.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 100 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
What are the main specifications?
Fitting position: Rear axle, left or right. Bearing type: Angular ball bearing. Inner diameter: 30 mm. Outer diameter: 72 mm. Width: 69 mm. Pitch circle diameter: 114.3 mm. ABS: With ABS sensor ring. Part number: Febi 1003428.
