Tesla Model 3 Front Brake Disc

Price range: £57.67 through £92.29

Engineered to meet OEM specifications, these discs ensure optimal braking performance, enhanced safety, and a smooth driving experience.

Perfect for EV enthusiasts seeking reliability and quality.

£57.67 – £92.29

Brand

Clear

Add to wishlist

Gallery
Description
Additional information
Reviews 0

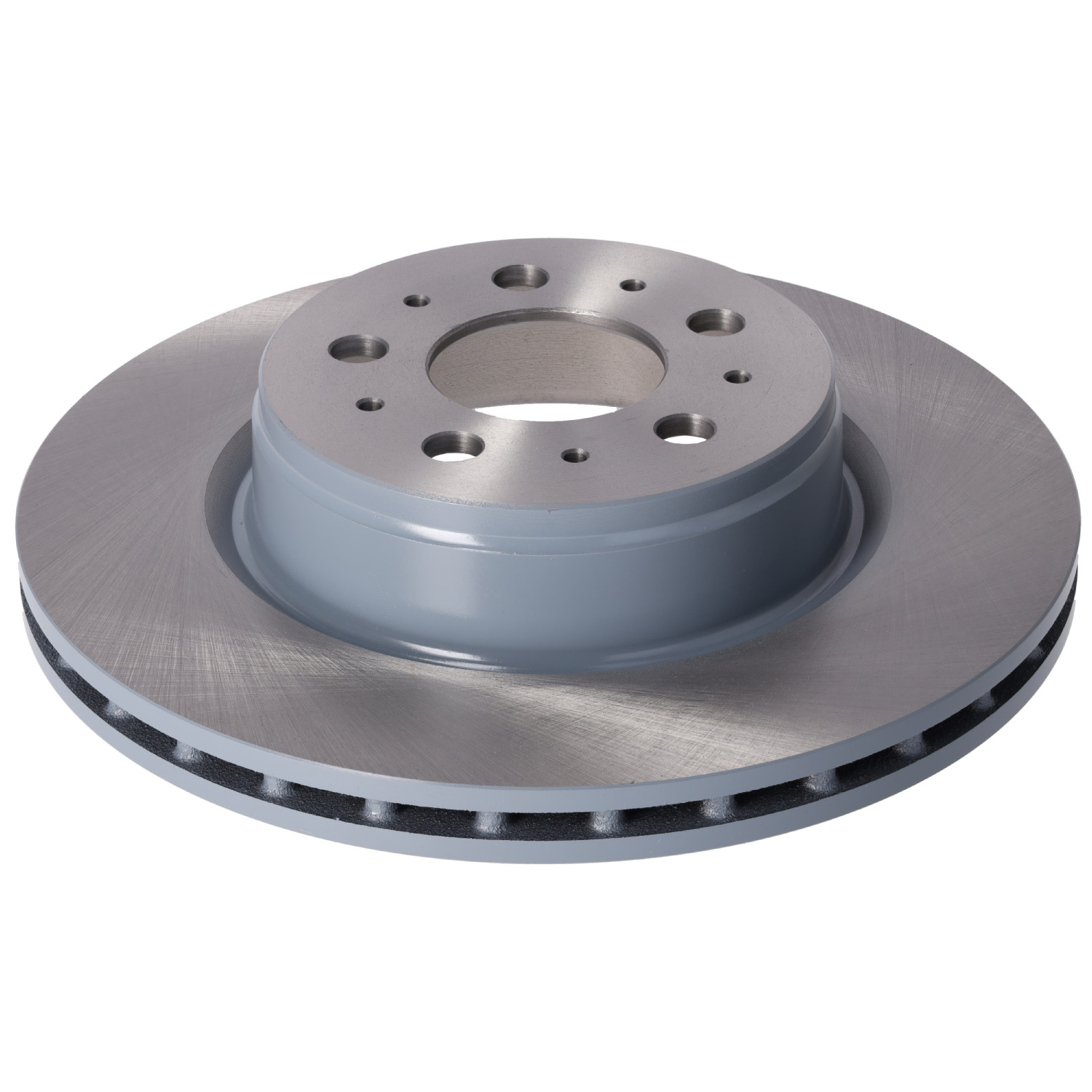

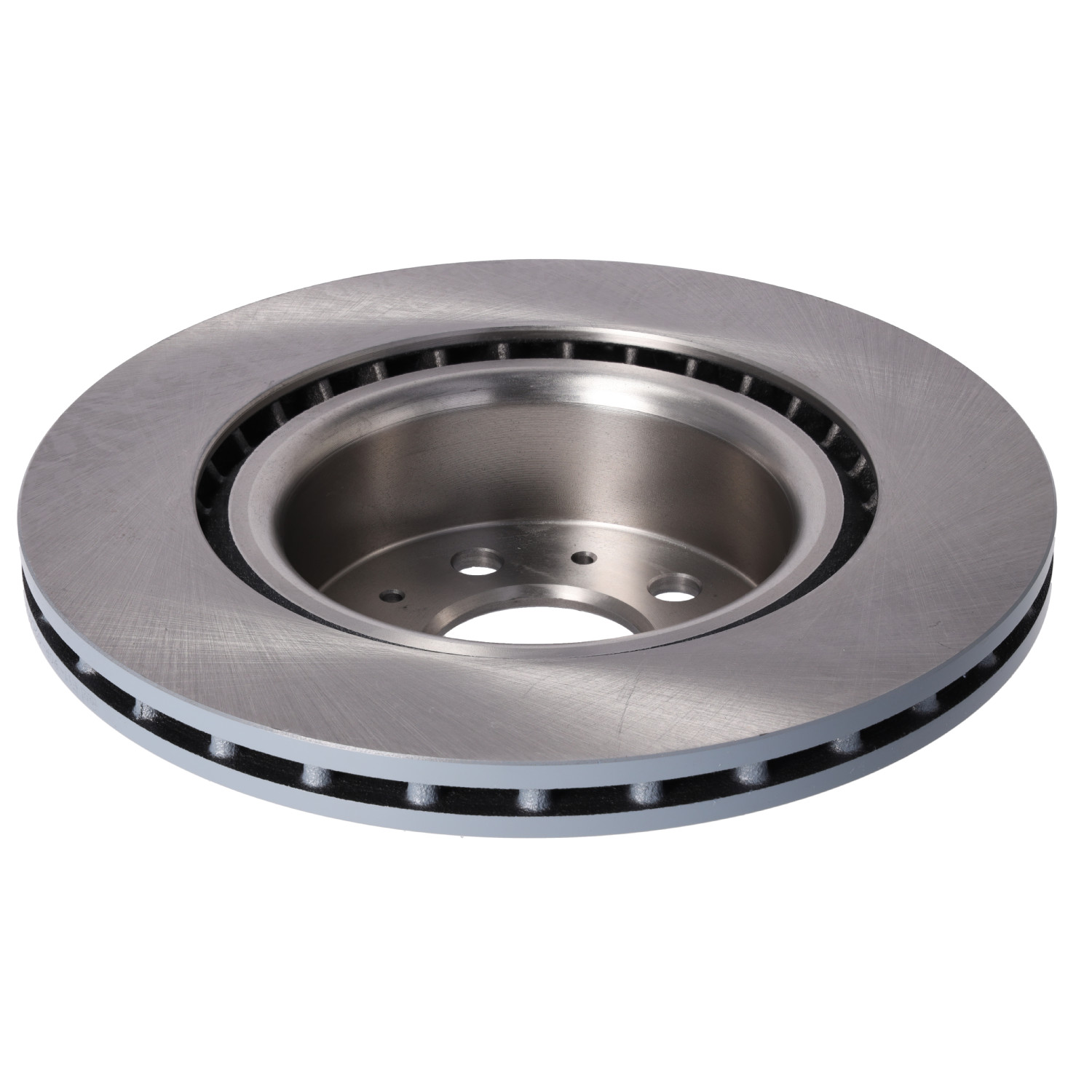

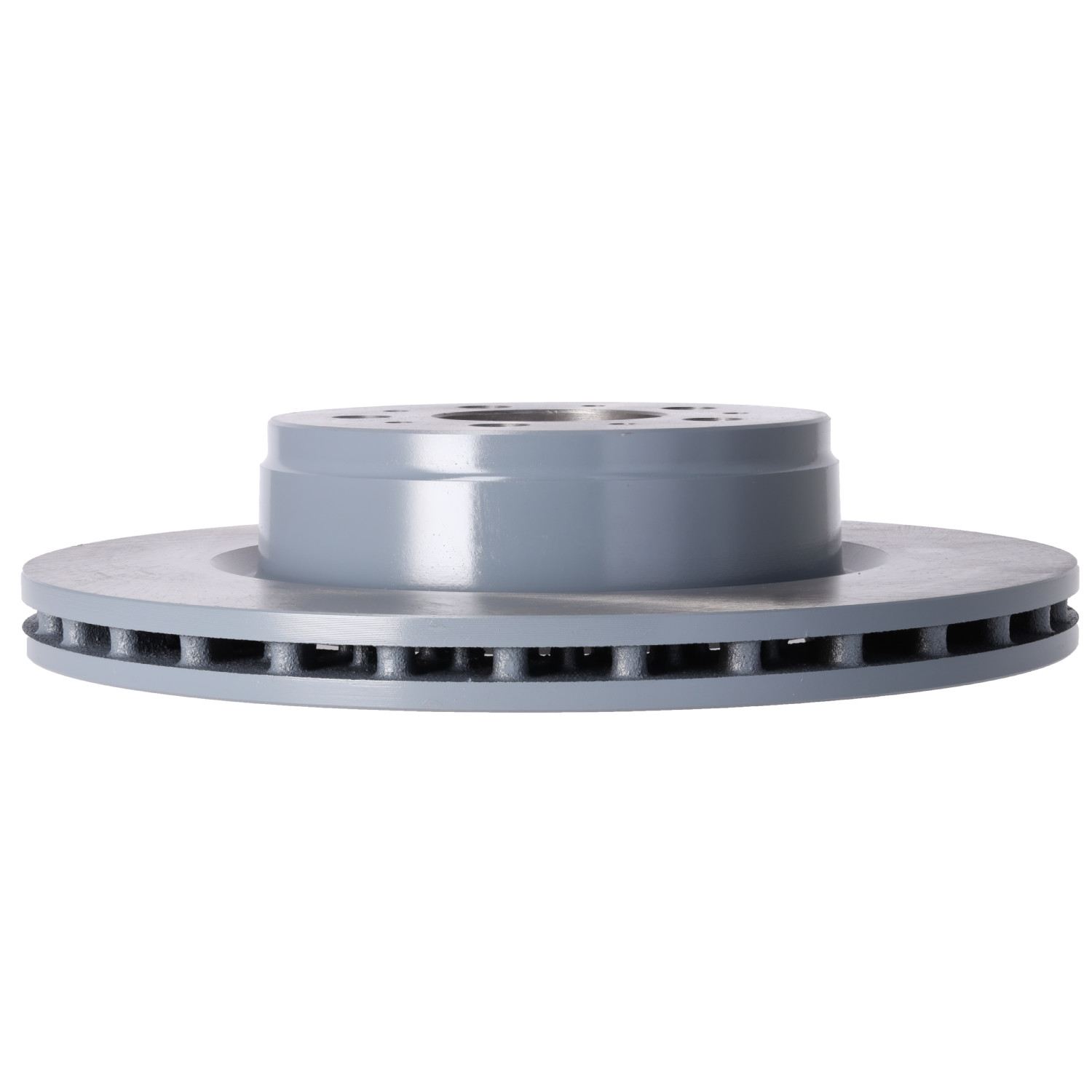

Tesla Model 3 Front Brake Disc – available in several Brands Order two when replacing both front discs.

Front Axle, Internally Vented, Coated

Blue Print brake discs are manufactured to the highest standards, using a grey iron smelting process consisting of a mixture of new and recycled materials combining metal composites. Choosing the right material is critical to the quality and operation of the brake discs for each vehicle application.

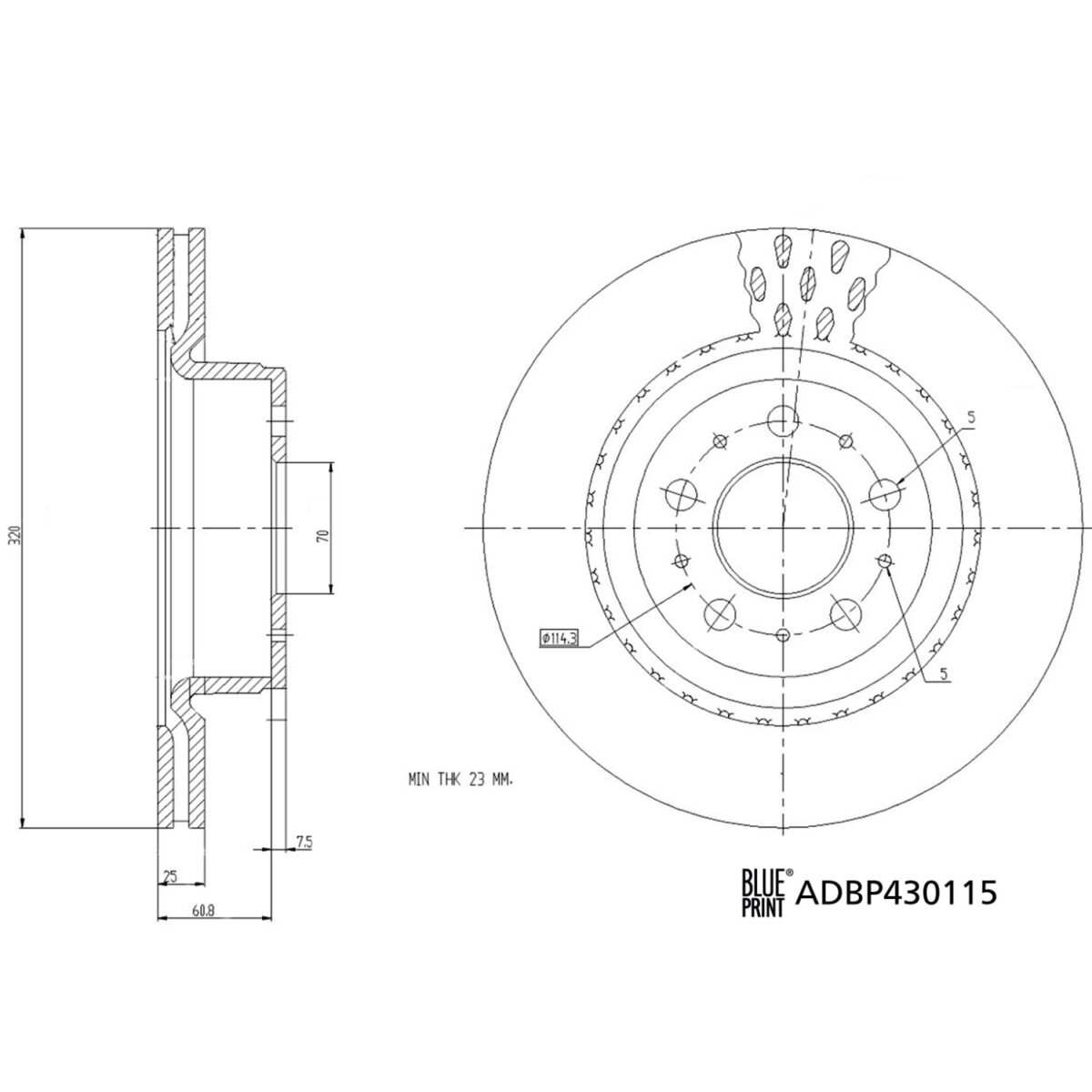

Attributes
Brake Disc Thickness	25 mm
Brake Disc Type	internally vented
Centre Diameter	70 mm
Height or Thickness	68 mm
Minimum Thickness of Brake Disc	23 mm
No. of Wheel Bolt/Stud Holes	5
Outer Diameter	320 mm
Pitch Circle Diameter	114,3 mm
Surface	Coated

Suitable to replace	Reference(s)
Tesla	1044611-00-D

Cross Reference part numbers

A.B.S.: 18797
AP: 20137 V
BENDIX BRAKING: BDS2267HC
BORG & BECK: BBD6241S
BRECO: BV 9413
BREMBO: 09.N360.11, 09.N360.1E, KT 08 001
CAR: 142.2114
COMLINE: ADC5114V
FEBI BILSTEIN: 177006
HERTH+BUSS JAKOPARTS: J3300821
KAVO PARTS: BR-10044-C
MAXTECH: 841601.0000
MEYLE: 70-83 521 0002/PD
MINTEX: MDC3019C
OPTIMAL: BS-9532HC
PAGID: 56330HC
SWAG: 33 10 7345
TEXTAR: 92333005
TRISCAN: 8120 81003C
VILLAR: 628.3167
ZIMMERMANN: 550.5602.20

Vehicle Fit Guide (non performance models).

Model	submodel
Model 3 2017 –	(E) – 175 kW / 238 hp
Model 3 2017 –	(E) – 192 kW / 261 hp
Model 3 2017 –	(E) – 202 kW / 275 hp
Model 3 2017 –	(E) – 208 kW / 283 hp
Model 3 2017 –	(E) – 220 kW / 299 hp
Model 3 2017 –	(E) – 225 kW / 306 hp
Model 3 2017 –	(E) – 239 kW / 325 hp
Model 3 Dual Motor 2018 –	(E) – 258 kW / 351 hp
Model 3 Dual Motor 2018 –	(E) – 339 kW / 461 hp
Model 3 Dual Motor 2018 –	(E) – 340 kW / 462 hp
Model 3 Dual Motor 2018 –	(E) – 350 kW / 476 hp
Model 3 Dual Motor 2018 –	(E) – 355 kW / 483 hp
Model 3 Dual Motor 2018 –	(E) – 357 kW / 485 hp
Model 3 Dual Motor 2018 –	(E) – 360 kW / 489 hp
Model 3 Dual Motor 2018 –	(E) – 361 kW / 491 hp
Model 3 Dual Motor 2018 –	(E) – 366 kW / 498 hp
Model 3 Dual Motor 2018 –	(E) – 377 kW / 513 hp
