Tesla Model 3 & Model Y Front Lower Aft Control Arm
The front lower aft control arm is a vital suspension component on the Tesla Model 3 and Model Y. It connects the wheel hub to the chassis and plays a key role in maintaining correct wheel alignment, absorbing road shocks and delivering precise handling.
Key Benefits
- Restores factory alignment and handling characteristics
- Reduces road noise and vibration
- Improves stability during cornering and braking
- Direct fit – no modifications required
- Built to withstand the high torque and weight of electric vehicles
Compatibility
- Tesla Model 3 – all years and variants
- Tesla Model Y – all years and variants
Aftermarket Part Numbers (Febi)

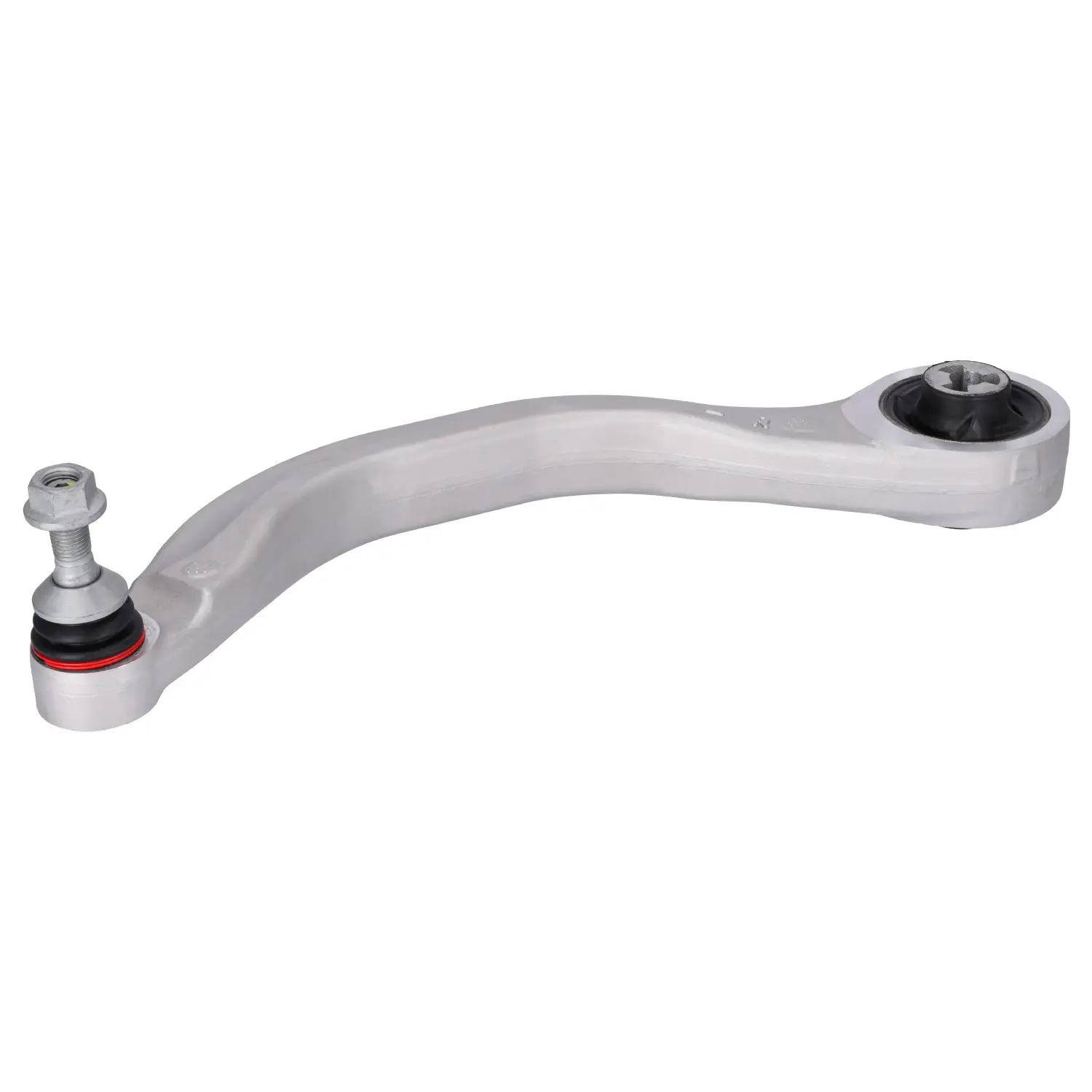

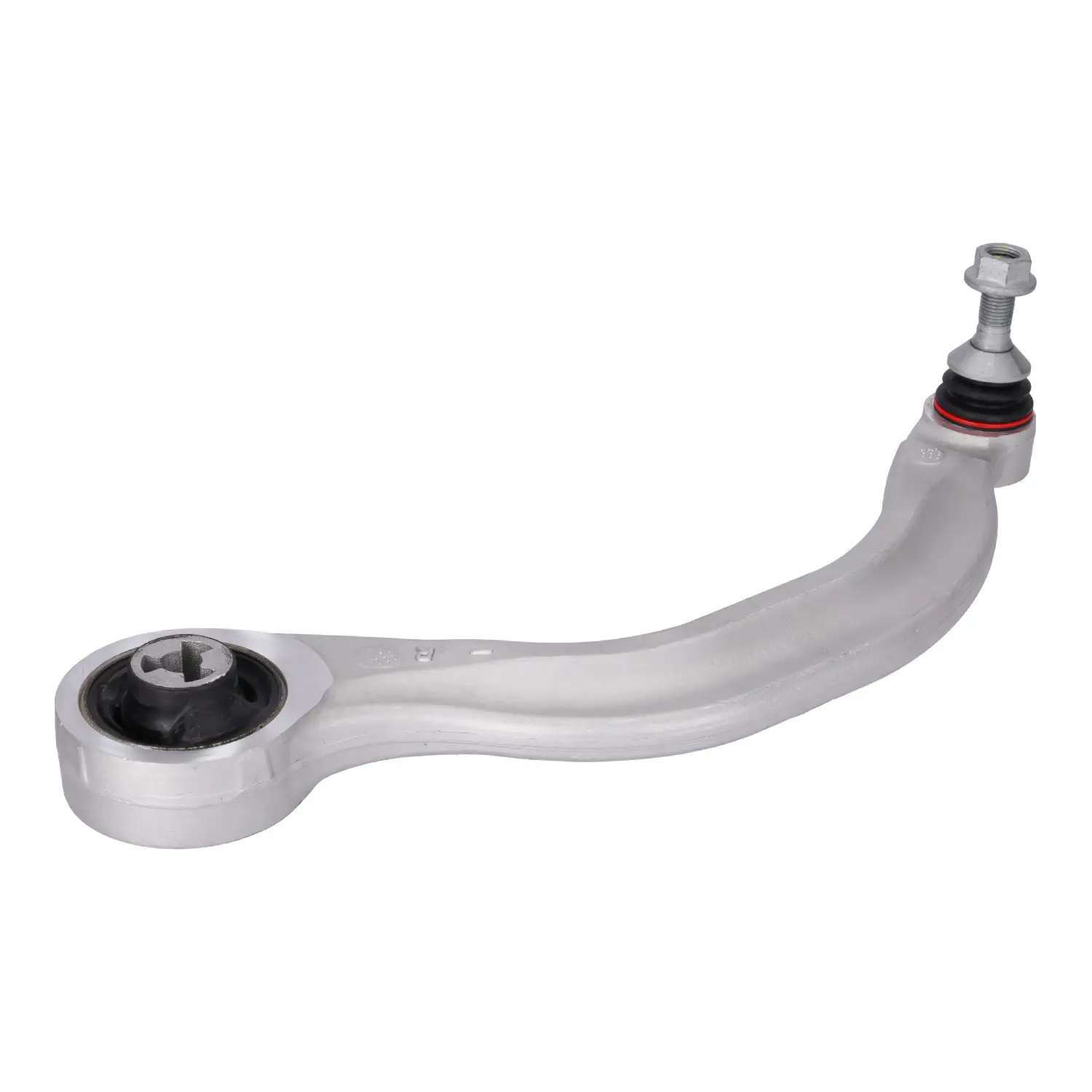

- Febi 179414 – Right

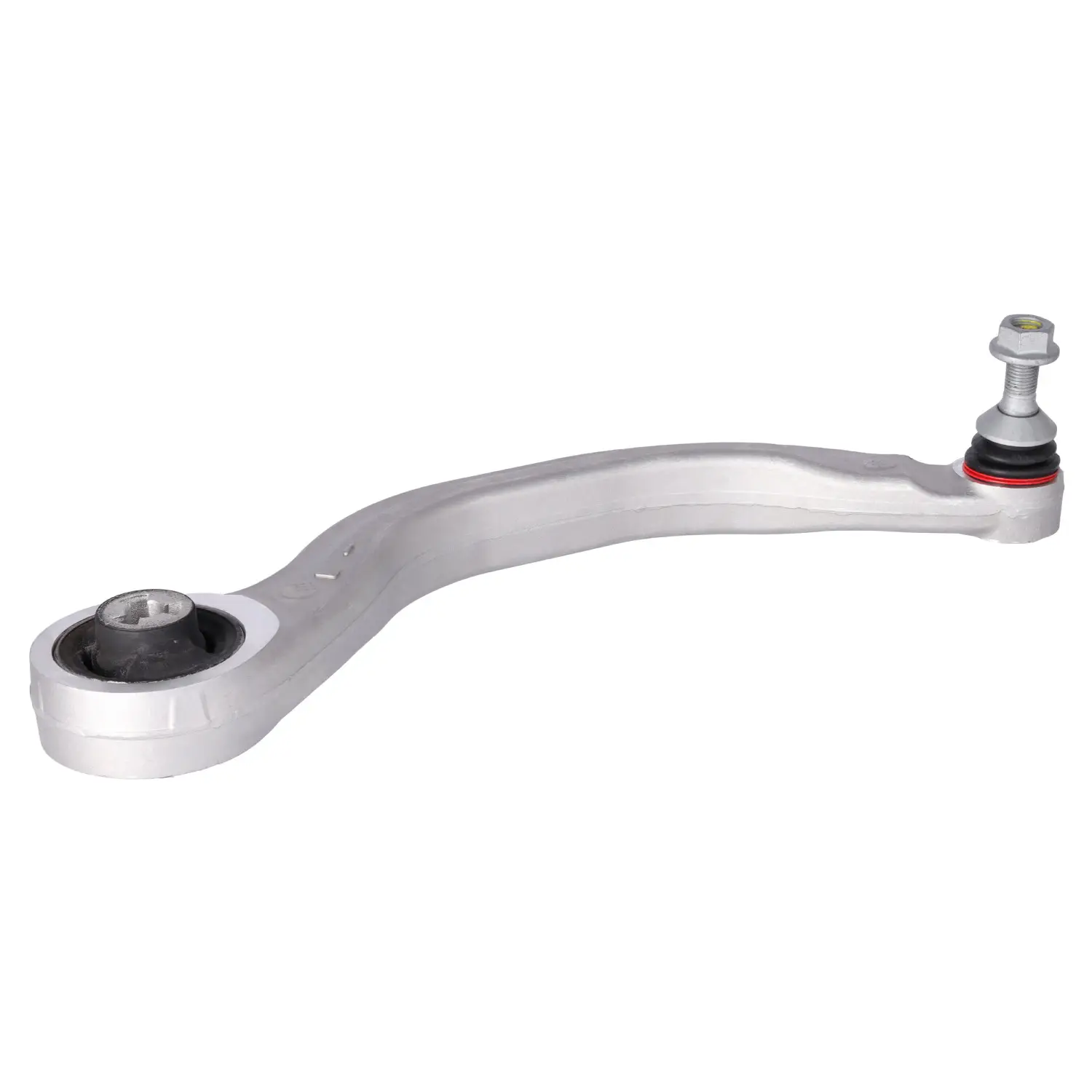

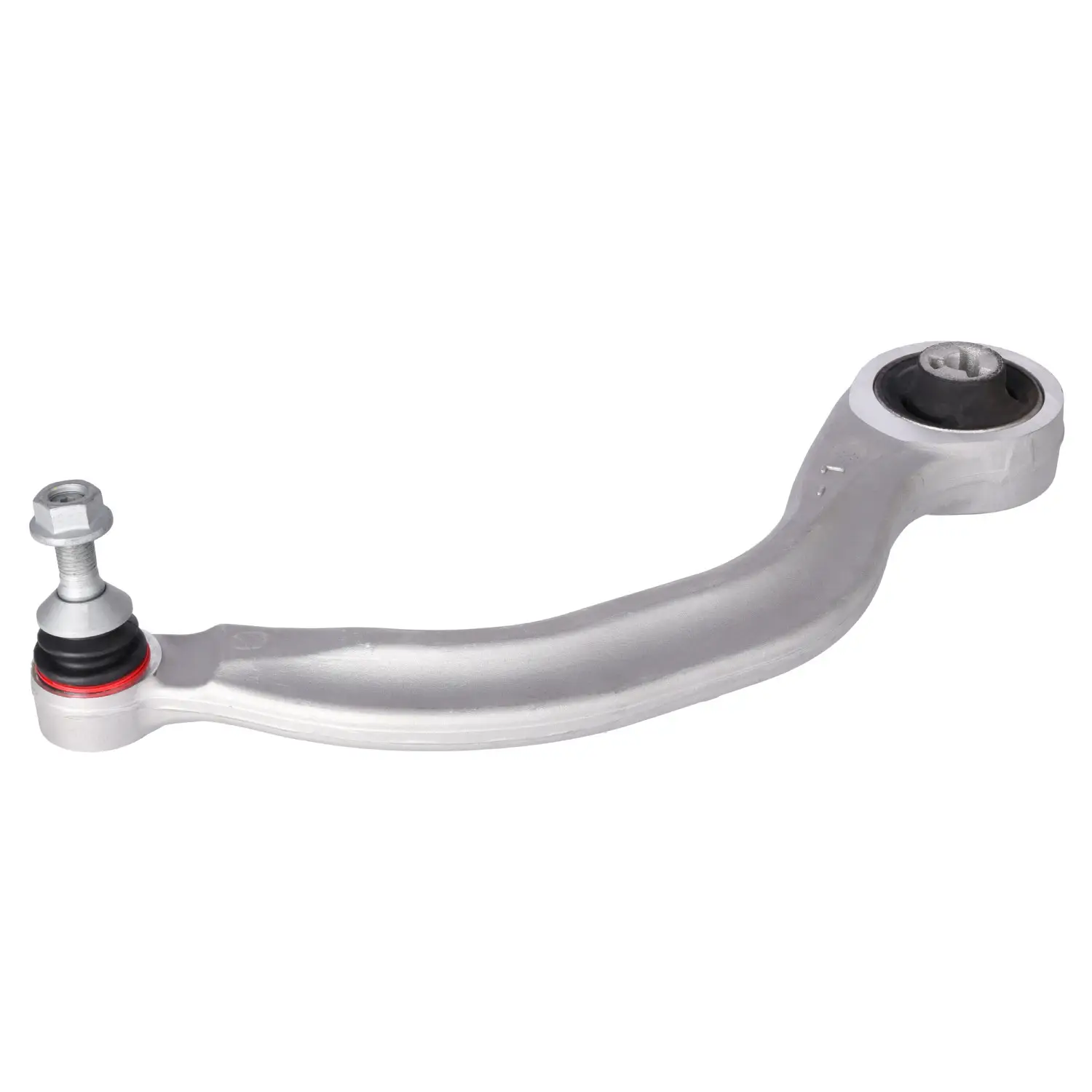

- Febi 179413 – Left
- Febi Prokit 199837 – Left
- Febi Prokit 199838 – Right
Installation
Standard suspension component replacement. Basic tools required.
Pro tip: Pair with our Universal EV Jack Pad Adaptor for safe and easy lifting during suspension work.
| Attributes | |
|---|---|
| Material | Aluminium |
| Outside Thread | M14 x 1,5 |
| Suitable to replace | Reference(s) |
|---|---|
| Tesla | 2188354-20-B | 1044351-00-C | 1044354-00-A | 1288354-00-B | 1288354-99-B | 2188354-10-B 2188359-20-B | 1044356-00-C | 1044359-00-A | 1288359-00-B | 1288359-99-B | 2188359-10-B |
| Model | Submodel |
|---|---|
| Model 3 2017 – | (E) – 175 kW / 238 hp |
| Model 3 2017 – | (E) – 192 kW / 261 hp |
| Model 3 2017 – | (E) – 194 kW / 264 hp |
| Model 3 2017 – | (E) – 202 kW / 275 hp |
| Model 3 2017 – | (E) – 208 kW / 283 hp |
| Model 3 2017 – | (E) – 220 kW / 299 hp |
| Model 3 2017 – | (E) – 225 kW / 306 hp |
| Model 3 2017 – | (E) – 239 kW / 325 hp |
| Model 3 Dual Motor 2018 – | (E) – 153 kW / 208 hp |
| Model 3 Dual Motor 2018 – | (E) – 258 kW / 351 hp |
| Model 3 Dual Motor 2018 – | (E) – 324 kW / 441 hp |
| Model 3 Dual Motor 2018 – | (E) – 339 kW / 461 hp |
| Model 3 Dual Motor 2018 – | (E) – 340 kW / 462 hp |
| Model 3 Dual Motor 2018 – | (E) – 350 kW / 476 hp |
| Model 3 Dual Motor 2018 – | (E) – 355 kW / 483 hp |
| Model 3 Dual Motor 2018 – | (E) – 357 kW / 485 hp |
| Model 3 Dual Motor 2018 – | (E) – 360 kW / 489 hp |
| Model 3 Dual Motor 2018 – | (E) – 361 kW / 491 hp |
| Model 3 Dual Motor 2018 – | (E) – 366 kW / 498 hp |
| Model 3 Dual Motor 2018 – | (E) – 377 kW / 513 hp |
| Model 3 Dual Motor 2018 – | (E) – 393 kW / 534 hp |
| Model Y 2019 – | (E) – 192 kW / 261 hp |
| Model Y 2019 – | (E) – 194 kW / 264 hp |
| Model Y 2019 – | (E) – 202 kW / 275 hp |
| Model Y 2019 – | (E) – 220 kW / 299 hp |
| Model Y 2019 – | (E) – 239 kW / 325 hp |
| Model Y 2019 – | (E) – 255 kW / 347 hp |
| Model Y Dual Motor 2019 – | (E) – 258 kW / 351 hp |
| Model Y Dual Motor 2019 – | (E) – 317 kW / 431 hp |
| Model Y Dual Motor 2019 – | (E) – 331 kW / 450 hp |
| Model Y Dual Motor 2019 – | (E) – 339 kW / 461 hp |
| Model Y Dual Motor 2019 – | (E) – 357 kW / 485 hp |
| Model Y Dual Motor 2019 – | (E) – 378 kW / 514 hp |
| Model Y Dual Motor 2019 – | (E) – 393 kW / 534 hp |
Model 3 Y Front Lower Aft Control Arm Right Side Spec.
Fitting Position: rear, lower, front axle right
| Attributes | |
|---|---|
| Material | Aluminium |
| Outside Thread | M14 x 1,5 |
| Suitable to replace | Reference(s) |
|---|---|
| Tesla | 1044359-00-A | 1044356-00-C | 1288359-00-B |
| Model | Submodel |
|---|---|
| Model 3 2017 – | (E) – 175 kW / 238 hp |
| Model 3 2017 – | (E) – 192 kW / 261 hp |
| Model 3 2017 – | (E) – 194 kW / 264 hp |
| Model 3 2017 – | (E) – 202 kW / 275 hp |
| Model 3 2017 – | (E) – 208 kW / 283 hp |
| Model 3 2017 – | (E) – 220 kW / 299 hp |
| Model 3 2017 – | (E) – 225 kW / 306 hp |
| Model 3 2017 – | (E) – 239 kW / 325 hp |
| Model 3 Dual Motor 2018 – | (E) – 153 kW / 208 hp |
| Model 3 Dual Motor 2018 – | (E) – 258 kW / 351 hp |
| Model 3 Dual Motor 2018 – | (E) – 324 kW / 441 hp |
| Model 3 Dual Motor 2018 – | (E) – 339 kW / 461 hp |
| Model 3 Dual Motor 2018 – | (E) – 340 kW / 462 hp |
| Model 3 Dual Motor 2018 – | (E) – 350 kW / 476 hp |
| Model 3 Dual Motor 2018 – | (E) – 355 kW / 483 hp |
| Model 3 Dual Motor 2018 – | (E) – 357 kW / 485 hp |
| Model 3 Dual Motor 2018 – | (E) – 360 kW / 489 hp |
| Model 3 Dual Motor 2018 – | (E) – 361 kW / 491 hp |
| Model 3 Dual Motor 2018 – | (E) – 366 kW / 498 hp |
| Model 3 Dual Motor 2018 – | (E) – 377 kW / 513 hp |
| Model 3 Dual Motor 2018 – | (E) – 393 kW / 534 hp |
| Model Y 2019 – | (E) – 192 kW / 261 hp |
| Model Y 2019 – | (E) – 194 kW / 264 hp |
| Model Y 2019 – | (E) – 202 kW / 275 hp |
| Model Y 2019 – | (E) – 220 kW / 299 hp |
| Model Y 2019 – | (E) – 239 kW / 325 hp |
| Model Y 2019 – | (E) – 255 kW / 347 hp |
| Model Y Dual Motor 2019 – | (E) – 258 kW / 351 hp |
| Model Y Dual Motor 2019 – | (E) – 317 kW / 431 hp |
| Model Y Dual Motor 2019 – | (E) – 331 kW / 450 hp |
| Model Y Dual Motor 2019 – | (E) – 339 kW / 461 hp |
| Model Y Dual Motor 2019 – | (E) – 357 kW / 485 hp |
| Model Y Dual Motor 2019 – | (E) – 378 kW / 514 hp |
| Model Y Dual Motor 2019 – | (E) – 393 kW / 534 hp |
Each wishbone sold separately.
Tesla Model 3 & Model Y Front Lower Aft Control Arm FAQs
Which Tesla models does this front lower aft control arm fit?
Fits all Tesla Model 3 and Model Y variants.
What does the front lower aft control arm do?
It connects the wheel hub to the chassis and is essential for maintaining correct wheel alignment and smooth handling.
How do I know if mine needs replacing?
Common signs include uneven tyre wear, pulling to one side, clunking noises over bumps or an alignment warning.
Is this a direct replacement part?
Yes – it is a direct fit with no modifications required.
How difficult is it to fit?
Standard suspension component replacement. Basic tools required.
