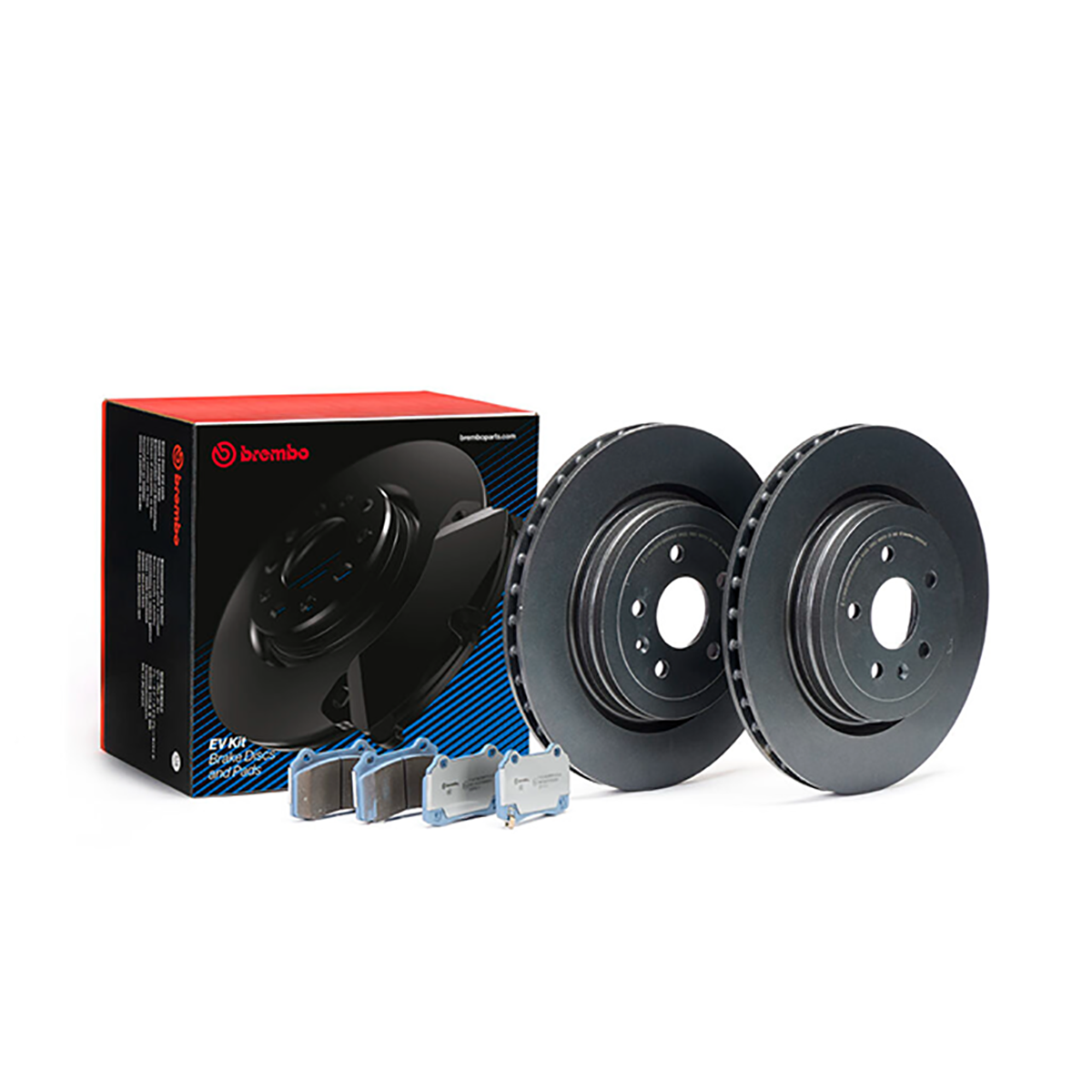

Brembo Beyond EV Kit KT 08 022 And KT 08 023 comprise of brake discs and pads designed for electric cars.
The use of regenerative braking, in electric vehicles, entails a more discontinuous use of the friction brake compared to a car with a combustion engine. For this reason, special attention is required to avoid the corrosion of brake discs and brake pads. The Brembo EV brake kit, comprising brake discs and brake pads dedicated specifically to electric cars, avoids early corrosion of the braking system, keeping it effective and safe for longer.
These Brembo brake kits are ONLY for vehicles with two rear brake calipers (Brembo Brake System). They will NOT fit vehicles with the Mondo Braking system (single rear caliper with integrated parking brake).
If in doubt which kit to order please check the Brembo Website
Brembo Beyond EV Kit KT 08 023
Click to show KT 08 023 specifications
Fitting Position: Rear Axle Rim Hole Number: 5
Product details Fitting position Rear Line EV Brake disc thickness 28.0 mm Number of holes 70.0 pcs Minimum thickness 26.0 mm Locating hole diameter 5 mm Outer diameter 365.0 mm Disc type internally ventilated Width 107.0 mm Weight 29.02kg
TecDoc details Brake Disc Type internally vented Outer Diameter [mm] 365.0 Brake Disc Thickness [mm] 28.0 Minimum thickness [mm] 26.0 Height [mm] 66.4 Number of Holes 70.0 Centering Diameter [mm] 5.0 Machining High-carbon Surface Coated Thickness [mm] 15.0 Width [mm] 107.0 Number of wear indicators [per axle] 4.0 Wear Warning Contact with acoustic wear warning WVA Number 25743
OEM part number equivalent
1055068-00-B
1068331-00-A
1068331-00-B
1068331-00-C
6006431-00-D
MODEL S (5YJS)
Engine Engine codes Production years kW hp 70D AWD L2S 2015/09 – n/a 386 525 P90D AWD L2S 2015/09 – n/a 397 540 60D AWD L2S 2014/10 – 2015/04 276 376 P90D AWD L2S 2015/09 – n/a 568 772 P85 L1S 2013/05 – 2014/12 350 476 85 L1S 2012/09 – 2016/02 285 388 P85D AWD L2S 2014/10 – 2015/10 543 738 85 L1S 2015/02 – 2016/02 283 385 85D AWD L2S 2014/10 – 2016/02 279 379 60 L1S 2014/10 – n/a 283 385 P90D AWD L2S 2015/09 – n/a 346 471 70 L1S 2015/09 – n/a 235 320 90D AWD L2S 2015/09 – n/a 386 525 70D AWD L2S 2015/04 – n/a 245 334 90D AWD L2S 2015/09 – n/a 310 422 85D AWD L2S 2014/10 – 2016/02 276 376 P85 L1S 2013/11 – 2014/12 310 421 85D AWD L2S 2014/10 – 2015/07 290 394 P85D AWD L2S 2014/10 – 2016/02 515 700 P85D AWD L2S 2015/09 – 2016/02 568 772 60 L1S 2013/11 – n/a 285 388 85D AWD L2S 2014/10 – 2016/02 386 525 85 L1S 2012/09 – 2016/02 270 367 60 L1S 2013/11 – 2014/09 225 306 85D AWD L2S 2014/01 – 2016/02 310 421 60D AWD L2S 2014/10 – n/a 386 525 70 L1S 2015/09 – n/a 285 388
Brembo Beyond EV Kit KT 08 022
Click to show KT 08 022 Specifications
Fitting Position: Rear Axle, Rear Axle Rim Hole Number: 9 Construction Year to: 2016.03
Product details Fitting position Rear Line EV Brake disc thickness 28.0 mm Number of holes 70.0 pcs Minimum thickness 26.0 mm Locating hole diameter 9 mm Outer diameter 365.0 mm Disc type internally ventilated Weight 22.09kg
TecDoc details Brake Disc Type internally vented Outer Diameter [mm] 365.0 Brake Disc Thickness [mm] 28.0 Minimum thickness [mm] 26.0 Height [mm] 60.0 Number of Holes 70.0 Centering Diameter [mm] 9.0 Machining High-carbon Surface Coated Thickness [mm] 15.0 Width [mm] 107.0 Number of wear indicators [per axle] 4.0 Wear Warning Contact with acoustic wear warning WVA Number 25743
OEM part number equivalent
1027632-00-B
1055068-00-B
1068331-00-A
1068331-00-B
1068331-00-C
MODEL S (5YJS)
Engine Engine codes Production years kW hp 75 L1S 2016/11 – n/a 285 388 70D AWD L2S 2015/09 – n/a 386 525 P90D AWD L2S 2015/09 – n/a 397 540 100D AWD L2S 2017/06 – n/a 310 422 60D AWD L2S 2014/10 – 2015/04 276 376 P100D AWD L2S 2016/10 – n/a 450 612 P90D AWD L2S 2015/09 – n/a 568 772 P85 L1S 2013/05 – 2014/12 350 476 85 L1S 2012/09 – 2016/02 285 388 P85D AWD L2S 2014/10 – 2015/10 543 738 85 L1S 2015/02 – 2016/02 283 385 85D AWD L2S 2014/10 – 2016/02 279 379 EV AWD L2S, 3D1 2019/06 – n/a 413 562 60 L1S 2014/10 – n/a 283 385 P90D AWD L2S 2015/09 – n/a 346 471 70 L1S 2015/09 – n/a 235 320 75D AWD L2S 2016/06 – n/a 386 525 90D AWD L2S 2015/09 – n/a 386 525 70D AWD L2S 2015/04 – n/a 245 334 90D AWD L2S 2015/09 – n/a 310 422 85D AWD L2S 2014/10 – 2016/02 276 376 P100D AWD L2S 2016/10 – n/a 568 772 75D AWD L2S 2016/06 – n/a 245 333 P85 L1S 2013/11 – 2014/12 310 421 75 L1S 2016/11 – n/a 235 320 60 L1S 2016/11 – n/a 235 320 85D AWD L2S 2014/10 – 2015/07 290 394 60D AWD L2S 2016/06 – n/a 245 334 P85D AWD L2S 2014/10 – 2016/02 515 700 P85D AWD L2S 2015/09 – 2016/02 568 772 60 L1S 2013/11 – n/a 285 388 100D AWD L2S 2017/06 – n/a 386 525 85D AWD L2S 2014/10 – 2016/02 386 525 85 L1S 2012/09 – 2016/02 270 367 60 L1S 2013/11 – 2014/09 225 306 85D AWD L2S 2014/01 – 2016/02 310 421 60D AWD L2S 2014/10 – n/a 386 525 70 L1S 2015/09 – n/a 285 388
MODEL X (5YJX)
Engine Engine codes Production years kW hp EV AWD L2S, 3D1 2019/06 – n/a 413 562 P100D AWD L2S 2016/10 – n/a 568 772 EV AWD L2S, 3D1 2019/09 – n/a 421 573 60D AWD L2S 2016/06 – n/a 386 525 75D AWD L2S 2016/06 – n/a 386 525 90D AWD L2S 2015/09 – n/a 386 525 EV AWD L1S, 3D1 2020/09 – n/a 599 815 100D AWD L2S 2017/08 – n/a 386 525 EV AWD L1S, 3D1 2019/06 – n/a 585 796 P90D AWD L2S 2015/09 – n/a 568 772
