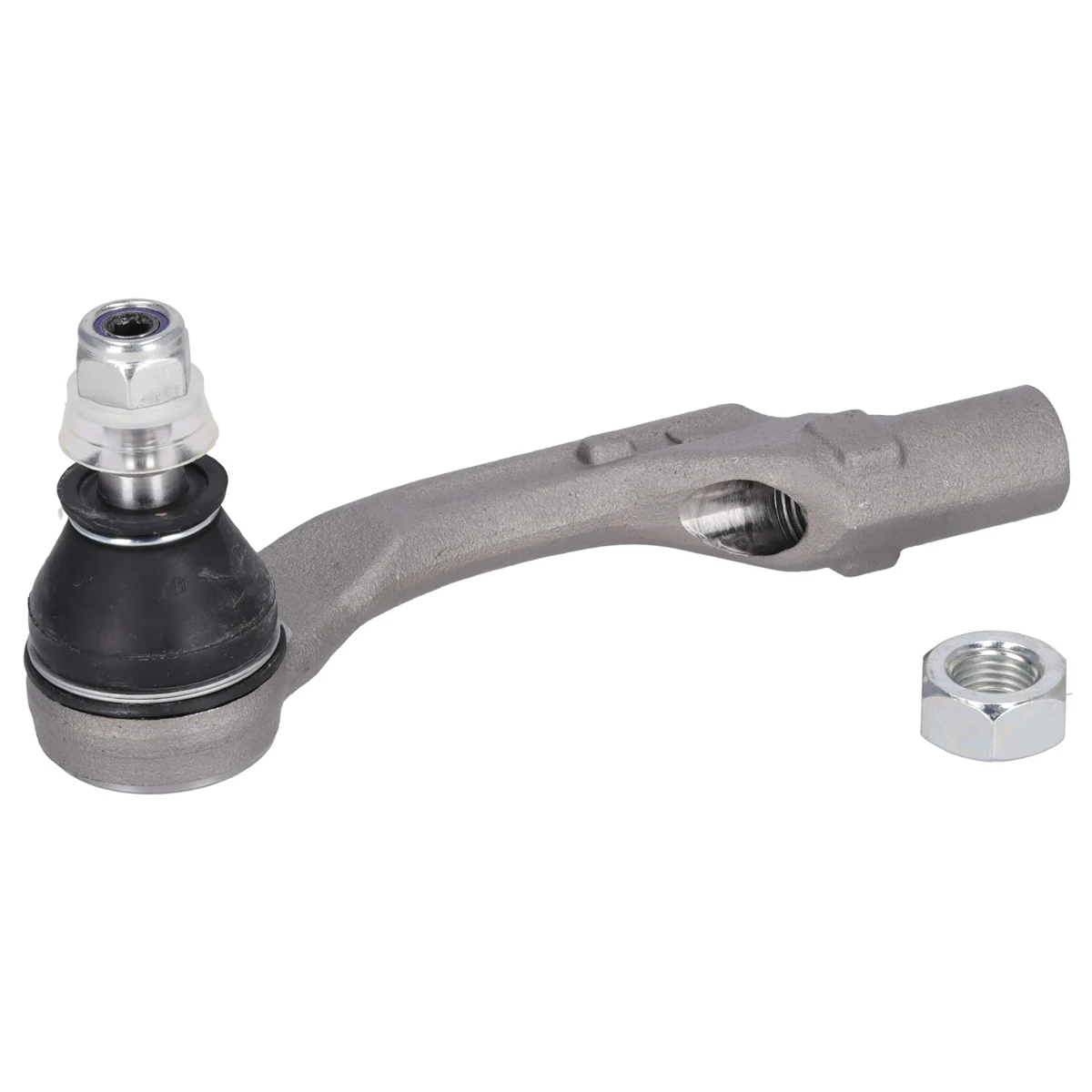

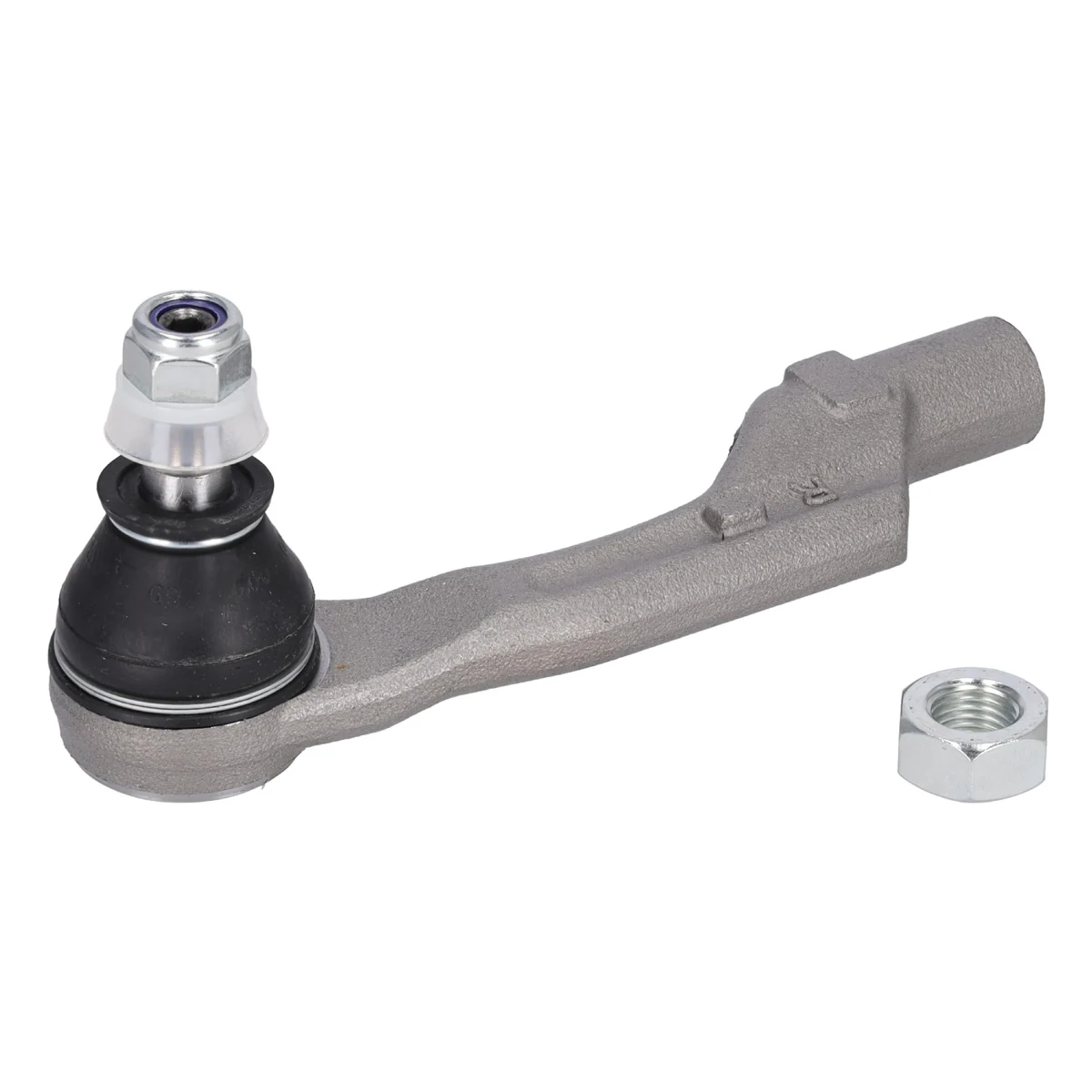

Front Track Rod End – Vauxhall Mokka-e & DS 3 Crossback E-Tense
This front track rod end fits the left or right side. It is 149.5 mm (left) / 149 mm (right) long, with an M14 x 1.5 internal thread, an M10 x 1.25 ball joint thread and a 22 mm wrench size, and comes with a lock nut. Choose the left or right side from the Side menu.
The track rod end links the steering rack to the wheel. A worn joint causes knocking, loose steering and tyre wear, and excess play is an MOT failure. Check the inner track rod and steering rack gaiter at the same time.
These are Febi part numbers 196535 (left) and 196534 (right), made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world.
The bilstein group parts finder lists this track rod end for the DS 3 Crossback E-Tense (2018 on) 100 and 120 kW; Opel Mokka-e (2020 on) 97, 100 and 115 kW; Vauxhall Mokka-e (2020 on) 100 and 115 kW. The table shows every version listed.
Key Benefits
- Left- or right-hand side
- M14 x 1.5 internal thread
- Lock nut included
- Made by the bilstein group
Specifications
- internal thread: M14 x 1.5
- Length: 149.5 mm (left) / 149 mm (right)
- Outside Thread: M10 x 1.25
- Wrench Size (metric): 22 mm
- Fitting Position: Front axle left or right
- Supplied With: Lock nut (right)
- Part Number: Febi 196535 (left) / 196534 (right)
Replaces DS, Opel and Vauxhall part numbers 16 483 226 80 for the left side, and 16 483 225 80 for the right side.
Installation
Professional installation recommended. Count the turns when removing the old part and have the wheel alignment set afterwards. If the car has driver assistance systems, sensor calibration may be needed after fitting, as the parts finder notes.
Explore More Parts
- All DS 3 Crossback E-Tense Parts
- All Opel Mokka-e Parts
- All Vauxhall Mokka-e Parts
- All Outer Tie Rod Ends
| Attribute | Value |
|---|---|
| internal thread | M14 x 1.5 |
| Length | 149.5 mm (left) / 149 mm (right) |
| Outside Thread | M10 x 1.25 |
| Wrench Size (metric) | 22 mm |
| Fitting Position | Front axle left or right |
| Supplied With | Lock nut (right) |
| Part Number | Febi 196535 (left) / 196534 (right) |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| DS | DS3 II Crossback 2018 – | (E) – 100 kW / 136 hp |
| DS | DS3 II Crossback 2018 – | (E) – 120 kW / 163 hp |
| Opel | Mokka-e 2020 – | (E) – 115 kW / 156 hp |
| Opel | Mokka-e 2020 – | (E) – 97 kW / 132 hp |
| Opel | Mokka-e 2020 – | (E) – 100 kW / 136 hp |
| Vauxhall | Mokka-e 2020 – | (E) – 100 kW / 136 hp |
| Vauxhall | Mokka-e 2020 – | (E) – 115 kW / 156 hp |
Front Track Rod End – Vauxhall Mokka-e & DS 3 Crossback E-Tense FAQs
Which part numbers does it replace?
It replaces DS, Opel and Vauxhall part numbers 16 483 226 80 for the left side, and 16 483 225 80 for the right side.
Which side is it for?
The front left or right side.
Is the nut included?
Yes, it comes with a lock nut.
Will the car need calibrating?
If the car has driver assistance systems, sensor calibration may be needed after fitting, as the parts finder notes.
Will it fit my DS 3 Crossback E-Tense, Opel Mokka-e or Vauxhall Mokka-e?
The parts finder lists it for the DS 3 Crossback E-Tense, Opel Mokka-e and Vauxhall Mokka-e. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine DS, Opel or Vauxhall part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
