Tesla Model 3 Front Suspension Kit – Control Arms, Tie Rods & Stabiliser Links
This complete front suspension kit restores precise handling, steering response and wheel alignment on the Tesla Model 3. Over time the original control arms, bushes, ball joints and links wear, leading to vague steering, clunking noises and uneven tyre wear. Replacing the full set in one go is the most cost-effective and reliable way to return your Model 3 to factory-level ride quality.

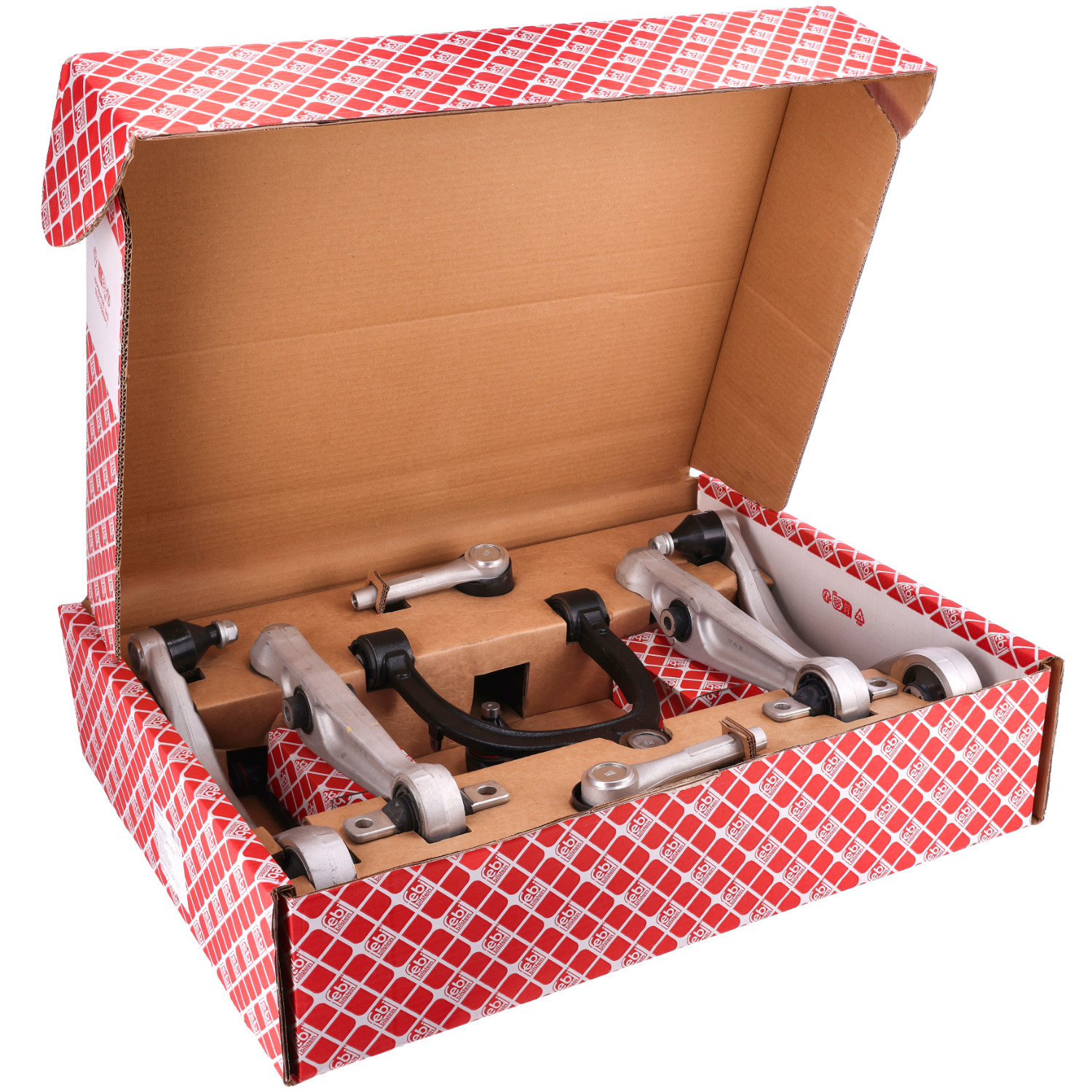

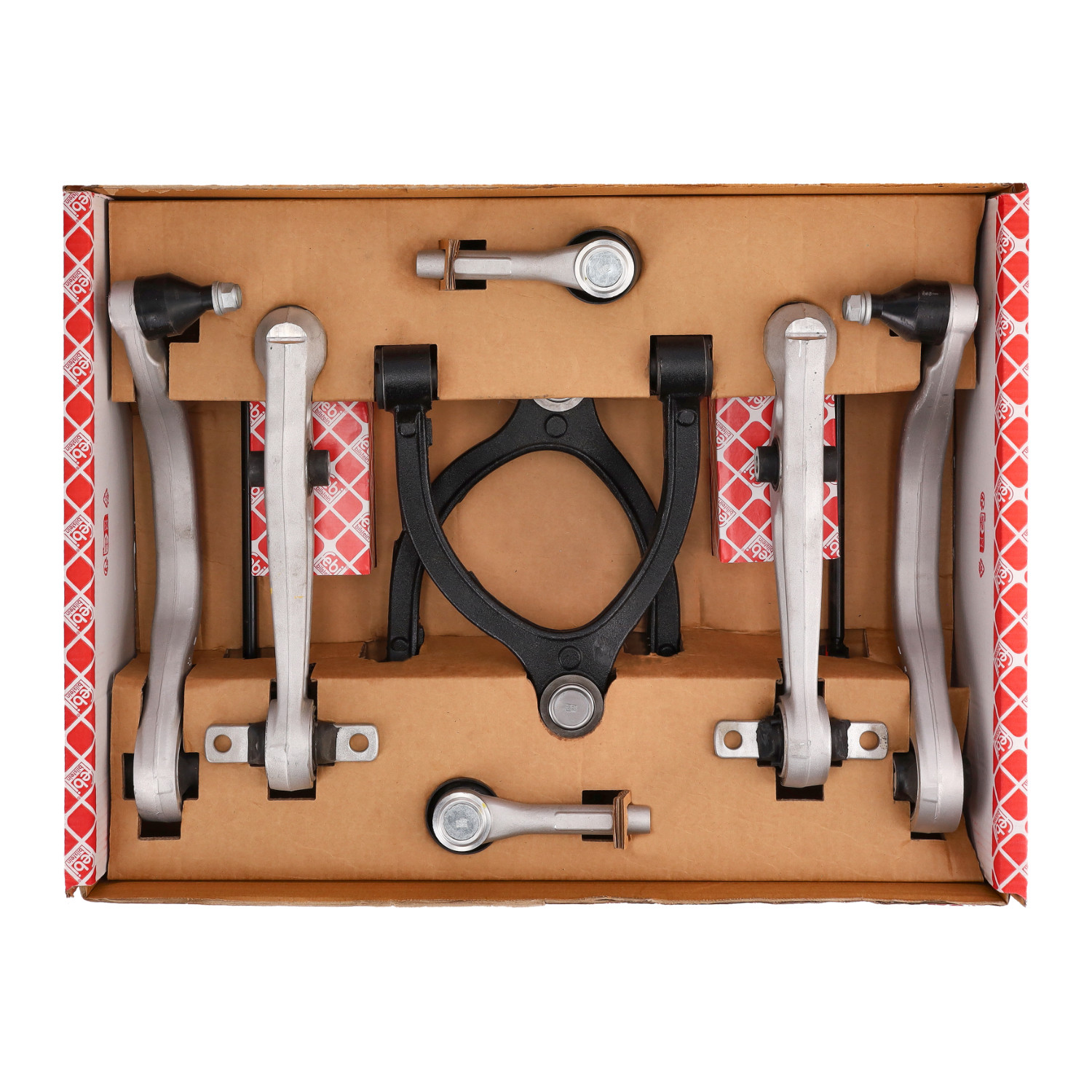

What’s Included
- Front lower control arms (multiple, left & right)
- Front upper control arms (left & right)
- Front stabiliser (anti-roll bar) links (left & right)
- Tie rod ends with lock nuts (pair)
Key Benefits
- Restores sharp, precise handling and steering feel
- Eliminates clunks and knocks from worn ball joints and bushes
- Helps maintain correct wheel alignment and even tyre wear
- High-quality aluminium and steel construction
- Direct fit – no modifications required
Compatibility
Fits Tesla Model 3 (single motor and Dual Motor) up to VIN ending P*999999 (generally pre-Highland models).
Replaces a wide range of original Tesla part numbers including the 10443xx and 10443xx series control arms and related links.
Installation
Professional installation is strongly recommended. A full four-wheel alignment must be carried out after fitting to restore correct geometry and prevent rapid tyre wear.
Pro tip: When replacing suspension arms it is best practice to renew them in complete sets so both sides of the car handle and wear evenly.
Explore More Model 3 Suspension Parts
| Attributes | |
|---|---|
| Material | Aluminium |
Kit or Set Content
| Part Number | Part Description | Quantity | Specification |
|---|---|---|---|
179411 | Control Arm with bushes, joint and lock nut | 2 | Cone Size: 13,7 mm Fitting Position: front Fitting Position: front axle left Fitting Position: front axle right Fitting Position: lower Material: Aluminium Outside Thread: M14 x 1,5 |
| 179413 | Control Arm with bush, joint and nut | 1 | Fitting Position: front axle left Fitting Position: lower Fitting Position: rear Material: Aluminium Outside Thread: M14 x 1,5 |
| 179414 | Control Arm with bush, joint and nut | 1 | Fitting Position: front axle right Fitting Position: lower Fitting Position: rear Material: Aluminium Outside Thread: M14 x 1,5 |
| 179579 | Control Arm with bushes and joint | 1 | Cone Size: 18 mm Fitting Position: front axle left Fitting Position:upper Material: cast steel |
| 179581 | Control Arm with bushes and joint | 1 | Cone Size: 18 mm Fitting Position: front axle right Fitting Position: upper Material: cast steel |
| 179467 | Stabiliser Link | 1 | Fitting Position: front axle left Length: 280 mm Material: steel Outside Thread: M12 x 1,75 Thread Length: 30 mm Wrench Size (Metric): 18 mm |
| 179468 | Stabiliser Link | 1 | Fitting Position: front axle right Length: 280 mm Material: steel Outside Thread: M12 x 1,75 Thread Length: 30 mm Wrench Size (Metric): 18 mm |
| 179528 | Tie Rod End with lock nut | 2 | Fitting Position: front axle left Fitting Position: front axle right Internal Thread: M14 x 1,5 Length: 150 mm Outside Thread: M14 x 1,5 Wrench Size (Metric): 23 mm |
| Suitable to replace | Reference(s) |
|---|---|
| Tesla | 1044341-00-E S2 | 1044321-00-J S2 | 1044326-00-J S2 | 1044351-00-C S2 | 1044356-00-C S2 | 1044391-00-D S2 | 1044396-00-D S2 | 1044841-00-E S2 | 1044321-00-D S2 | 1044321-00-E S2 | 1044321-00-F S2 | 1044321-00-G S2 | 1044326-00-E S2 | 1044326-00-F S2 | 1044326-00-G S2 | 1044326-00-H S2 | 1044341-00-C S2 | 1044341-00-D S2 | 1044341-99-D S2 | 1044391-00-C S2 | 1044396-00-C S2 |
For Model 3 up to Vehicle Identification Number (VIN) to: *********P*999999
| Model | Submodel |
|---|---|
| Model 3 2017 – | (E) – 175 kW / 238 hp |
| Model 3 2017 – | (E) – 188 kW / 256 hp |
| Model 3 2017 – | (E) – 192 kW / 261 hp |
| Model 3 2017 – | (E) – 194 kW / 264 hp |
| Model 3 2017 – | (E) – 202 kW / 275 hp |
| Model 3 2017 – | (E) – 208 kW / 283 hp |
| Model 3 2017 – | (E) – 220 kW / 299 hp |
| Model 3 2017 – | (E) – 225 kW / 306 hp |
| Model 3 2017 – | (E) – 239 kW / 325 hp |
| Model 3 Dual Motor 2018 – | (E) – 153 kW / 208 hp |
| Model 3 Dual Motor 2018 – | (E) – 258 kW / 351 hp |
| Model 3 Dual Motor 2018 – | (E) – 324 kW / 441 hp |
| Model 3 Dual Motor 2018 – | (E) – 331 kW / 450 hp |
| Model 3 Dual Motor 2018 – | (E) – 339 kW / 461 hp |
| Model 3 Dual Motor 2018 – | (E) – 340 kW / 462 hp |
| Model 3 Dual Motor 2018 – | (E) – 350 kW / 476 hp |
| Model 3 Dual Motor 2018 – | (E) – 355 kW / 483 hp |
| Model 3 Dual Motor 2018 – | (E) – 357 kW / 485 hp |
| Model 3 Dual Motor 2018 – | (E) – 360 kW / 489 hp |
| Model 3 Dual Motor 2018 – | (E) – 361 kW / 491 hp |
| Model 3 Dual Motor 2018 – | (E) – 366 kW / 498 hp |
| Model 3 Dual Motor 2018 – | (E) – 377 kW / 513 hp |
| Model 3 Dual Motor 2018 – | (E) – 380 kW / 517 hp |
| Model 3 Dual Motor 2018 – | (E) – 393 kW / 534 hp |
Tesla Model 3 Front Suspension Kit FAQs
Which Model 3 years does this kit fit?
Fits Tesla Model 3 (single motor and Dual Motor) up to VIN ending P*999999 (generally pre-Highland models). Please provide your vehicle registration number or VIN for exact confirmation.
What is included in the kit?
The kit includes front lower control arms, front upper control arms, front stabiliser links (left and right), and a pair of tie rod ends with lock nuts.
Do I need a wheel alignment after fitting?
Yes – a professional four-wheel alignment is essential after replacing any suspension arms to restore correct geometry and prevent uneven tyre wear.
What are the signs that the front suspension needs replacing?
Common signs include clunking or knocking noises over bumps, vague or loose steering feel, uneven tyre wear, and the vehicle pulling to one side.
Is this an original Tesla kit or aftermarket?
This is a high-quality aftermarket complete kit that matches original specifications and is designed as a direct replacement for the original Tesla components.
