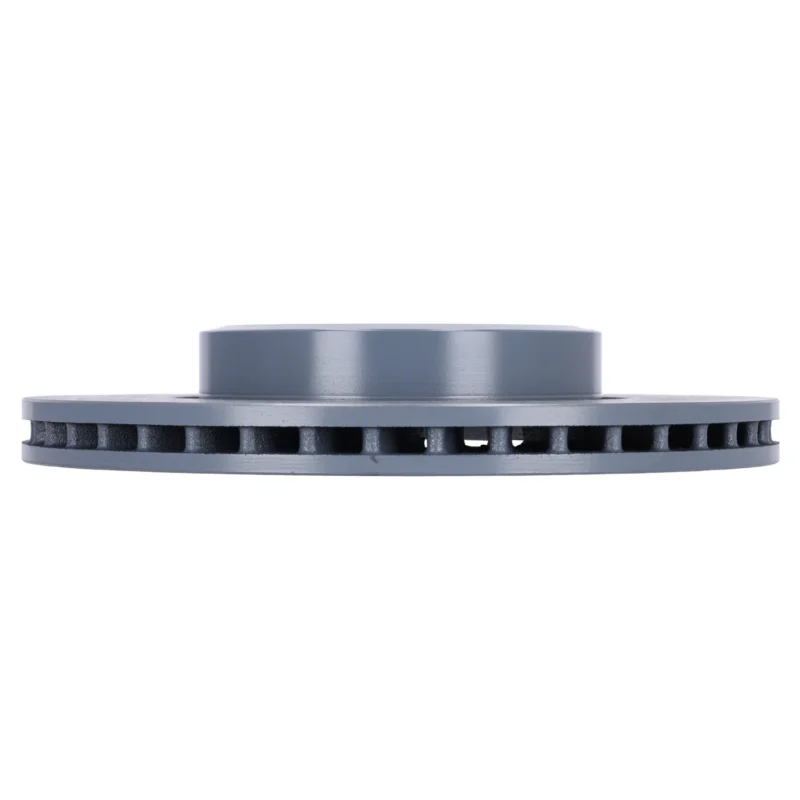

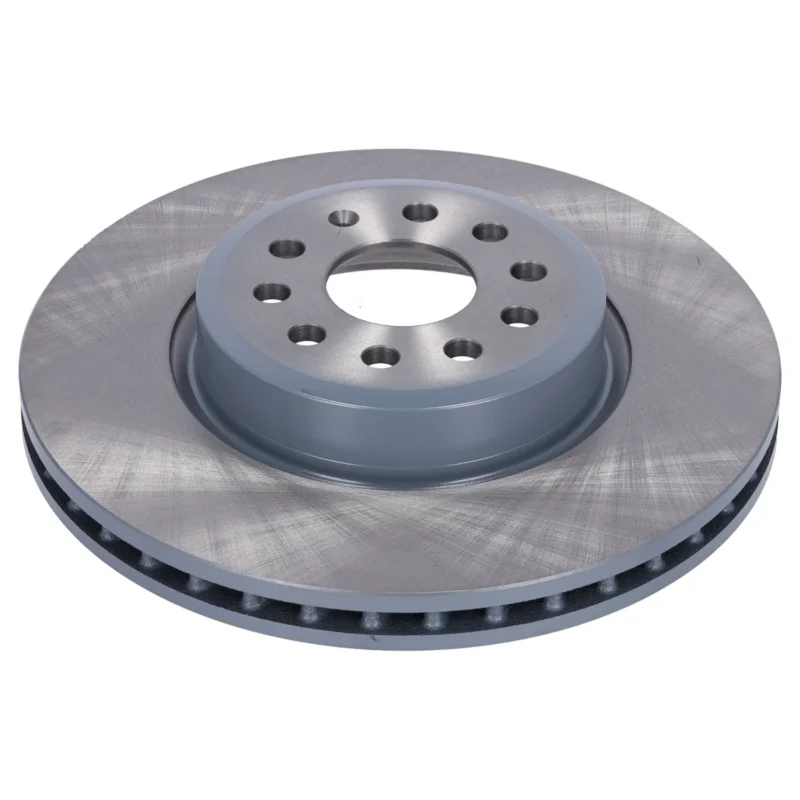

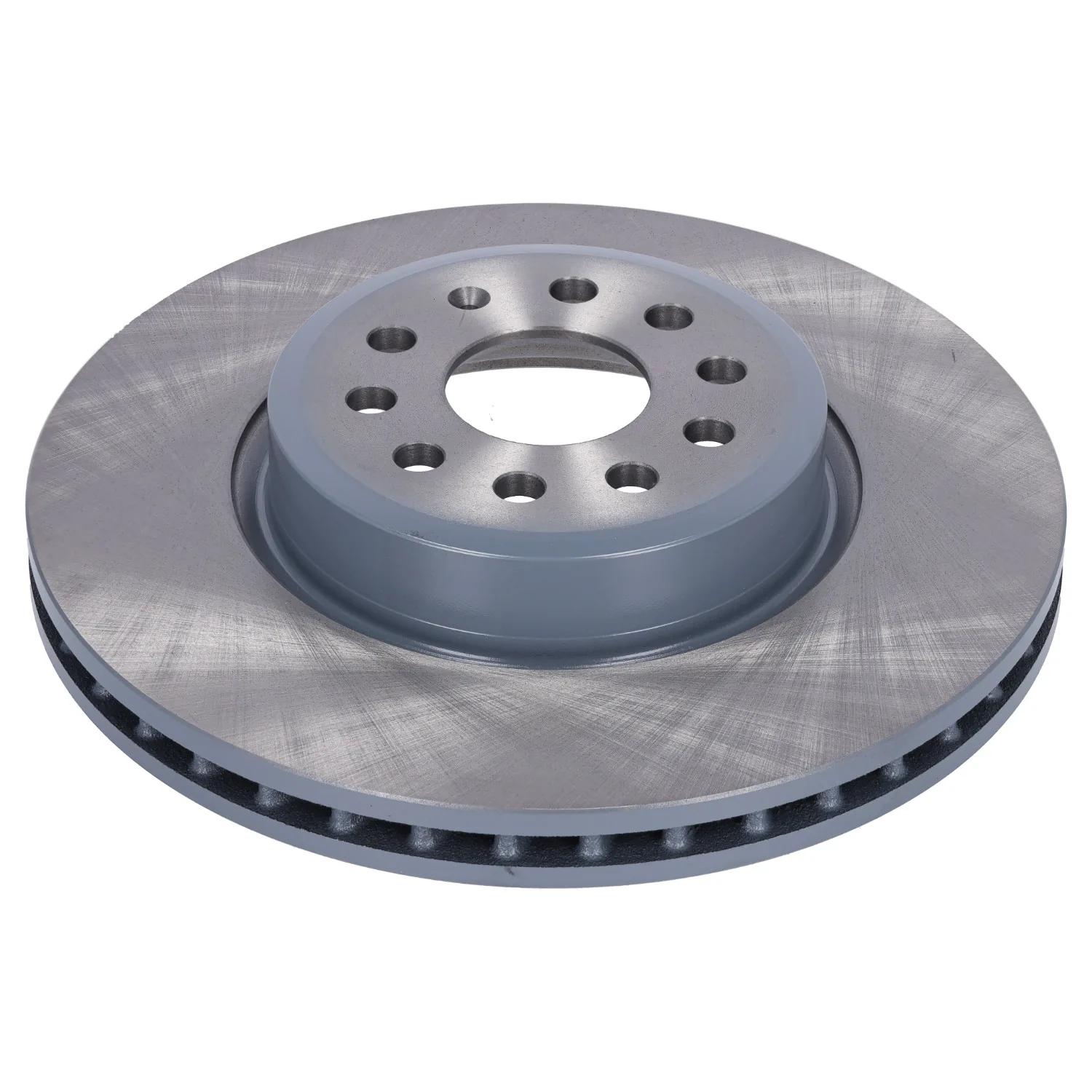

VW ID.3 & CUPRA Born Front Brake Discs – 330 mm
These 330 mm front brake discs are direct replacements for the original discs on the lower-powered versions of the VW ID.3 and CUPRA Born. They are internally vented to shed heat quickly and arrive with a protective coating, so they can be fitted straight from the box.
The ID.3 and Born were built with more than one front disc size. The 330 mm disc was fitted to cars with the smaller front brake package, which goes with brake PR code 1LA. Higher-powered cars, and many later cars, use the 340 mm disc instead, which we list as a separate product. To check your size, measure across the face of your current front disc, look for the part number on the old disc or its box, or find the brake PR code on the vehicle data sticker in the service book or under the boot floor: PR 1LA is 330 mm, PR 1LB or 1LF is 340 mm and PR 1LC or 1LN is 358 mm.
A 330 mm disc is 23 mm thick when new and should be replaced at 21.5 mm. If your old disc measures noticeably larger across its face, you need the 340 mm version.
Key Benefits
- Priced per disc, sold in pairs for one axle
- 330 mm diameter, 23 mm thick
- Internally vented for consistent cooling
- Coated finish to resist corrosion on low-use EV brakes
- Choice of Febi or Blue Print
Specifications
- Fitting Position: Front Axle
- Outer Diameter: 330 mm
- Disc Thickness: 23 mm
- Minimum Thickness: 21.5 mm
- Brake Disc Type: Internally vented
- Pitch Circle Diameter: 112 mm (5 studs)
- Centre Diameter: 65 mm
- Height: 50 mm
- Surface: Oiled and coated
- Sold As: Priced per disc, sold in pairs
Compatibility
- CUPRA Born (K1) from 2021: 110 kW and 150 kW
- VW ID.3 (E1) from 2019: 93 kW, 107 kW, 110 kW and 150 kW
- Other versions of these cars use the 340 mm disc
Replaces Volkswagen Group OE part number 1EA 615 301.
Installation
Professional installation recommended for best results. Always fit new brake pads with new discs and bed them in gently over the first few miles.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front Axle |
| Outer Diameter | 330 mm |
| Disc Thickness | 23 mm |
| Minimum Thickness | 21.5 mm |
| Brake Disc Type | Internally vented |
| Pitch Circle Diameter | 112 mm (5 studs) |
| Centre Diameter | 65 mm |
| Height | 50 mm |
| Surface | Oiled and coated |
| Sold As | Priced per disc, sold in pairs |
| Suitable to replace | Reference(s) |
|---|---|
| CUPRA | 1EA 615 301 |
| VW | 1EA 615 301 |
Fits The Following CUPRA Models
| Model | Submodel |
|---|---|
| Born (K1) 2021 – Brake PR code: 1LA |
(E) – 110 kW / 150 hp |
| Born (K1) 2021 – Suitable for engine code: EBJC Brake PR code: 1LA |
(E) – 150 kW / 204 hp |
Fits The Following Volkswagen Models
| Model | Submodel |
|---|---|
| ID.3 (E1) 2019 – | (E) – 93 kW / 126 hp |
| ID.3 (E1) 2019 – | (E) – 107 kW / 145 hp |
| ID.3 (E1) 2019 – | (E) – 110 kW / 150 hp |
| ID.3 (E1) 2019 – | (E) – 150 kW / 204 hp |
VW ID.3 & CUPRA Born Front Brake Discs – 330 mm FAQs
How do I know if my car has 330 mm discs?
Measure your current disc, check the part number on it, or look for brake PR code 1LA on the vehicle data sticker in the service book or under the boot floor. The 330 mm disc carries OE number 1EA 615 301.
Is the price for one disc or a pair?
The price shown is for one disc. Discs are sold in pairs, so the quantity starts at 2 and goes up in 2s. Order 2 to cover both sides of the front axle.
Does the 330 mm disc fit every ID.3?
No. It is listed for the ID.3 93 kW to 150 kW and the CUPRA Born 110 kW and 150 kW. Other versions use the 340 mm disc, sold as a separate product.
Which pads do I need with these discs?
Use our VW ID.3 & CUPRA Born front brake pads for 330 mm discs, OE 1EA 698 151 L. Pads for the 340 mm and 358 mm discs will not fit.
What is the difference between Febi and Blue Print?
Both are bilstein group brands made to the same OE specification. Choose whichever you prefer.
Why do EV brake discs corrode?
Regenerative braking means the discs are used less, so rust and deposits can build up. Using the brakes firmly from time to time helps keep them clean.
