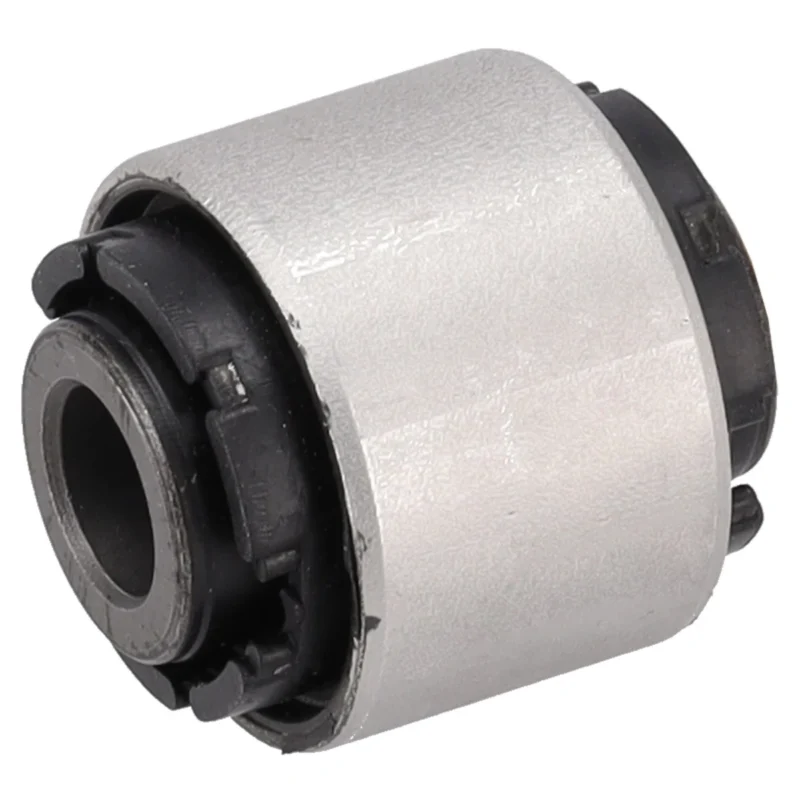

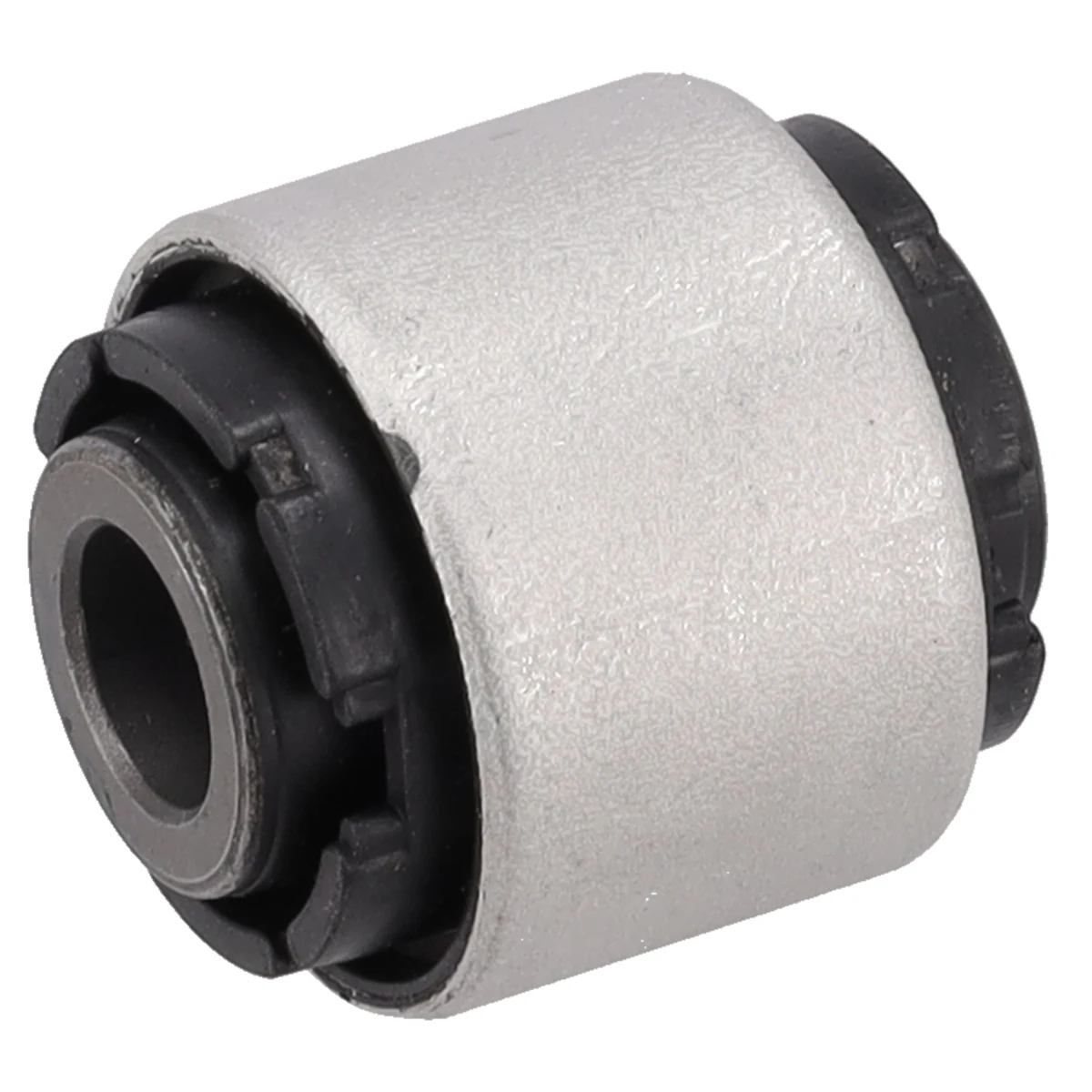

Control Arm Bush – Hyundai Kona Electric & Kia Niro EV
This control arm bush is the rubber and metal bush that holds the suspension arm to the car while letting it move up and down. It is 45 mm high, with a 14.2 mm inner diameter and a 41.3 mm outer diameter.
Electric cars are heavy, and the battery weight puts extra load on the suspension bushes. As the rubber ages it can split, perish or come away from the metal sleeve. That lets the arm move, which causes knocking over bumps, vague handling, a car that pulls under braking and uneven tyre wear. Replacing a worn bush restores a tight, quiet ride.
This is Febi part number 1006243, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this bush for the Hyundai Kona Electric from 2018 to 2023, in the 100 kW and 150 kW versions, and the Kia Niro EV from 2022, 150 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal construction
- 45 mm high, 41.3 mm outer diameter
- Restores tight, quiet handling
- Made by the bilstein group
Specifications
- Material: Rubber/metal
- Height: 45 mm
- Inner Diameter: 14.2 mm
- Outer Diameter: 41.3 mm
- Warranty: 3 years
- Part Number: Febi 1006243
Replaces Hyundai and Kia part number 55130-F2AA0.
Installation
Professional installation recommended. A press is needed to remove the old bush and fit the new one. Tighten the arm bolts with the car at normal ride height and have the wheel alignment checked. If the car has driver assistance systems, sensor calibration may be needed after fitting, as the parts finder notes.
Explore More Parts
| Attribute | Value |
|---|---|
| Material | Rubber/metal |
| Height | 45 mm |
| Inner Diameter | 14.2 mm |
| Outer Diameter | 41.3 mm |
| Warranty | 3 years |
| Part Number | Febi 1006243 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Hyundai | Kona I 2017 – | (E) – 100 kW / 136 hp |
| Hyundai | Kona I 2017 – | (E) – 150 kW / 204 hp |
| Kia | Niro II 2022 – | (E) – 150 kW / 204 hp |
Control Arm Bush – Hyundai Kona Electric & Kia Niro EV FAQs
Which part numbers does it replace?
It replaces Hyundai and Kia part number 55130-F2AA0.
What size is the bush?
It is 45 mm high, with a 14.2 mm inner diameter and a 41.3 mm outer diameter.
Does it need pressing in?
Yes, a press is needed to remove the old bush and fit the new one.
Will the car need calibrating?
If the car has driver assistance systems, sensor calibration may be needed after fitting, as the parts finder notes.
Will it fit my Hyundai Kona Electric or Kia Niro EV?
The parts finder lists it for the Hyundai Kona Electric 100 kW and 150 kW (2018 to 2023) and the Kia Niro EV 150 kW from 2022. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Hyundai or Kia part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
