Electric Drive Motor Repair Kit – Hyundai Ioniq Electric

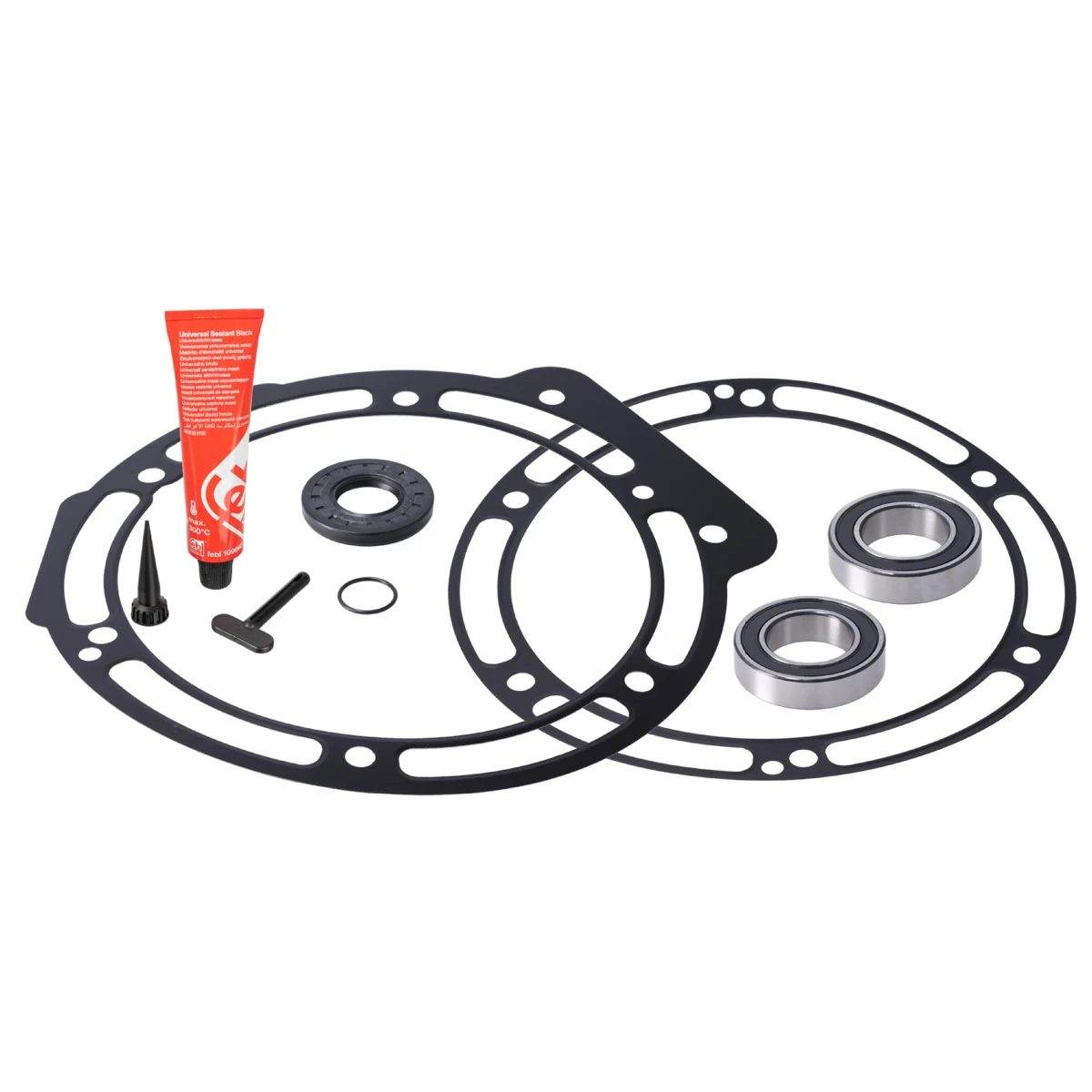

This repair kit has the bearings, seals and gaskets needed to overhaul the electric drive motor. It contains a 22 mm FKM sealing ring, two motor housing gaskets, a shaft seal, a 70 ml tube of sealant and two 35 x 62 x 15 mm ball bearings, one ceramic and one steel.
A worn motor bearing usually shows as a whine or growl from the drive unit that rises with road speed. The ceramic bearing stops stray electrical current passing through the bearing, which can pit the races and cause early wear. Leaking seals or gaskets let oil or moisture past. Renewing the bearings and seals together gives the motor a fresh start without replacing the whole unit.
This is Febi part number 1000001, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this repair kit for the Hyundai Ioniq Electric from 2016 to 2022, 88 kW (120 hp). The table shows the version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Bearings, seals and gaskets in one kit
- Ceramic bearing included
- 70 ml sealant included
- Made by the bilstein group
Specifications
- Kit Contents: Sealing ring, 2 housing gaskets, shaft seal, sealant, 2 ball bearings
- Bearing Size: 35 x 62 x 15 mm
- Bearing Types: One ceramic, one steel
- Sealing Ring: 22 mm inner diameter, FKM
- Sealant: 70 ml
- Warranty: 3 years
- Part Number: Febi 1000001
Replaces Hyundai part number 36501-0E500 SK6.
Installation
Specialist installation required. The drive motor must be removed and stripped, and the car must be made safe by a technician trained to work on high-voltage systems. Follow the manufacturer’s repair information.
Explore More Parts
| Attribute | Value |
|---|---|
| Kit Contents | Sealing ring, 2 housing gaskets, shaft seal, sealant, 2 ball bearings |
| Bearing Size | 35 x 62 x 15 mm |
| Bearing Types | One ceramic, one steel |
| Sealing Ring | 22 mm inner diameter, FKM |
| Sealant | 70 ml |
| Warranty | 3 years |
| Part Number | Febi 1000001 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Hyundai | Ioniq 2016 – 2022 | (E) – 88 kW / 120 hp |
Electric Drive Motor Repair Kit – Hyundai Ioniq Electric FAQs
Which part numbers does it replace?
It replaces Hyundai part number 36501-0E500 SK6.
What is in the kit?
A 22 mm FKM sealing ring, two motor housing gaskets, a shaft seal, 70 ml of sealant and two 35 x 62 x 15 mm ball bearings, one ceramic and one steel.
Why is one bearing ceramic?
The ceramic bearing stops electrical current passing through it, which protects the bearing races from pitting.
Can I fit it myself?
It needs a technician trained to work on high-voltage systems, as the drive motor has to be removed and stripped.
Will it fit my Hyundai Ioniq Electric?
The parts finder lists it for the Hyundai Ioniq Electric 88 kW (120 hp), 2016 to 2022. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Hyundai part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
