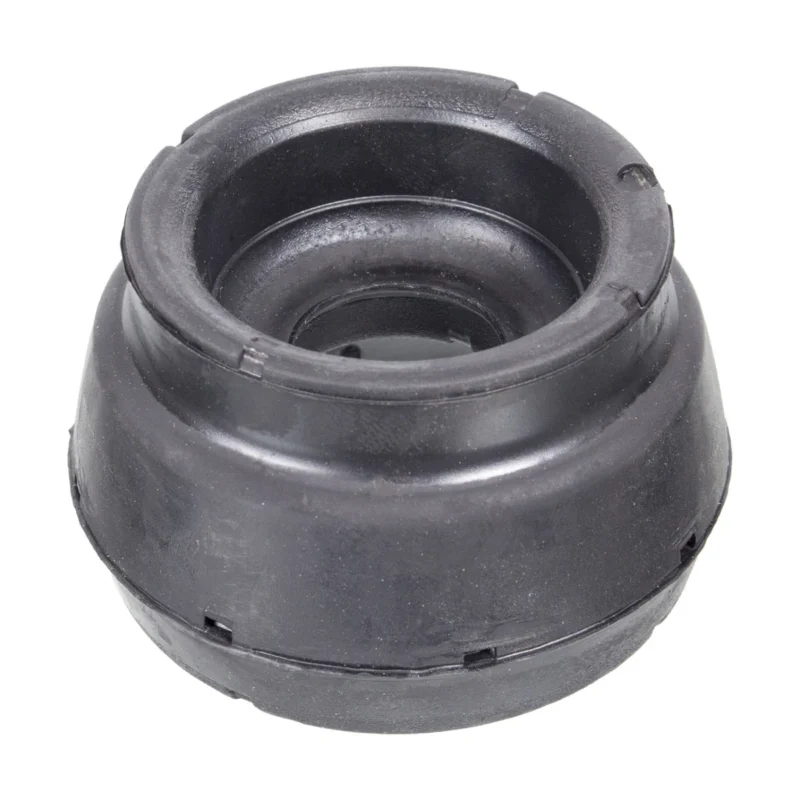

Front Top Strut Mount without Bearing – VW e-up!, Mii Electric & Citigo-e iV
This strut mounting fits the front axle, left or right, without a ball bearing. It is rubber and metal, 54 mm high, with a 26 mm inner diameter and 83 mm outer diameter.
The strut mount holds the top of the suspension to the body and soaks up road noise. Worn mounts cause a knock over bumps and more road noise.
This is Febi part number 09227, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this strut mount for the Volkswagen e-up! (BL1, 2013 to 2016) 60 kW, (BL2, 2016 on) 60 and 61 kW and (BL3, 2019 on) 61 kW; Volkswagen e-load up! (BL1, 2014 to 2016) 60 kW and (BL2, 2016 to 2019) 60 kW; SEAT Mii Electric (KE, 2020 on) 61 kW; Skoda Citigo-e iV (2019 to 2021) 61 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Without ball bearing
- Rubber and metal
- Fits the left or right side
- Made by the bilstein group
Specifications
- Height: 54 mm
- Inner Diameter: 26 mm
- Material: Rubber / metal
- Outer Diameter: 83 mm
- Fitting Position: Front axle left, front axle right
- Part Number: Febi 09227
Replaces SEAT, Skoda and Volkswagen part numbers 1J0 412 331 C, 1J0 412 331 and 1J0 412 331 B.
Installation
Professional installation recommended. The strut has to come out and the spring must be compressed.
Explore More Parts
- All SEAT Mii Electric Parts
- All Skoda Citigo-e iV Parts
- All Volkswagen e-load up! Parts
- All Volkswagen e-up! Parts
- All Strut Mounts
| Attribute | Value |
|---|---|
| Height | 54 mm |
| Inner Diameter | 26 mm |
| Material | Rubber / metal |
| Outer Diameter | 83 mm |
| Fitting Position | Front axle left, front axle right |
| Part Number | Febi 09227 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| SEAT | Mii (KE) 2020 – | (E) E 61 kW / 83 hp |
| Skoda | E-Citigo 2019 – 2021 | (E) – 61 kW / 83 hp |
| Volkswagen | e-load up! (BL1) 2014 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-load up! (BL2) 2016 – 2019 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 61 kW / 83 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL3) 2019 – | (E) – 61 kW / 83 hp |
Front Top Strut Mount without Bearing – VW e-up!, Mii Electric & Citigo-e iV FAQs
Which part numbers does it replace?
It replaces SEAT, Skoda and Volkswagen part numbers 1J0 412 331 C, 1J0 412 331 and 1J0 412 331 B.
Does it include the bearing?
No. It is supplied without a ball bearing.
Do I need to replace anything else at the same time?
Check the parts around it for wear or damage while it is off, and replace them if needed.
Will it fit my e-up!, e-load up!, Mii Electric or Citigo-e iV?
The parts finder lists it for the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine SEAT, Skoda or Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
