Rear Shock Absorber – VW e-up!, Mii Electric & Citigo-e iV – Febi 1002451

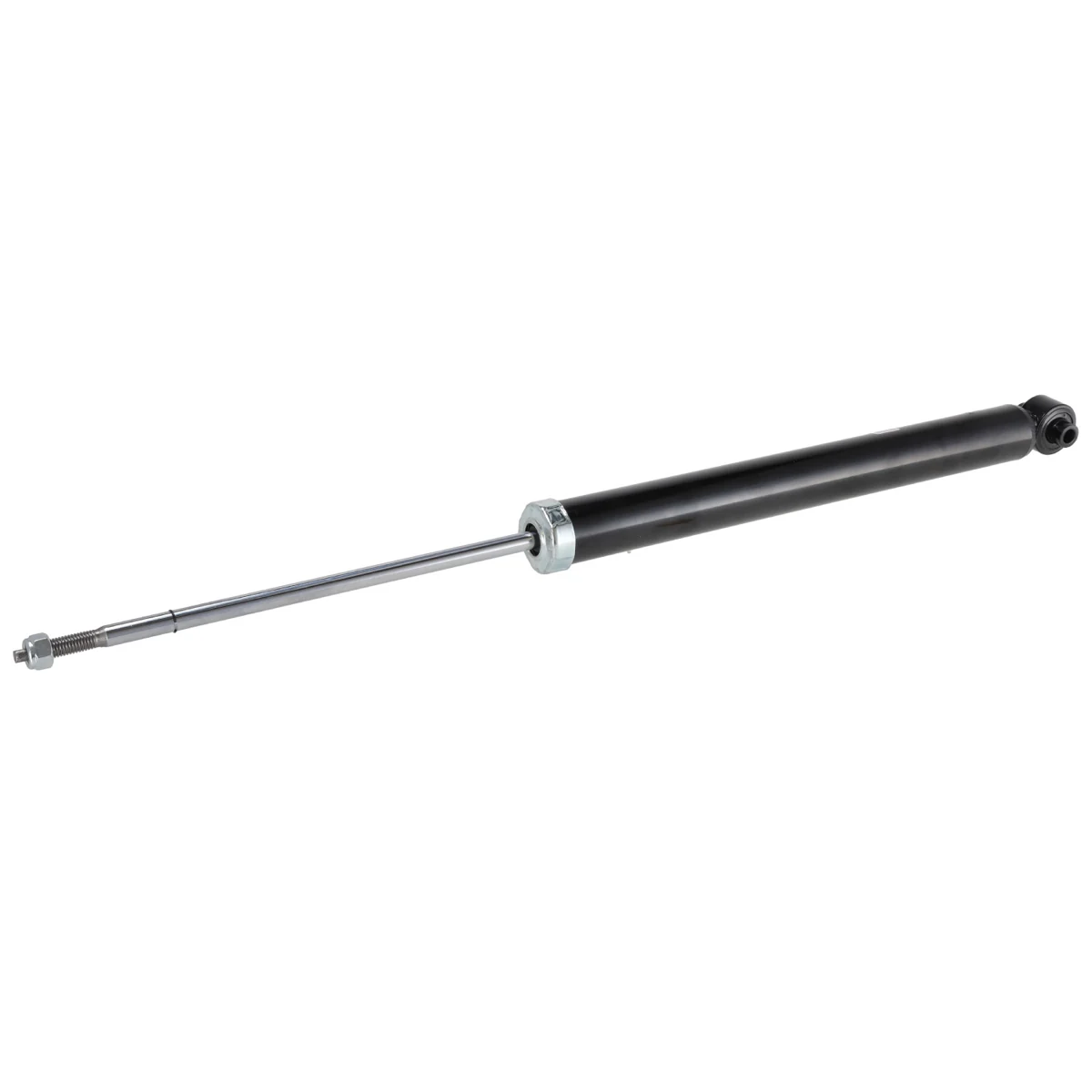

This gas pressure shock absorber fits the rear axle of the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. It is a telescopic damper with a top pin and a bottom eye, and fits the left or right side.
Shock absorbers control how the springs move, keeping the tyres in contact with the road.
This is Febi part number 1002451, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this shock absorber for every version of the Volkswagen e-up! (BL1, BL2 and BL3), the e-load up!, the SEAT Mii Electric and the Skoda Citigo-e iV. The table shows every version and power output listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Gas pressure telescopic design
- Top pin and bottom eye mounting
- Fits the left or right side
- Made by the bilstein group
Specifications
- Bore Diameter: 10 mm
- Max. Length: 614 mm
- Min. Length: 410 mm
- Outside Thread: M10 x 1.5
- Piston Rod Diameter: 11 mm
- Shock Absorber Bracket Type: Bottom eye, Top pin
- Shock Absorber Design: Telescopic Shock Absorber
- Shock Absorber Type: Gas pressure
- Tube Diameter: 38 mm
- Fitting Position: Rear axle, left or right
- Part Number: Febi 1002451
Replaces SEAT, Skoda and Volkswagen part numbers including 12E 513 025 A, 1S0 513 025 C, 1S0 513 025 D. The full list is in the FAQs.
Installation
Professional installation recommended.
Explore More Parts
- All SEAT Mii Electric Parts
- All Skoda Citigo-e iV Parts
- All Volkswagen e-load up! Parts
- All Volkswagen e-up! Parts
- All Shock Absorbers
| Attribute | Value |
|---|---|
| Bore Diameter | 10 mm |
| Max. Length | 614 mm |
| Min. Length | 410 mm |
| Outside Thread | M10 x 1.5 |
| Piston Rod Diameter | 11 mm |
| Shock Absorber Bracket Type | Bottom eye, Top pin |
| Shock Absorber Design | Telescopic Shock Absorber |
| Shock Absorber Type | Gas pressure |
| Tube Diameter | 38 mm |
| Fitting Position | Rear axle, left or right |
| Part Number | Febi 1002451 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| SEAT | Mii (KE) 2020 – | (E) E 61 kW / 83 hp |
| Skoda | E-Citigo 2019 – 2021 | (E) – 61 kW / 83 hp |
| Volkswagen | e-load up! (BL1) 2014 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-load up! (BL2) 2016 – 2019 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 61 kW / 83 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL3) 2019 – | (E) – 61 kW / 83 hp |
Rear Shock Absorber – VW e-up!, Mii Electric & Citigo-e iV – Febi 1002451 FAQs
Which part numbers does it replace?
It replaces SEAT, Skoda and Volkswagen part numbers 12E 513 025 A, 1S0 513 025 C, 1S0 513 025 D, 1S0 513 025 E, 1S0 513 025 F, 1S0 513 025 M and 1S0 513 025 Q.
Should I replace them in pairs?
Yes. Fit new shock absorbers on both sides of the axle for even handling.
What length is it?
It is 410 mm at its shortest and 614 mm fully extended, with a 38 mm tube.
What are the signs of a worn shock absorber?
Bouncing or floating over bumps, knocking from the rear, or oil on the outside of the damper.
Will it fit my e-up!, e-load up!, Mii Electric or Citigo-e iV?
The parts finder lists it for the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine SEAT, Skoda or Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
