Kia e-Niro & Soul EV Brake Pads – Front / Rear
These brake pad sets are ECE R90 approved replacements for the Kia e-Niro and Soul EV. There is a front set for each car and one rear set that fits both. Every set has anti-squeal shims and an acoustic wear warning.
Replace the pads when the lining is worn close to the backing plate, when the wear warning squeals, or if the pads are glazed or contaminated. Electric cars brake mostly with the motor, so pads can also stick or corrode from lack of use.

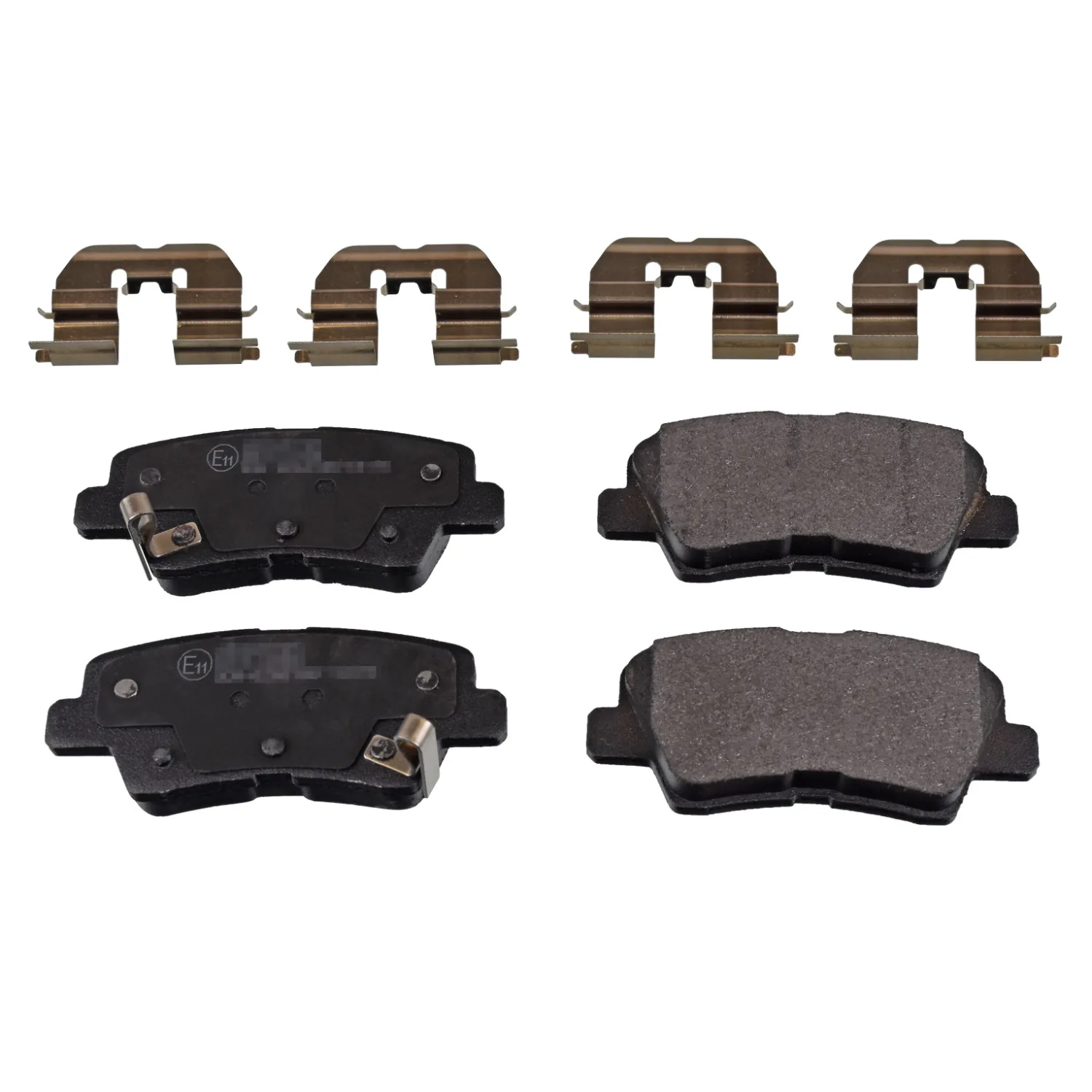

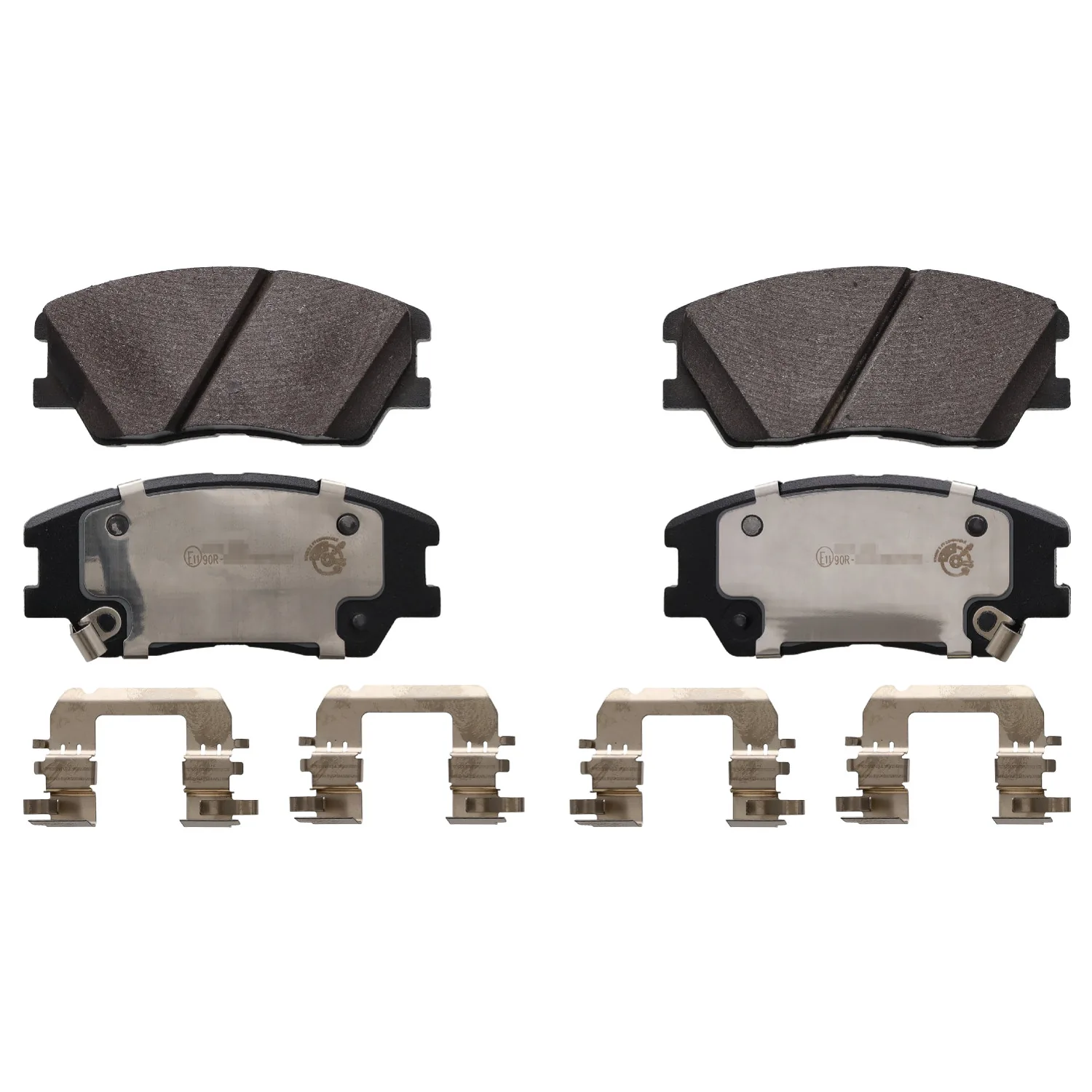

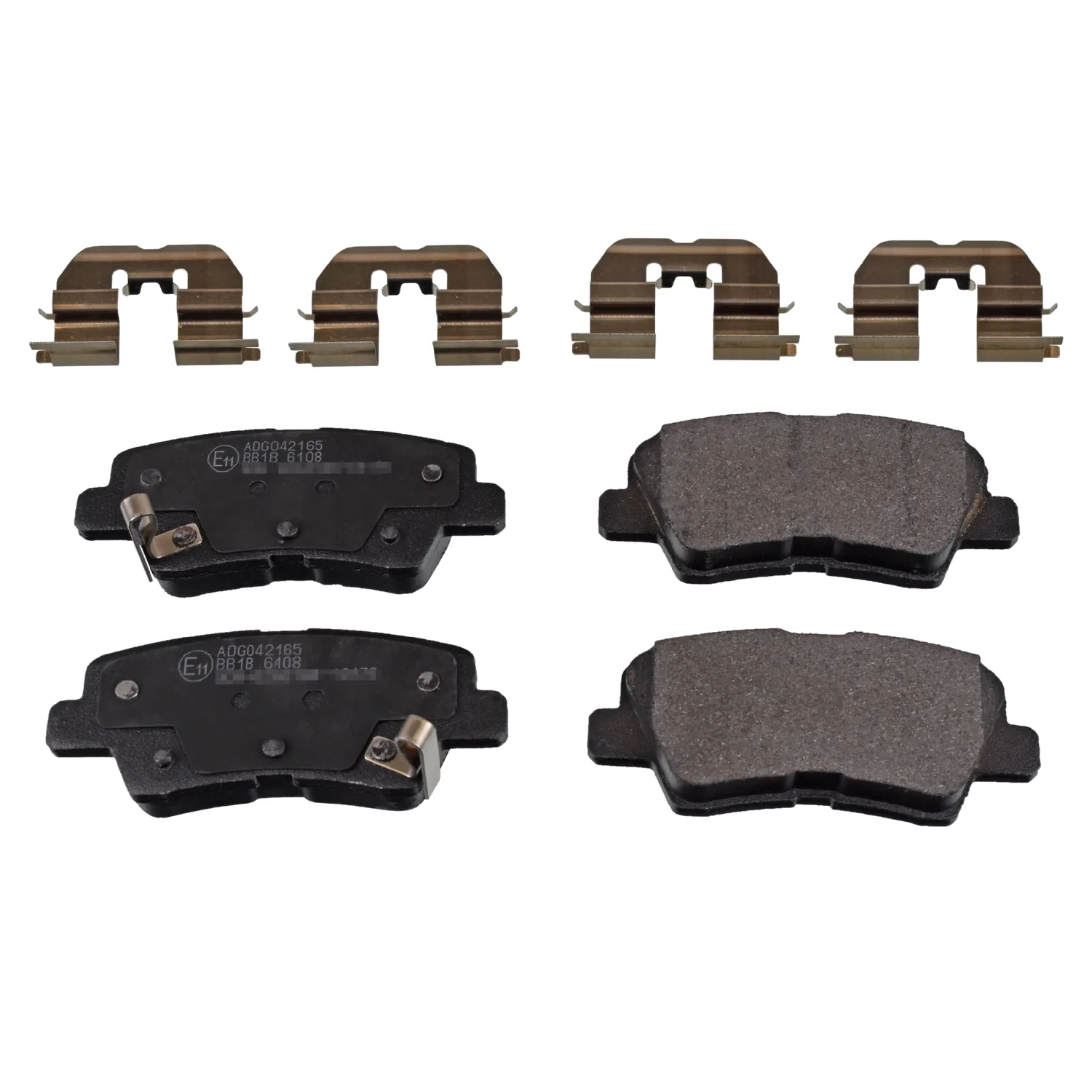

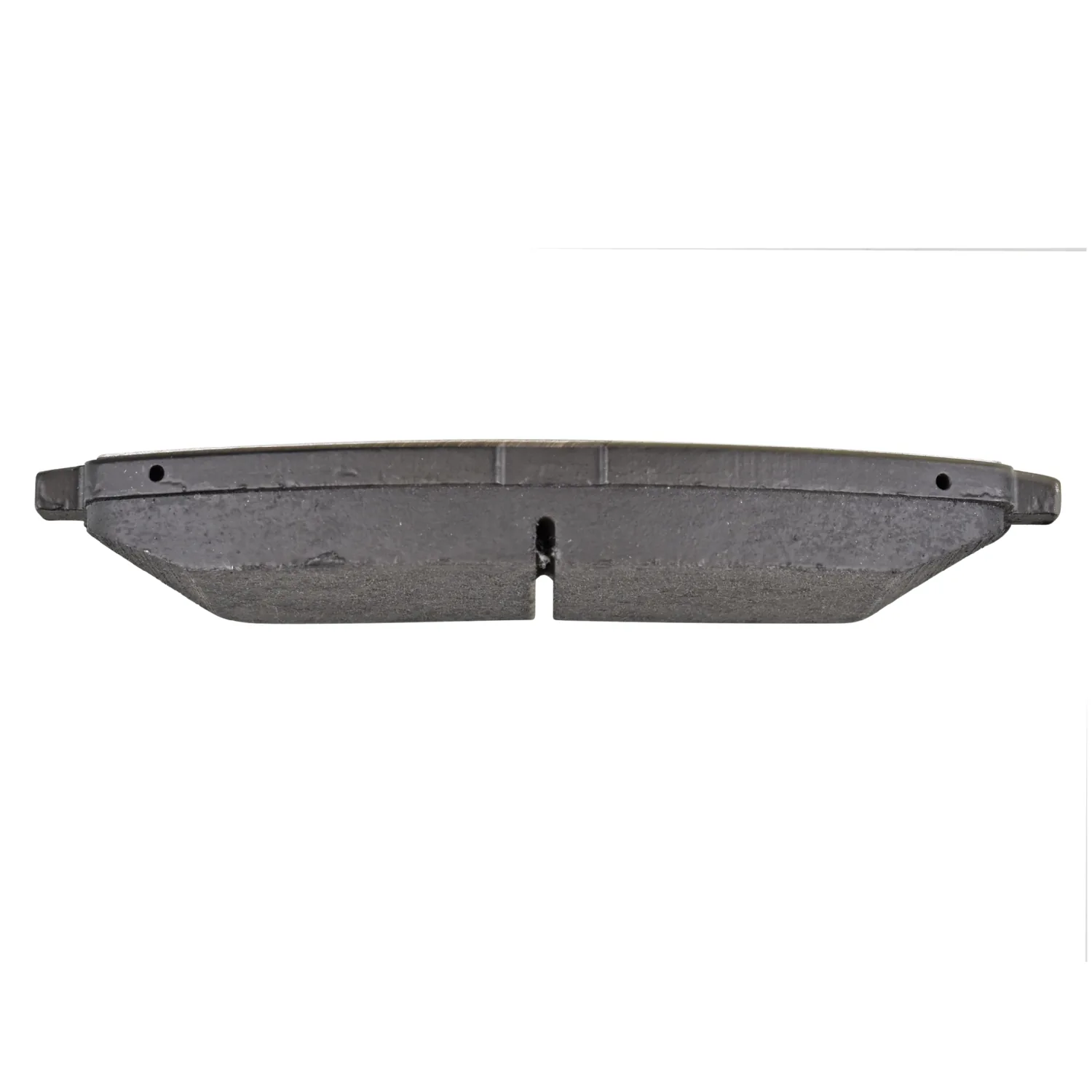

All pads are made by the bilstein group. Front e-Niro: Febi 116265 or Blue Print ADG042179. Front Soul EV: Febi 1003455 or Blue Print ADBP420226. Rear, both cars: Febi 116378 or Blue Print ADG042165, supplied with fitting kit.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the electric versions of the Kia e-Niro 2018 – 2022, Niro I 2016 – 2022, e-Soul 2019 -, Soul III 2019 – and e-Soul Cargo 2020 -. The table below shows each power output. Compare the Kia part number on your existing part with the numbers on this page before ordering.
Key Benefits
- ECE R90 approved
- Anti-squeal shims included
- Acoustic wear warning
- Front and rear options
Specifications
- Front e-Niro (116265): 137.8 x 60.8 mm, 16.7 mm thick
- Front Soul EV (1003455): 134.2 x 60.2 mm, 17.8 mm thick
- Rear (116378): 99.8 x 41.1 mm, 14.9 mm thick, with fitting kit
- Approval: ECE R90
- Wear Warning: Acoustic
Replaces Kia part numbers 58101-D7A50, 58101-3RA60, 58101-D4A10, 58101-D4A20, 58101-D5A10, 58101-D7A00, 58101-D7A60, 58101-Q4A10, 58101-J2A10, 58101-J2A00, 58302-K4A10, 58302-Q4A00 and 58302-H8A05.
Installation
Professional installation recommended. Always replace pads in axle sets, check the discs, and bed the pads in gently.
Explore More Parts
| Attribute | Value |
|---|---|
| Front e-Niro (116265) | 137.8 x 60.8 mm, 16.7 mm thick |
| Front Soul EV (1003455) | 134.2 x 60.2 mm, 17.8 mm thick |
| Rear (116378) | 99.8 x 41.1 mm, 14.9 mm thick, with fitting kit |
| Approval | ECE R90 |
| Wear Warning | Acoustic |
Fits The Following Kia Models
| Model | Submodel | Part |
|---|---|---|
| e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp | Front, e-Niro (116265 / ADG042179) |
| Niro I 2016 – 2022 | (E) – 150 kW / 204 hp | Front, e-Niro (116265 / ADG042179) |
| e-Soul 2019 – | (E) – 100 kW / 136 hp | Front, Soul EV (1003455 / ADBP420226) |
| e-Soul 2019 – | (E) – 150 kW / 204 hp | Front, Soul EV (1003455 / ADBP420226) |
| Soul III 2019 – | (E) – 100 kW / 136 hp | Front, Soul EV (1003455 / ADBP420226) |
| Soul III 2019 – | (E) – 150 kW / 204 hp | Front, Soul EV (1003455 / ADBP420226) |
| e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp | Rear (116378 / ADG042165) |
| e-Soul 2019 – | (E) – 100 kW / 136 hp | Rear (116378 / ADG042165) |
| e-Soul 2019 – | (E) – 150 kW / 204 hp | Rear (116378 / ADG042165) |
| e-Soul Cargo 2020 – | (E) – 100 kW / 136 hp | Rear (116378 / ADG042165) |
| e-Soul Cargo 2020 – | (E) – 150 kW / 204 hp | Rear (116378 / ADG042165) |
| Niro I 2016 – 2022 | (E) – 100 kW / 136 hp | Rear (116378 / ADG042165) |
| Niro I 2016 – 2022 | (E) – 150 kW / 204 hp | Rear (116378 / ADG042165) |
| Soul III 2019 – | (E) – 100 kW / 136 hp | Rear (116378 / ADG042165) |
| Soul III 2019 – | (E) – 150 kW / 204 hp | Rear (116378 / ADG042165) |
Kia e-Niro & Soul EV Brake Pads – Front / Rear FAQs
Which part numbers does it replace?
It replaces Kia part numbers 58101-D7A50, 58101-3RA60, 58101-D4A10, 58101-D4A20, 58101-D5A10, 58101-D7A00, 58101-D7A60, 58101-Q4A10, 58101-J2A10, 58101-J2A00, 58302-K4A10, 58302-Q4A00 and 58302-H8A05.
Is one set enough for both wheels?
Yes. Each set covers both wheels on one axle.
Which front pads do I need?
The e-Niro and the Soul EV use different front pads. Choose your car in the options. The rear pads fit both.
Should I replace the discs too?
Check them. Fit new discs if they are below minimum thickness, scored or corroded.
Will it fit my Kia e-Niro or Soul EV?
Front, e-Niro (116265 / ADG042179): the parts finder lists it for the electric e-Niro 2018 – 2022 (150 kW / 204 hp); Niro I 2016 – 2022 (150 kW / 204 hp). Front, Soul EV (1003455 / ADBP420226): the parts finder lists it for the electric e-Soul 2019 – (100 kW / 136 hp and 150 kW / 204 hp); Soul III 2019 – (100 kW / 136 hp and 150 kW / 204 hp). Rear (116378 / ADG042165): the parts finder lists it for the electric e-Niro 2018 – 2022 (150 kW / 204 hp); e-Soul 2019 – (100 kW / 136 hp and 150 kW / 204 hp); e-Soul Cargo 2020 – (100 kW / 136 hp and 150 kW / 204 hp); Niro I 2016 – 2022 (100 kW / 136 hp and 150 kW / 204 hp); Soul III 2019 – (100 kW / 136 hp and 150 kW / 204 hp). Compare the Kia part number on your existing part before ordering.
Is this a genuine Kia part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
