Kia EV6 Front Brake Disc – 345 mm

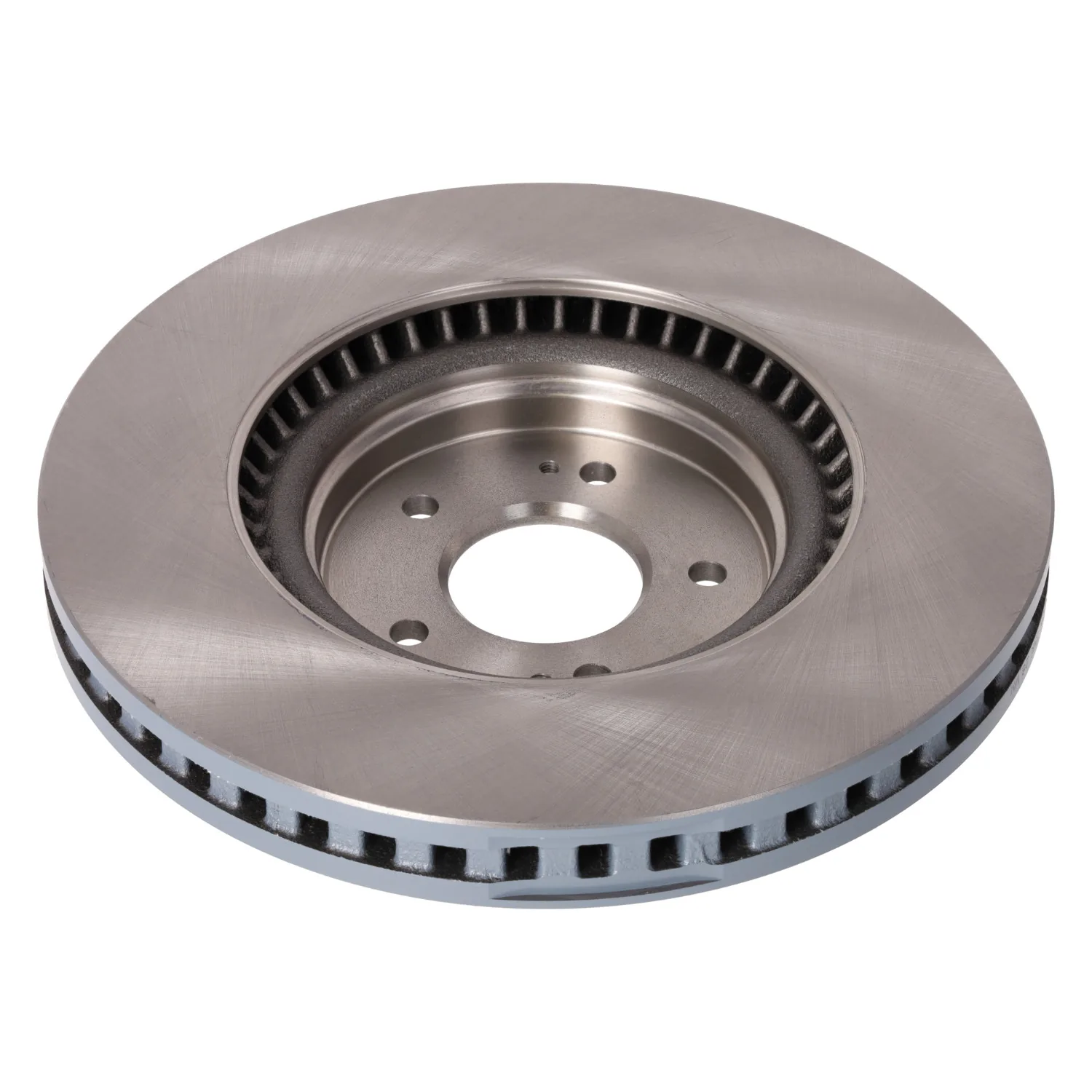

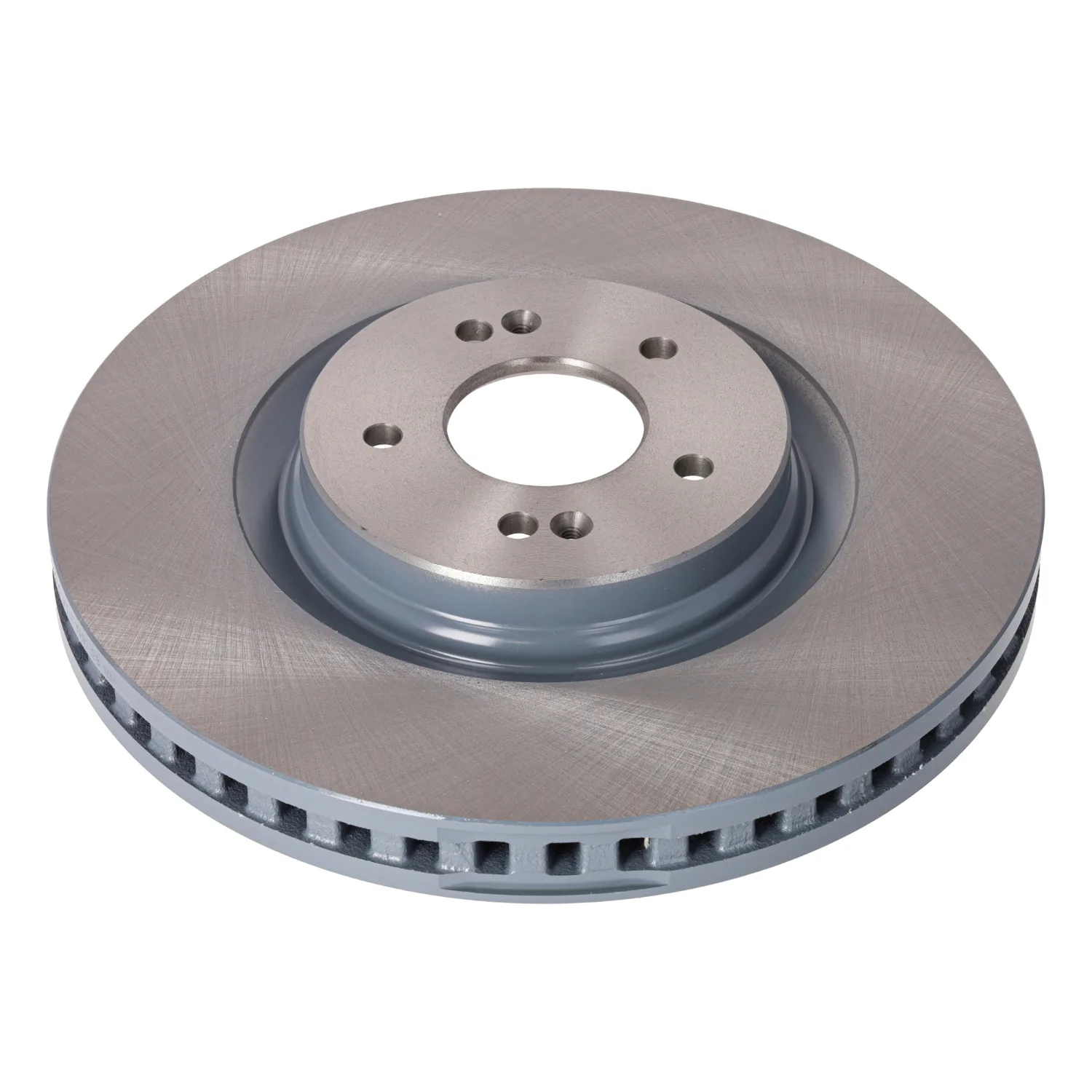

This 345 mm vented front brake disc is a replacement for the Kia EV6 and EV6 4×4. It is oiled and coated against corrosion and is 30 mm thick when new.
Replace the discs if they are below the 28 mm minimum thickness, scored, warped (felt as judder through the pedal or steering under braking) or badly corroded. Electric cars do most of their slowing down with the motor, so discs often fail from corrosion and pitting rather than wear.
Choose Febi 184761 or Blue Print ADBP430170 from the options. Both are made by the bilstein group and replace Kia part number 51712-L1700. The disc is priced per disc and sold in pairs, so the basket goes up in 2s.
Fitting new discs and pads together restores a smooth, quiet pedal and full stopping power.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the electric versions of the Kia EV6 2021 – and EV6 4×4 2021 -. The table below shows each power output. Compare the Kia part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 345 mm vented disc
- Oiled and coated against corrosion
- Choice of Febi or Blue Print
- Priced per disc, sold in pairs
Specifications
- Outer Diameter: 345 mm
- Brake Disc Thickness: 30 mm (min. 28 mm)
- Brake Disc Type: Internally vented
- Height: 48 mm
- Centre Diameter: 69 mm
- Wheel Bolt Holes / PCD: 5 / 114.3 mm
- Surface: Oiled and coated
- Sold As: Priced per disc, sold in pairs
Replaces Kia part numbers 51712-L1700.
Installation
Professional installation recommended. Replace discs in pairs with new pads, clean the hub face so the disc sits flat, and bed the brakes in gently.
Explore More Parts
| Attribute | Value |
|---|---|
| Outer Diameter | 345 mm |
| Brake Disc Thickness | 30 mm (min. 28 mm) |
| Brake Disc Type | Internally vented |
| Height | 48 mm |
| Centre Diameter | 69 mm |
| Wheel Bolt Holes / PCD | 5 / 114.3 mm |
| Surface | Oiled and coated |
| Sold As | Priced per disc, sold in pairs |
Fits The Following Kia Models
| Model | Submodel |
|---|---|
| EV6 2021 – | (E) – 125 kW / 170 hp |
| EV6 2021 – | (E) – 168 kW / 228 hp |
| EV6 4×4 2021 – | (E) – 173 kW / 235 hp |
| EV6 4×4 2021 – | (E) – 239 kW / 325 hp |
| EV6 4×4 2021 – | (E) – 430 kW / 585 hp |
Kia EV6 Front Brake Disc – 345 mm FAQs
Which part numbers does it replace?
It replaces Kia part numbers 51712-L1700.
Are they sold in pairs?
They are priced per disc and sold in pairs, so the basket goes up in 2s.
What is the minimum thickness?
28 mm. Replace the discs before they reach it.
Should I fit new pads too?
Yes. Fit new pads whenever the discs are replaced.
Will it fit my Kia EV6?
The bilstein group parts finder lists it for the electric EV6 2021 – (125 kW / 170 hp and 168 kW / 228 hp); EV6 4×4 2021 – (173 kW / 235 hp, 239 kW / 325 hp and 430 kW / 585 hp). Compare the Kia part number on your existing part before ordering.
Is this a genuine Kia part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
