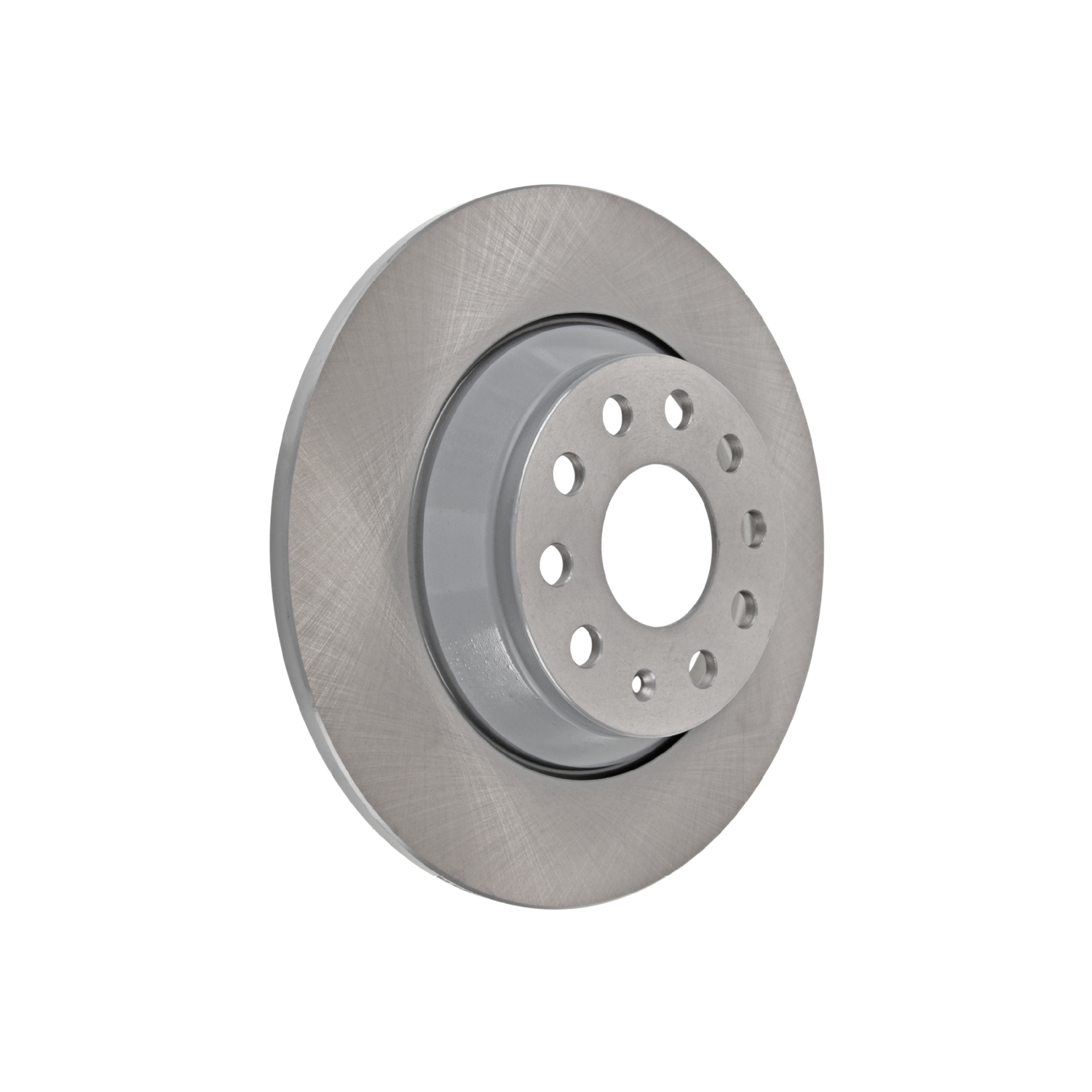

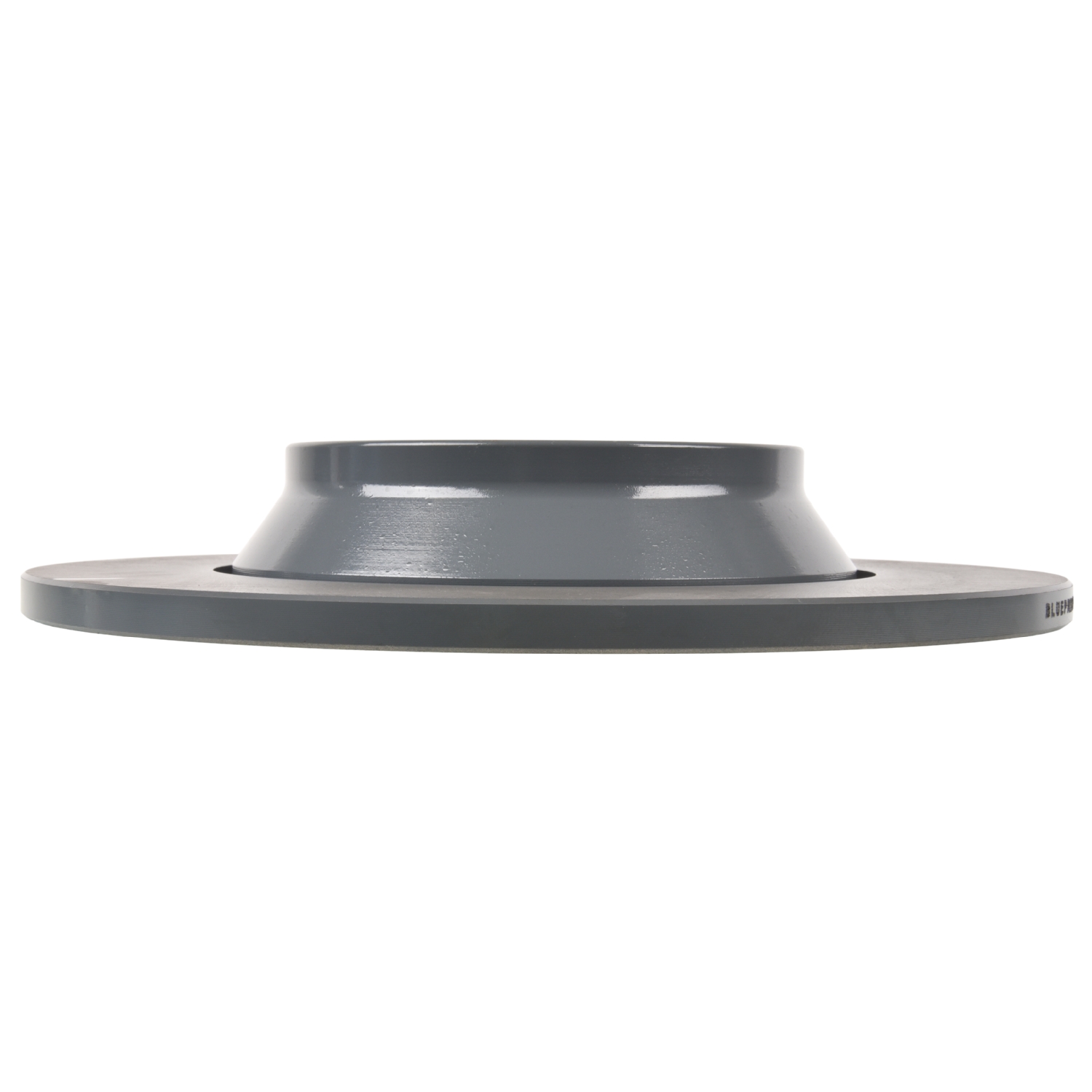

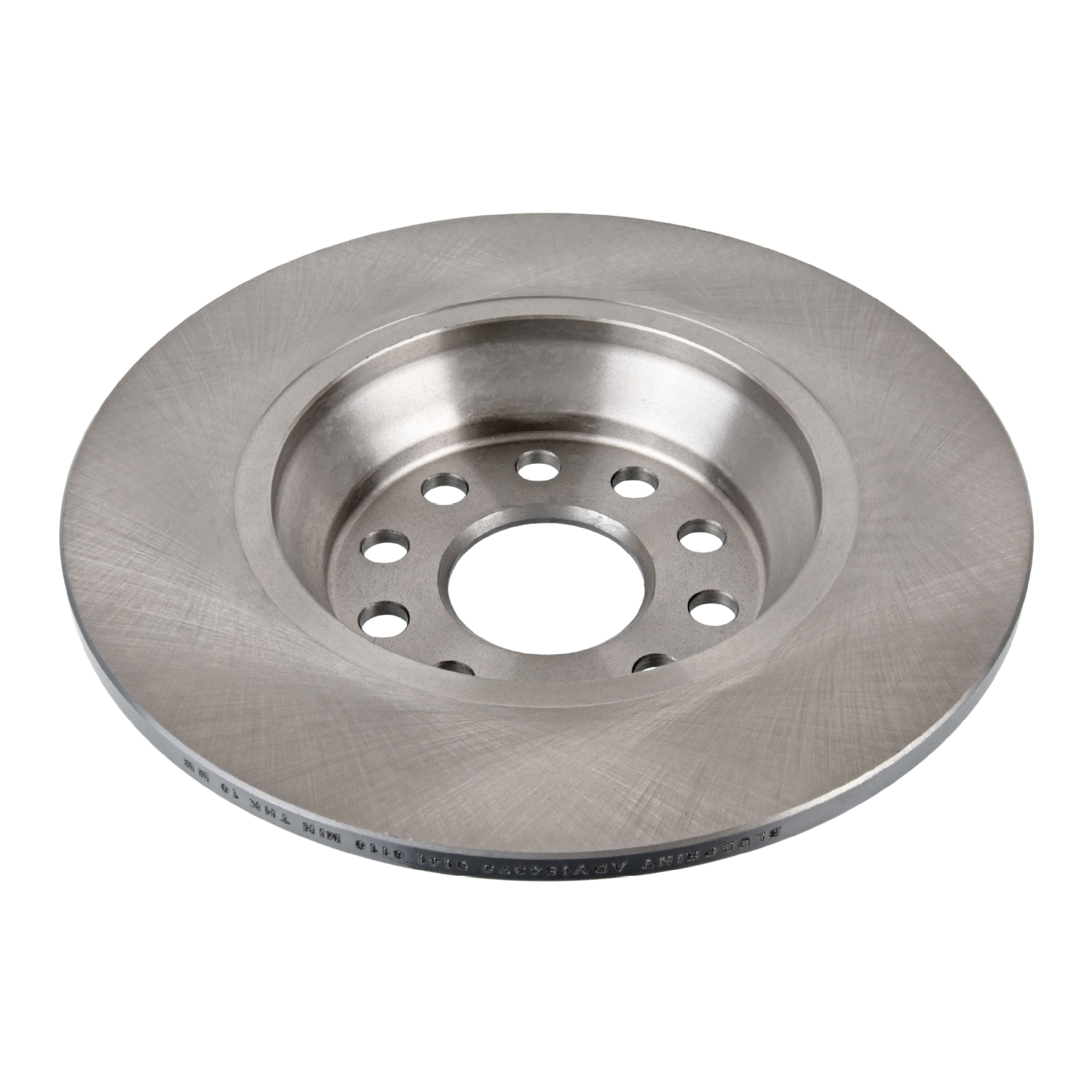

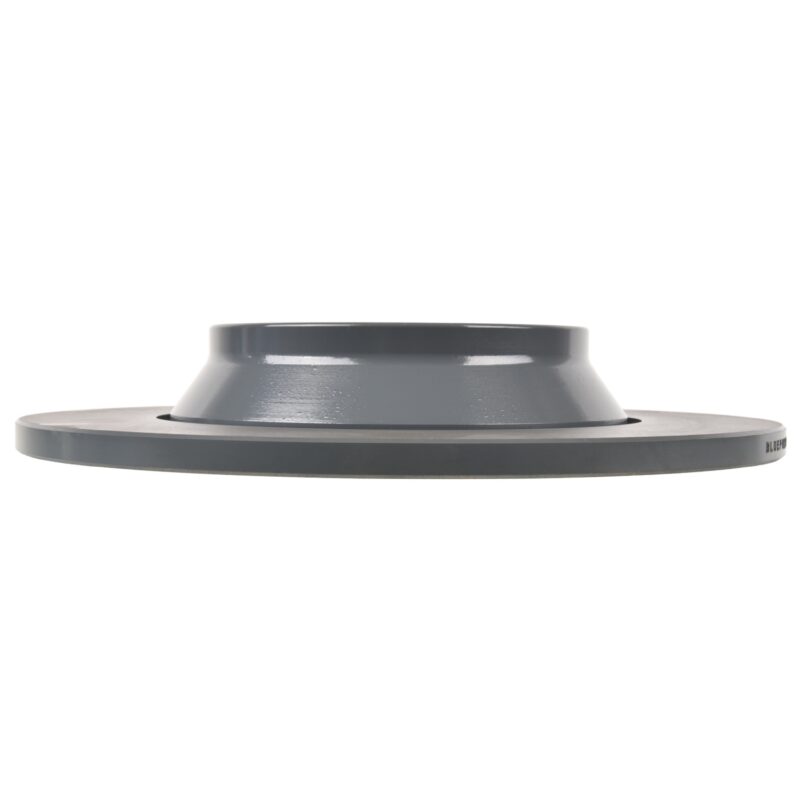

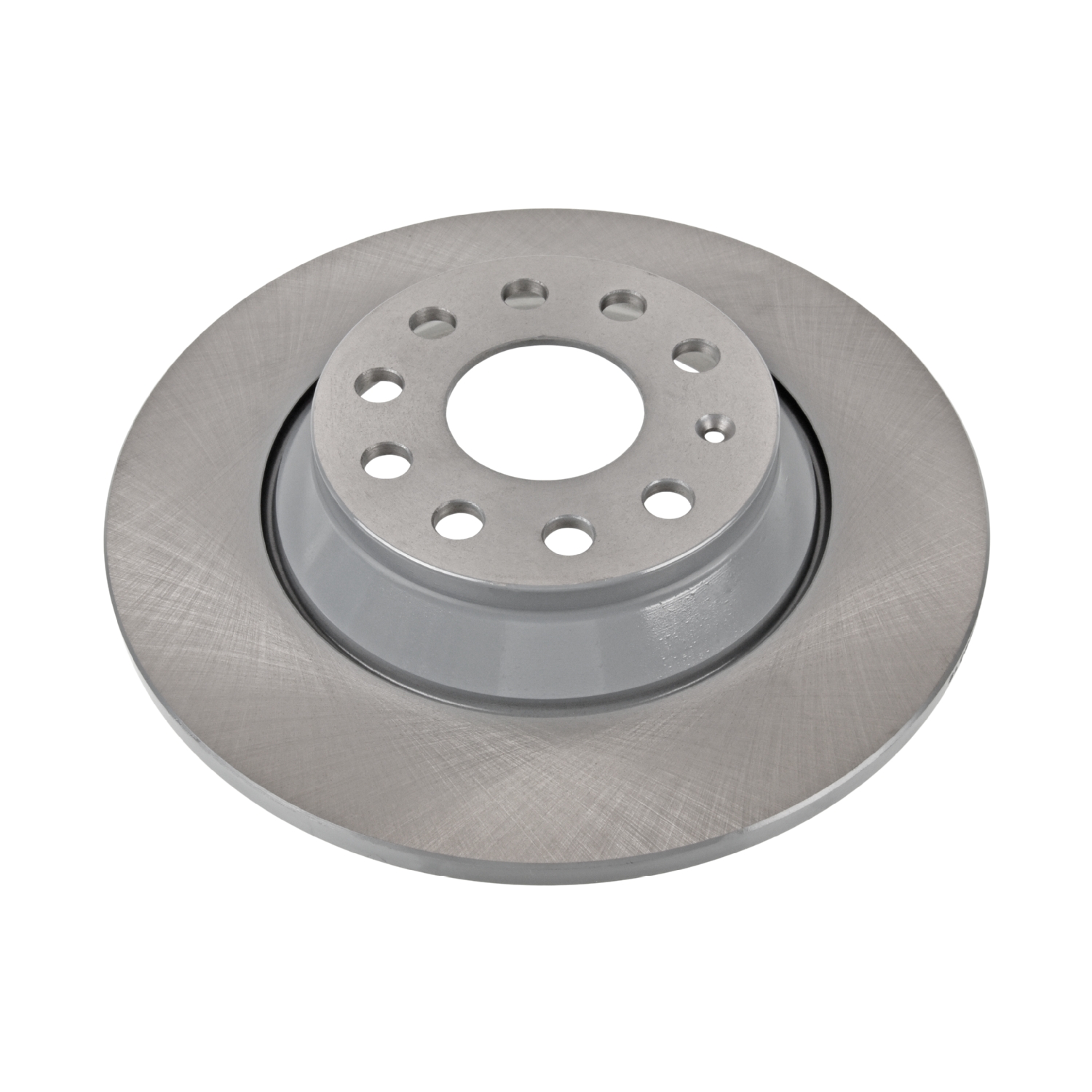

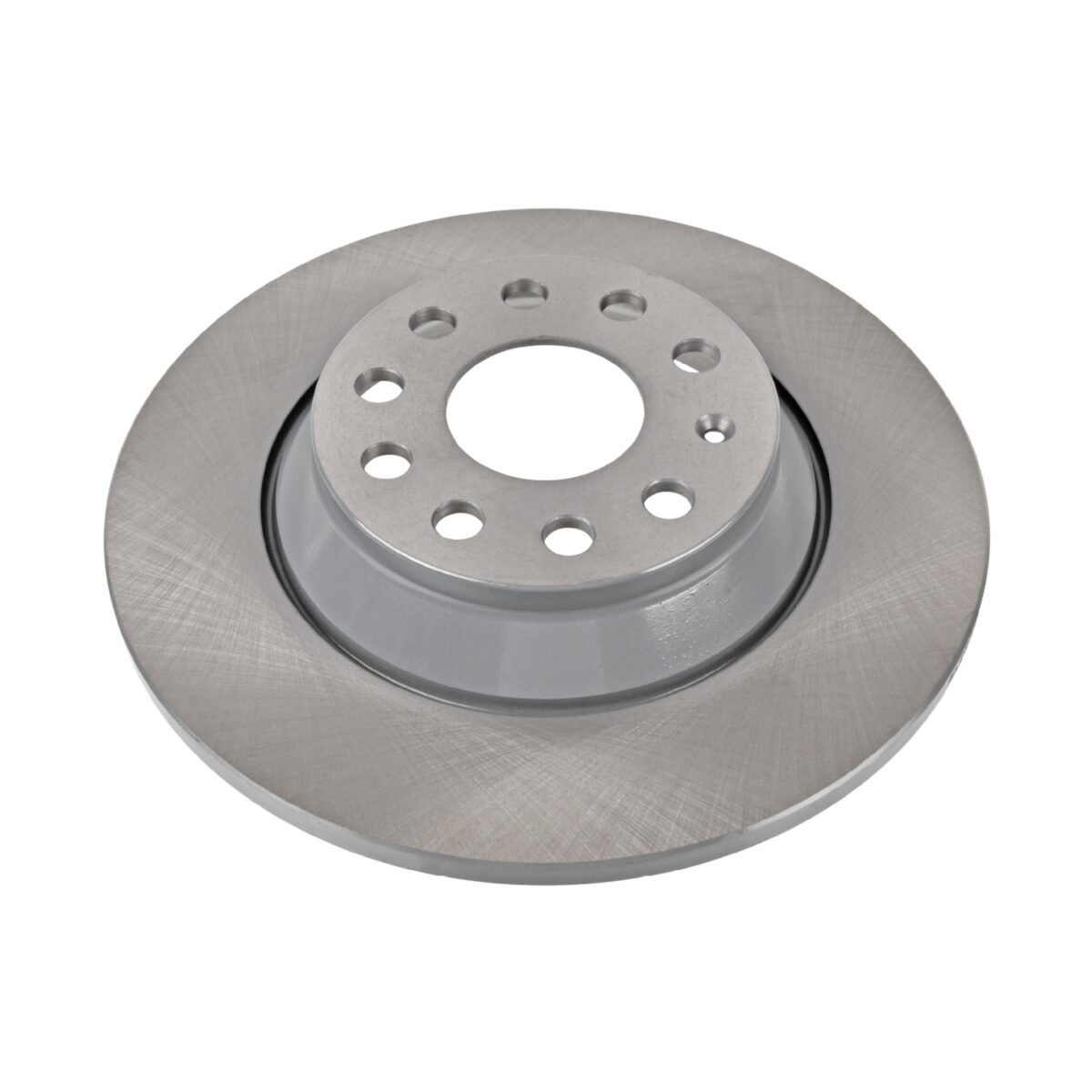

MG4 & MGS5 Rear Brake Discs – 300mm
These rear brake discs are for the rear-wheel-drive MG4, the new MG4 (MG 4 II) and the MGS5. Each disc is 300 mm across and 12 mm thick. It is a solid disc with a coated surface that resists corrosion on the hub face and outer edge.
Replace the discs when they are worn close to the 10 mm minimum thickness, when there is a lip at the outer edge or when rust has pitted the braking surface. Electric cars brake mostly through regeneration, so rear discs often corrode before they wear out; check them at every service.
Choose Febi 104496 or Blue Print ADV184375 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names. It is priced per disc and sold in pairs, so the basket goes up in 2s.
The table below shows the MG versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the rear-wheel-drive MG4 (MG 4 I, 99 kW to 180 kW), the MG 4 II (NA) 2025 – (120 kW) and the MGS5 (ZS) 2025 – (125 kW). Not listed for the MG4 XPower. Compare the MG part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 300 mm solid rear disc
- Coated against corrosion
- Priced per disc, sold in pairs
- Febi and Blue Print options
- Made by the bilstein group
Specifications
- Fitting Position: Rear axle
- Outer Diameter: 300 mm
- Disc Thickness: 12 mm
- Minimum Thickness: 10 mm
- Disc Type: Solid
- Centre Diameter: 65 mm
- Height: 48.3 mm
- Wheel Bolt Holes: 5
- Pitch Circle Diameter: 112 mm
- Surface: Coated
- Part Number: Febi 104496 | Blue Print ADV184375
- Sold As: Priced per disc, sold in pairs
Replaces MG part number 10464822. The parts finder also lists Roewe (SAIC) number 10464822.
Installation
Professional installation recommended. If the car has an electric parking brake, put it into service mode before retracting the caliper. Fit new pads with new discs, clean the hub face so the disc sits flat and bed the pads in gently.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle |
| Outer Diameter | 300 mm |
| Disc Thickness | 12 mm |
| Minimum Thickness | 10 mm |
| Disc Type | Solid |
| Centre Diameter | 65 mm |
| Height | 48.3 mm |
| Wheel Bolt Holes | 5 |
| Pitch Circle Diameter | 112 mm |
| Surface | Coated |
| Part Number | Febi 104496 | Blue Print ADV184375 |
| Sold As | Priced per disc, sold in pairs |
Fits The Following MG Models
| Model | Submodel |
|---|---|
| MG 4 I (CS) 2023 – | (E) – 125 kW / 170 hp |
| MG 4 I (EH) 2022 – | (E) – 125 kW / 170 hp |
| MG 4 I (EH) 2022 – | (E) – 150 kW / 204 hp |
| MG 4 I (EH) 2022 – | (E) – 180 kW / 245 hp |
| MG 4 I (EH) 2022 – | (E) – 99 kW / 135 hp |
| MG 4 II (NA) 2025 – | (E) – 120 kW / 163 hp |
| MGS5 (ZS) 2025 – | (E) – 125 kW / 170 hp |
MG4 & MGS5 Rear Brake Discs – 300mm FAQs
Which part numbers does it replace?
Replaces MG part number 10464822. The parts finder also lists Roewe (SAIC) number 10464822. Febi and Blue Print part numbers are listed in the specifications.
Does it fit the MG4 XPower?
No. The parts finder lists this disc for the rear-wheel-drive MG4 (MG 4 I), the MG 4 II (NA) and the MGS5 (ZS). The XPower uses a larger 340 mm rear disc, which we list separately.
Should I replace the pads at the same time?
Yes. Fit new rear pads with new discs so they bed in together and brake evenly.
Will it fit my car?
Listed in the parts finder for the rear-wheel-drive MG4 (MG 4 I, 99 kW to 180 kW), the MG 4 II (NA) 2025 – (120 kW) and the MGS5 (ZS) 2025 – (125 kW). Not listed for the MG4 XPower. Check the notes in the fitment table and compare the MG part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine MG part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
