Polestar 2 Dual Motor Rear Subframe Mount
These rear subframe mounts, also called axle beam mounts, isolate the rear subframe from the body on the Polestar 2 Dual Motor. The subframe uses two different rubber and metal mounts, so choose Front or Rear from the options above.

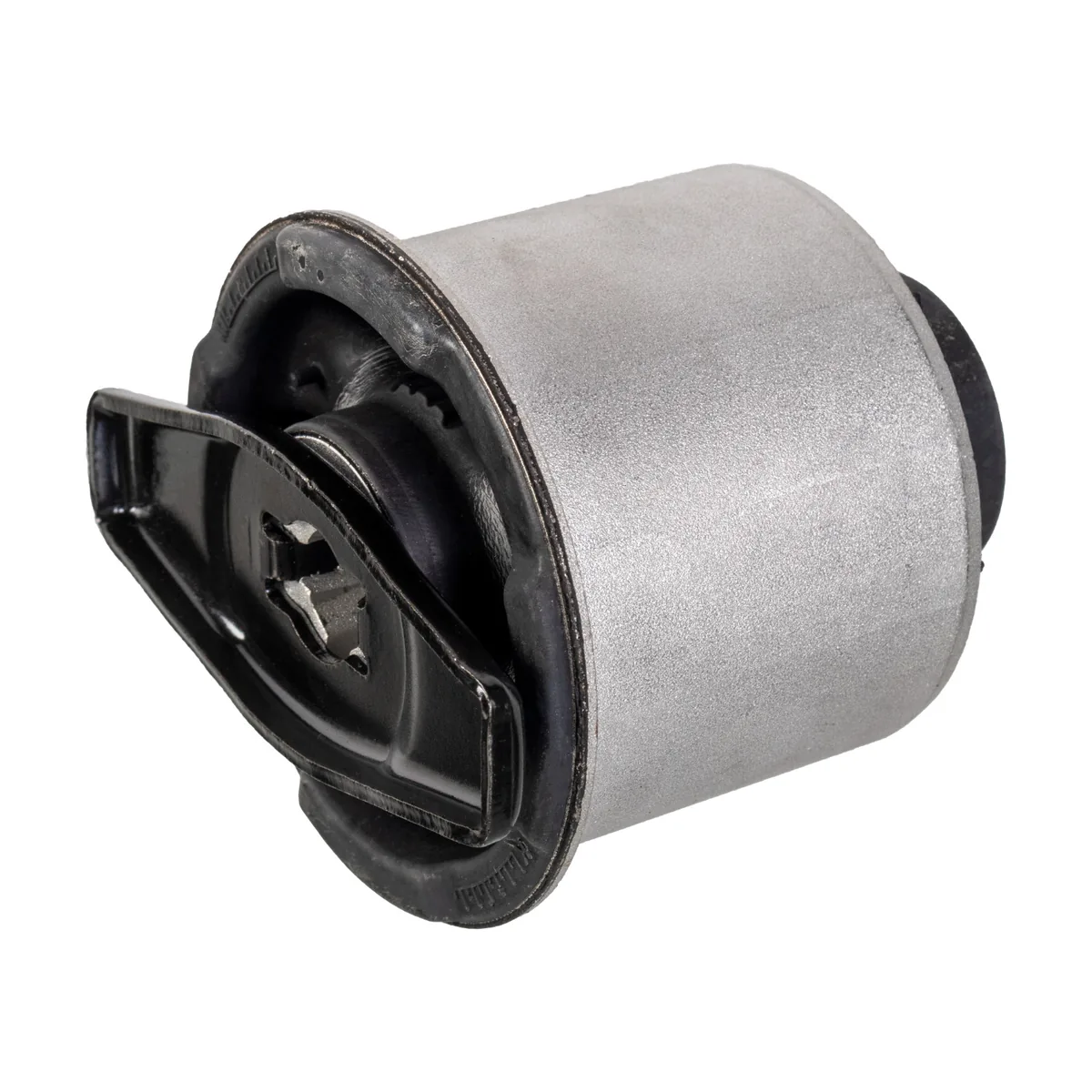

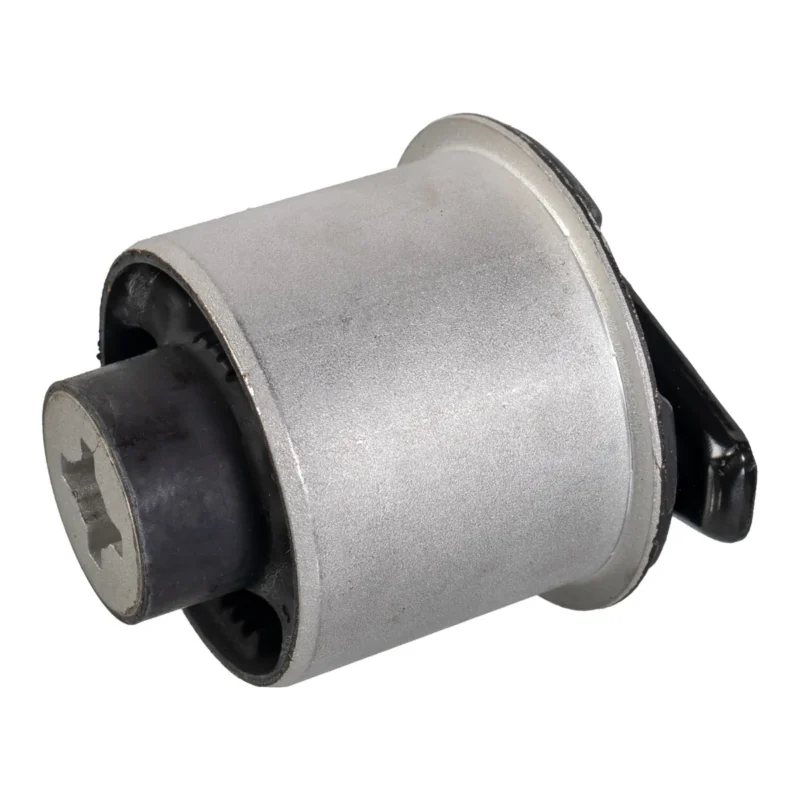

The Front option is Febi 180086, which replaces Polestar part number 32312591. It is 97 mm high and fits the rear subframe at the middle, front mounting point.

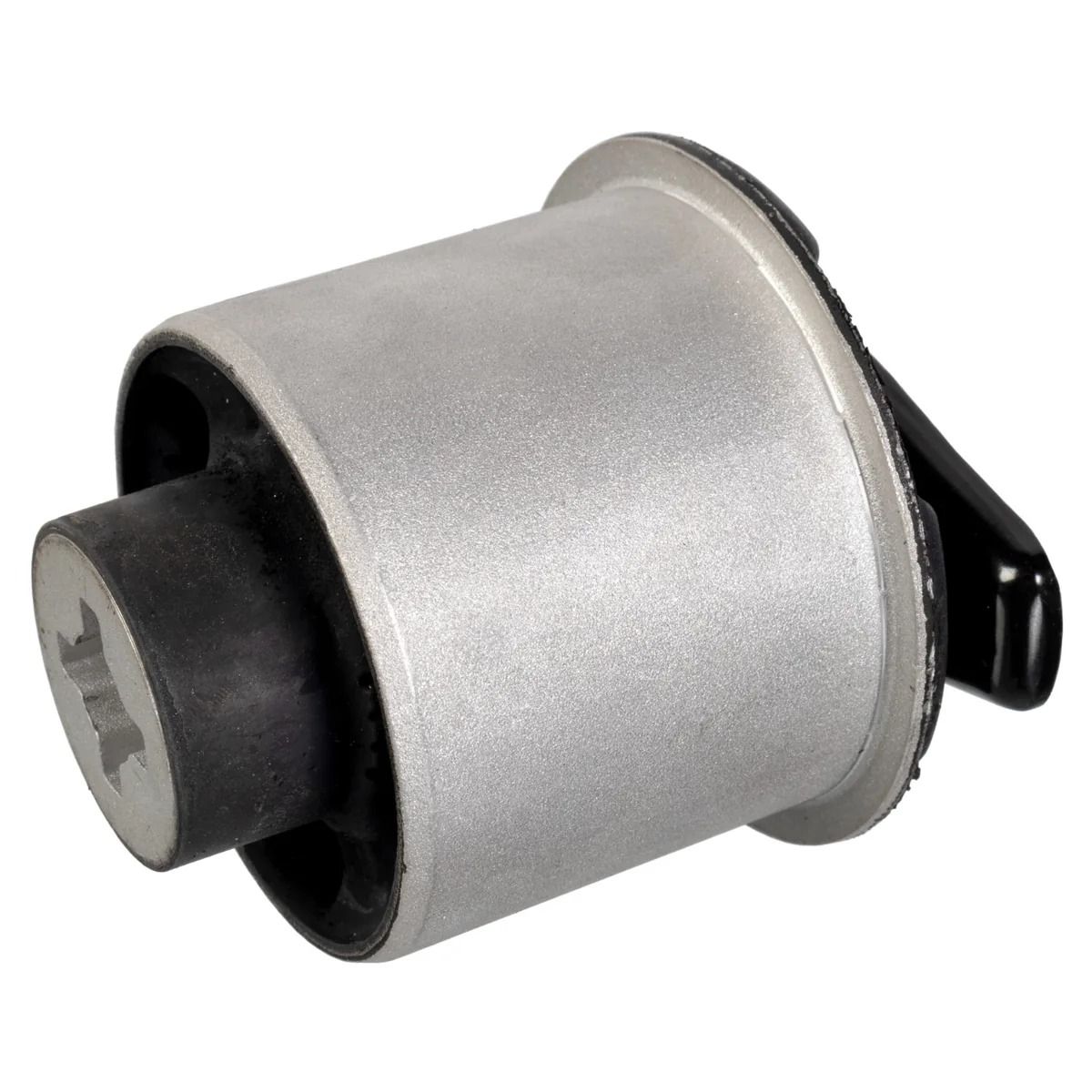

The Rear option is Febi 180088, which replaces Polestar part number 32312592. It is 78 mm high and fits the rear subframe at the rear, middle mounting point.
Replace a mount if the rubber is split or perished, or you hear clonks from the rear when pulling away, braking or going over bumps.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function. Compare the numbers on your old part with the ones listed here before you order, and keep the old part until the new one is fitted and working.
The table below shows the Polestar versions listed in the bilstein group parts finder. Both the Front and Rear mounts are listed for the same versions: the Polestar 2 Dual Motor 300 and 350 kW. Compare the Polestar part number on your existing part before ordering.
Key Benefits
- Rear subframe mounts for the Polestar 2 Dual Motor
- Front and Rear positions on one page
- Febi quality from the bilstein group
Specifications
| Attribute | Front | Rear |
|---|---|---|
| Fitting Position | Rear subframe, middle, front | Rear subframe, rear, middle |
| Height | 97 mm | 78 mm |
| Inner Diameter | 15.15 mm | 15.24 mm |
| Outer Diameter | 99.82 mm | 99.78 mm |
| Material | Rubber / metal | Rubber / metal |
| Part Number | Febi 180086 | Febi 180088 |
| Replaces Polestar Part Number | 32312591 | 32312592 |
Installation
Professional installation recommended. Support the subframe while the mounts are changed, and tighten the bolts to the figures in the service information.
Explore More Parts
Fits The Following Polestar Models
| Model | Submodel | Part |
|---|---|---|
| Polestar 2 AWD / Dual Motor (2019 –) | (E) – 300 kW / 408 hp | Front 180086, Rear 180088 |
| Polestar 2 AWD / Dual Motor (2019 –) | (E) – 350 kW / 476 hp | Front 180086, Rear 180088 |
Polestar 2 Dual Motor Rear Subframe Mount FAQs
Which part numbers does it replace?
The Front mount, Febi 180086, replaces Polestar part number 32312591. The Rear mount, Febi 180088, replaces Polestar part number 32312592.
How do I tell the Front and Rear mounts apart?
The Front mount is 97 mm high and the Rear mount is 78 mm high. The easiest check is the Polestar part number on your old mount.
Is the price for one mount?
Yes. Each option is priced per mount, so add the quantity you need for each position.
Does it fit the single-motor Polestar 2?
No. The parts finder lists both mounts for the Polestar 2 AWD 300 and 350 kW only.
Will it fit my Polestar 2 Dual Motor?
Listed in the parts finder for the Polestar 2 Dual Motor 300 and 350 kW. Check the fitment table and compare the Polestar part number on your existing part.
Is this a genuine Polestar part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
