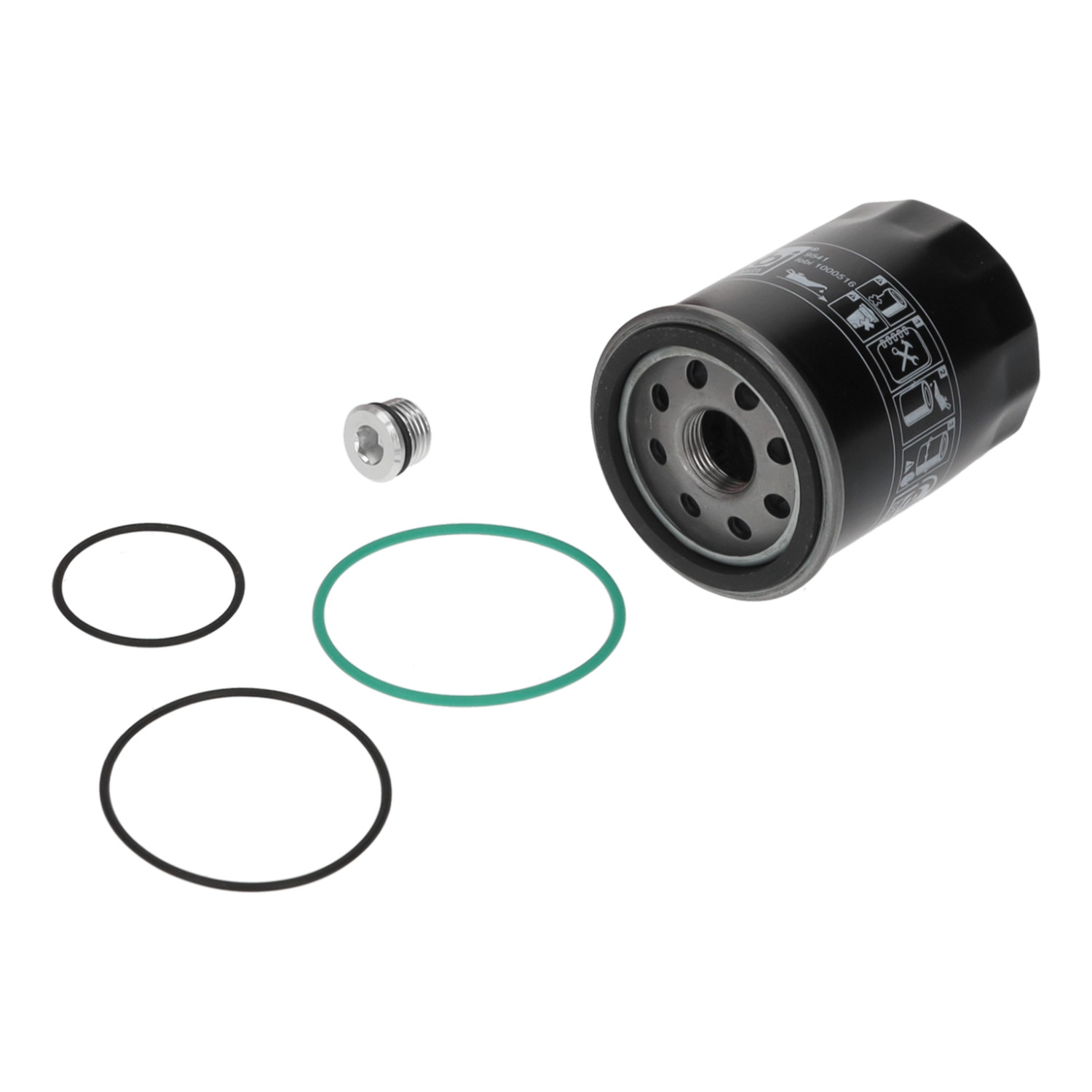

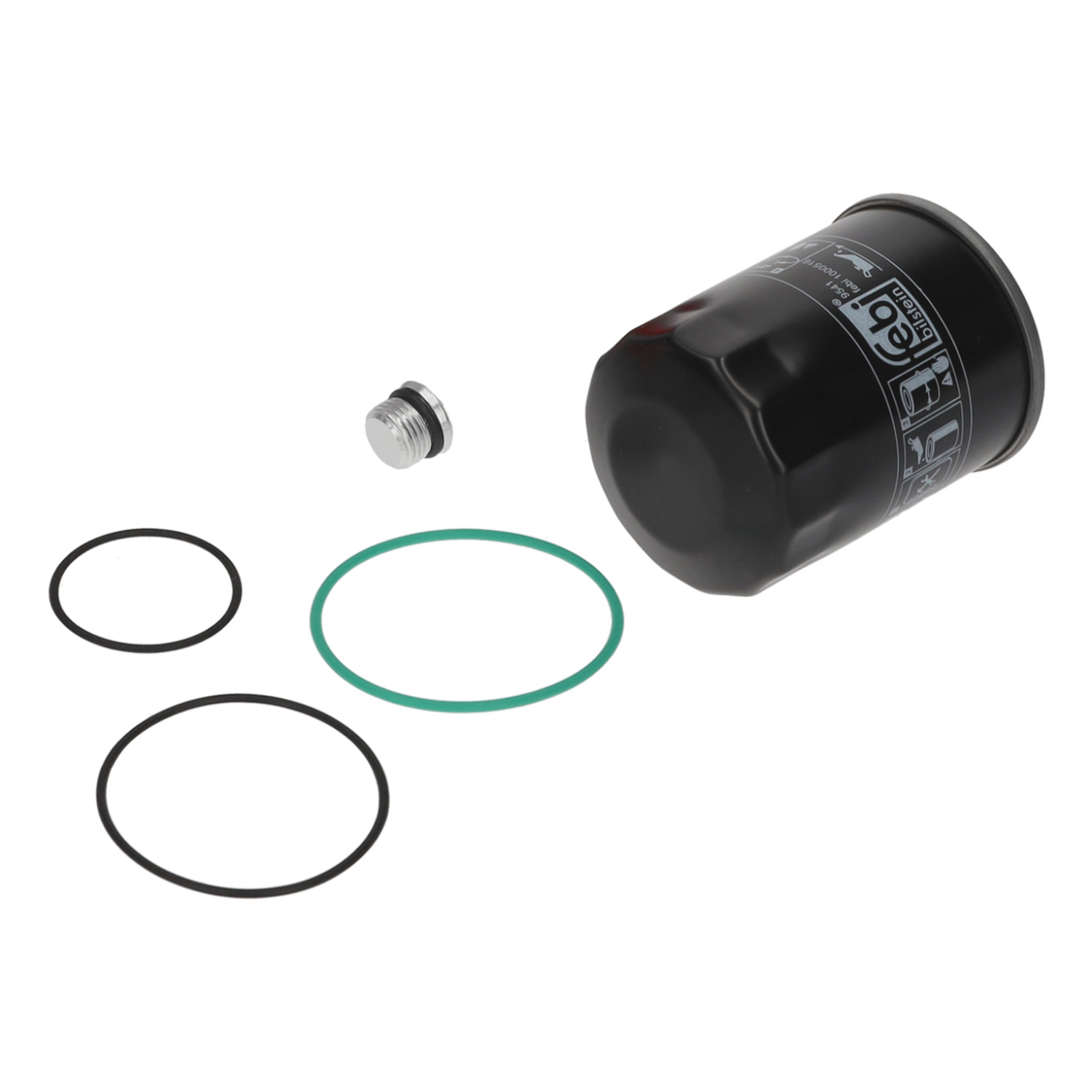

Tesla Model 3 & Model Y Transmission Oil Filter
This spin-on oil filter is designed for the electric vehicle transmission systems on Tesla Model 3 and Model Y. It helps keep the transmission fluid clean, protects internal components from wear, and supports smooth, efficient operation of the reduction gear assembly.
Key Benefits
- Filters contaminants from transmission fluid
- Protects gears and bearings from premature wear
- Easy spin-on design for quick replacement
- Includes seal rings for leak-free installation
- Suitable for both front and rear transmissions
Specifications
- Filter Type: Spin-on
- Height: 88.4 mm
- Internal Thread: M20 x 1.5
- Outer Diameter: 65 mm
- With plug and seal rings
- Without bypass valve
Compatibility
Fits all Tesla Model 3 (2017 onwards) and Model Y (2019 onwards) variants, including single and dual motor models.
Replaces Tesla part numbers: 1095038-00-A, 1618882-00-A, 1618882-50-B, 1095038-00-B
Installation
Simple spin-on replacement. Professional installation recommended. Always replace the filter when performing a transmission fluid change.
Pro tip: Change the transmission oil filter at the same time as the gear oil for maximum protection and longevity of the drivetrain.
| Attributes | |
|---|---|
| Additional Information / Parts | without bypass valve |
| Additional Information / Parts | with plug |
| Additional Information / Parts | with seal rings |
| Filter Type | spin-on filter |
| Height | 88,4 mm |
| Internal Thread | M20 x 1,5 |
| Outer Diameter | 65 mm |
| Suitable to replace | Reference(s) |
|---|---|
| Tesla | 1095038-00-A S3 | 1618882-00-A S3 | 1618882-50-B S3 | 1095038-00-B S3 1095038-00-A | 1618882-00-A | 1618882-50-B | 1095038-00-B |
| Model | Submodel |
|---|---|
| Model 3 2017 – | (E) – 175 kW / 238 hp |
| Model 3 2017 – | (E) – 192 kW / 261 hp |
| Model 3 2017 – | (E) – 194 kW / 264 hp |
| Model 3 2017 – | (E) – 202 kW / 275 hp |
| Model 3 2017 – | (E) – 208 kW / 283 hp |
| Model 3 2017 – | (E) – 220 kW / 299 hp |
| Model 3 2017 – | (E) – 225 kW / 306 hp |
| Model 3 2017 – | (E) – 239 kW / 325 hp |
| Model 3 Dual Motor 2018 – | (E) – 153 kW / 208 hp |
| Model 3 Dual Motor 2018 – | (E) – 258 kW / 351 hp |
| Model 3 Dual Motor 2018 – | (E) – 324 kW / 441 hp |
| Model 3 Dual Motor 2018 – | (E) – 331 kW / 450 hp |
| Model 3 Dual Motor 2018 – | (E) – 339 kW / 461 hp |
| Model 3 Dual Motor 2018 – | (E) – 340 kW / 462 hp |
| Model 3 Dual Motor 2018 – | (E) – 343 kW / 466 hp |
| Model 3 Dual Motor 2018 – | (E) – 350 kW / 476 hp |
| Model 3 Dual Motor 2018 – | (E) – 355 kW / 483 hp |
| Model 3 Dual Motor 2018 – | (E) – 357 kW / 485 hp |
| Model 3 Dual Motor 2018 – | (E) – 360 kW / 489 hp |
| Model 3 Dual Motor 2018 – | (E) – 361 kW / 491 hp |
| Model 3 Dual Motor 2018 – | (E) – 366 kW / 498 hp |
| Model 3 Dual Motor 2018 – | (E) – 377 kW / 513 hp |
| Model 3 Dual Motor 2018 – | (E) – 380 kW / 517 hp |
| Model 3 Dual Motor 2018 – | (E) – 393 kW / 534 hp |
| Model 3 Dual Motor 2018 – | (E) – 461 kW / 627 hp |
| Model Y L Dual Motor 2025 – | (E) – 340 kW / 462 hp |
| Model Y 2019 – | (E) – 192 kW / 261 hp |
| Model Y 2019 – | (E) – 194 kW / 264 hp |
| Model Y 2019 – | (E) – 202 kW / 275 hp |
| Model Y 2019 – | (E) – 220 kW / 299 hp |
| Model Y 2019 – | (E) – 225 kW / 306 hp |
| Model Y 2019 – | (E) – 235 kW / 320 hp |
| Model Y 2019 – | (E) – 239 kW / 325 hp |
| Model Y 2019 – | (E) – 255 kW / 347 hp |
| Model Y 2019 – | (E) – 258 kW / 351 hp |
| Model Y Dual Motor 2019 – | (E) – 258 kW / 351 hp |
| Model Y Dual Motor 2019 – | (E) – 293 kW / 398 hp |
| Model Y Dual Motor 2019 – | (E) – 317 kW / 431 hp |
| Model Y Dual Motor 2019 – | (E) – 324 kW / 441 hp |
| Model Y Dual Motor 2019 – | (E) – 331 kW / 450 hp |
| Model Y Dual Motor 2019 – | (E) – 339 kW / 461 hp |
| Model Y Dual Motor 2019 – | (E) – 340 kW / 462 hp |
| Model Y Dual Motor 2019 – | (E) – 357 kW / 485 hp |
| Model Y Dual Motor 2019 – | (E) – 378 kW / 514 hp |
| Model Y Dual Motor 2019 – | (E) – 393 kW / 534 hp |
| Model Y Dual Motor 2019 – | (E) – 461 kW / 627 hp |
Tesla Model 3 & Model Y Transmission Oil Filter FAQs
Which models does this transmission filter fit?
Fits all Tesla Model 3 (2017 onwards) and Model Y (2019 onwards), including single and dual motor variants. Please provide your vehicle registration number for exact confirmation.
Is this filter for front or rear transmission?
This filter is suitable for both front and rear EV transmissions on Model 3 and Model Y.
When should I replace the transmission oil filter?
Replace the filter at the intervals recommended in your Tesla service schedule, ideally at the same time as the gear oil change.
Is installation easy?
Yes – it is a simple spin-on design. Professional installation is recommended, especially when performing a full transmission service.
Does it come with seal rings?
Yes – the filter includes seal rings for a leak-free installation.
