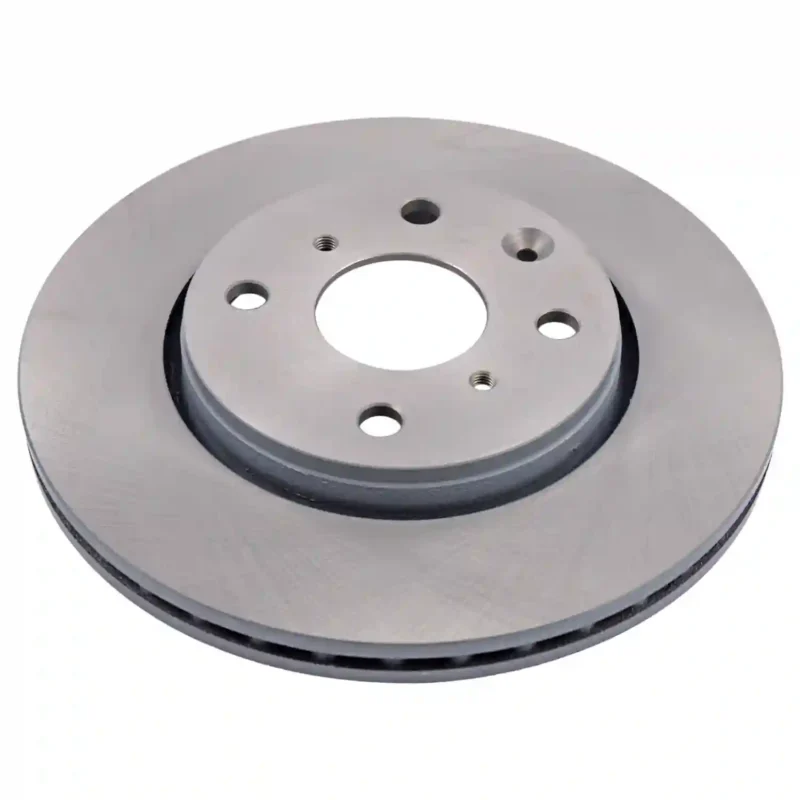

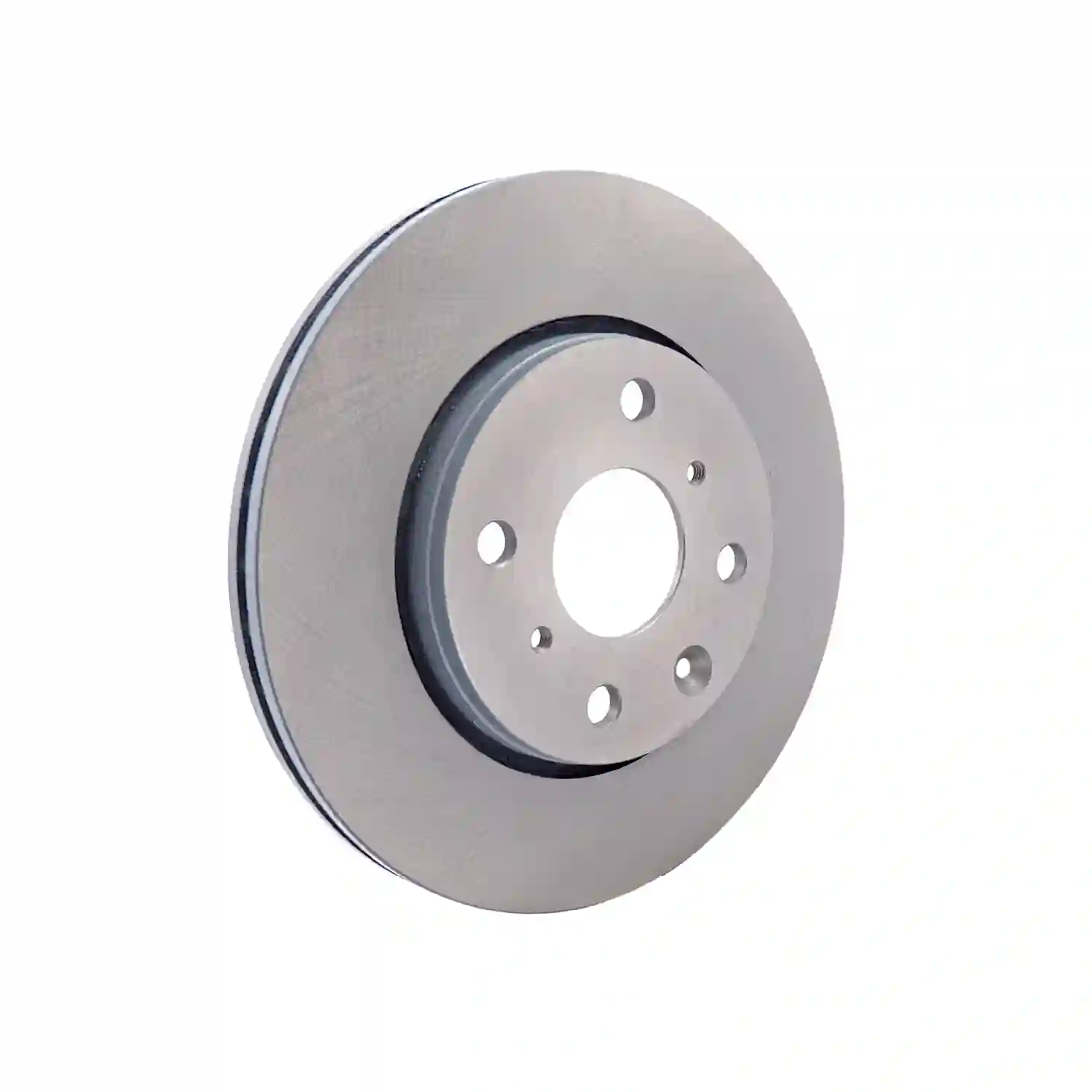

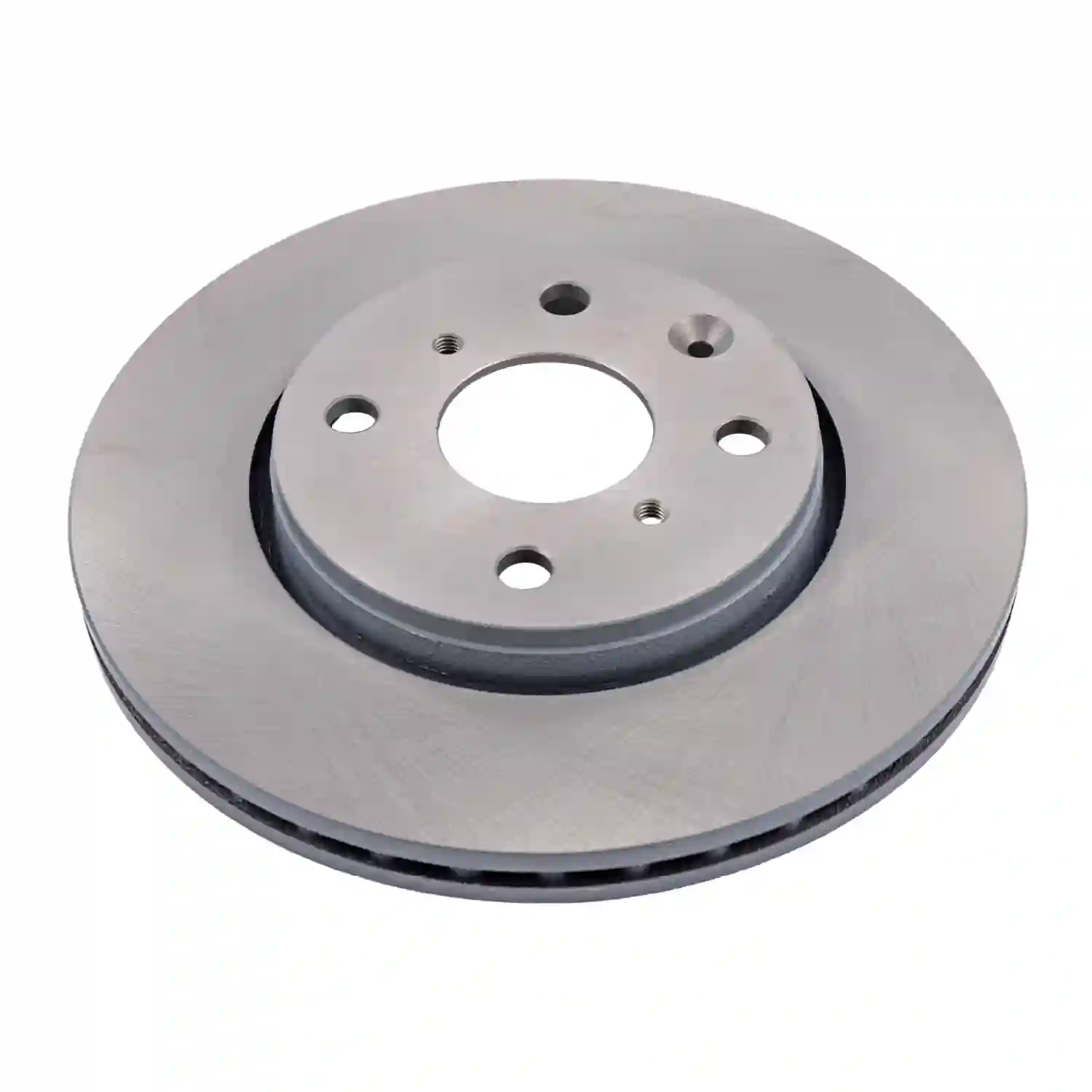

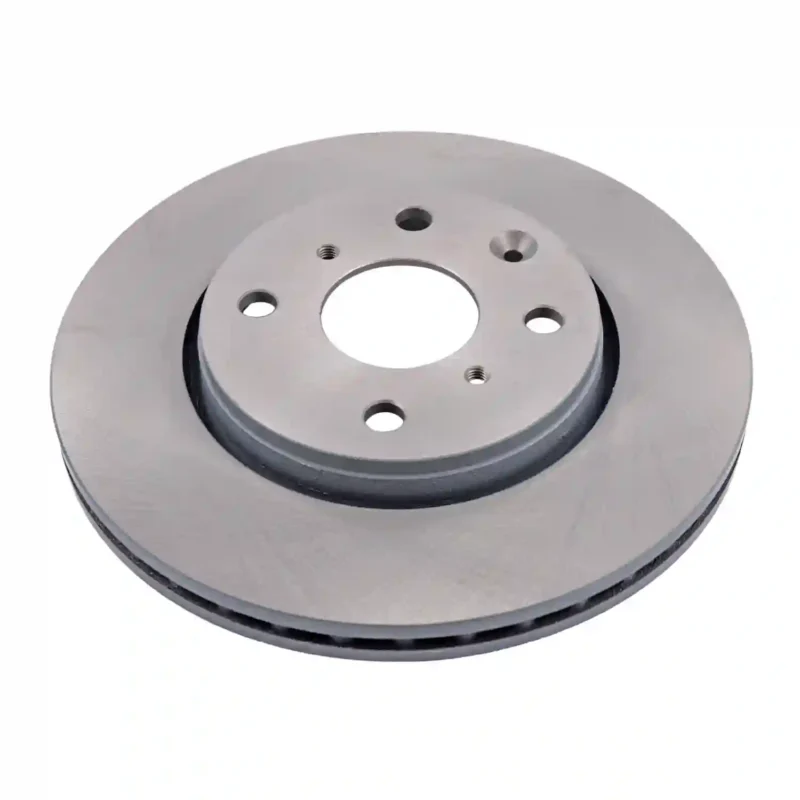

BYD E1 & JAC iEV6E Front Brake Disc – 247mm
These front brake discs are a direct replacement for the BYD E1 and JAC iEV6E electric vehicles. With a 247 mm diameter, internally vented design and coated surface, they deliver strong braking performance, effective heat dissipation and good corrosion protection — ideal for UK roads and weather conditions.
Key Benefits
- Strong and consistent braking performance
- Internally vented for effective heat dissipation
- Coated surface for corrosion protection
- Direct fit replacement
- High-quality aftermarket construction
Specifications
- Outer Diameter: 247 mm
- Brake Disc Thickness: 20 mm
- Minimum Thickness: 18 mm
- Brake Disc Type: Internally vented
- Surface: Coated
- Centre Diameter: 55 mm
- Height: 35 mm
- No. of Wheel Bolt Holes: 4
- Pitch Circle Diameter: 100 mm
Compatibility
Fits the following models:
- BYD E1 (2019 onwards) – 45 kW / 61 hp
- JAC iEV6E (2017 onwards) – 45 kW to 60 kW variants
Replaces OEM part numbers including:
- BYD: 1012393500 / 1012393400
- JAC: 3501030U8050
Aftermarket references: Blue Print ADT343198 and Febi 30636
Installation
Professional installation recommended. Always replace brake discs in pairs and bed in new discs correctly for optimal performance and safety.
Pro tip: Replace the front brake pads at the same time as the discs for balanced braking and best long-term results.
Explore More BYD & JAC Parts
After Market Part Numbers
- Blue Print – ADT343198
- Febi – 30636
| Attributes | |
|---|---|
| Brake Disc Thickness | 20 mm |
| Brake Disc Type | internally vented |
| Centre Diameter | 55 mm |
| Height or Thickness | 35 mm |
| Minimum Thickness of Brake Disc | 18 mm |
| No. of Fixing Holes | 1 |
| No. of Wheel Bolt/Stud Holes | 4 |
| Outer Diameter | 247 mm |
| Pitch Circle Diameter | 100 mm |
| Surface | Coated |
| Suitable to replace | Reference(s) |
|---|---|
| BYD | 1012393500 | 1012393400 |
| Citroën | 4249.94 | 16 138 198 80 | 16 306 331 80 | E169256 | 16 188 623 80 | 4246.F0 | 4246.J0 | 4249.54 | 4249.55 |
| Geely (Jili) | 1014030451 | 4048033200 |
| JAC (Jianghuai) | 3501030U8050 |
| Peugeot | 4249.94 | 16 138 198 80 | 16 306 331 80 | E169256 | 16 188 623 80 | 4246.F0 | 4246.J0 | 4249.54 | 4249.55 |
| Toyota | 43512-0H010 | 43512-0H020 | 43512-0H040 | 43512-YZZAJ |
Fits BYD vehicles
| Model | Submodel |
|---|---|
| E1 (BY) 2019 – | (E) – 45 kW / 61 hp |
Fits JAC (Jianghuai) Vehicles
| Model | Submodel |
|---|---|
| iEV6E (HFC) 2017 – | (E) – 45 kW / 61 hp |
| iEV6E (HFC) 2017 – | (E) – 50 kW / 68 hp |
| iEV6E (HFC) 2017 – | (E) – 55 kW / 75 hp |
| iEV6E (HFC) 2017 – | (E) – 60 kW / 82 hp |
BYD E1 & JAC iEV6E Front Brake Disc FAQs
Which models do these front brake discs fit?
Fits BYD E1 (2019 onwards) and JAC iEV6E (2017 onwards). Please provide your vehicle registration number for exact confirmation if needed.
Is this a single disc or a pair?
This is a single disc. Order two discs to replace both sides of the front axle.
Should I replace the pads at the same time?
Yes – it is highly recommended to replace discs and pads together for balanced braking performance and safety.
Do I need a wheel alignment after fitting?
No – brake disc replacement does not normally require a wheel alignment.
Is this an original part or aftermarket?
This is a high-quality aftermarket brake disc that matches original specifications and performance (references include Blue Print ADT343198 and Febi 30636).
