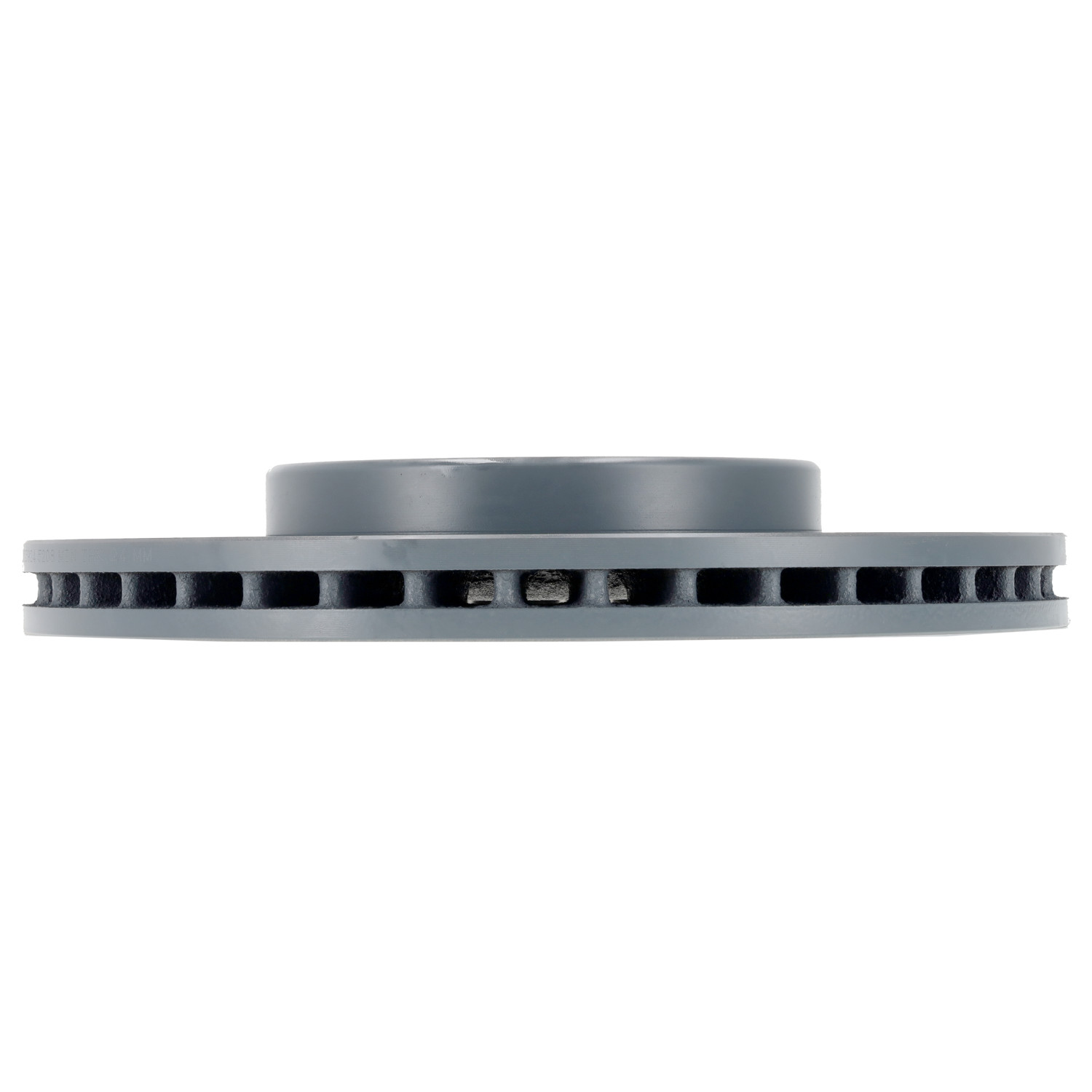

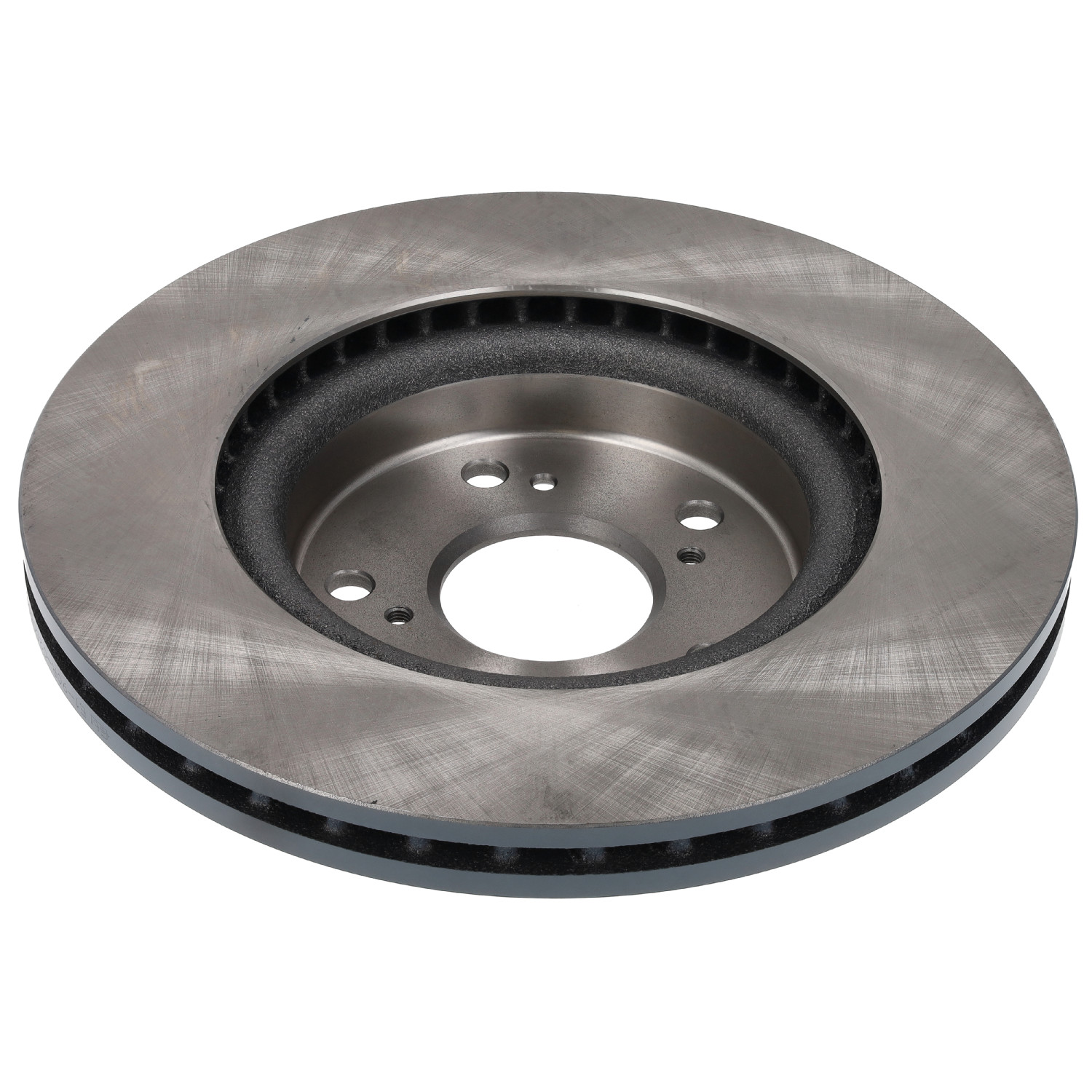

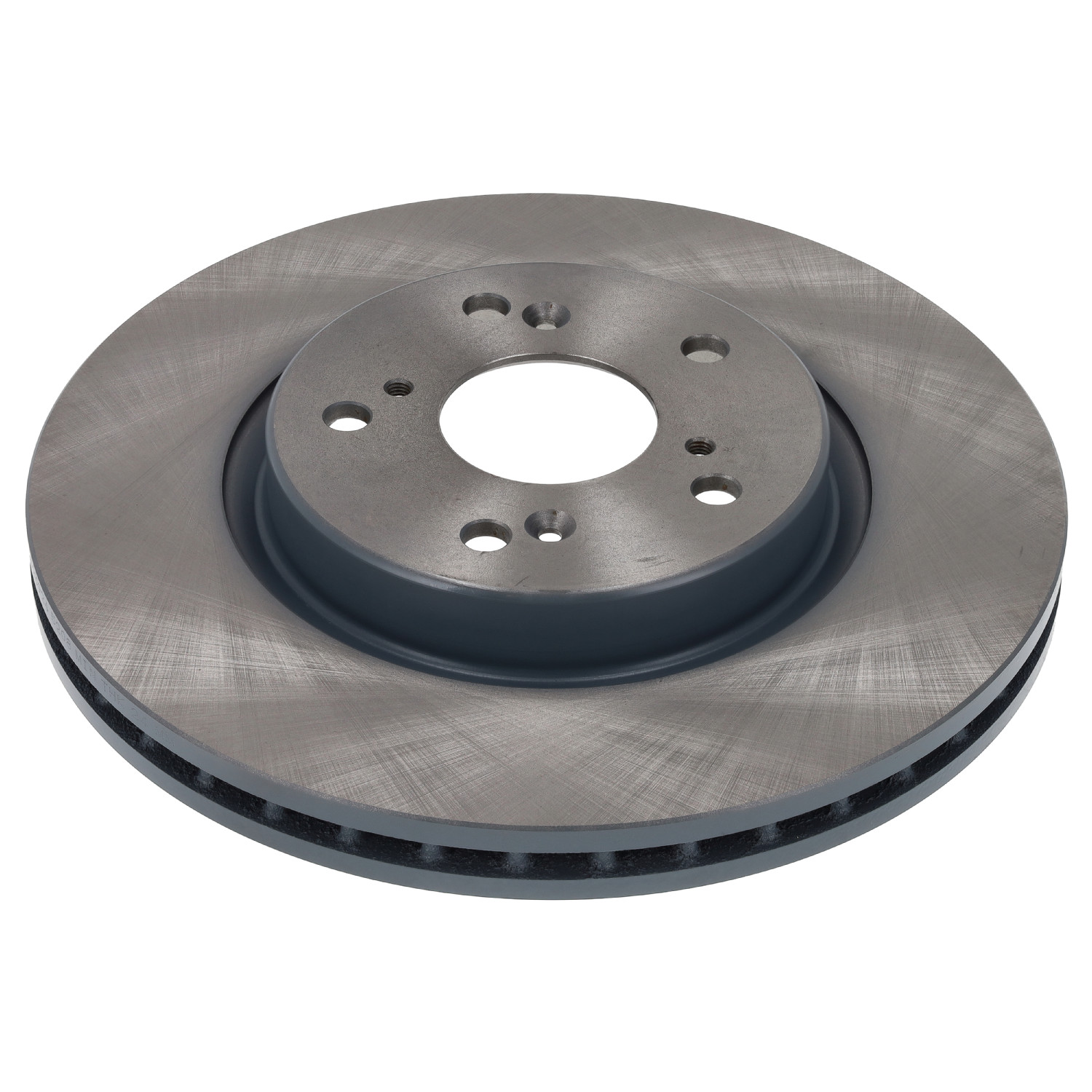

BYD Front Brake Disc – Fits Atto 3, King Yuan, Yuan Pro & Yuan UP
High-quality front brake disc specifically chosen for the BYD Atto 3, King Yuan, Yuan Pro and Yuan UP models. These discs are optimised for the unique demands of regenerative braking found in modern BYD electric vehicles while delivering strong, consistent stopping power on UK roads.
Key Benefits
- Excellent heat dissipation for repeated braking
- Optimised for regenerative braking systems
- Direct fit – no modifications required
- Reduces brake fade under heavy use
- Long service life in UK conditions
Compatibility
- BYD Atto 3 – all variants
- BYD King Yuan – all variants
- BYD Yuan Pro – all variants
- BYD Yuan UP – all variants
Aftermarket Part Numbers
- Febi 198760
- Blue Print ADBP430248
Installation
Standard brake disc replacement. Basic tools required. We recommend replacing brake pads at the same time for best performance.
Pro tip: Pair with our BYD Brake Pads for a complete brake service.
| Attributes | |
|---|---|
| Brake Disc Thickness | 26 mm |
| Brake Disc Type | internally vented |
| Centre Diameter | 62 mm |
| Height or Thickness | 47 mm |
| Minimum Thickness of Brake Disc | 24 mm |
| No. of Fixing Holes | 2 |
| No. of Wheel Bolt/Stud Holes | 5 |
| Outer Diameter | 298 mm |
| Pitch Circle Diameter | 114,3 mm |
| Surface | oiled and coated |
BYD Part Numbers
| Suitable to replace | Reference(s) |
|---|---|
| BYD | 13781672-00 | 13188254-00 | HA2EL-3501111 | HA2EL-3501111A |
Fit BYD Models
| Model | Submodel |
|---|---|
| Atto 3 (BY) 2022 – | (E) – 100 kW / 136 hp |
| Atto 3 (BY) 2022 – | (E) – 150 kW / 204 hp |
| King (BY) 2024 – | 1.5 PHEV 16V – 154 kW / 209 hp |
| King (BY) 2024 – | 1.5 PHEV 16V – 173 kW / 235 hp |
| Yuan (BY) 2016 – | (E) – 120 kW / 163 hp |
| Yuan (BY) 2016 – | (E) – 70 kW / 95 hp |
| Yuan Pro (BY) 2023 – | (E) – 70 kW / 95 hp |
| Yuan Pro (NA) 2021 – | (E) – 100 kW / 136 hp |
| Yuan UP (BY) 2024 – | (E) – 70 kW / 95 hp |
BYD Front Brake Disc FAQs
Which BYD models does this front brake disc fit?
Fits BYD Atto 3, King Yuan, Yuan Pro and Yuan UP models.
Is this disc optimised for regenerative braking?
Yes – it is specifically chosen to work well with BYD’s regenerative braking system while maintaining strong friction braking performance.
Should I replace the brake pads at the same time?
Yes – for best performance and safety we recommend replacing the brake pads together with the discs.
How difficult is it to fit?
Standard brake disc replacement. Basic tools required.
