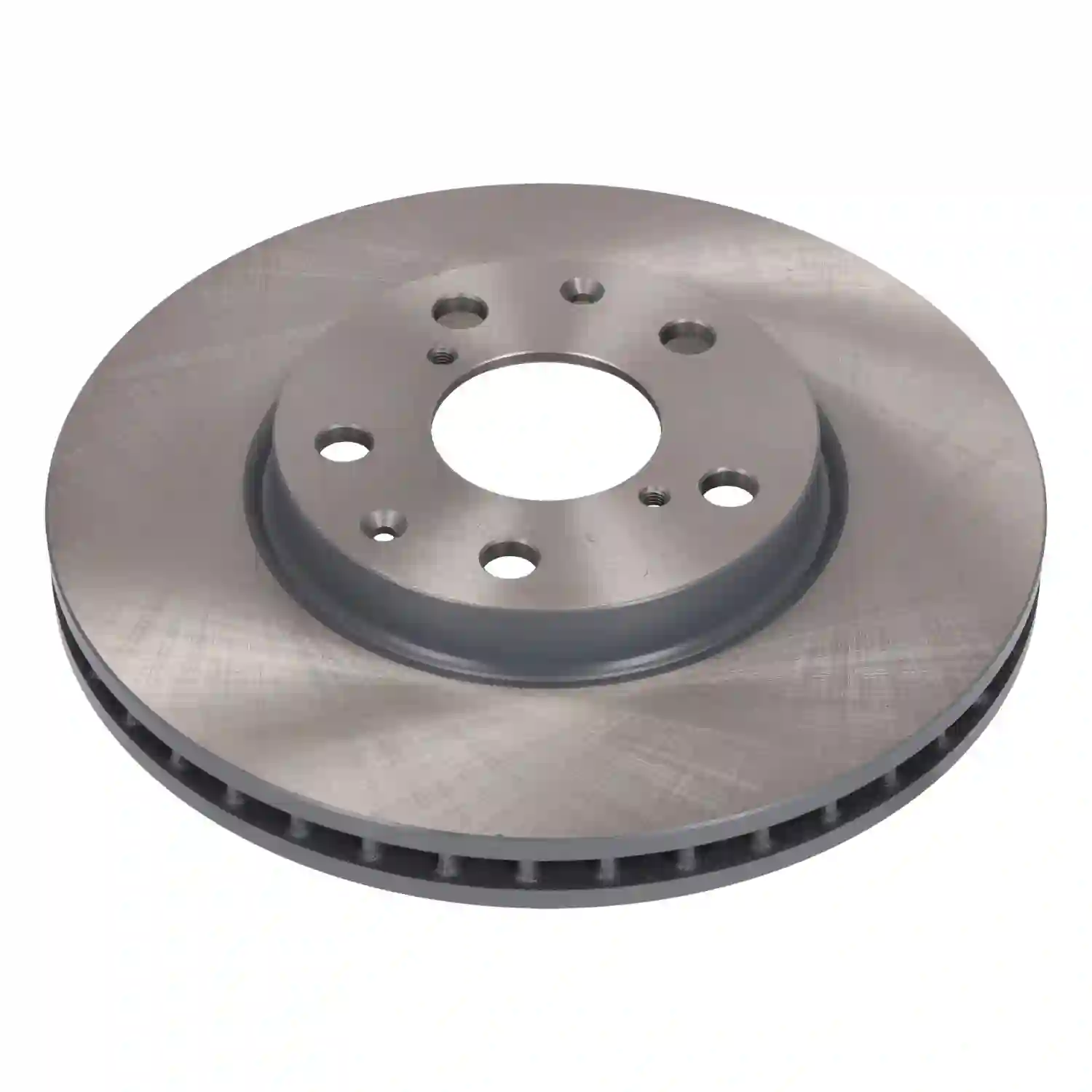

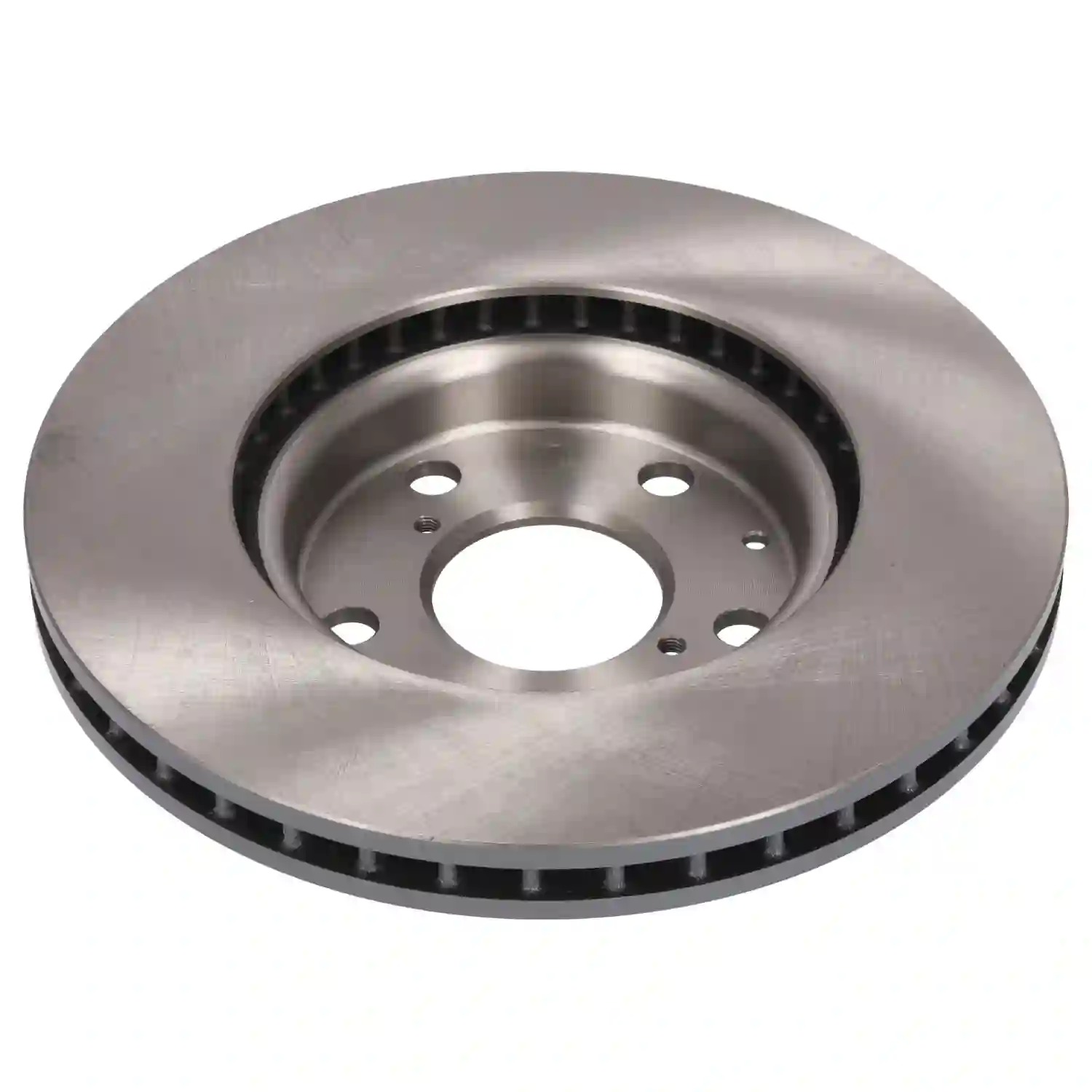

BYD Seal Front Brake Discs – 299mm
These front brake discs are a direct replacement for the BYD Seal. With a 299 mm diameter, internally vented design and coated surface, they deliver strong braking performance, excellent heat dissipation and good corrosion protection — ideal for UK roads and weather conditions.
Key Benefits
- Strong and consistent braking performance
- Internally vented for effective heat dissipation
- Coated surface for corrosion protection
- Direct fit replacement
- High-quality aftermarket construction
Specifications
- Outer Diameter: 299 mm
- Brake Disc Thickness: 28 mm
- Minimum Thickness: 26 mm
- Brake Disc Type: Internally vented
- Surface: Oiled and coated
- Centre Diameter: 68 mm
- Height: 49 mm
Compatibility
Fits BYD Seal models from 2022 onwards, including:
- 100 kW / 136 hp
- 150 kW / 204 hp
- 170 kW / 231 hp
- 230 kW / 313 hp
Replaces BYD OEM part numbers: 14035826-00 and EKEA-3501111S.
Installation
Professional installation recommended. Always replace brake discs in pairs and bed in new discs correctly for optimal performance and safety.
Pro tip: Replace the front brake pads at the same time as the discs for balanced braking and best long-term results.
Explore More BYD Seal Parts
Aftermarket Part Numbers
- Blueprint – ADBP430255
- Febi – 198767
| Attributes | |
|---|---|
| Brake Disc Thickness | 28 mm |
| Brake Disc Type | internally vented |
| Centre Diameter | 68 mm |
| Height or Thickness | 49 mm |
| Minimum Thickness of Brake Disc | 26 mm |
| No. of Fixing Holes | 2 |
| No. of Wheel Bolt/Stud Holes | 5 |
| Outer Diameter | 299 mm |
| Pitch Circle Diameter | 120 mm |
| Surface | oiled and coated |
Replaces the following OEM Part Numbers
| Suitable to replace | Reference(s) |
|---|---|
| BYD | 14035826-00 | EKEA-3501111S | 13582759-00 |
Fits The Following Vehicles
| Model | Submodel |
|---|---|
| Seal (BY) 2022 – | (E) – 100 kW / 136 hp |
| Seal (BY) 2022 – | (E) – 150 kW / 204 hp |
| Seal (BY) 2022 – | (E) – 170 kW / 231 hp |
| Seal (BY) 2022 – | (E) – 230 kW / 313 hp |
BYD Seal Front Brake Discs FAQs
Which BYD Seal models do these front brake discs fit?
Fits BYD Seal from 2022 onwards (all power outputs). Please provide your vehicle registration number for exact confirmation.
Is this a single disc or a pair?
This is a single disc. Order two discs to replace both sides of the front axle.
Should I replace the pads at the same time?
Yes – it is highly recommended to replace discs and pads together for balanced braking performance and safety.
Do I need a wheel alignment after fitting?
No – brake disc replacement does not normally require a wheel alignment.
Is this an original BYD part or aftermarket?
This is a high-quality aftermarket brake disc that matches original specifications and performance.
