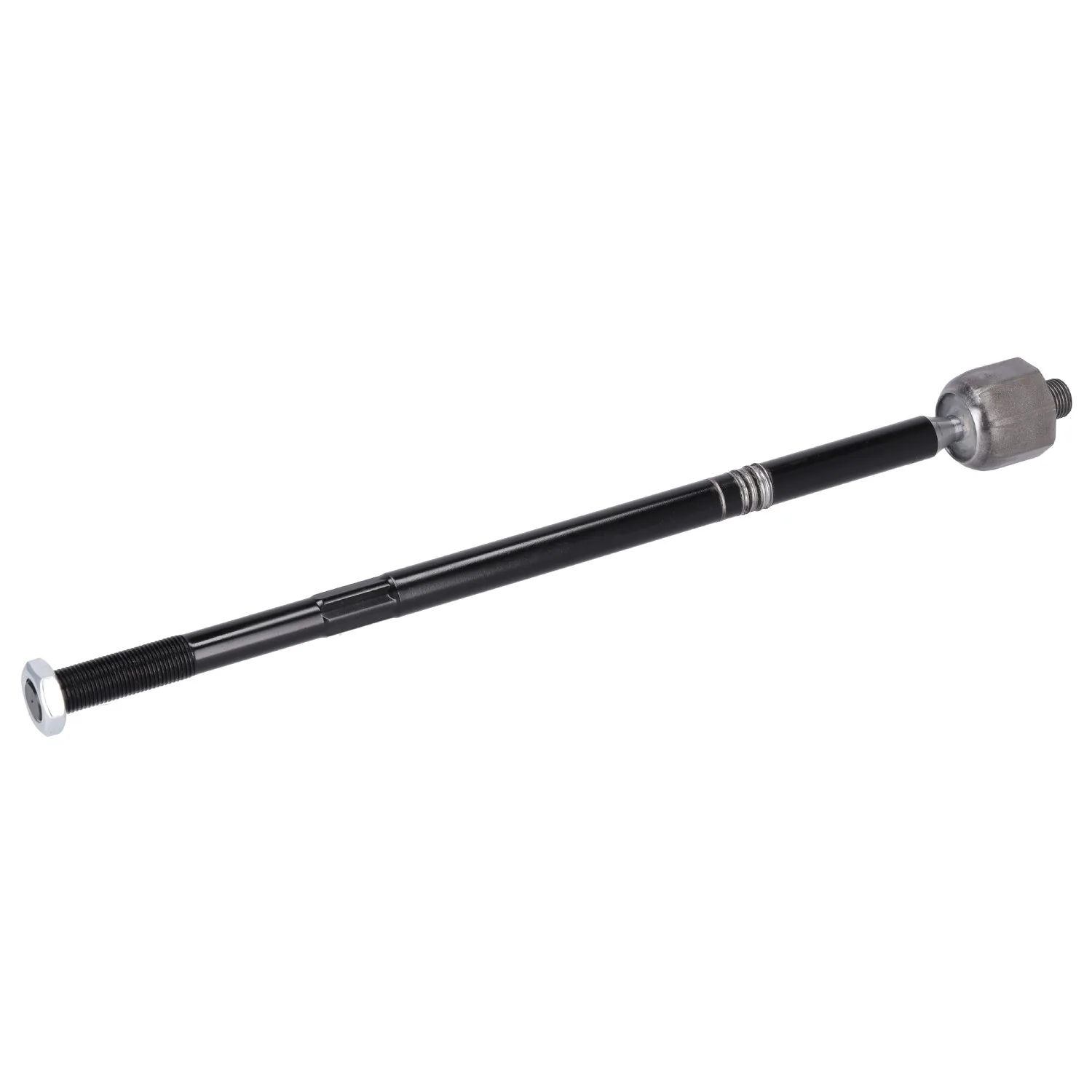

VW ID.4, ID.5, ID.7 & Skoda Enyaq Inner Tie Rod with Nut
This inner tie rod screws into the steering rack and carries the outer track rod end. It fits either side of the front axle on the selected versions listed below.
Inner joints wear more slowly than track rod ends, but a split rack gaiter lets in water and grit and can ruin the joint. The usual signs are a clunk through the steering, vague handling or an MOT advisory for play in the inner joint.
Check the outer track rod end at the same time, as both parts take the same loads.
Key Benefits
- Fits front left or front right
- Listed for UK right-hand-drive ID.7 and Tavascan
- Supplied with a nut
- Replaces 1EA 423 810 C and 1EB 422 807 A
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front Axle Left | Front Axle Right
- Length: 412 mm
- Outer Diameter: 40 mm
- Outside Thread: M16 x 1.5
- Spanner Size: 15 mm / 38 mm
- Supplied with: Nut
- Pack Size: Single
Compatibility
- VW ID.4 109, 125, 128 and 150 kW; ID.4 4motion 195 and 220 kW; ID.5 128 and 150 kW; ID.5 4motion 220 kW; right-hand-drive ID.7 and ID.7 Tourer 210 kW
- Skoda Enyaq iV 109, 132, 150 and 210 kW; Enyaq iV 4×4 195, 210 and 250 kW; Enyaq iV Coupe 132 and 210 kW; Enyaq iV Coupe 4×4 210, 220 and 250 kW; Elroq 50, 60, 85 and 4×4
- Right-hand-drive CUPRA Tavascan 210 kW and Tavascan 4Drive 250 kW; Audi Q4 e-tron and Q4 Sportback e-tron 125 and 150 kW, and quattro 195 and 220 kW
- Ford Capri and Explorer EV 125 and 210 kW, and AWD 250 kW (Special Purpose Vehicle: not for handicapped person’s vehicles)
- Not for the VW ID.3 or CUPRA Born
Replaces Volkswagen Group OE part numbers 1EA 423 810 C, 1EB 422 807 A. Also cross-references Ford 2 720 966.
Installation
Professional installation recommended for best results. Fit a new rack gaiter if the old one is damaged, and have the wheel alignment checked afterwards. After replacement, the optical driver assistance systems (cameras, radar, etc.) may need to be recalibrated. Please observe the manufacturer’s instructions.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front Axle Left | Front Axle Right |
| Length | 412 mm |
| Outer Diameter | 40 mm |
| Outside Thread | M16 x 1.5 |
| Spanner Size | 15 mm / 38 mm |
| Supplied with | Nut |
| Pack Size | Single |
| Suitable to replace | Reference(s) |
|---|---|
| Audi | 1EA 423 810 C | 1EB 422 807 A |
| CUPRA | 1EA 423 810 C | 1EB 422 807 A |
| Ford | 2 720 966 | VWR2KA-3280-AA |
| Skoda | 1EA 423 810 C |
| VW | 1EA 423 810 C | 1EB 422 807 A |
Fits The Following Audi Models
| Model | Submodel |
|---|---|
| Q4 e-tron (F4) 2021 – | (E) – 150 kW / 204 hp |
| Q4 e-tron (F4) 2021 – | (E) – 125 kW / 170 hp |
| Q4 e-tron (F4) quattro 2021 – | (E) – 195 kW / 265 hp |
| Q4 e-tron (F4) quattro 2021 – | (E) – 220 kW / 299 hp |
| Q4 e-tron (F4) Sportback 2021 – | (E) – 150 kW / 204 hp |
| Q4 e-tron (F4) Sportback 2021 – | (E) – 125 kW / 170 hp |
| Q4 e-tron (F4) Sportback quattro 2021 – | (E) – 195 kW / 265 hp |
| Q4 e-tron (F4) Sportback quattro 2021 – | (E) – 220 kW / 299 hp |
Fits The Following CUPRA Models
| Model | Submodel |
|---|---|
| Tavascan (KR) 2024 – Suitable for engine code: EDFA For right-hand drive vehicles |
(E) – 210 kW / 286 hp |
| Tavascan 4Drive (KR) 2024 – Suitable for engine code: EDDA, EDFA For right-hand drive vehicles |
(E) – 250 kW / 340 hp |
Fits The Following Ford Models
| Model | Submodel |
|---|---|
| Capri (24) 2024 – Special Purpose Vehicle: not for handicapped person’s vehicles |
(E) – 125 kW / 170 hp |
| Capri (24) 2024 – Special Purpose Vehicle: not for handicapped person’s vehicles |
(E) – 210 kW / 286 hp |
| Capri AWD (24) 2024 – Special Purpose Vehicle: not for handicapped person’s vehicles |
(E) – 250 kW / 340 hp |
| Explorer EV (24) 2023 – Special Purpose Vehicle: not for handicapped person’s vehicles |
(E) – 125 kW / 170 hp |
| Explorer EV (24) 2023 – Special Purpose Vehicle: not for handicapped person’s vehicles |
(E) – 210 kW / 286 hp |
| Explorer EV AWD (24) 2023 – Special Purpose Vehicle: not for handicapped person’s vehicles |
(E) – 250 kW / 340 hp |
Fits The Following Skoda Models
| Model | Submodel |
|---|---|
| Elroq 4×4 2025 – | (E) – 250 kW / 340 hp |
| Elroq 50 2024 – | (E) – 125 kW / 170 hp |
| Elroq 60 2024 – | (E) – 150 kW / 204 hp |
| Elroq 85 2024 – | (E) – 210 kW / 286 hp |
| Enyaq iV 4×4 2021 – | (E) – 195 kW / 265 hp |
| Enyaq iV 4×4 2021 – | (E) – 210 kW / 286 hp |
| Enyaq iV 4×4 2021 – | (E) – 250 kW / 340 hp |
| Enyaq iV 2020 – | (E) – 109 kW / 148 hp |
| Enyaq iV 2020 – | (E) – 132 kW / 179 hp |
| Enyaq iV 2020 – Suitable for engine code: EBJA, EBJC |
(E) – 150 kW / 204 hp |
| Enyaq iV 2020 – | (E) – 210 kW / 286 hp |
| Enyaq iV Coupe 4×4 2021 – | (E) – 210 kW / 286 hp |
| Enyaq iV Coupe 4×4 2021 – | (E) – 220 kW / 299 hp |
| Enyaq iV Coupe 4×4 2021 – | (E) – 250 kW / 340 hp |
| Enyaq iV Coupe 2021 – | (E) – 132 kW / 179 hp |
| Enyaq iV Coupe 2021 – | (E) – 210 kW / 286 hp |
Fits The Following Volkswagen Models
| Model | Submodel |
|---|---|
| ID.4 (E2) 2020 – | (E) – 128 kW / 174 hp |
| ID.4 (E2) 2020 – Suitable for engine code: EBJA |
(E) – 125 kW / 170 hp |
| ID.4 (E2) 2020 – | (E) – 109 kW / 148 hp |
| ID.4 (E2) 2020 – | (E) – 150 kW / 204 hp |
| ID.4 4motion (E2) 2021 – | (E) – 195 kW / 265 hp |
| ID.4 4motion (E2) 2021 – Suitable for engine code: EBJA |
(E) – 220 kW / 299 hp |
| ID.5 (E3) 2021 – | (E) – 128 kW / 174 hp |
| ID.5 (E3) 2021 – | (E) – 150 kW / 204 hp |
| ID.5 4motion (E3) 2021 – Suitable for engine code: EBJA |
(E) – 220 kW / 299 hp |
| ID.7 (ED) 2023 – Suitable for engine code: EDFA For right-hand drive vehicles |
(E) – 210 kW / 286 hp |
| ID.7 Tourer (ED) 2024 – Suitable for engine code: EDFA For right-hand drive vehicles |
(E) – 210 kW / 286 hp |
VW ID.4, ID.5, ID.7 & Skoda Enyaq Inner Tie Rod with Nut FAQs
Does it fit the VW ID.3?
No. The ID.3 and CUPRA Born are not listed for this part. It is listed for the ID.4, ID.5, ID.7, Enyaq, Elroq, Tavascan, Q4 e-tron, Capri and Explorer EV.
Is it suitable for UK cars?
Yes. It is listed for UK right-hand-drive ID.7 and Tavascan models, and for the other models shown with no drive-side limit.
Which part numbers does it replace?
It replaces 1EA 423 810 C and 1EB 422 807 A, and Ford 2 720 966.
Will I need a wheel alignment?
Yes. Always have the front alignment checked after replacing steering joints.
Will the driver assistance cameras or radar need recalibrating?
They may. After replacement, the optical driver assistance systems (cameras, radar, etc.) may need to be recalibrated. Please observe the manufacturer’s instructions.
