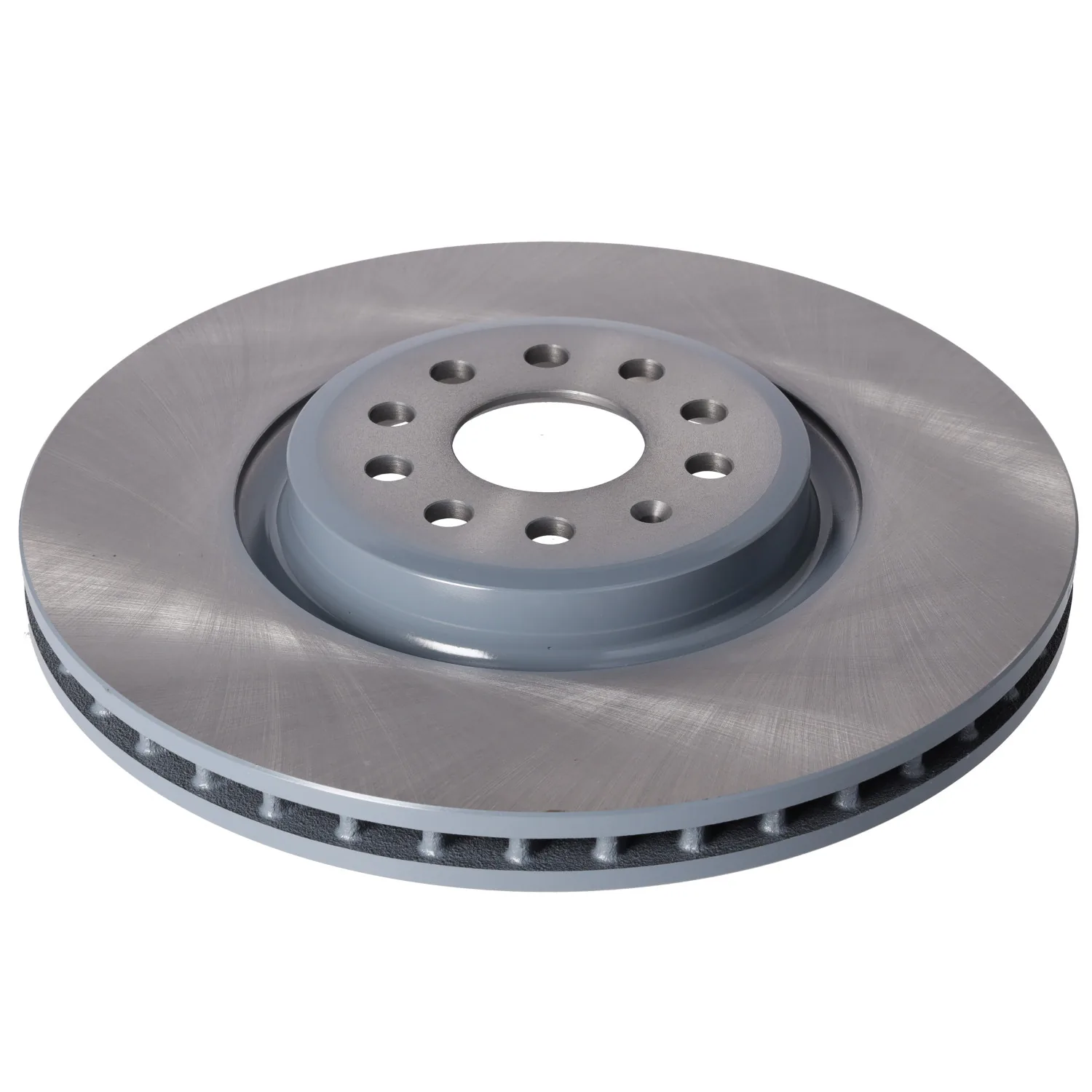

VW ID.4, ID.5, ID. Buzz, Skoda Enyaq & Audi Q4 e-tron Front Brake Discs – 358 mm
These 358 mm front brake discs are direct replacements for the original discs on Volkswagen Group electric cars with the larger front brake package. They are internally vented to shed heat quickly and arrive with a protective coating.
These models were built with more than one front disc size, so it pays to check before ordering. The 358 mm disc goes with brake PR code 1LC or 1LN. Many ID.4, ID.5, Enyaq and Q4 e-tron cars have the 340 mm disc instead, which we list as a separate product. To check your size, measure across the face of your current front disc, look for the part number on the old disc or its box, or find the brake PR code on the vehicle data sticker in the service book or under the boot floor: PR 1LA is 330 mm, PR 1LB or 1LF is 340 mm and PR 1LC or 1LN is 358 mm.
A 358 mm disc is 30 mm thick when new and should be replaced at 28.5 mm. It is not listed for the ID.3, ID.7 or CUPRA Born.
Key Benefits
- Priced per disc, sold in pairs for one axle
- 358 mm x 30 mm, brake PR code 1LC or 1LN

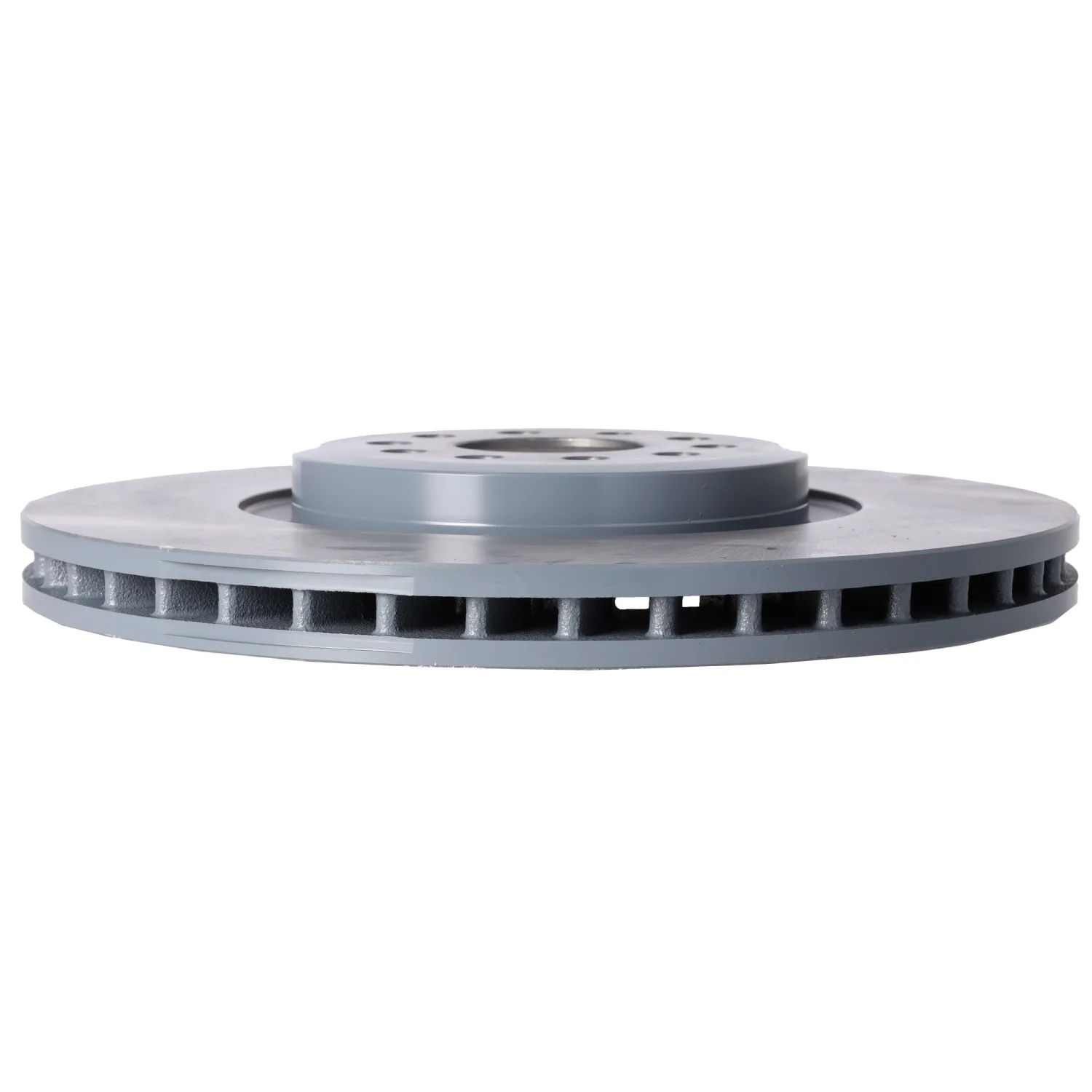

- Internally vented for consistent cooling
- Coated finish to resist corrosion
- Choice of Febi or Blue Print
Specifications
- Fitting Position: Front Axle
- Outer Diameter: 358 mm
- Disc Thickness: 30 mm
- Minimum Thickness: 28.5 mm
- Brake Disc Type: Internally vented
- Pitch Circle Diameter: 112 mm (5 studs)
- Centre Diameter: 65 mm
- Surface: Coated
- Sold As: Priced per disc, sold in pairs
Compatibility
- VW ID.4, ID.4 4motion, ID.5 and ID.5 4motion
- VW ID. Buzz and ID. Buzz 4motion
- Skoda Enyaq 150 kW, Enyaq Coupe and Enyaq Coupe 4×4
- Audi Q4 e-tron and Q4 Sportback e-tron, including quattro
Replaces Volkswagen Group OE part number 1EA 615 301 B. Also cross-references Ford 2 721 020.
Installation
Professional installation recommended for best results. Always fit new brake pads with new discs and bed them in gently over the first few miles.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front Axle |
| Outer Diameter | 358 mm |
| Disc Thickness | 30 mm |
| Minimum Thickness | 28.5 mm |
| Brake Disc Type | Internally vented |
| Pitch Circle Diameter | 112 mm (5 studs) |
| Centre Diameter | 65 mm |
| Surface | Coated |
| Sold As | Priced per disc, sold in pairs |
| Suitable to replace | Reference(s) |
|---|---|
| Audi | 1EA 615 301 B |
| Ford | 2 721 020 | VWR2KA-1125-BA |
| Skoda | 1EA 615 301 B |
| VW | 1EA 615 301 B |
Fits The Following Audi Models
| Model | Submodel |
|---|---|
| Q4 Sportback e-tron (F4) 2021 – Brake PR code: 1LC |
(E) – 125 kW / 170 hp |
| Q4 Sportback e-tron (F4) 2021 – Brake PR code: 1LC |
(E) – 150 kW / 204 hp |
| Q4 Sportback e-tron quattro (F4) 2021 – Brake PR code: 1LC |
(E) – 195 kW / 265 hp |
| Q4 Sportback e-tron quattro (F4) 2021 – Brake PR code: 1LC |
(E) – 210 kW / 286 hp |
| Q4 Sportback e-tron quattro (F4) 2021 – Brake PR code: 1LC |
(E) – 220 kW / 299 hp |
| Q4 Sportback e-tron quattro (F4) 2021 – Brake PR code: 1LC |
(E) – 250 kW / 340 hp |
| Q4 e-tron (F4) 2021 – Brake PR code: 1LC |
(E) – 125 kW / 170 hp |
| Q4 e-tron (F4) 2021 – Brake PR code: 1LC |
(E) – 150 kW / 204 hp |
| Q4 e-tron (F4) 2021 – Brake PR code: 1LC |
(E) – 210 kW / 286 hp |
| Q4 e-tron quattro (F4) 2021 – Brake PR code: 1LC |
(E) – 195 kW / 265 hp |
| Q4 e-tron quattro (F4) 2021 – Brake PR code: 1LC |
(E) – 210 kW / 286 hp |
| Q4 e-tron quattro (F4) 2021 – Brake PR code: 1LC |
(E) – 220 kW / 299 hp |
| Q4 e-tron quattro (F4) 2021 – Brake PR code: 1LC |
(E) – 250 kW / 340 hp |
Fits The Following Skoda Models
| Model | Submodel |
|---|---|
| Enyaq iV 2020 – Suitable for engine code: EBJA Brake PR code: 1LC |
(E) – 150 kW / 204 hp |
| Enyaq iV Coupe 2021 – Brake PR code: 1LC |
(E) – 132 kW / 179 hp |
| Enyaq iV Coupe 2021 – Brake PR code: 1LC |
(E) – 210 kW / 286 hp |
| Enyaq iV Coupe 4×4 2021 – Brake PR code: 1LC |
(E) – 195 kW / 265 hp |
| Enyaq iV Coupe 4×4 2021 – Brake PR code: 1LC |
(E) – 210 kW / 286 hp |
| Enyaq iV Coupe 4×4 2021 – Brake PR code: 1LC |
(E) – 220 kW / 299 hp |
| Enyaq iV Coupe 4×4 2021 – Brake PR code: 1LC |
(E) – 250 kW / 340 hp |
Fits The Following Volkswagen Models
| Model | Submodel |
|---|---|
| ID. Buzz (EB) 2022 – | (E) – 125 kW / 170 hp |
| ID. Buzz (EB) 2022 – | (E) – 150 kW / 204 hp |
| ID. Buzz (EB) 2022 – | (E) – 210 kW / 286 hp |
| ID. Buzz 4motion (EB) 2024 – 2026 Suitable for engine code: ECNA, EDDA |
(E) – 250 kW / 340 hp |
| ID.4 (E2) 2020 – Brake PR code: 1LC or 1LN |
(E) – 109 kW / 148 hp |
| ID.4 (E2) 2020 – Brake PR code: 1LC or 1LN |
(E) – 125 kW / 170 hp |
| ID.4 (E2) 2020 – Brake PR code: 1LC or 1LN |
(E) – 128 kW / 174 hp |
| ID.4 (E2) 2020 – Brake PR code: 1LC or 1LN |
(E) – 150 kW / 204 hp |
| ID.4 (E2) 2020 – Brake PR code: 1LC or 1LN |
(E) – 210 kW / 286 hp |
| ID.4 4motion (E2) 2021 – Brake PR code: 1LC or 1LN |
(E) – 195 kW / 265 hp |
| ID.4 4motion (E2) 2021 – Brake PR code: 1LC or 1LN |
(E) – 210 kW / 286 hp |
| ID.4 4motion (E2) 2021 – Suitable for engine code: EBJA Brake PR code: 1LC or 1LN |
(E) – 220 kW / 299 hp |
| ID.4 4motion (E2) 2021 – Brake PR code: 1LC or 1LN |
(E) – 250 kW / 340 hp |
| ID.5 (E3) 2021 – Brake PR code: 1LC or 1LN |
(E) – 125 kW / 170 hp |
| ID.5 (E3) 2021 – Brake PR code: 1LC or 1LN |
(E) – 128 kW / 174 hp |
| ID.5 (E3) 2021 – Brake PR code: 1LC or 1LN |
(E) – 150 kW / 204 hp |
| ID.5 (E3) 2021 – Brake PR code: 1LC or 1LN |
(E) – 210 kW / 286 hp |
| ID.5 4motion (E3) 2021 – Suitable for engine code: EBJA, EBRA Brake PR code: 1LC or 1LN |
(E) – 220 kW / 299 hp |
| ID.5 4motion (E3) 2021 – Brake PR code: 1LC or 1LN |
(E) – 250 kW / 340 hp |
VW ID.4, ID.5, ID. Buzz, Skoda Enyaq & Audi Q4 e-tron Front Brake Discs – 358 mm FAQs
How do I know if my car has 358 mm discs?
Measure your current disc, check the part number on it, or look for brake PR code 1LC or 1LN on the vehicle data sticker in the service book or under the boot floor. The 358 mm disc carries OE number 1EA 615 301 B.
Is the price for one disc or a pair?
The price shown is for one disc. Discs are sold in pairs, so the quantity starts at 2 and goes up in 2s. Order 2 to cover both sides of the front axle.
My ID.4 is listed for two sizes. Which do I need?
Some ID.4, ID.5, Enyaq and Q4 e-tron versions were built with either 340 mm or 358 mm discs. Measuring your old disc or checking its part number tells you which one you have.
Which pads do I need with these discs?
Use the front brake pads for 358 mm discs, OE 1EA 698 151 C. Pads for the 330 mm and 340 mm discs will not fit.
What is the difference between Febi and Blue Print?
Both are bilstein group brands made to the same OE specification. Choose whichever you prefer.
Why do EV brake discs corrode?
Regenerative braking means the discs are used less, so rust and deposits can build up. Using the brakes firmly from time to time helps keep them clean.
